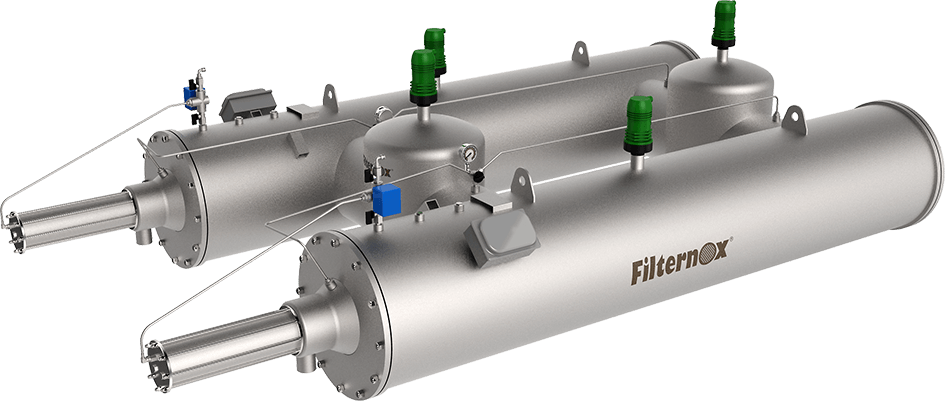

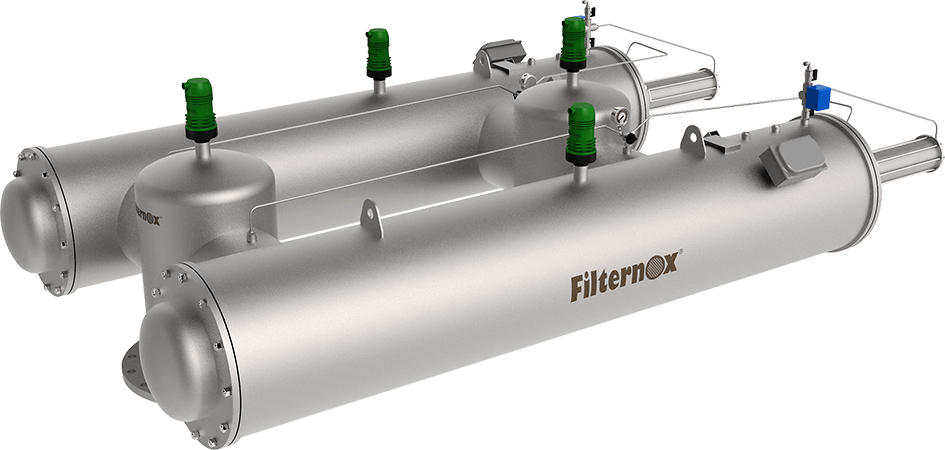

Filternox® PTW models have two independent fine screen modules for one inlet-outlet and includes a protective coarse screen which is cleaned manually. These models provide larger filtration area compared to PFH models and are suitable for filtration of water with high amounts of particles.
|Body Material||Max. Operating Temperature||Back-Flush Water Consumption|
|AISI 304L, AISI 316L||60°C / 90°C||150 – 800 l / back-flush|
|Screen Material||Headloss at Max. Flow Rate||Fine Screen Range|
|AISI 316L||0.2 bar||10 – 3000 micron|
|Max. Operating Pressure||Back-Flush Time||Control System|
|10 bar (16-25 bar optional)||20 – 30 s||Electric|
|Min. Inlet Pressure Required During Back-Flush||rpm of Cleaning Mechanism|
For different pressure and material requirements, please contact us.
