ACF-W-MR
Filternox® ACF-W-MR, equipped with a brush cleaning system, provides a simple and efficient solution for prefiltration and fine filtration requirements. ACF-W-MR filters are suitable for use in a wide variety of liquid filtration applications.
Product Description
Filternox® ACF-W-MR, equipped with a brush cleaning system, provides a simple and efficient solution for prefiltration and fine filtration requirements. ACF-W-MR filters are suitable for use in a wide variety of liquid filtration applications. ACF-W-MR models have the flexibility to be mounted directly on the pipeline, either horizontally or vertically, as well as online or inline; providing high capacity filtration with minimum footprint.

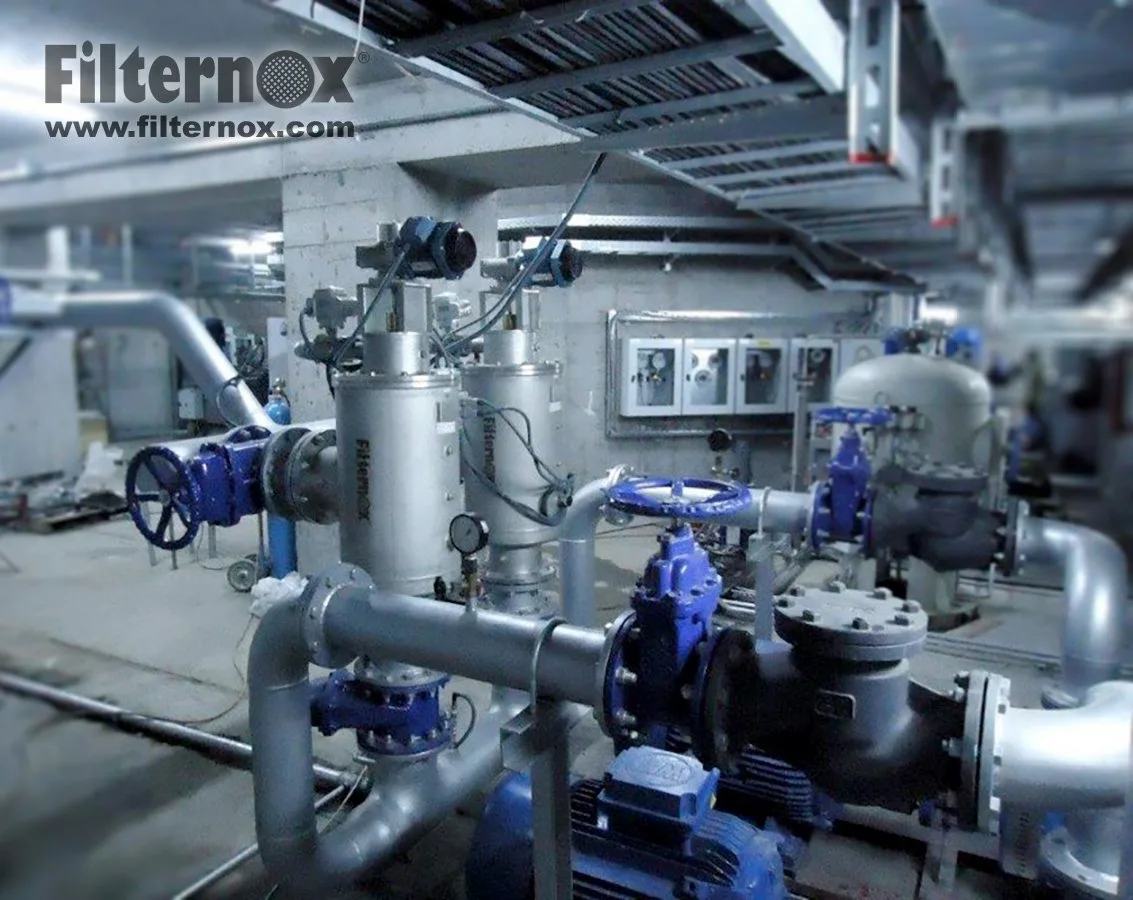

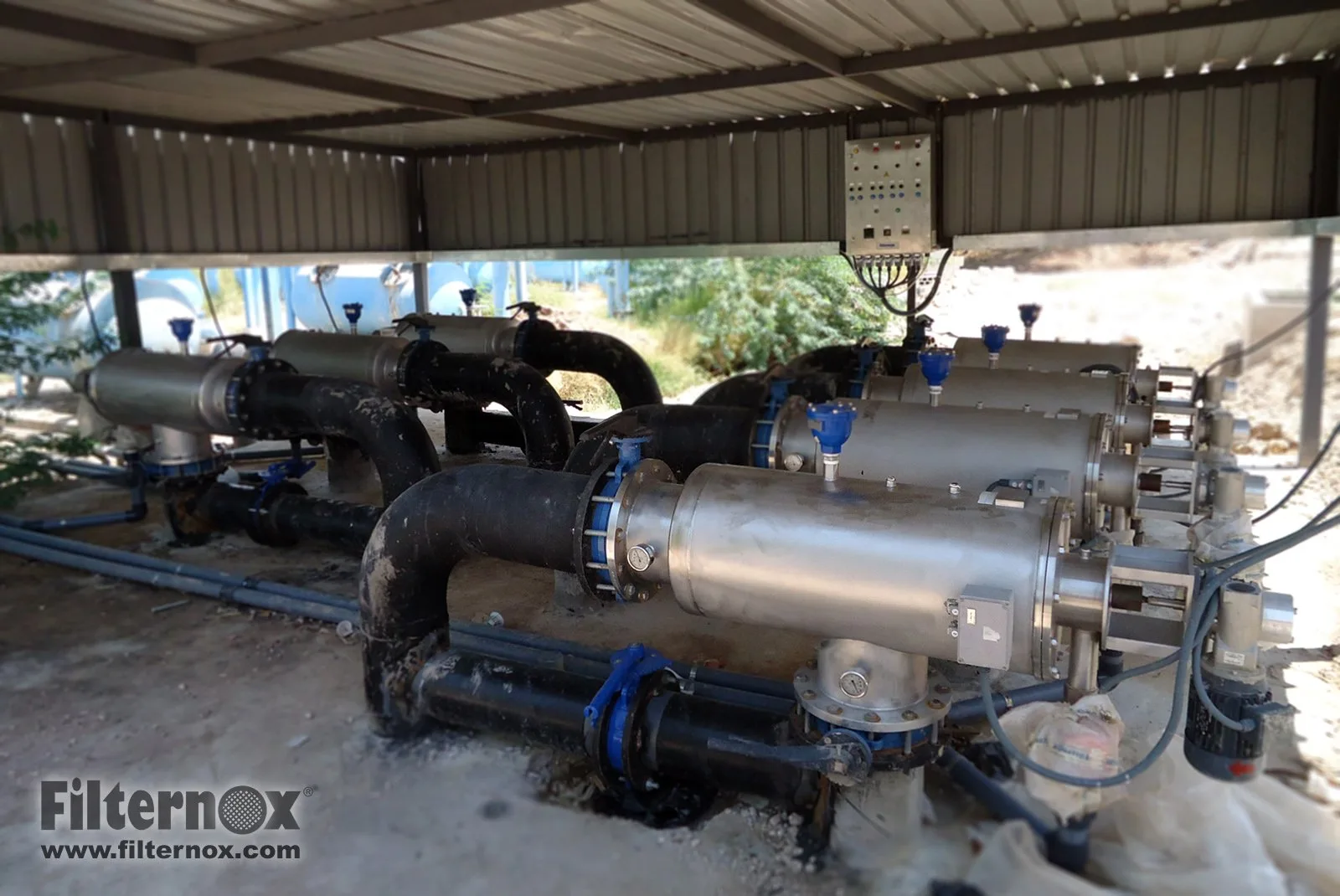

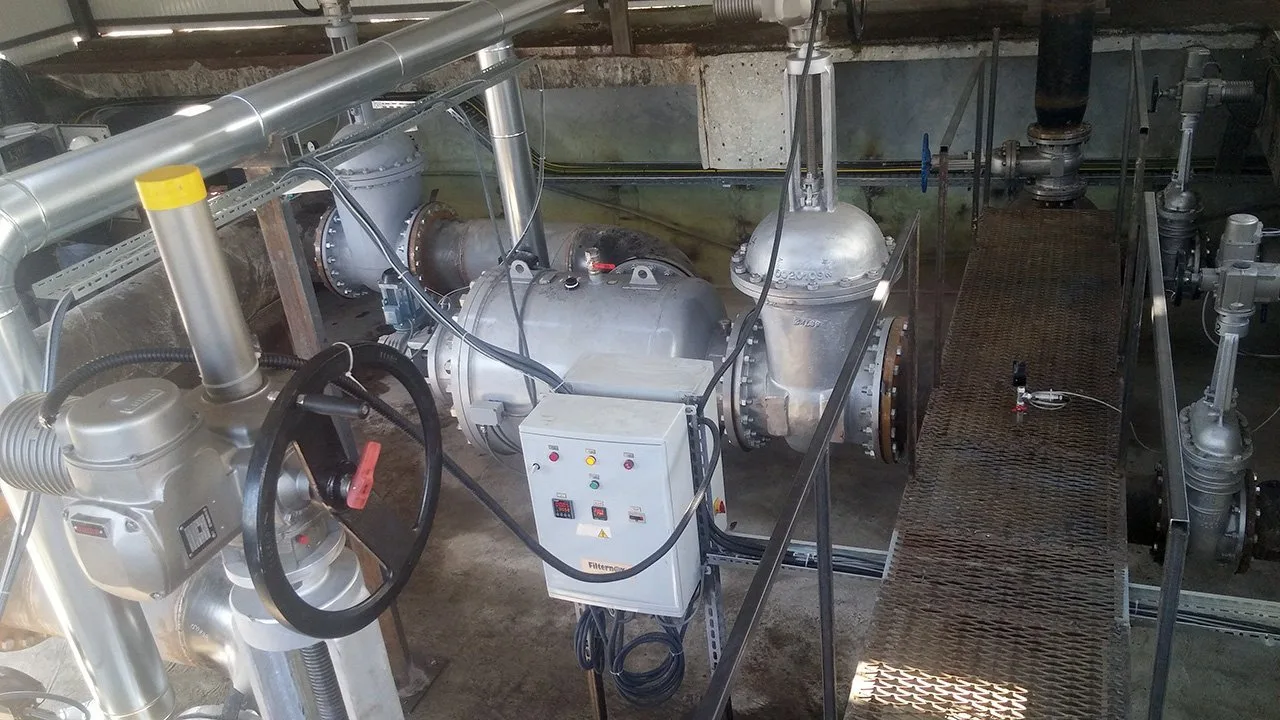

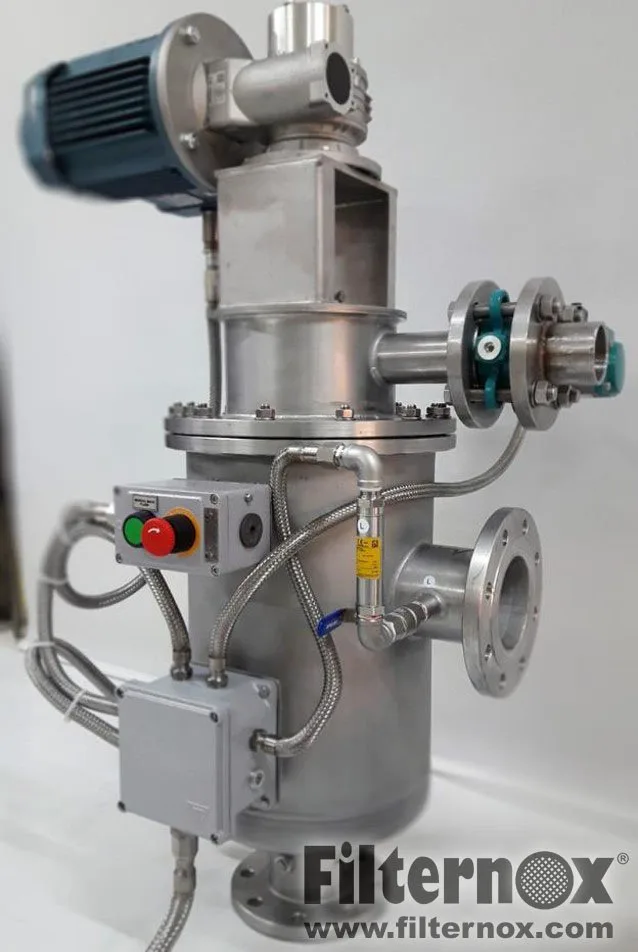

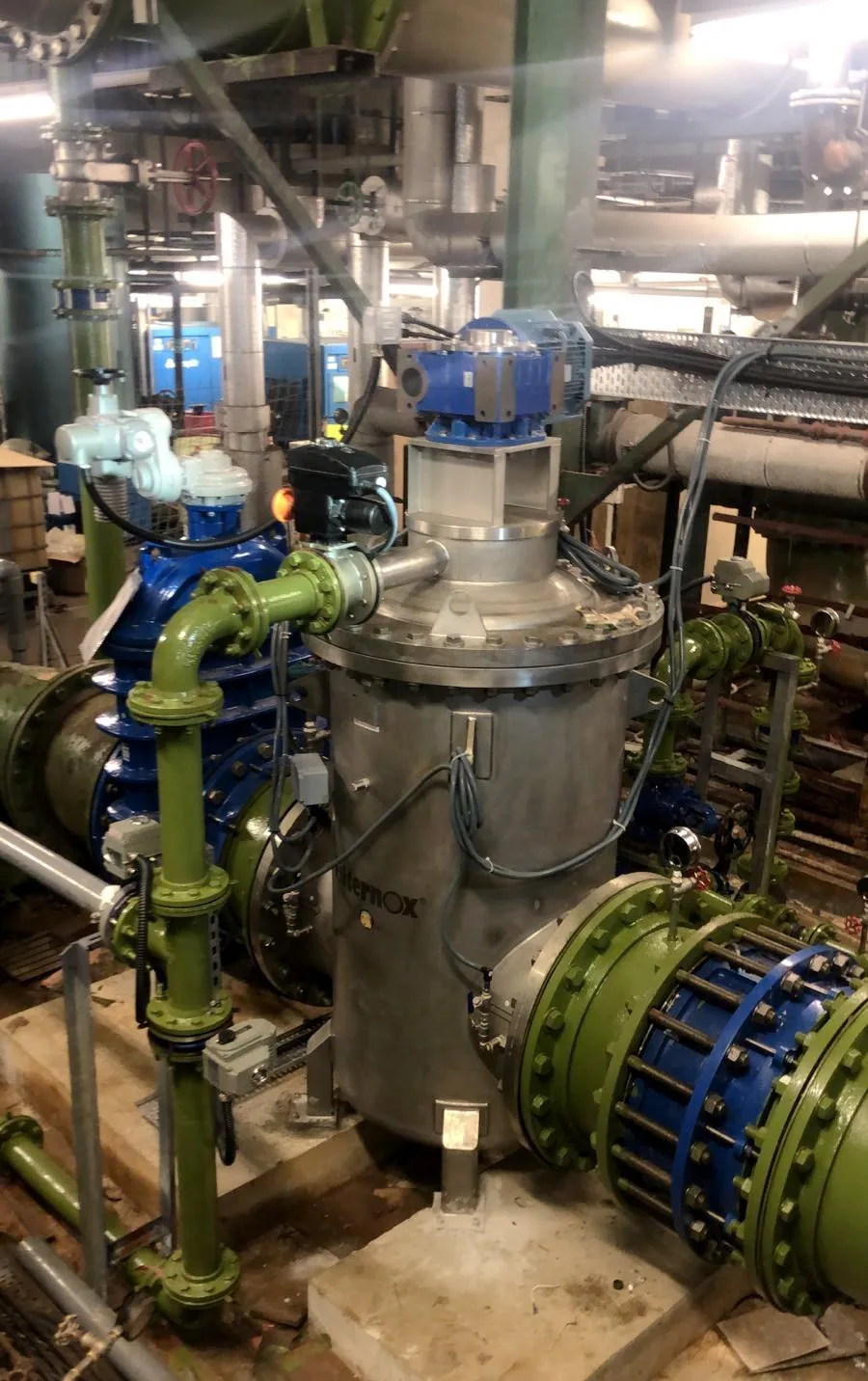

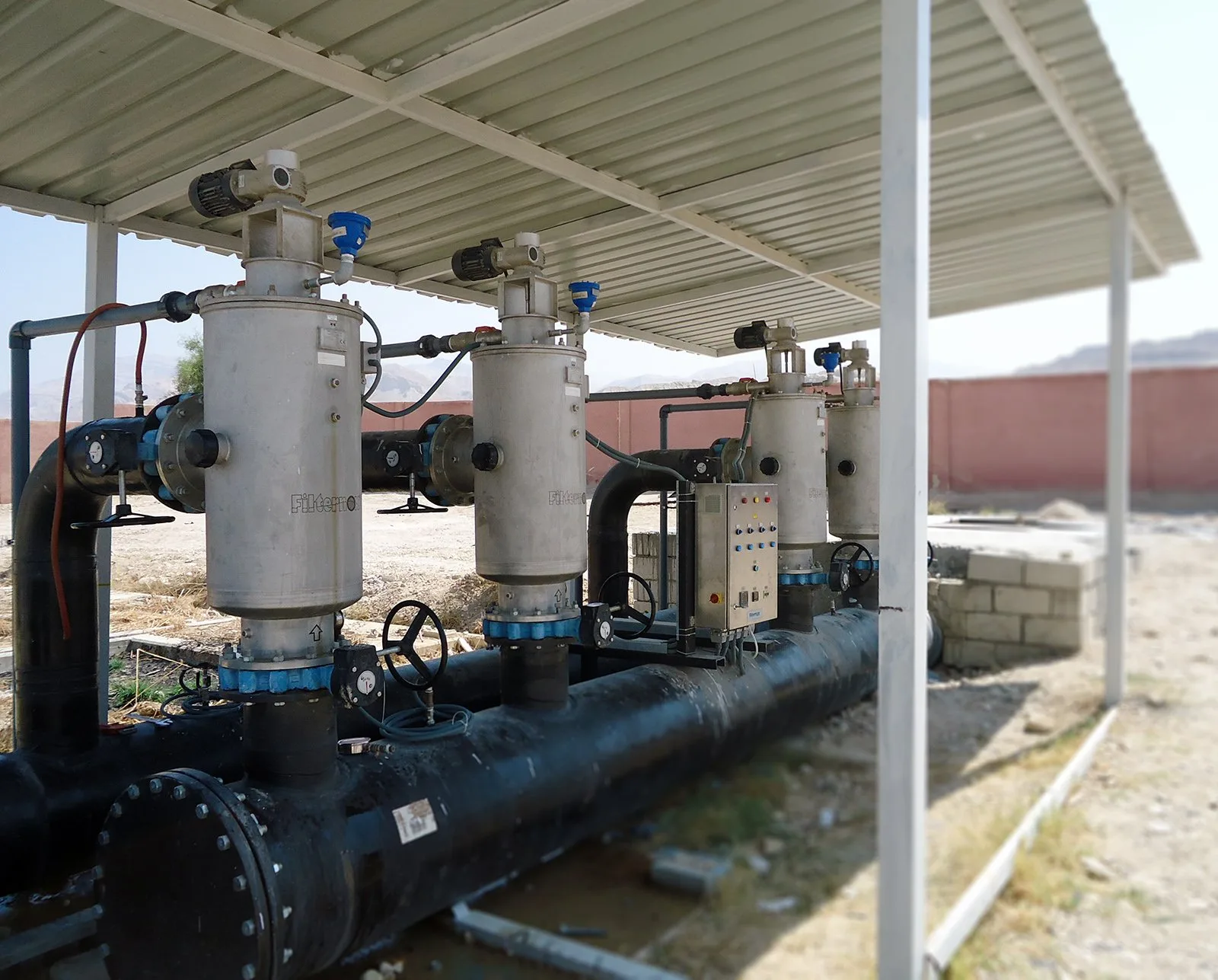

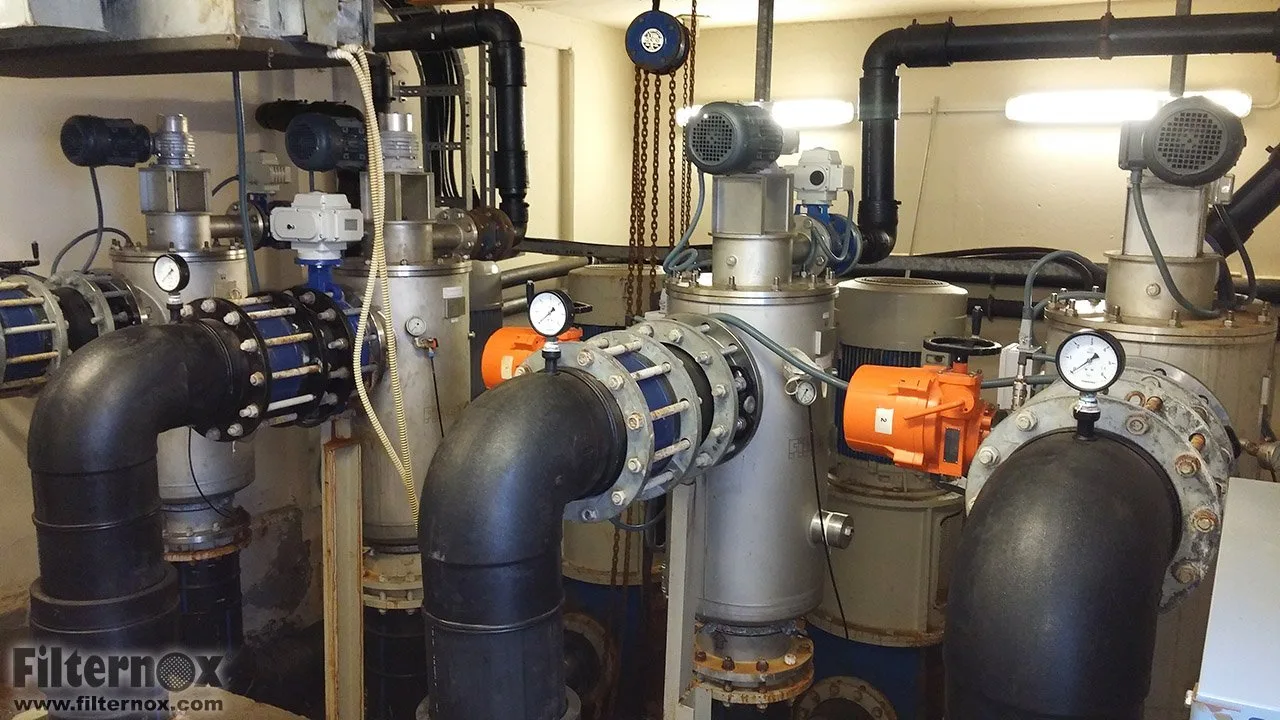

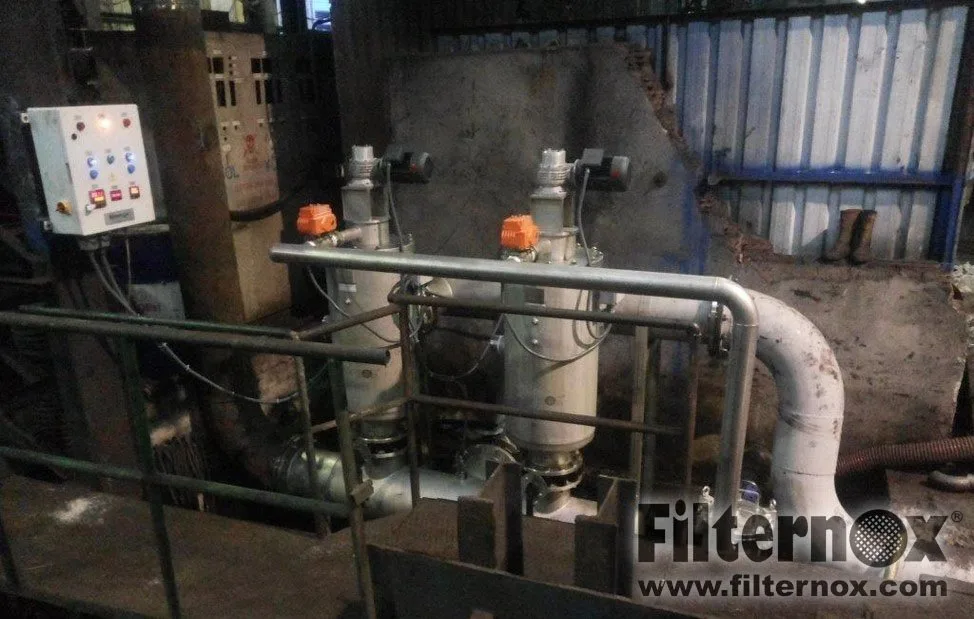

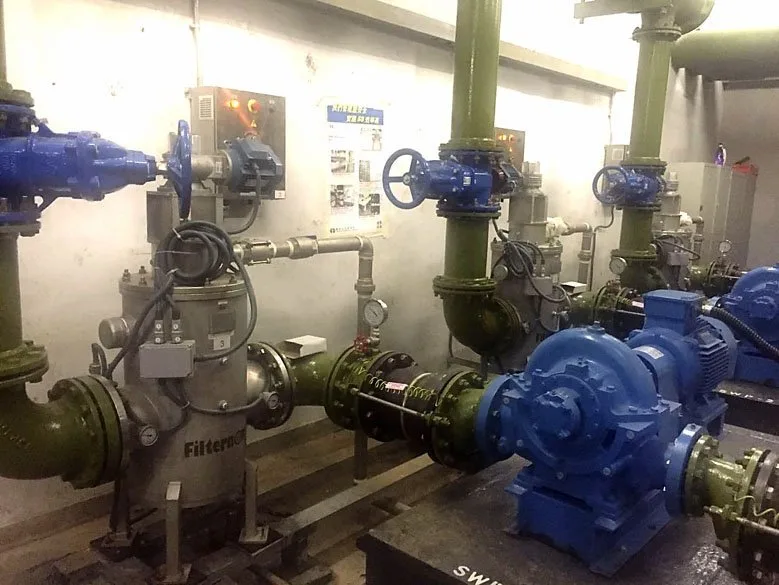

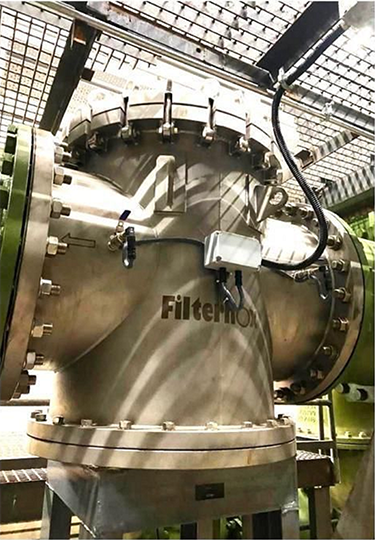

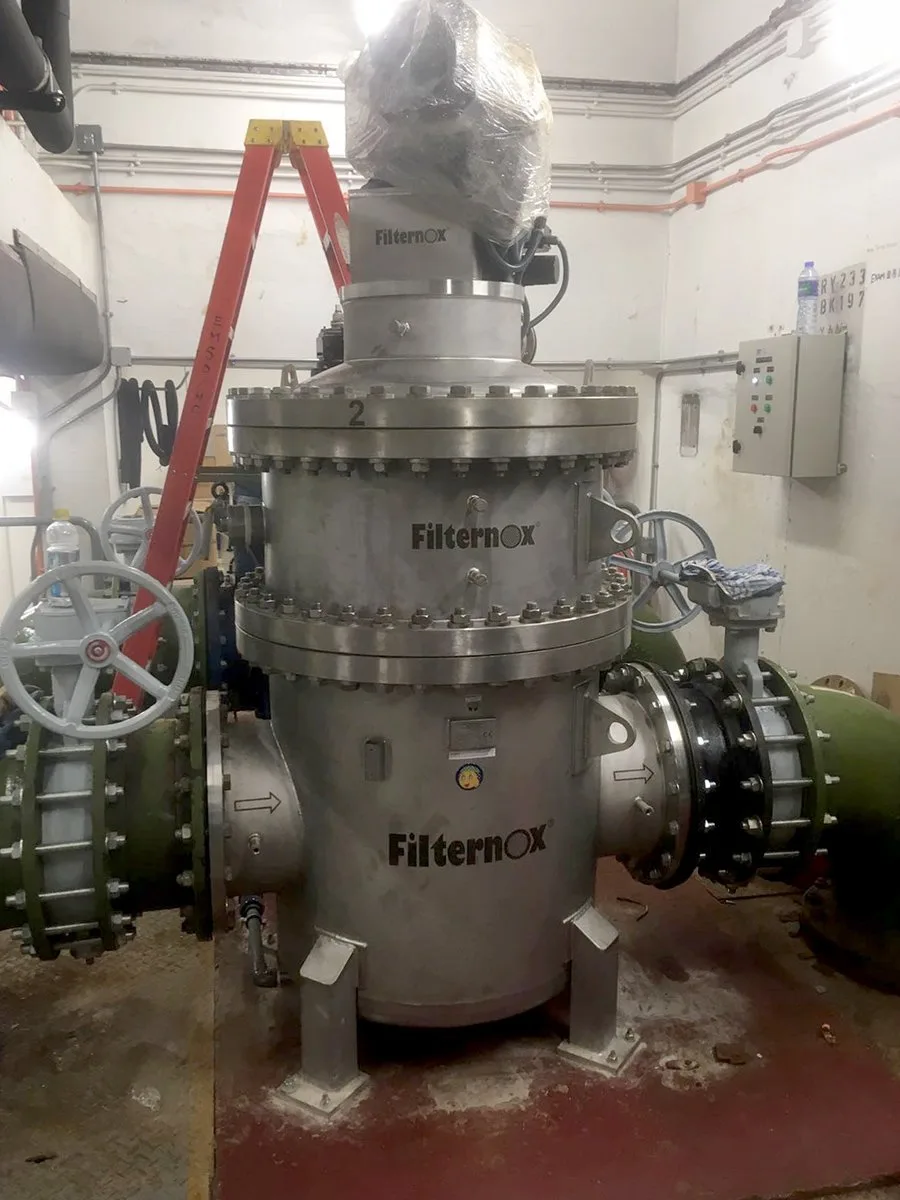

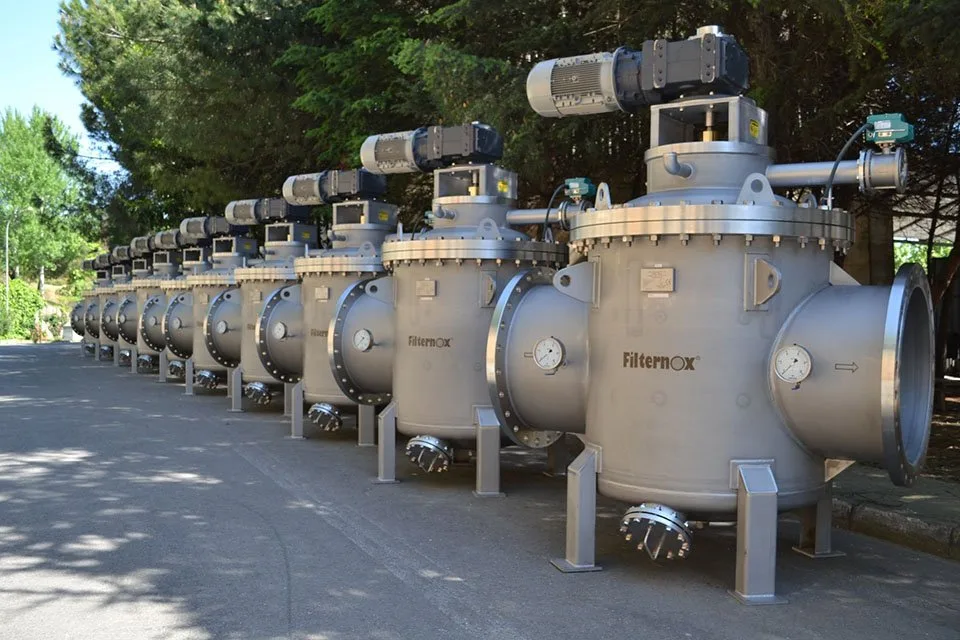

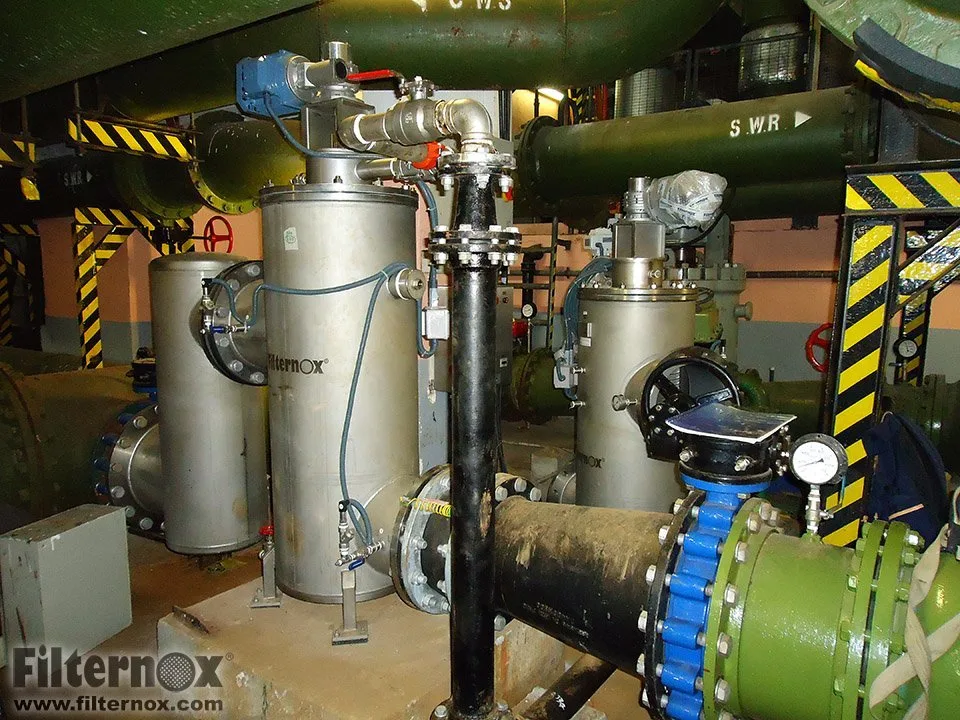

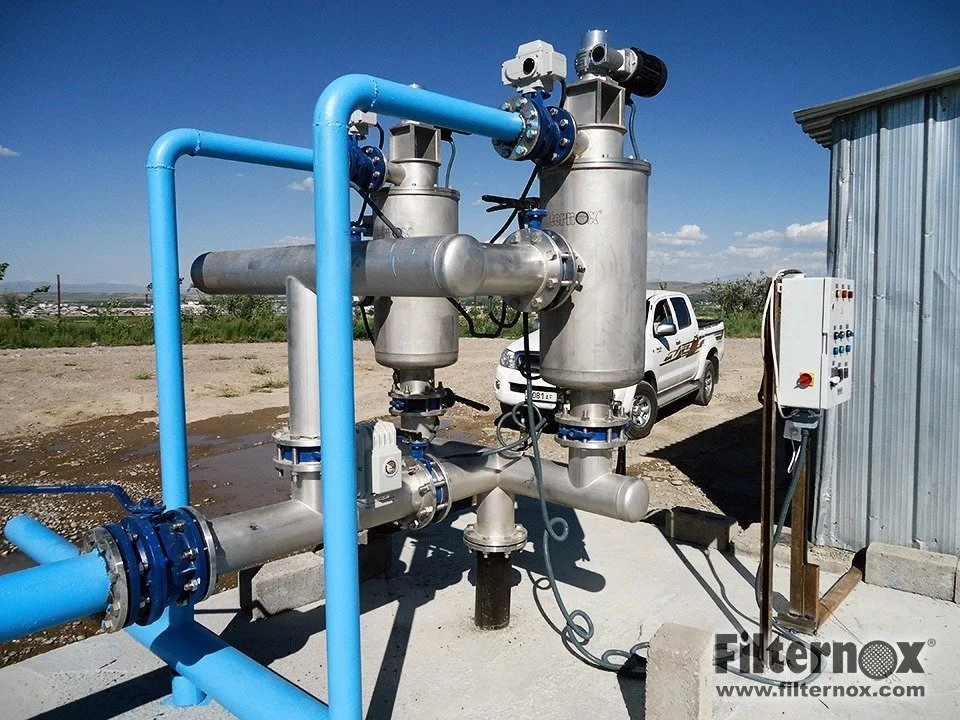

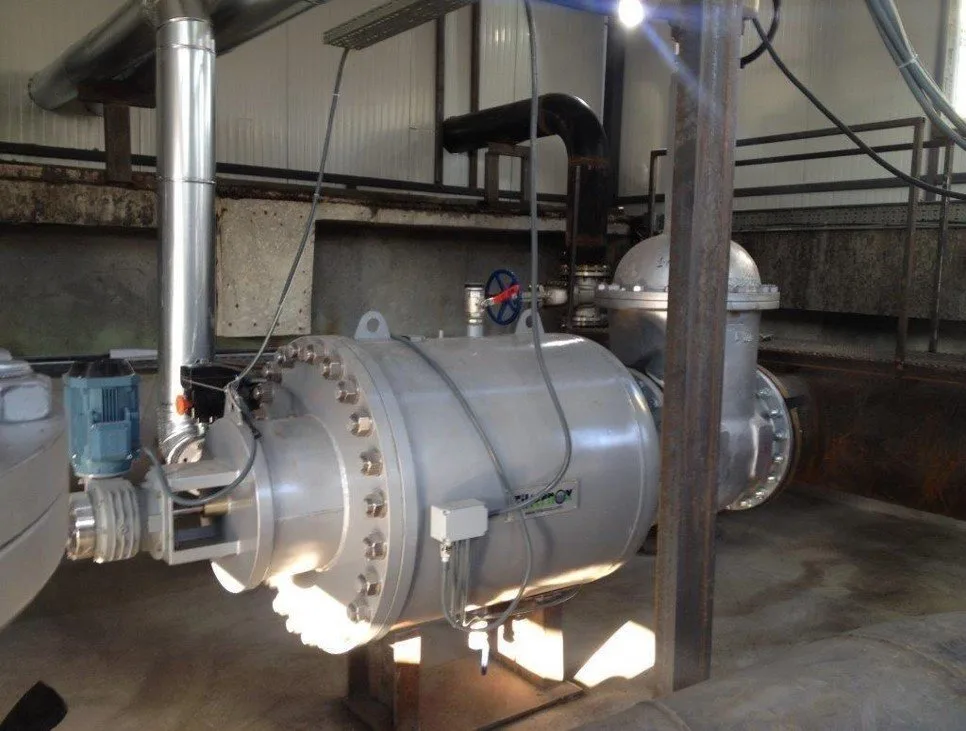

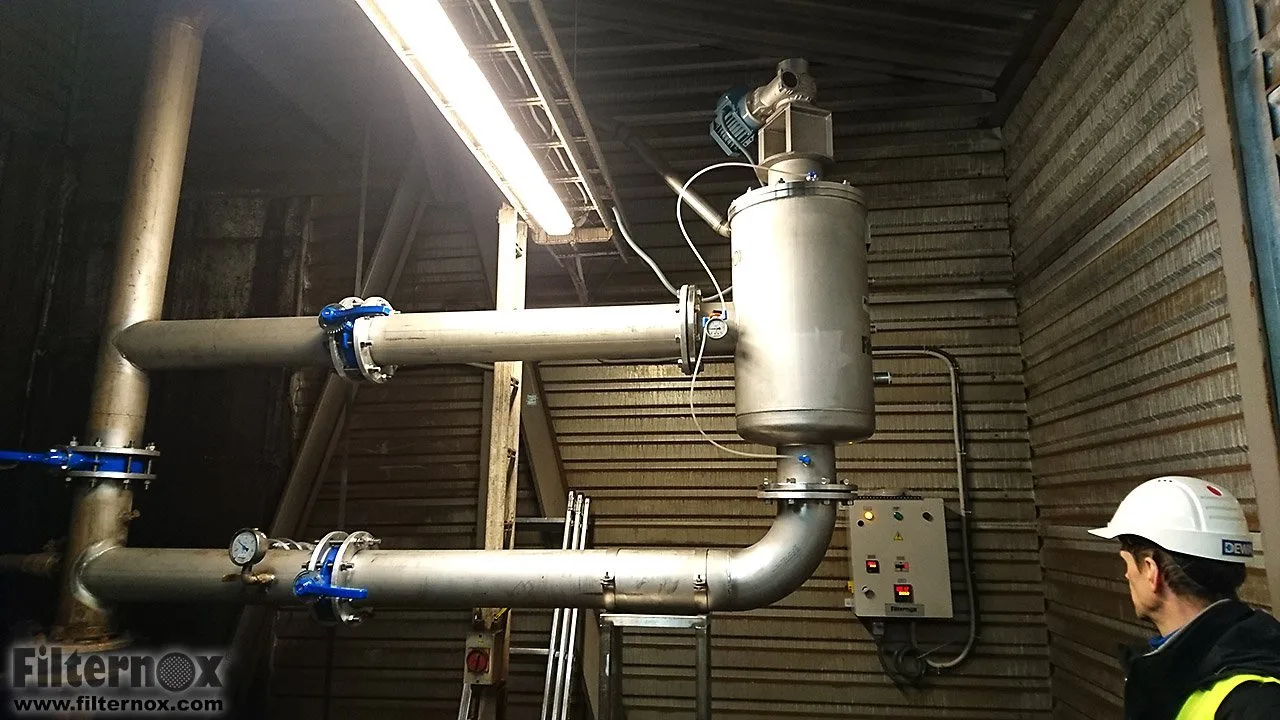

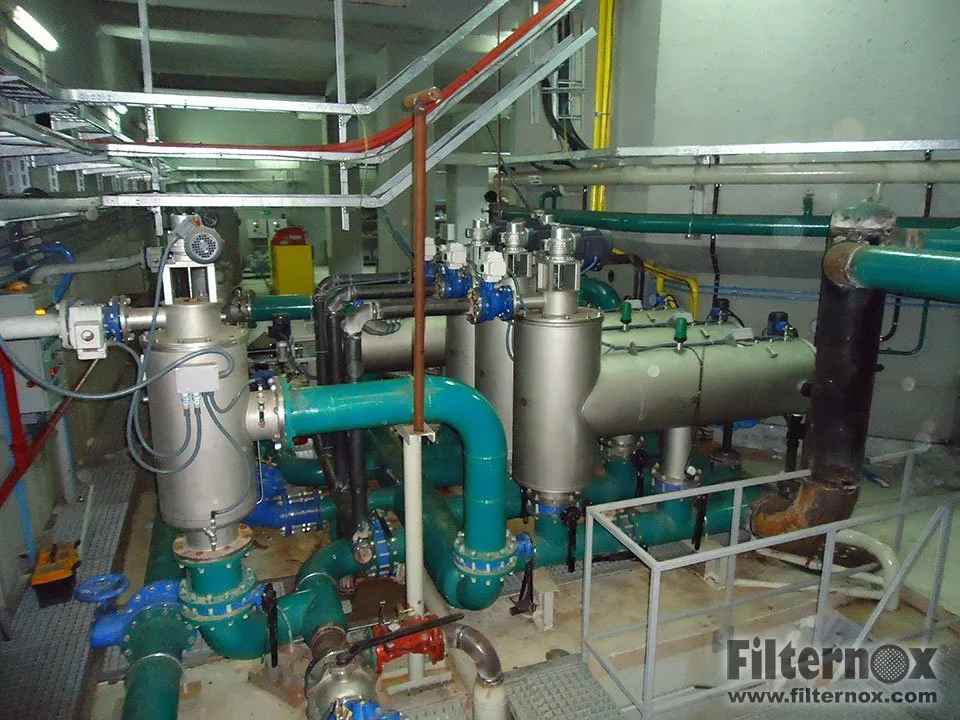

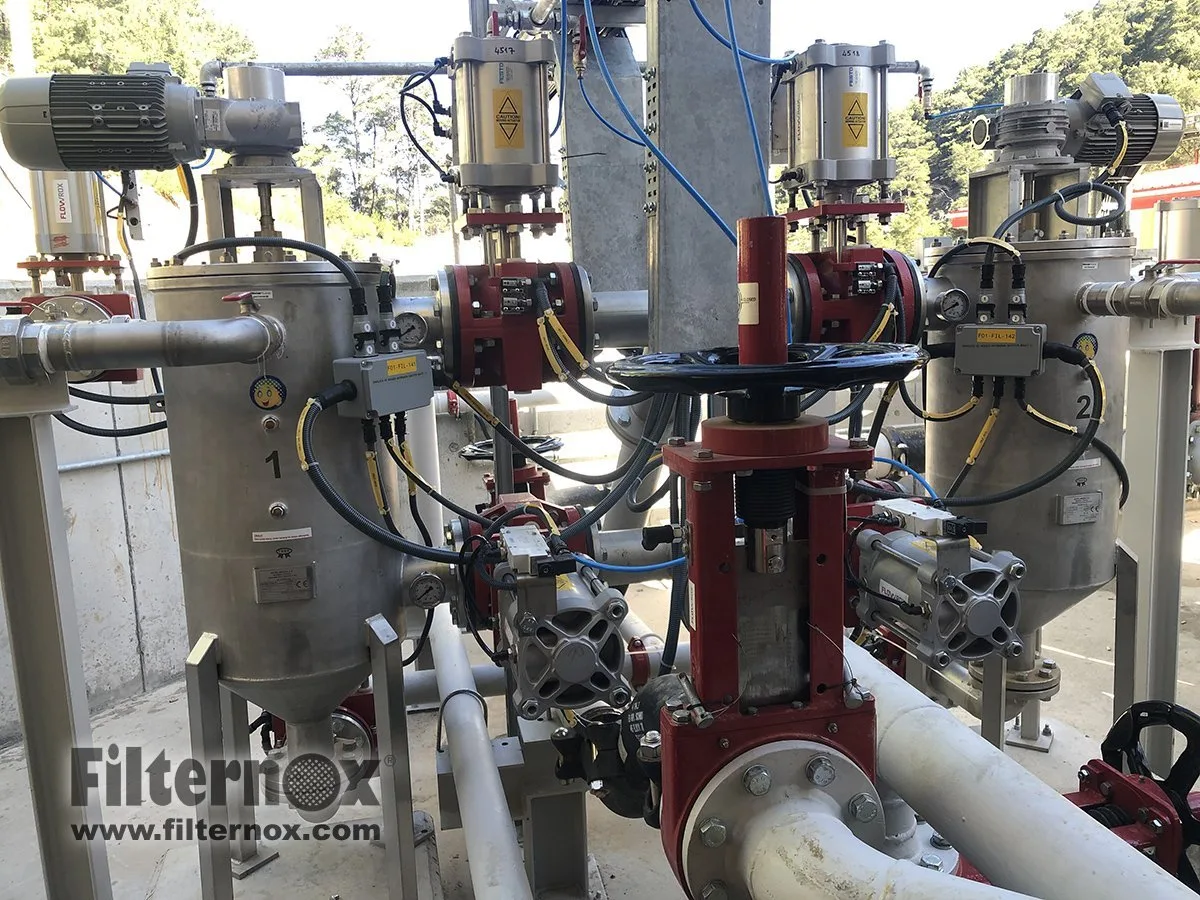

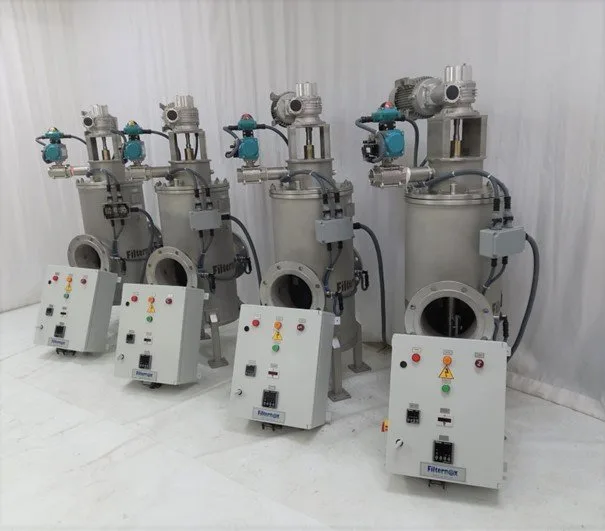

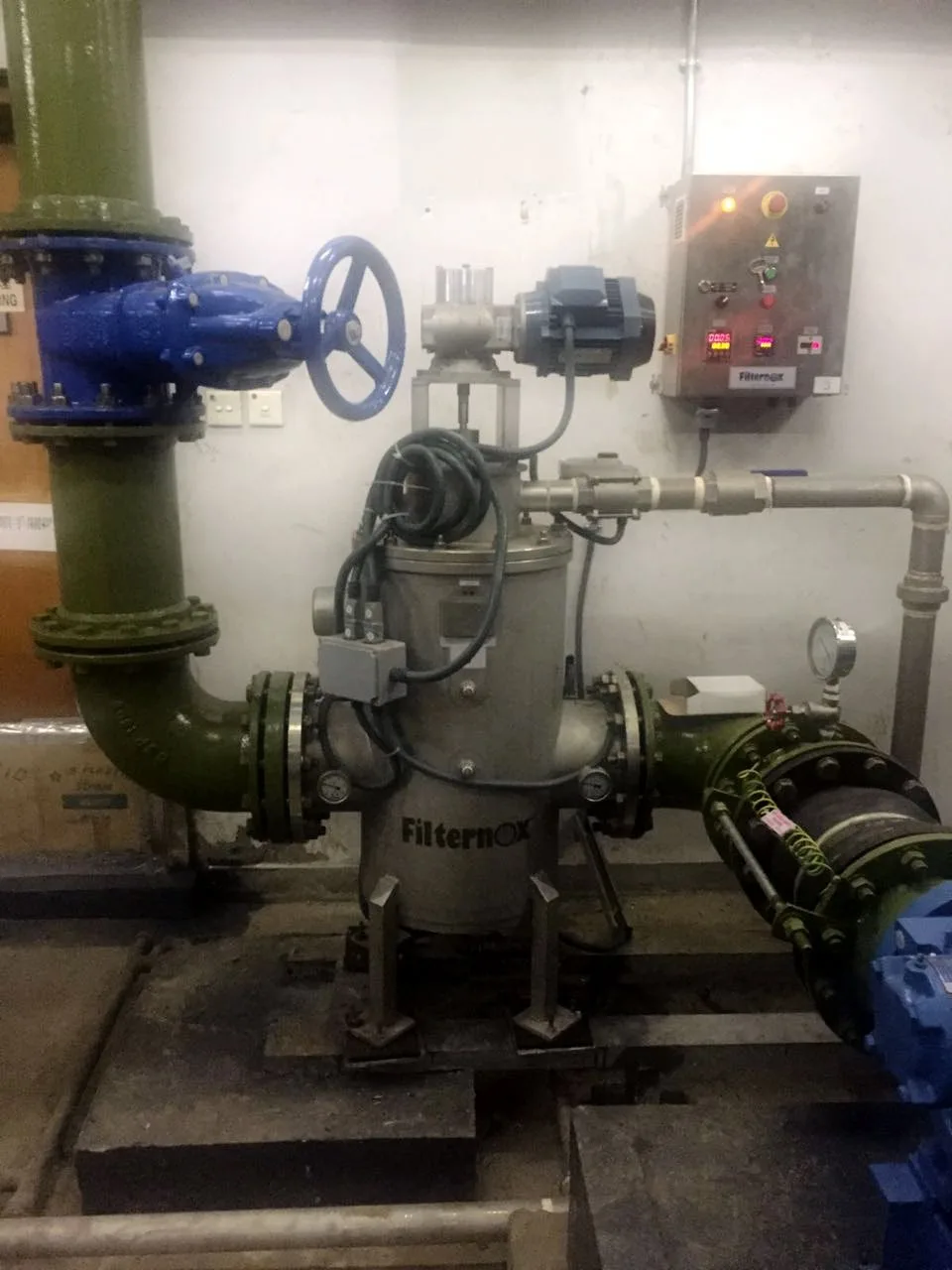

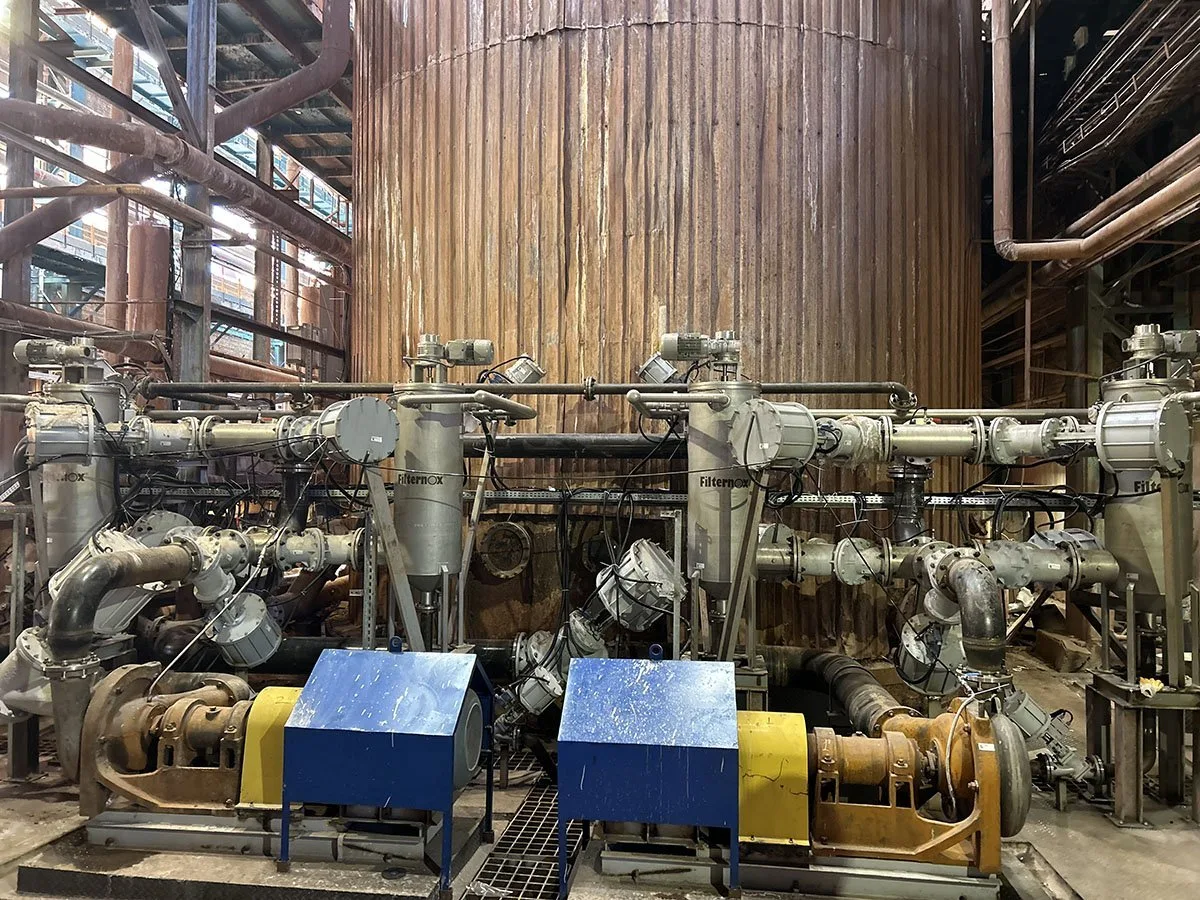

Gallery
Available Applications
Technical Specifications
- Body Material
- AISI 304L, AISI 316L
- Max. Operating Temperature
- 60°C / 90°C
- Back-Flush Water Consumption
- 200 - 400 l / back-flush
- Screen Material
- AISI 316L
- Headloss at Max. Flow Rate
- 0.2 bar
- Fine Screen Range
- 10 - 3000 micron
- Max. Operating Pressure
- PN10 / PN16
- Back-Flush Time
- 20 - 40 s
- Control System
- Electric
- Min. Inlet Pressure Required During Back-Flush
- 1 bar
- rpm of Cleaning Mechanism
- Adjustable
