SPT-WBV-MR Patented
Filternox® SPT-WBV-MR, SPT-SBV-MR and SPT-PBV-MR model filters are a result of years of experience and research & development in the field.
Product Description
Filternox® SPT-WBV-MR, SPT-SBV-MR and SPT-PBV-MR model filters are a result of years of experience and research & development in the field. Designed especially for river and sea water sources with very high dirt loads, SPT-WBV-MR is able to filter both large and small particles simultaneously in the same filter body. With its specially developed dual self-cleaning system that is made of brushes and vacuum nozzles, Filternox® SPT-WBV-MR filters achieve an exceptional performance and offer a permanent and definitive solution for variable high dirt load applications.

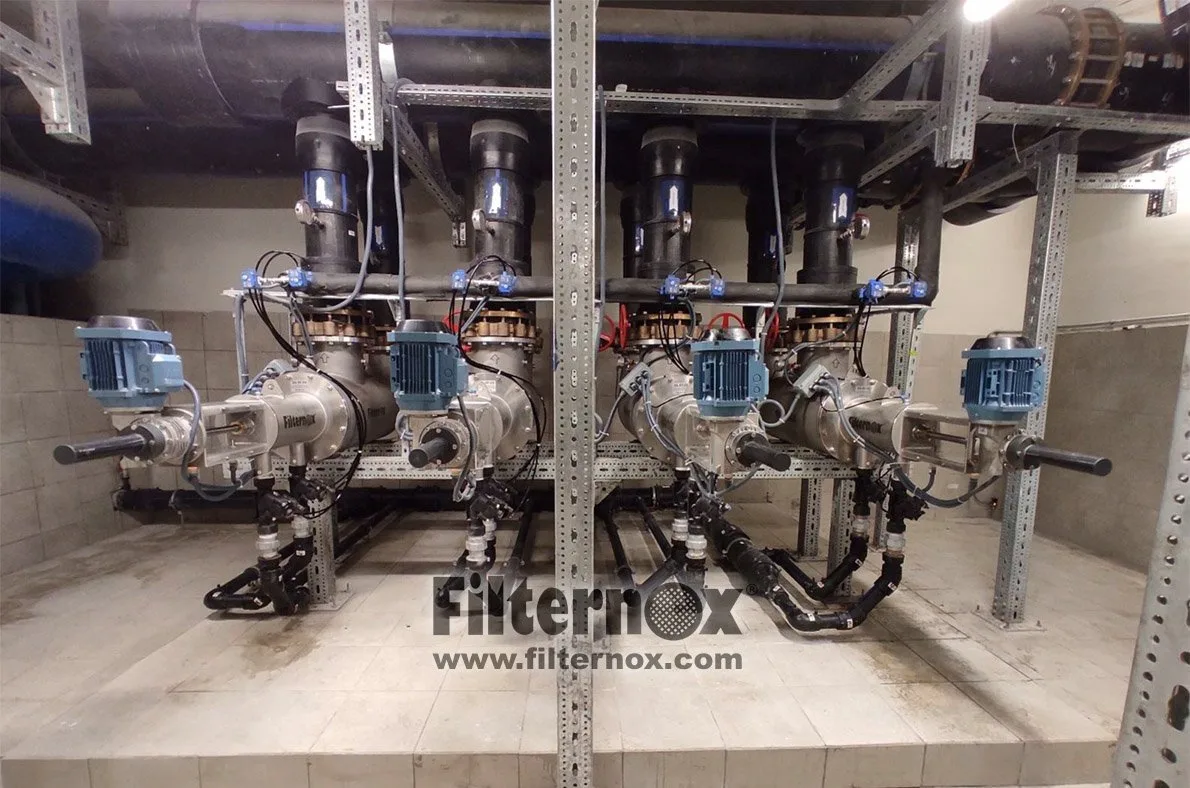

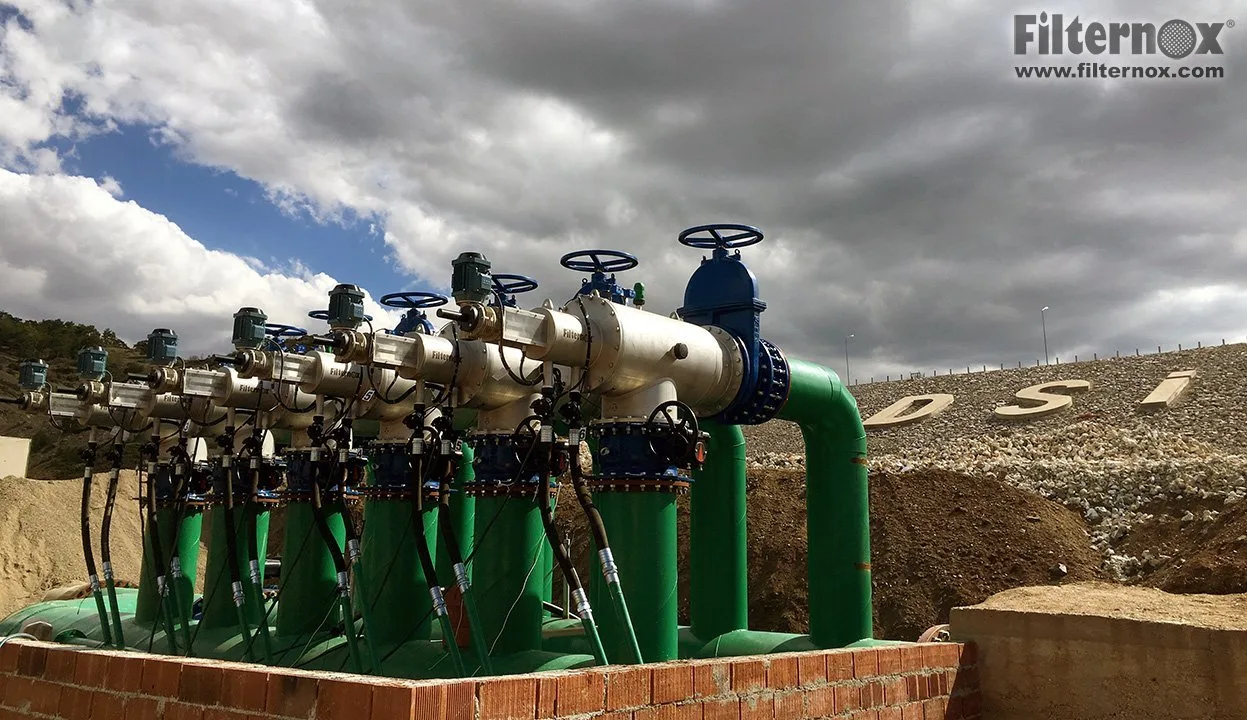

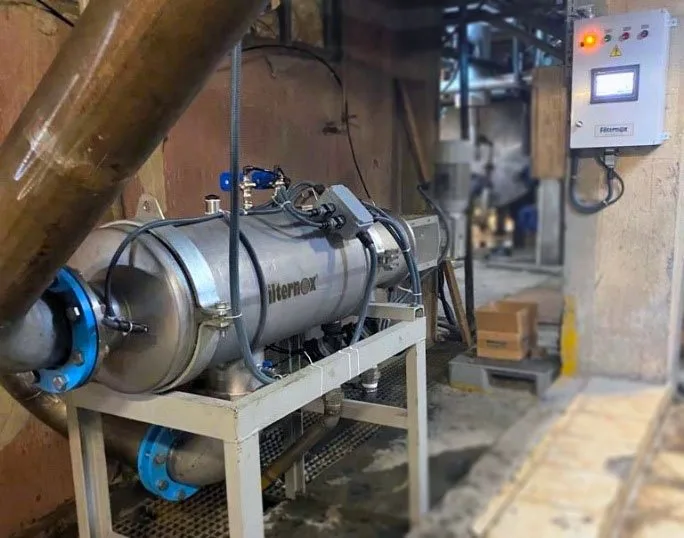

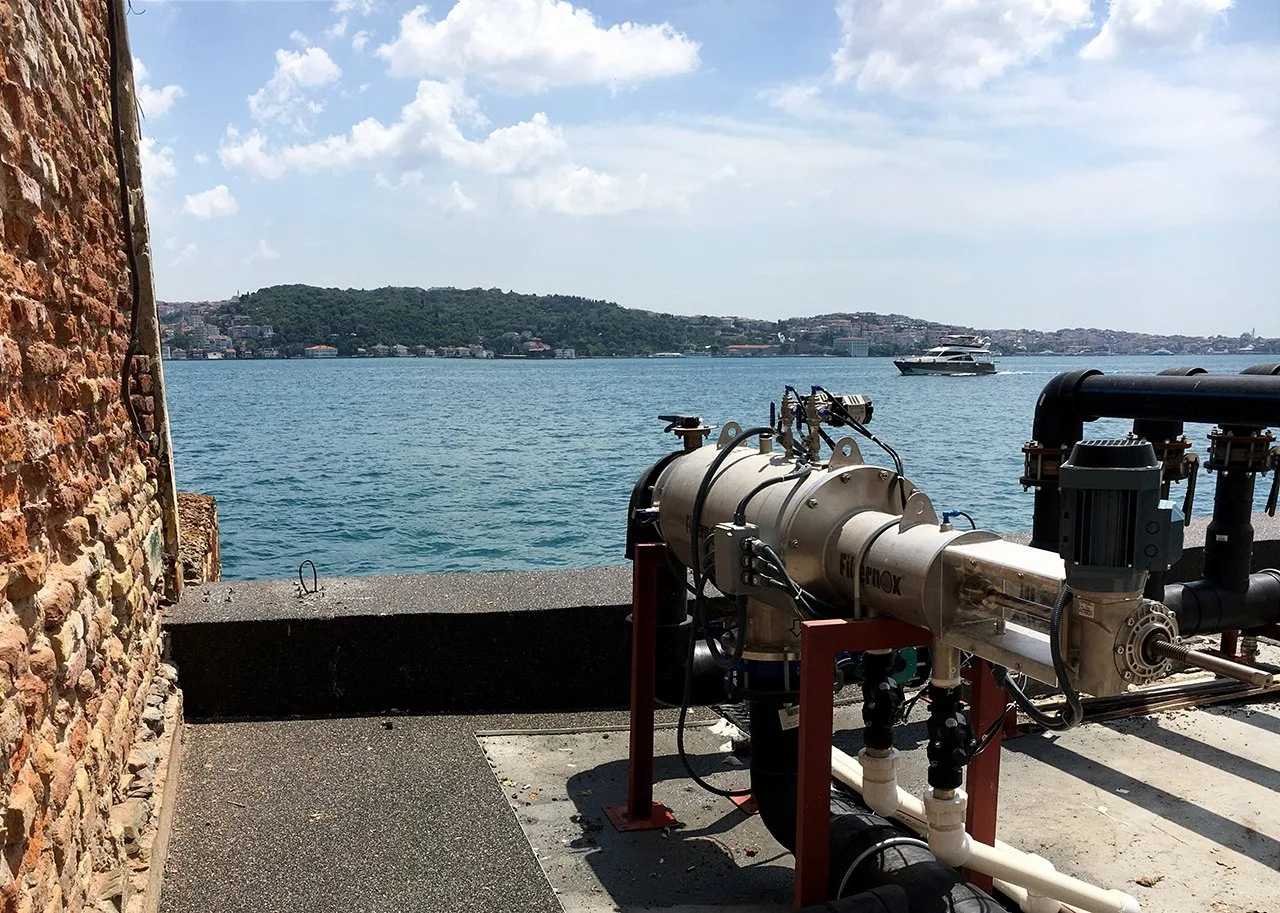

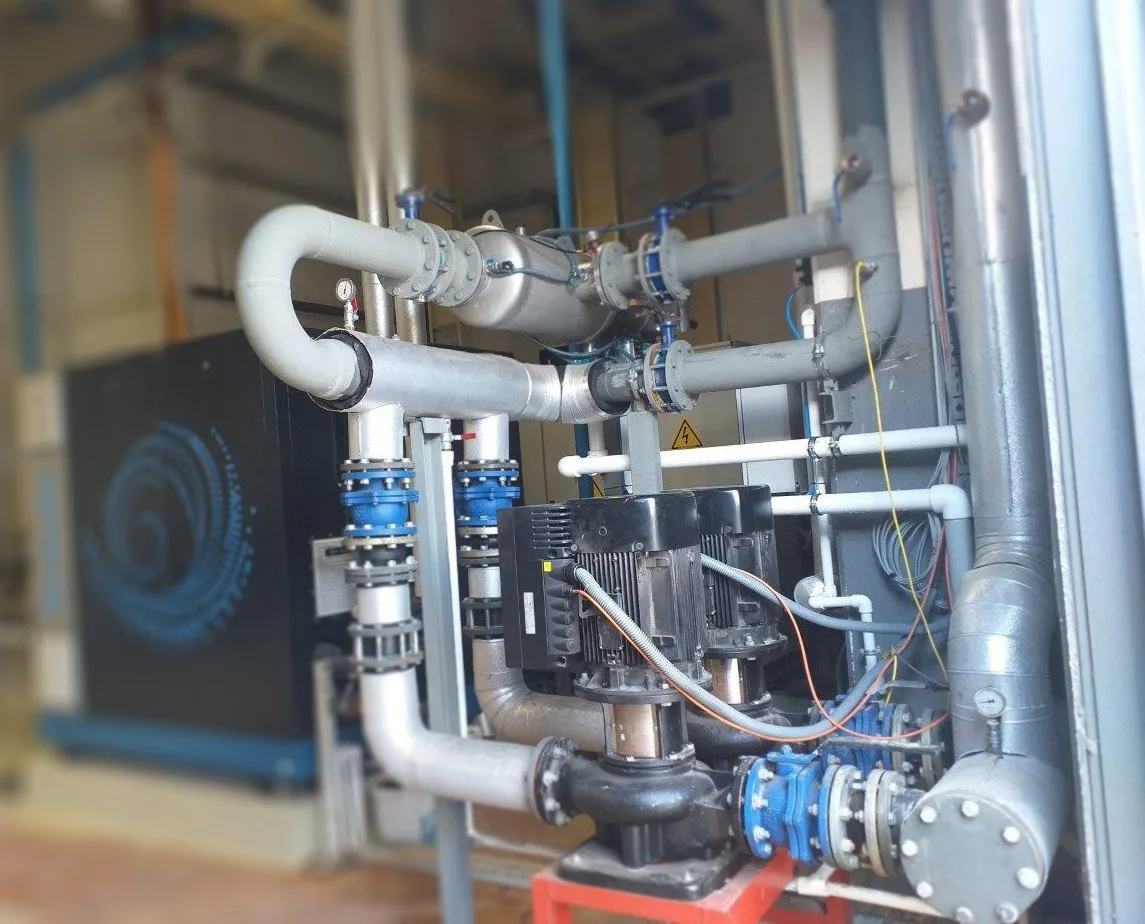

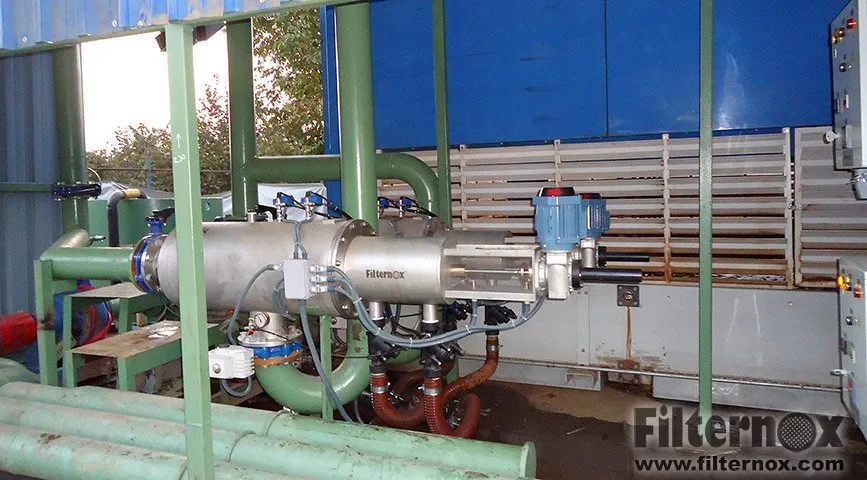

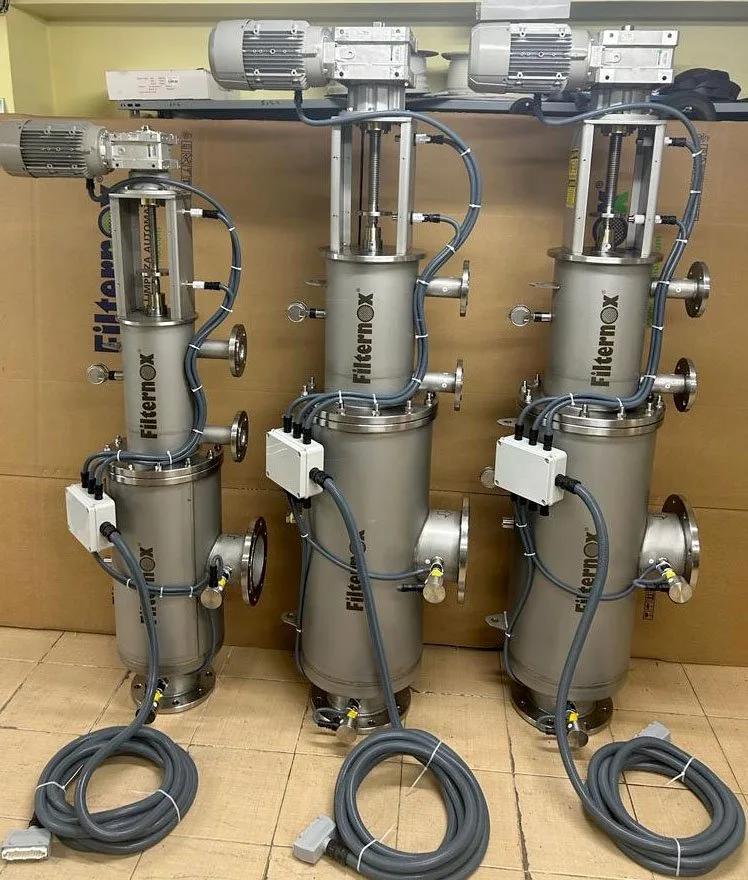

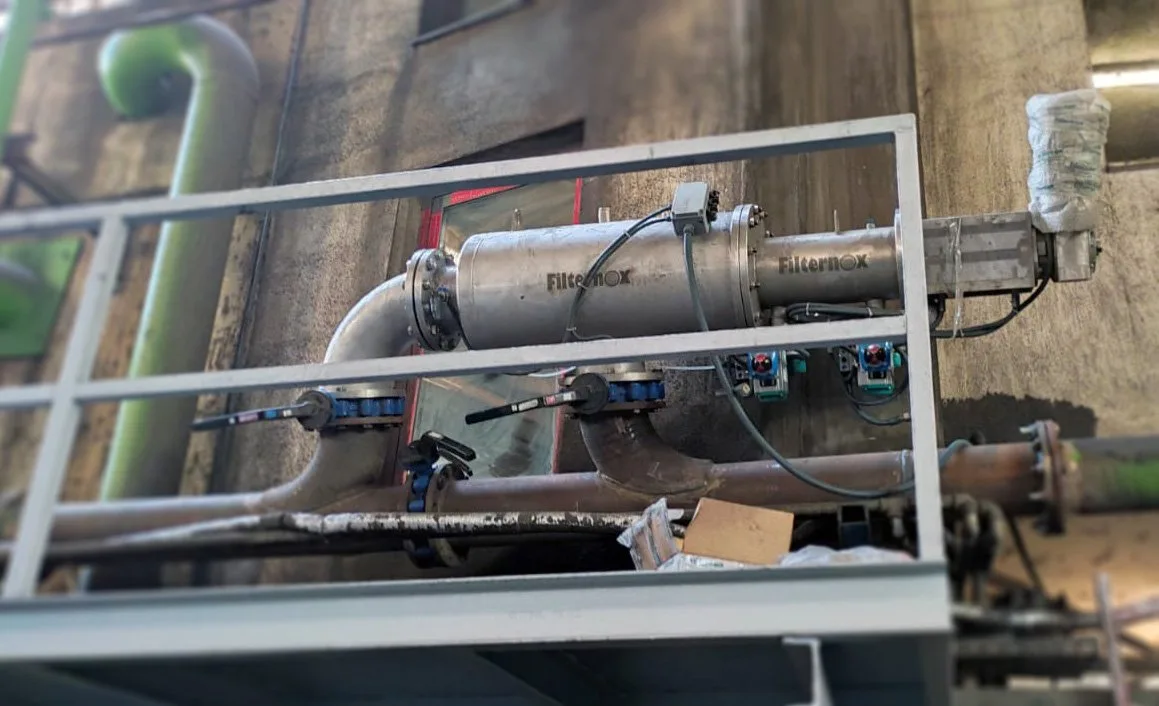

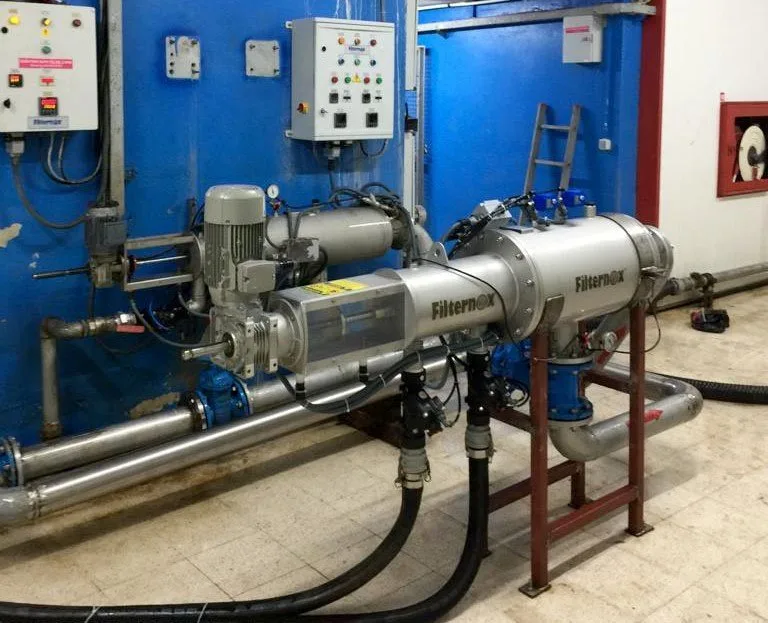

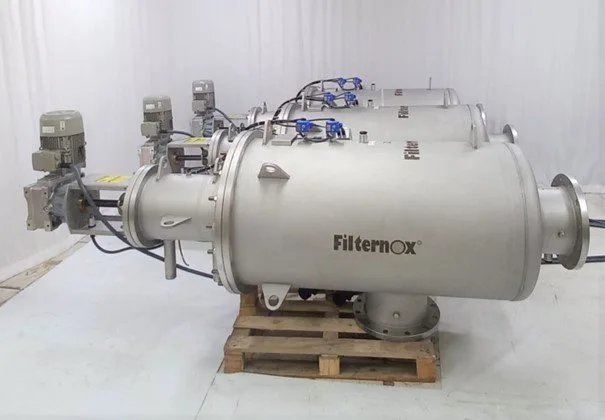

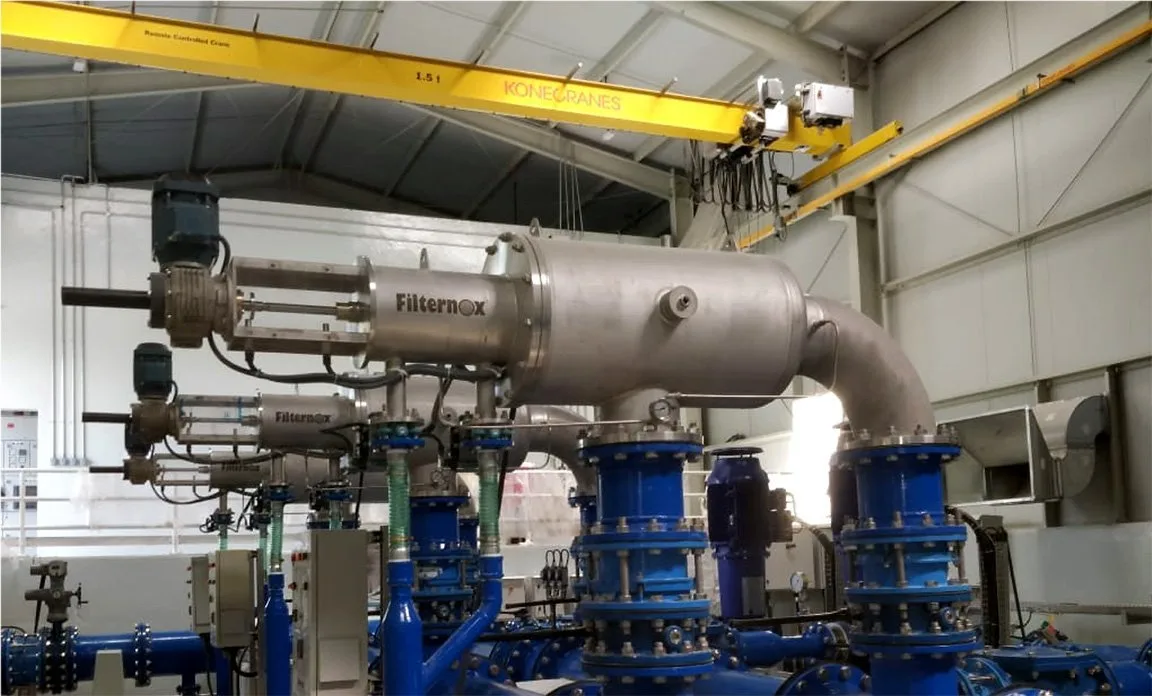

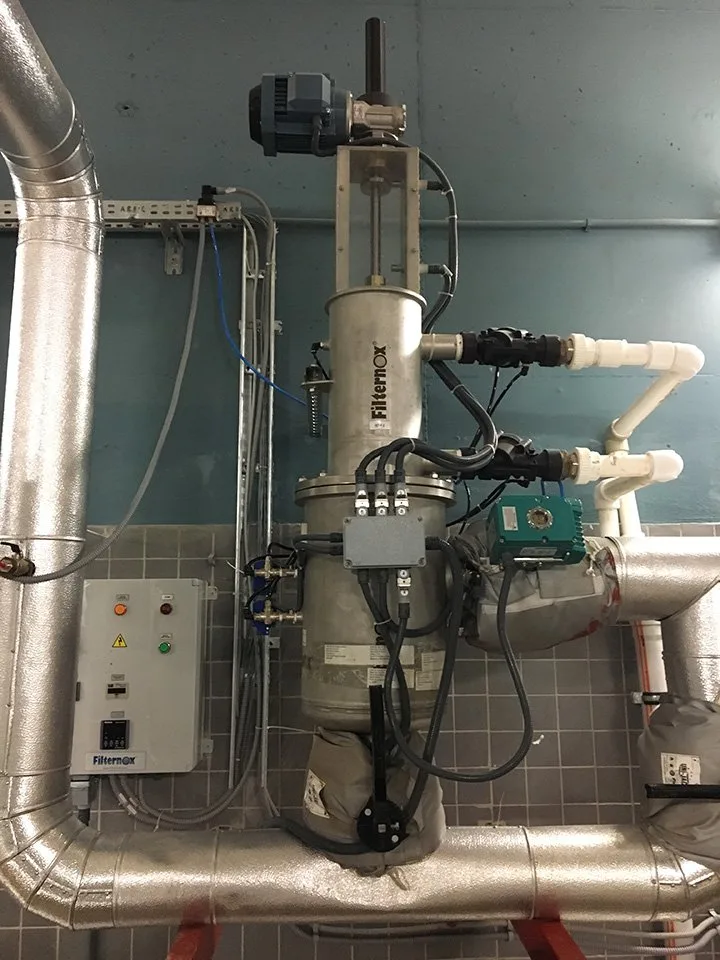

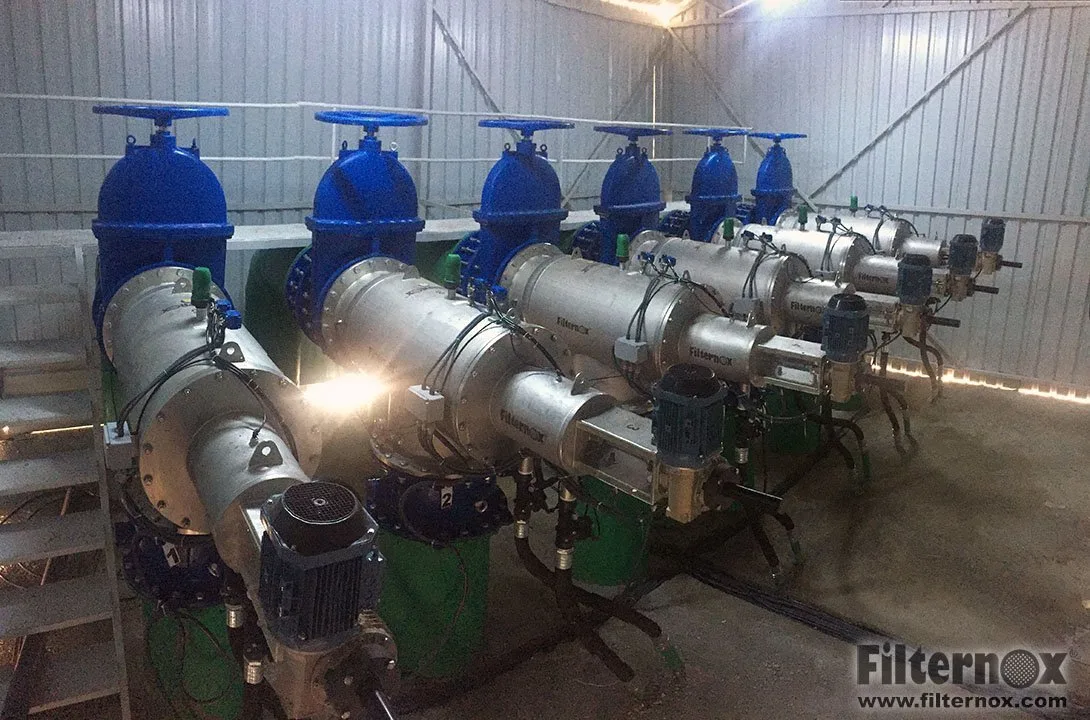

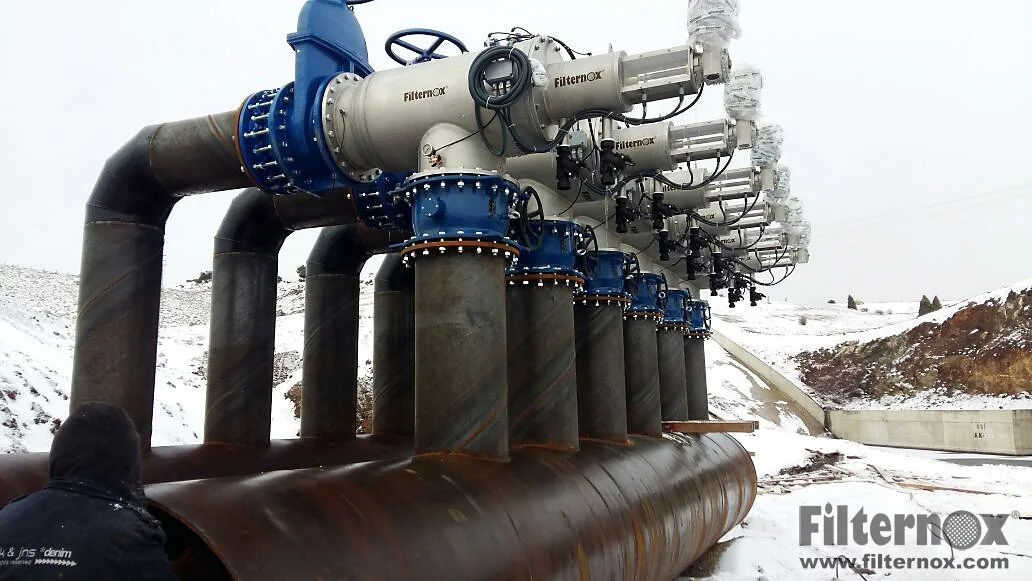

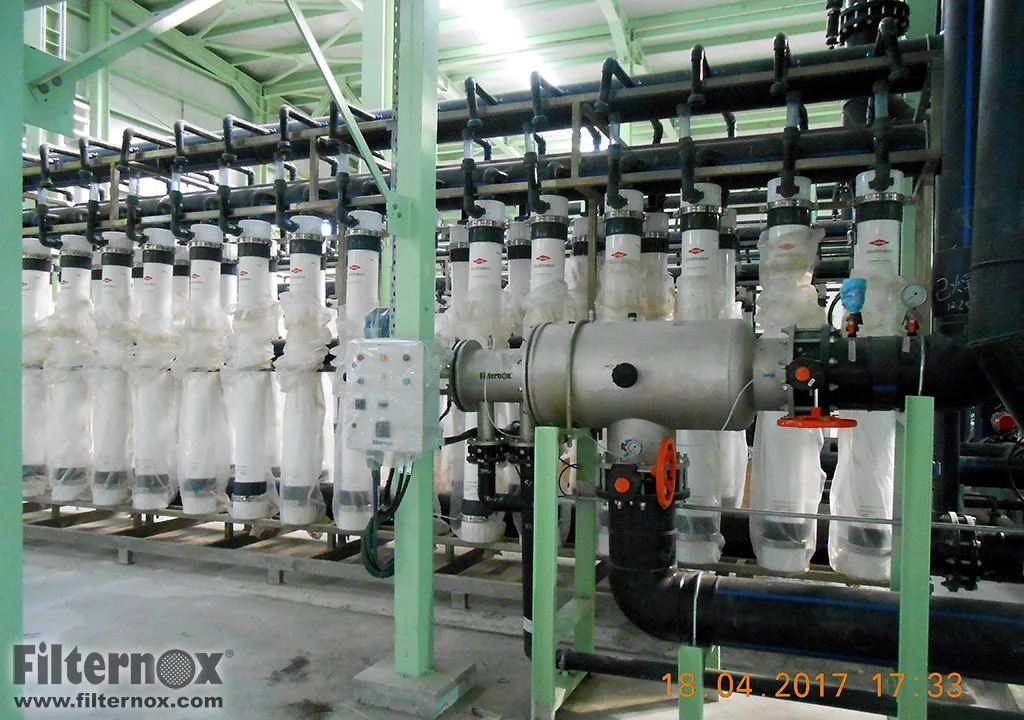

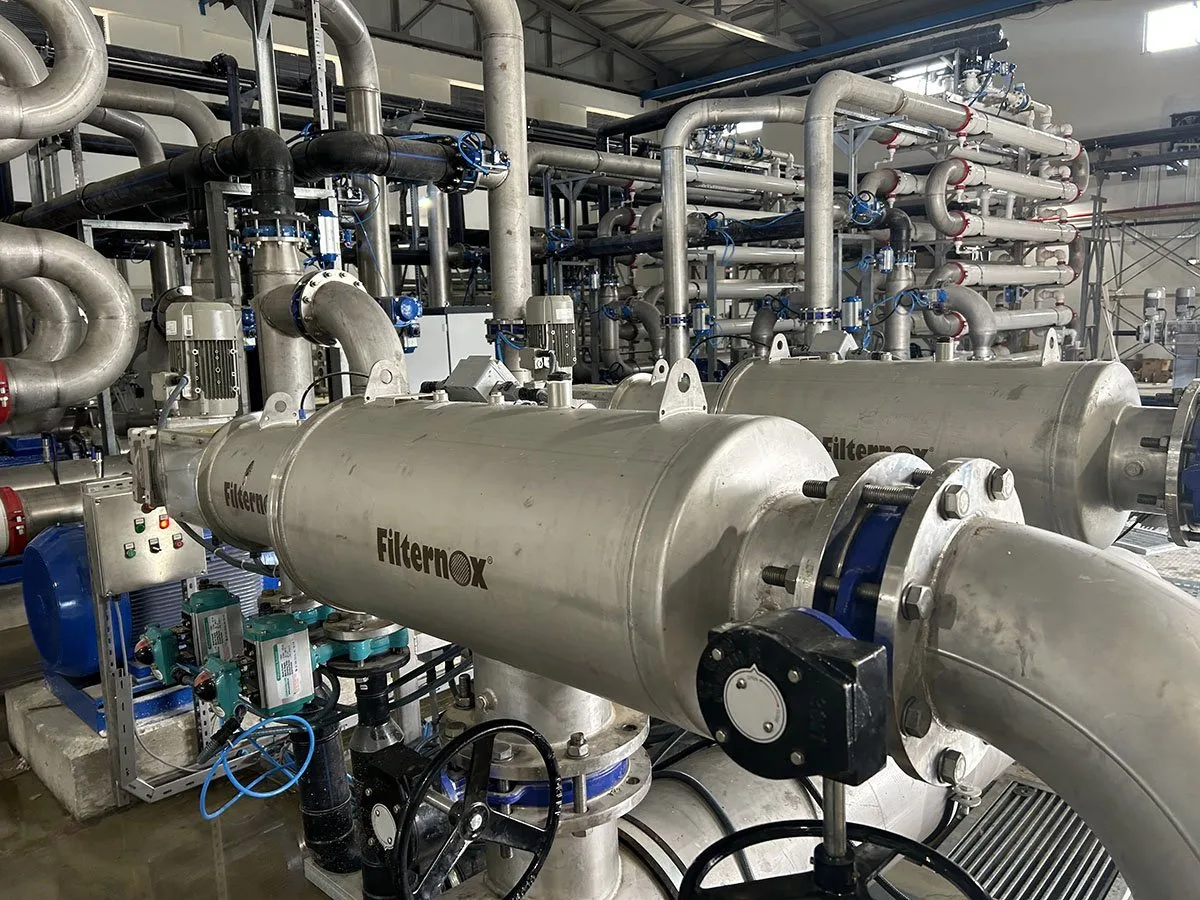

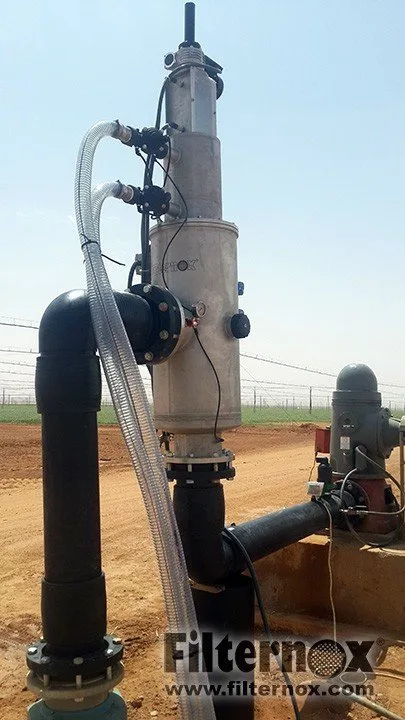

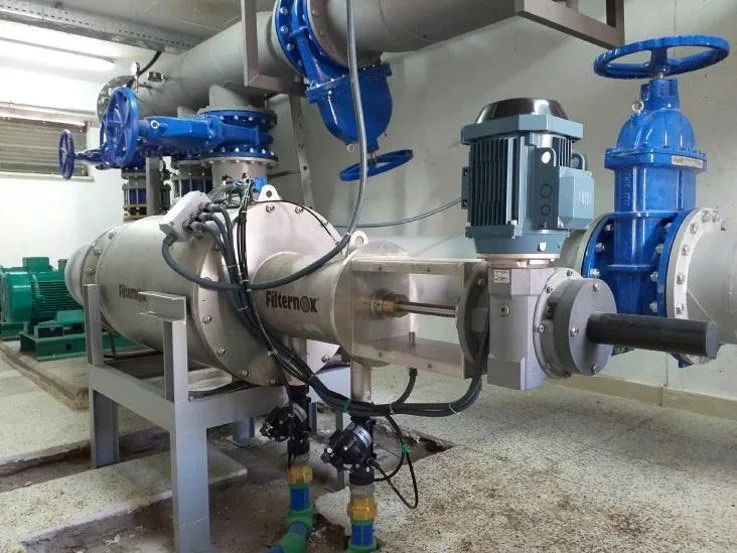

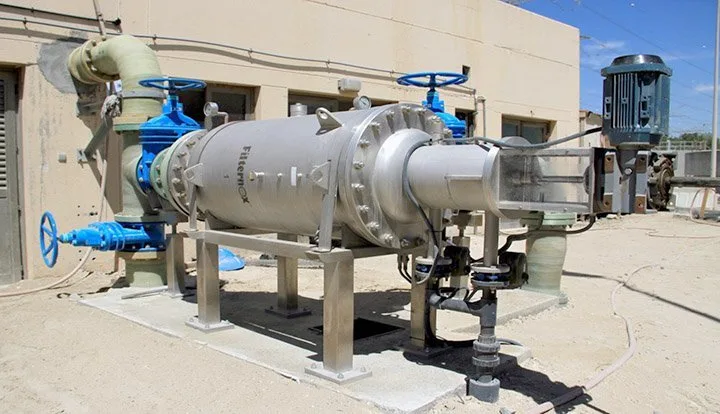

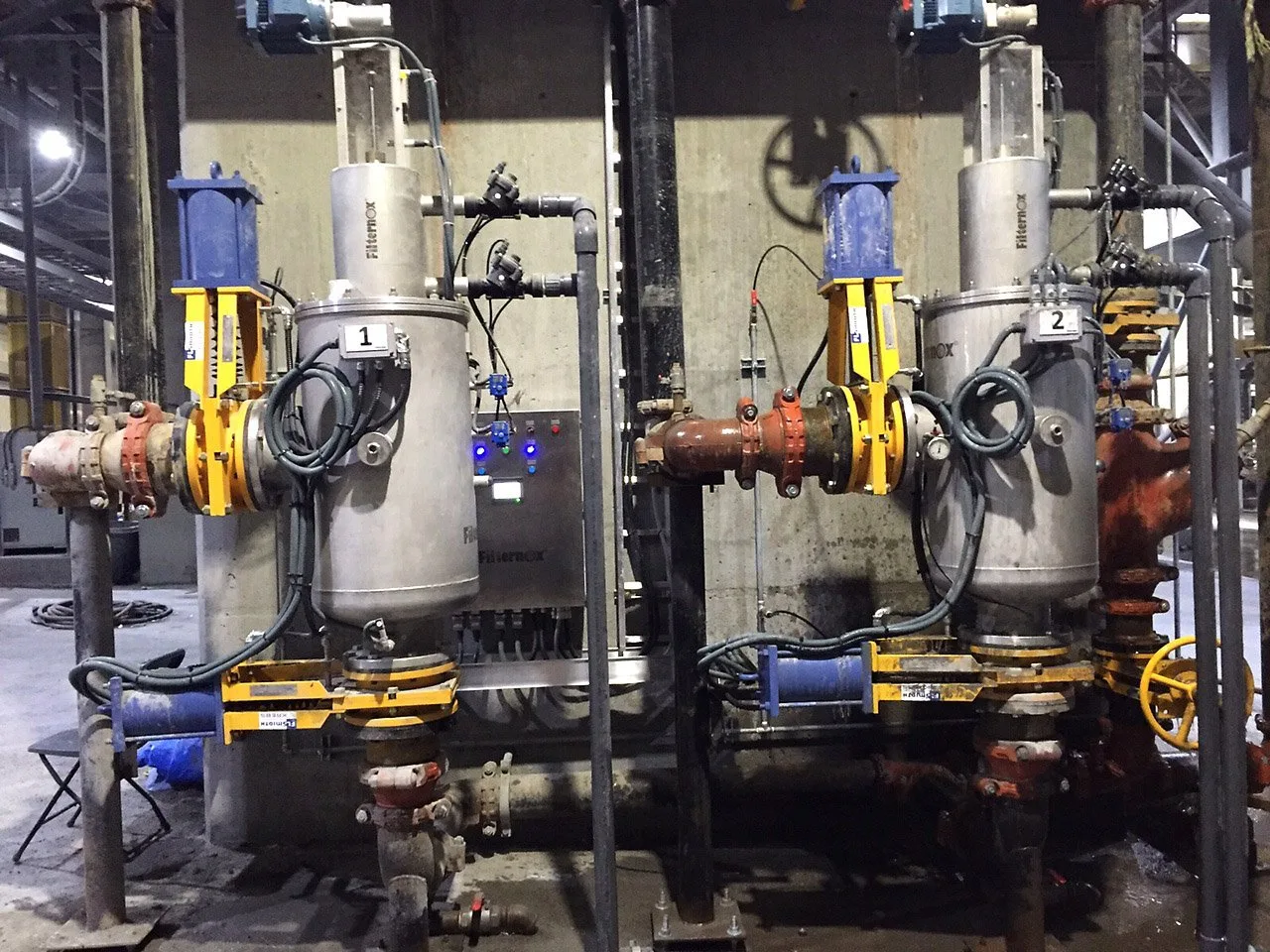

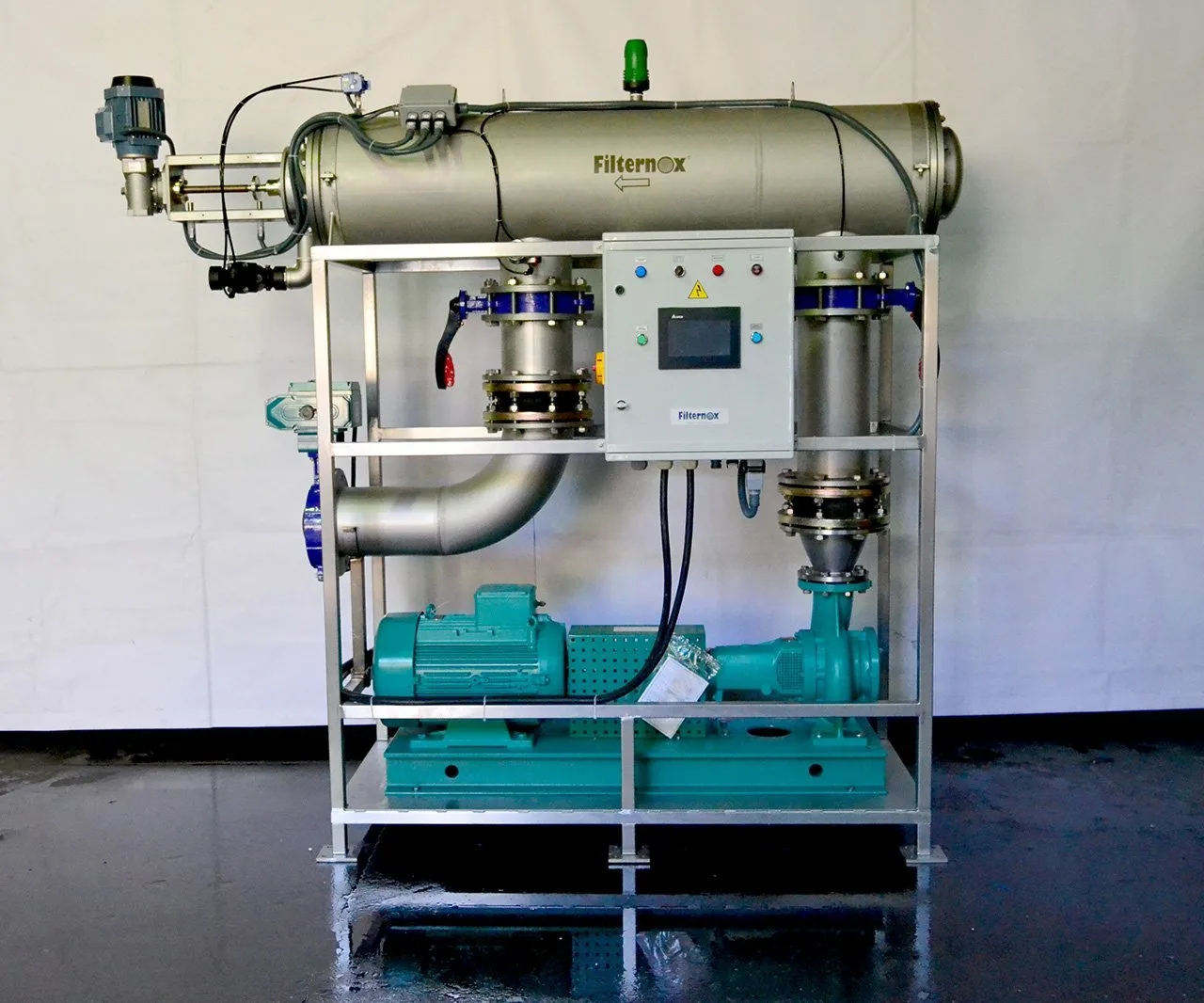

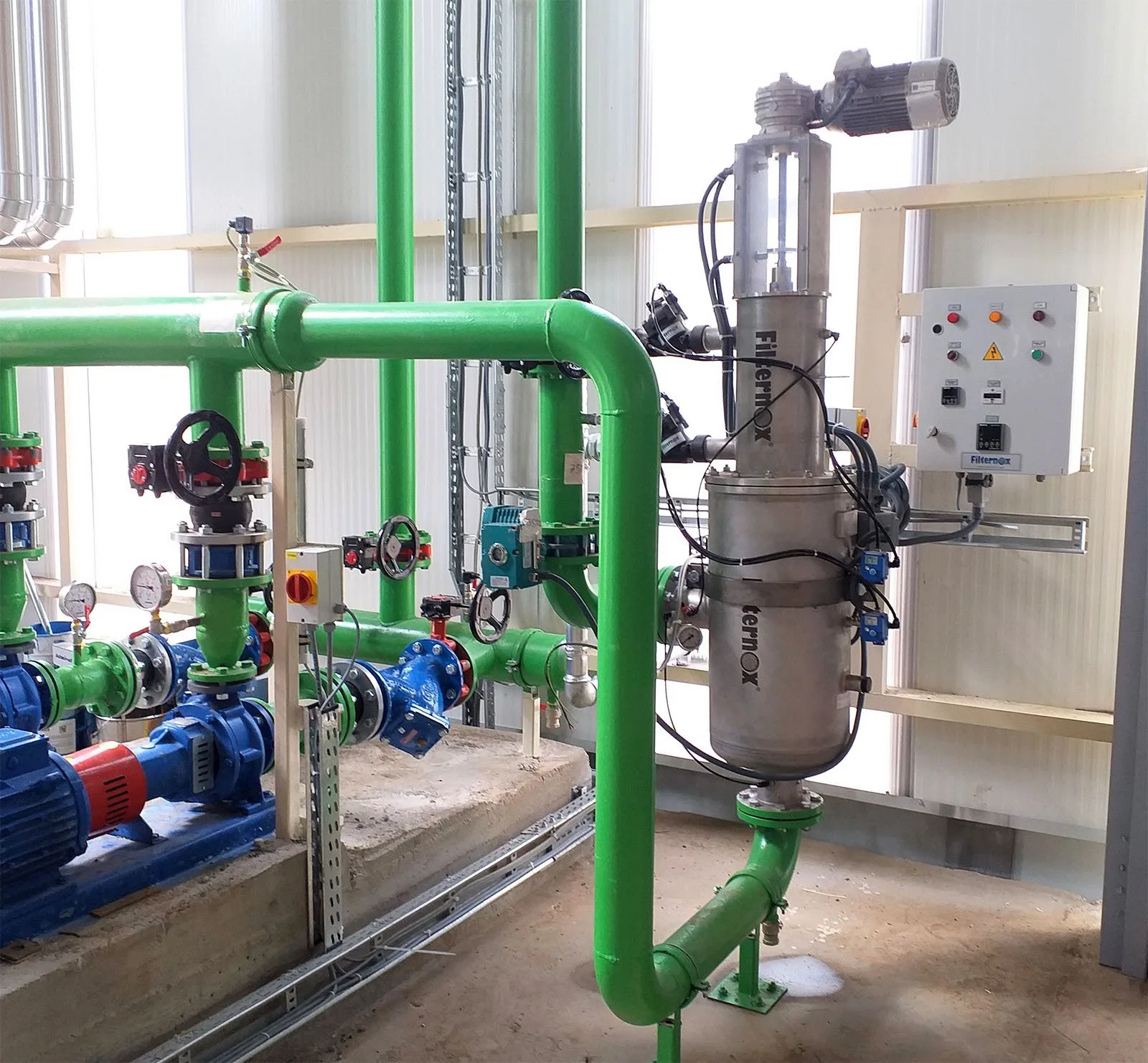

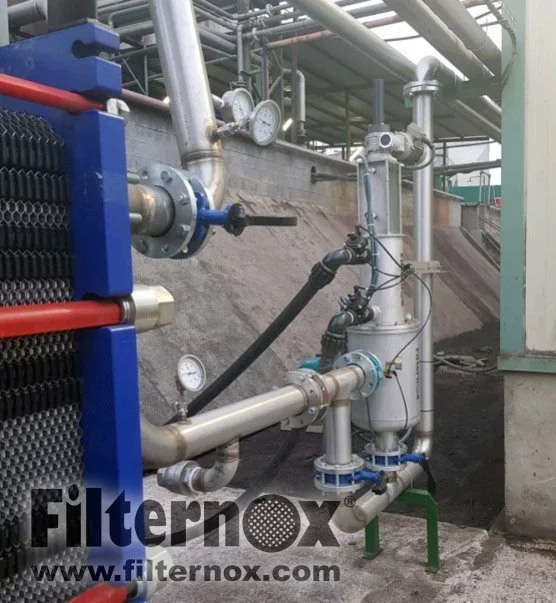

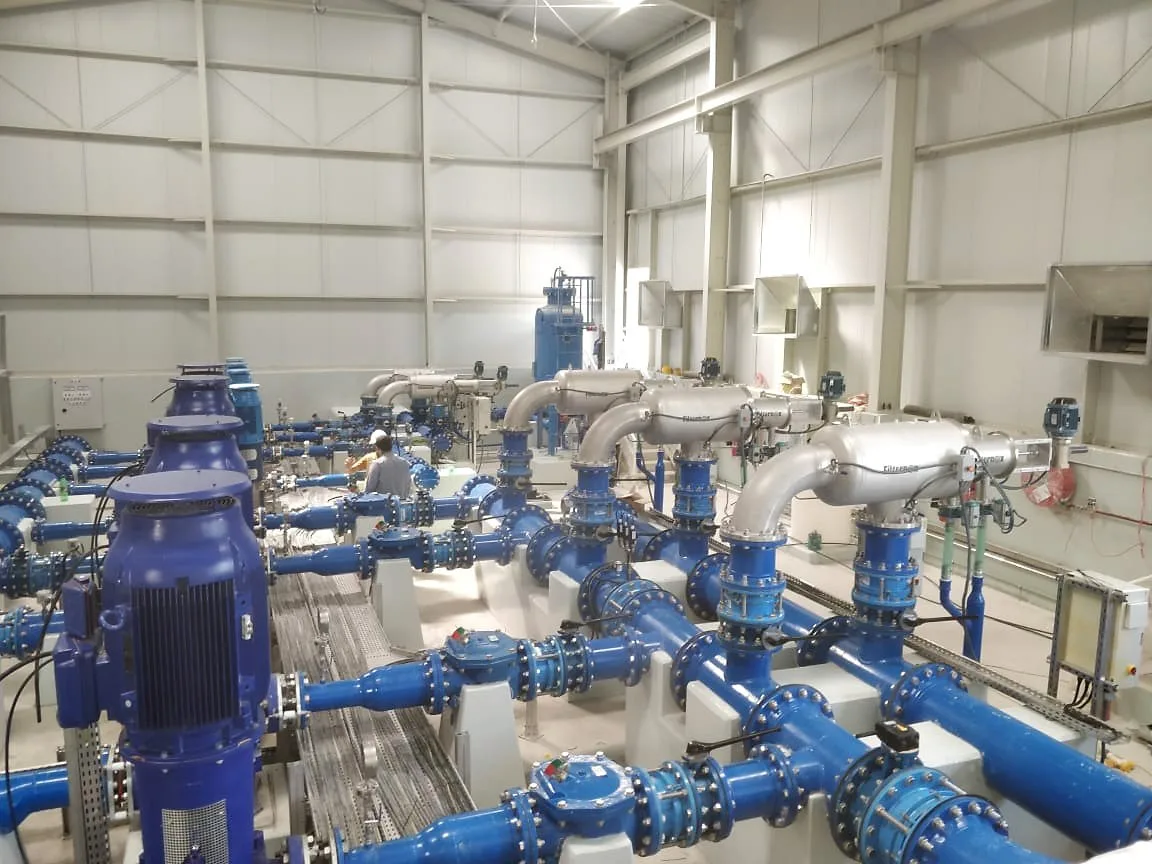

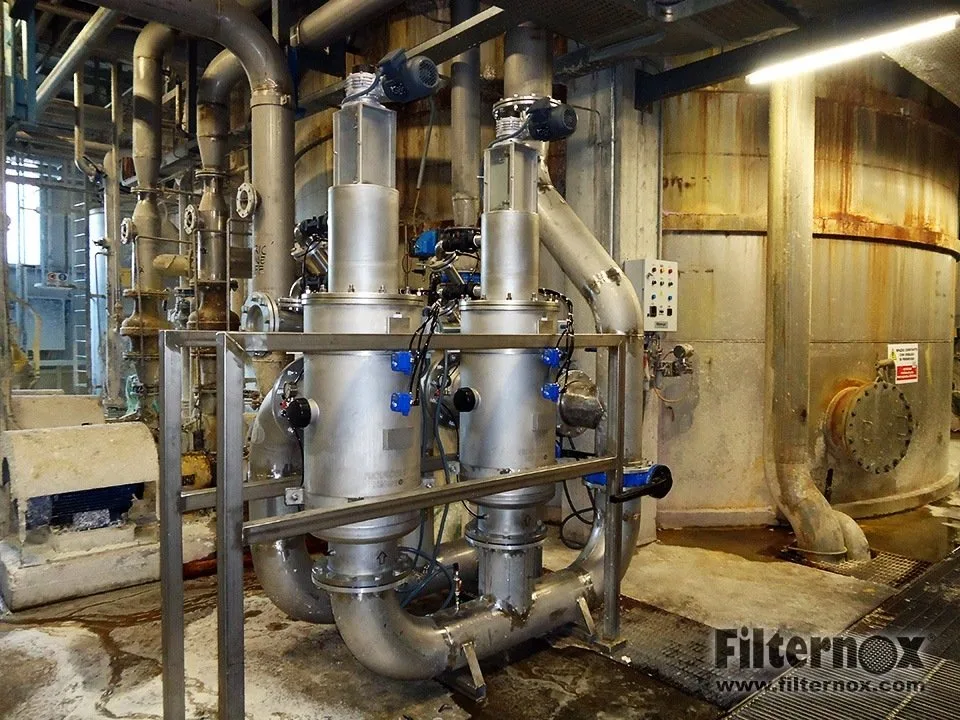

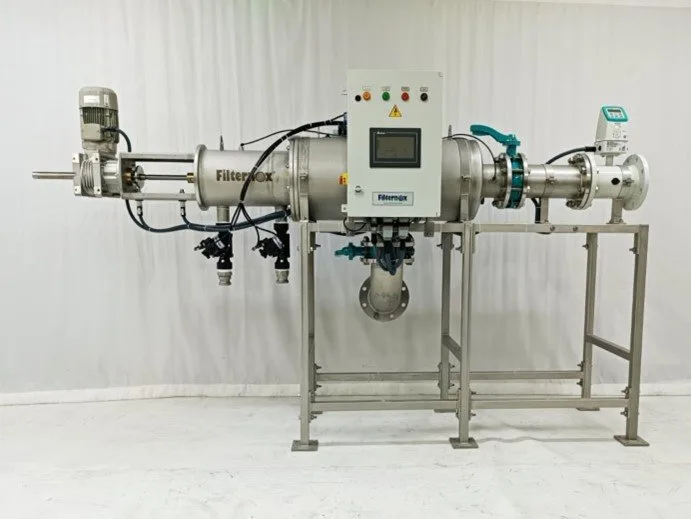

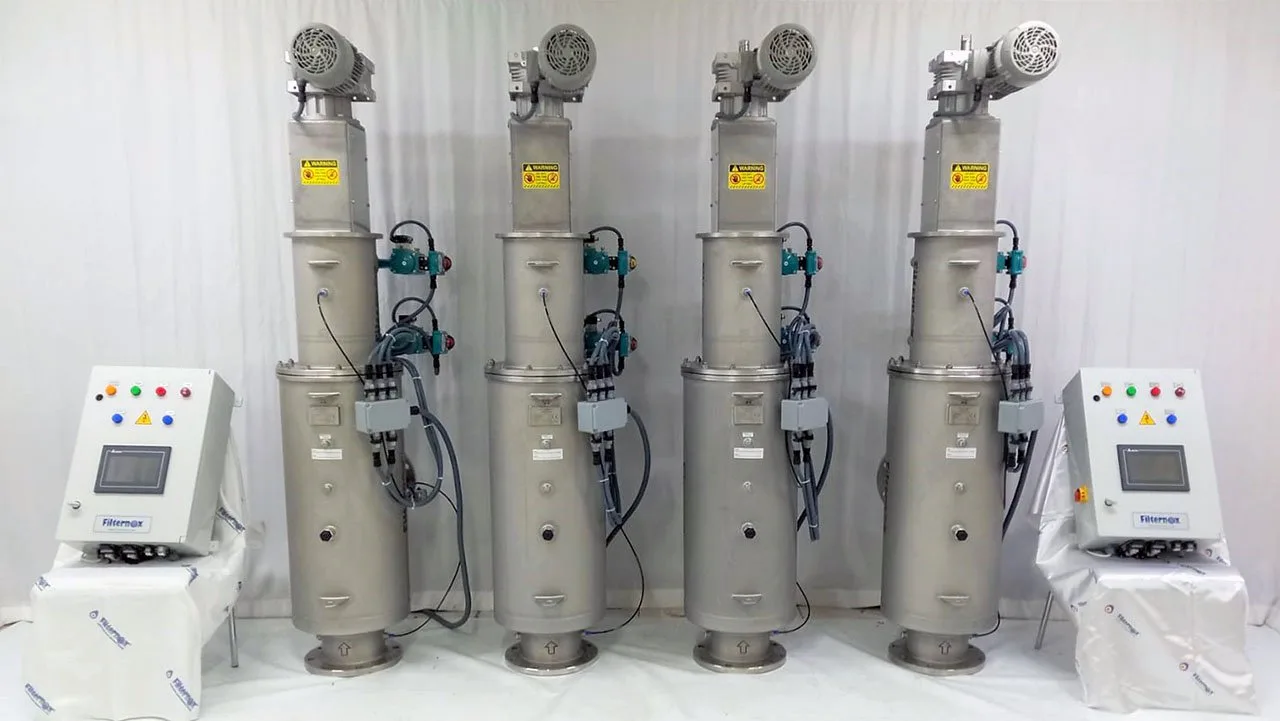

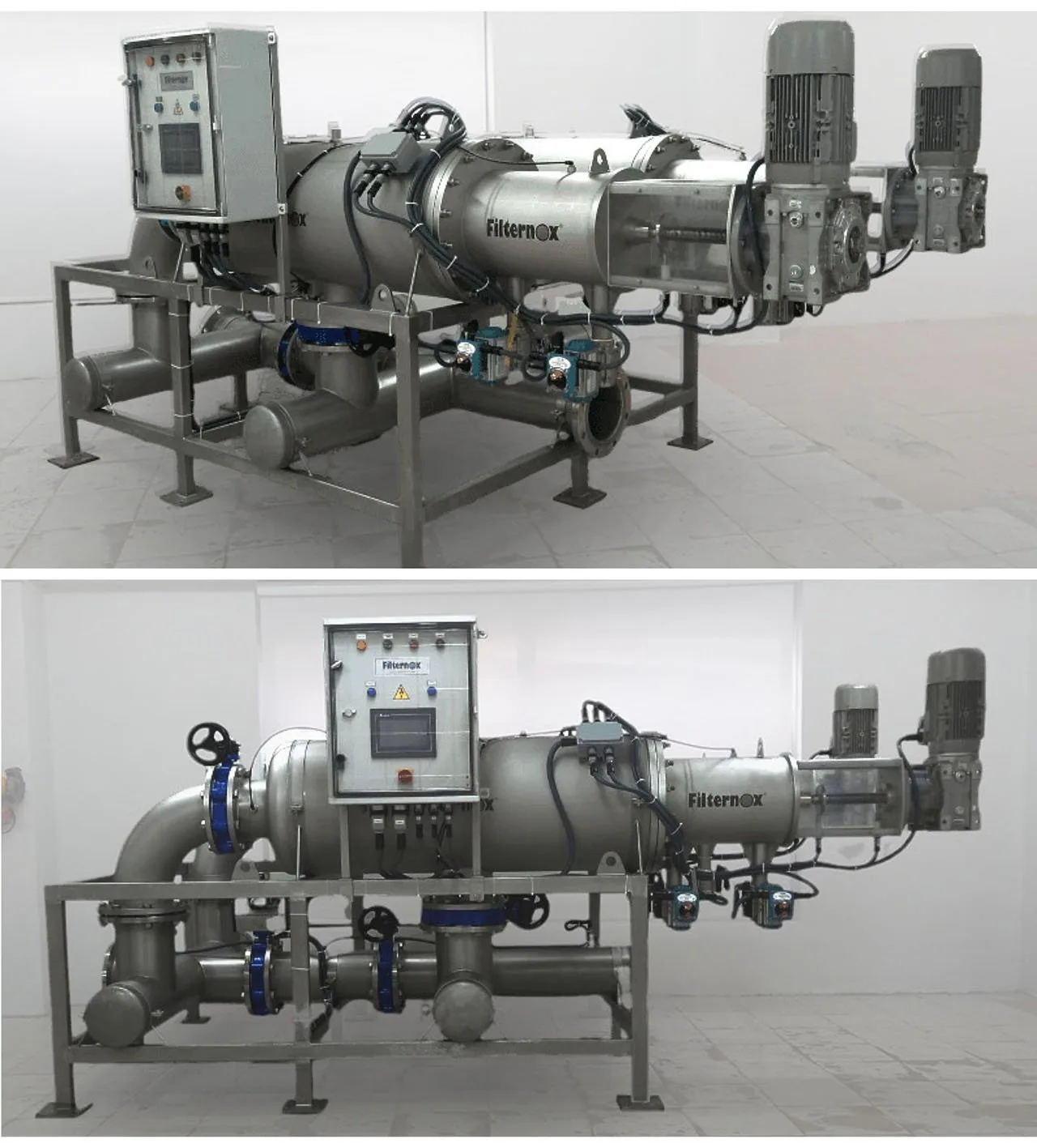

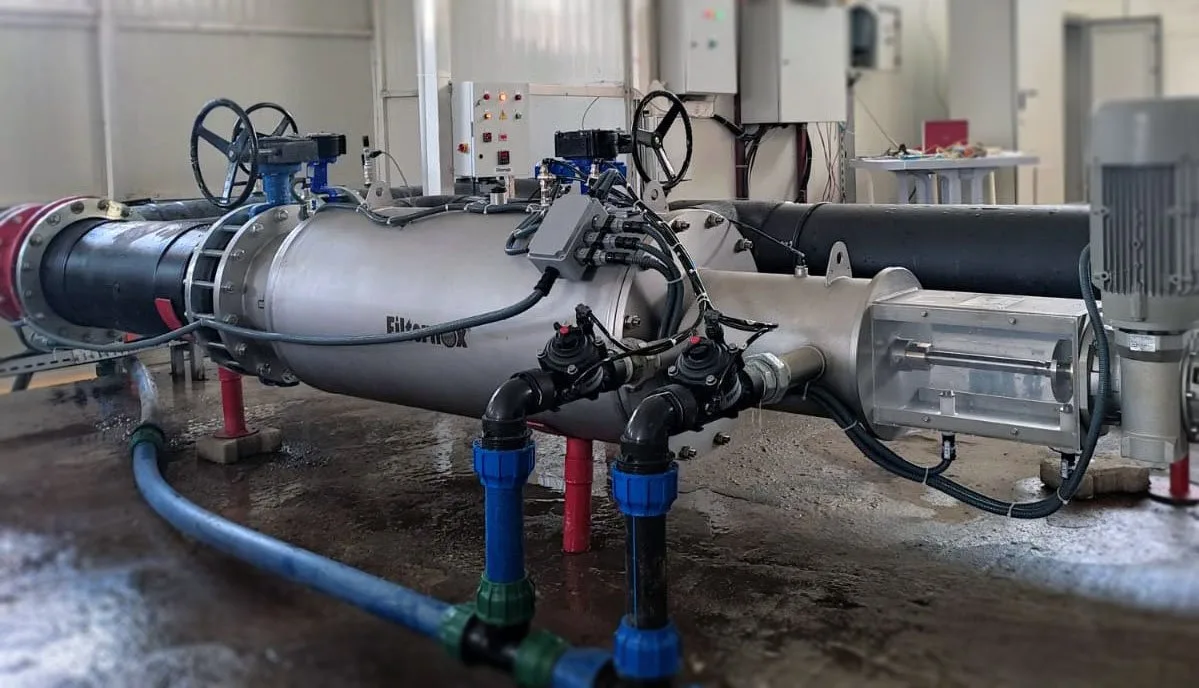

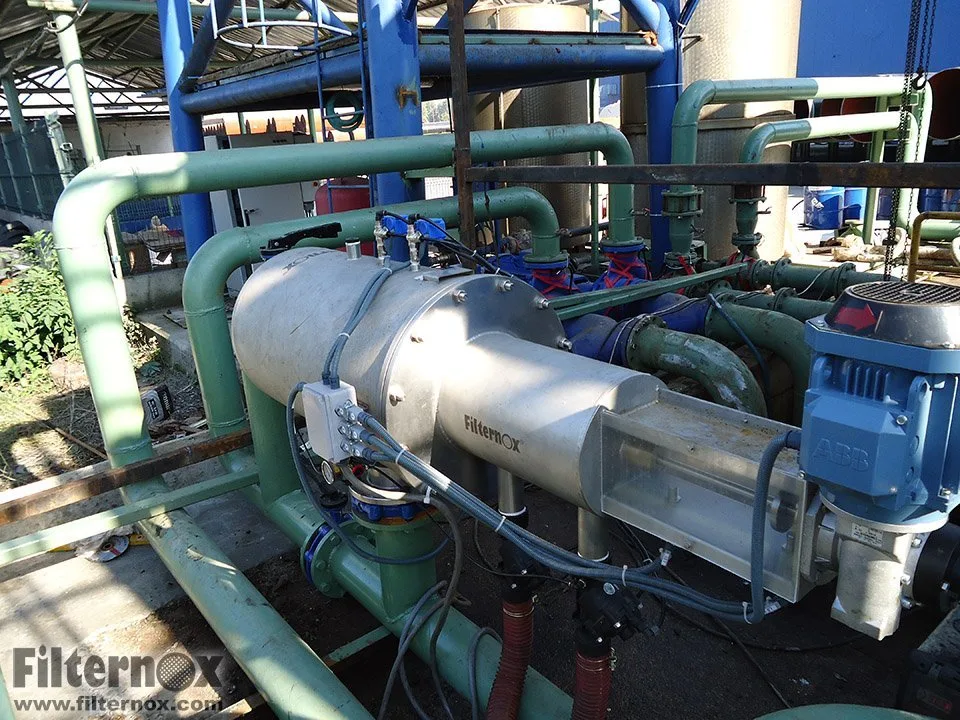

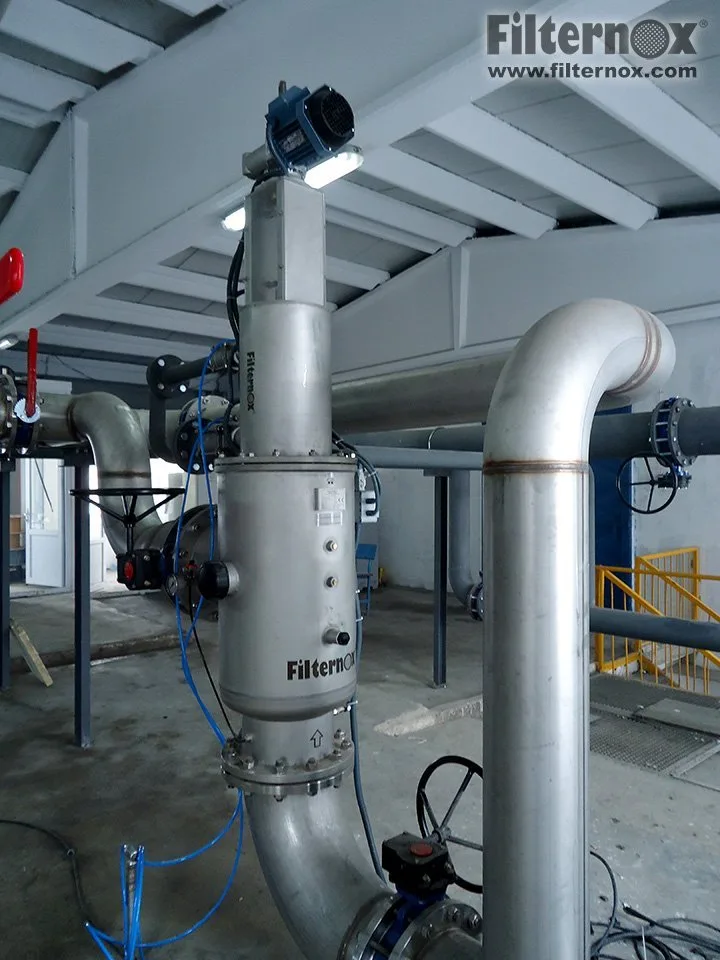

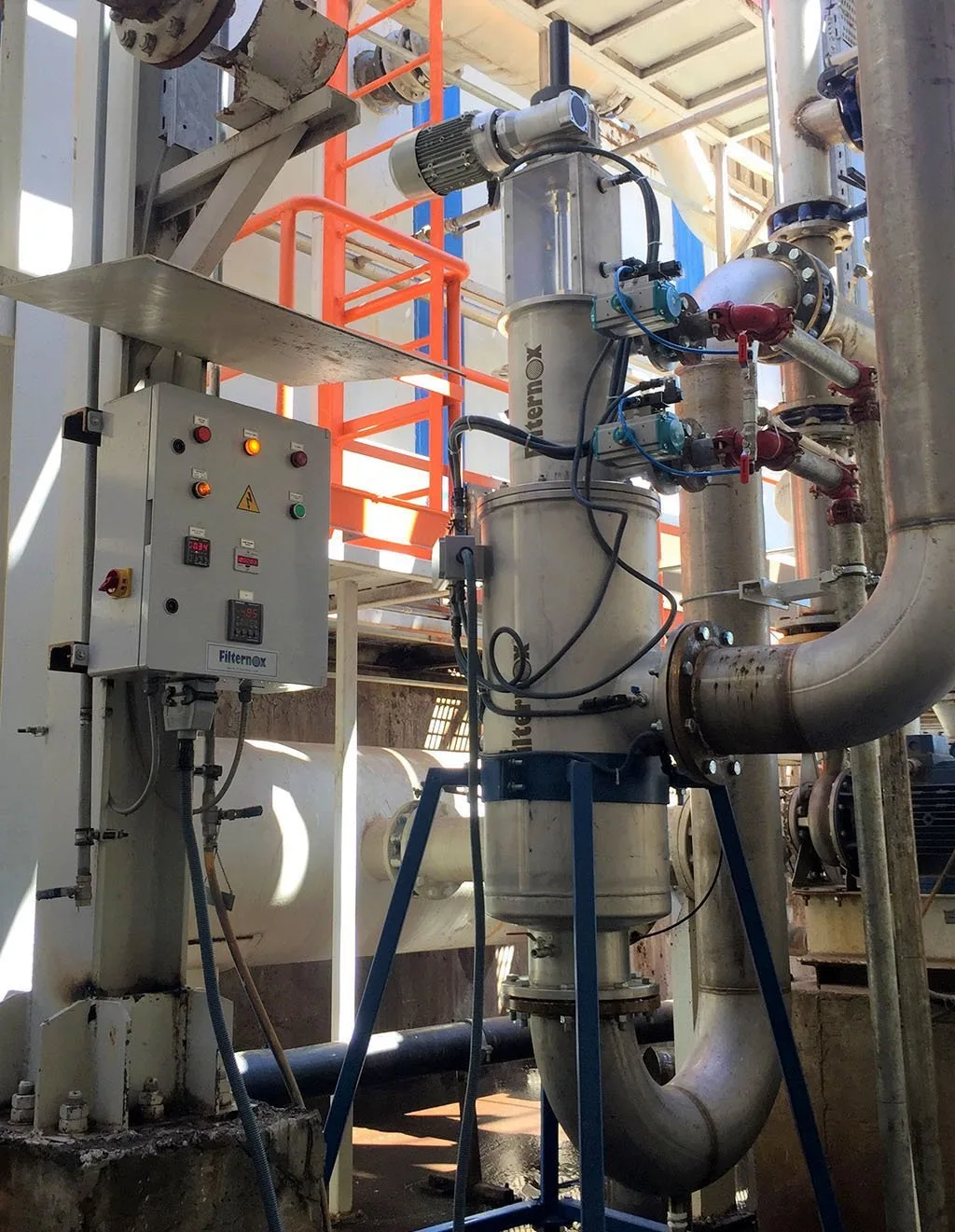

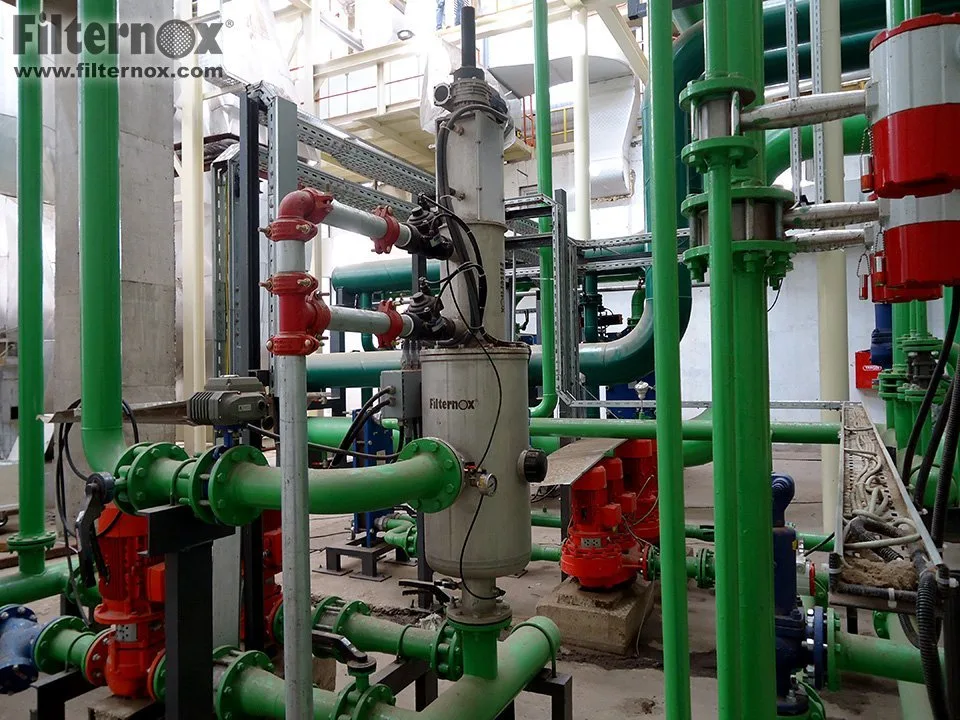

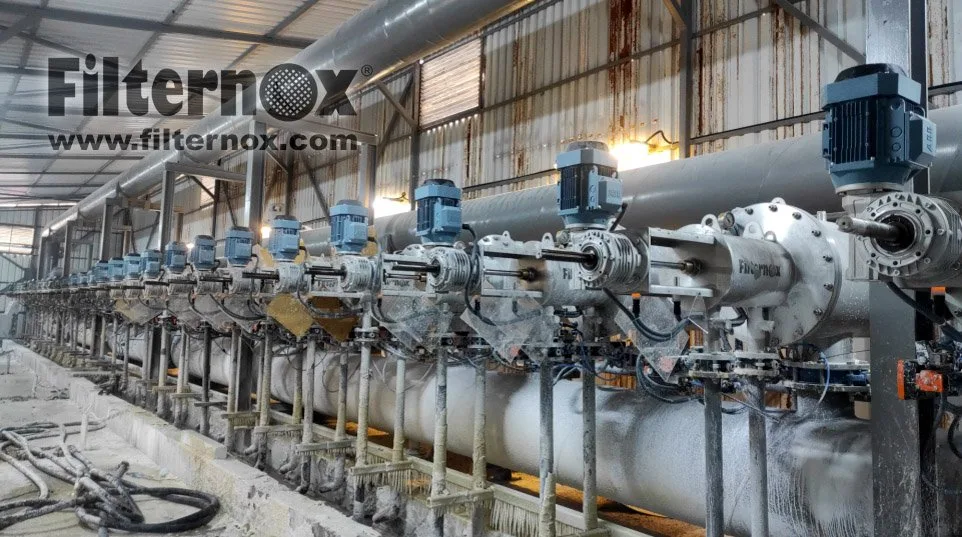

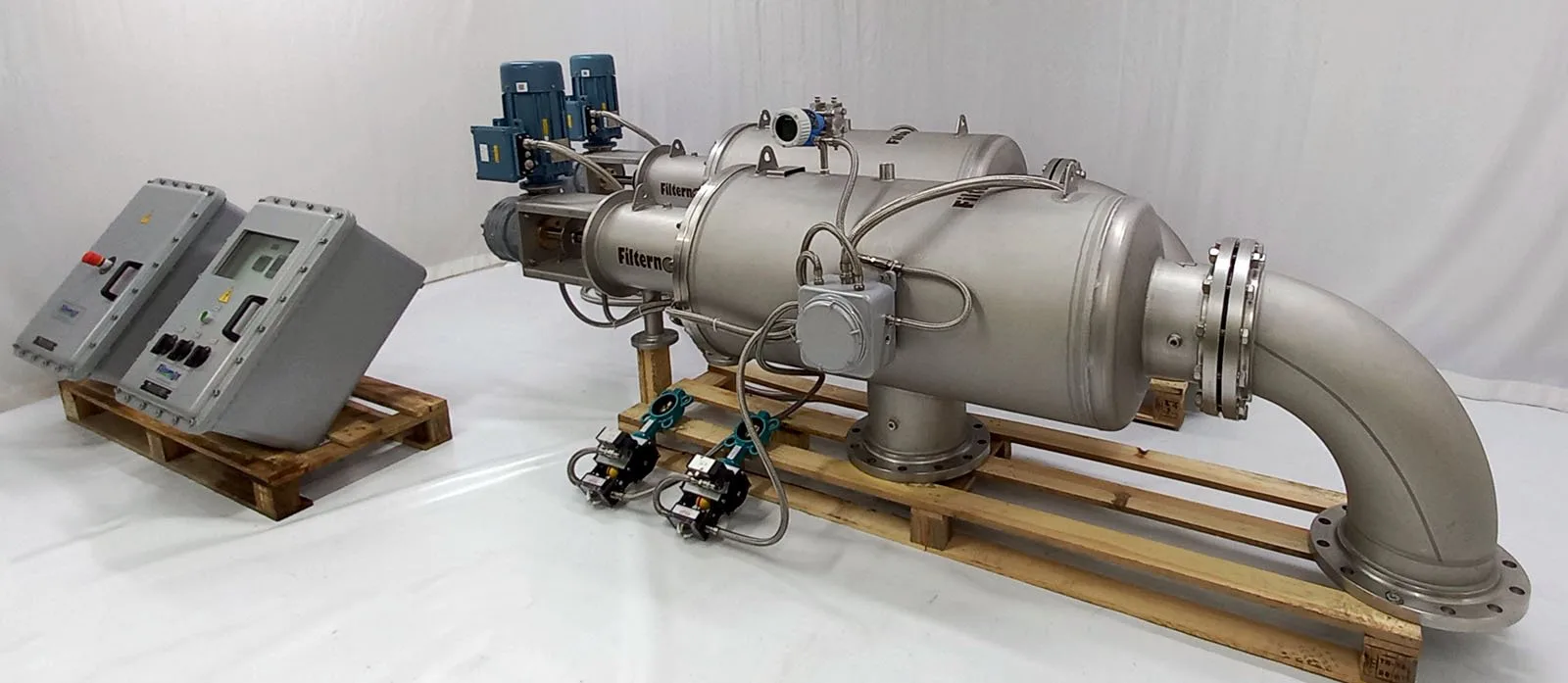

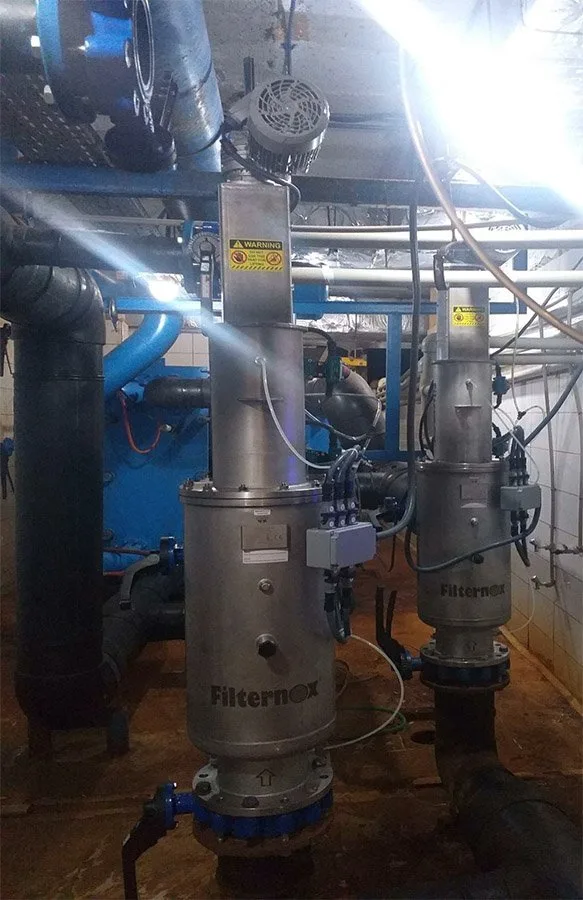

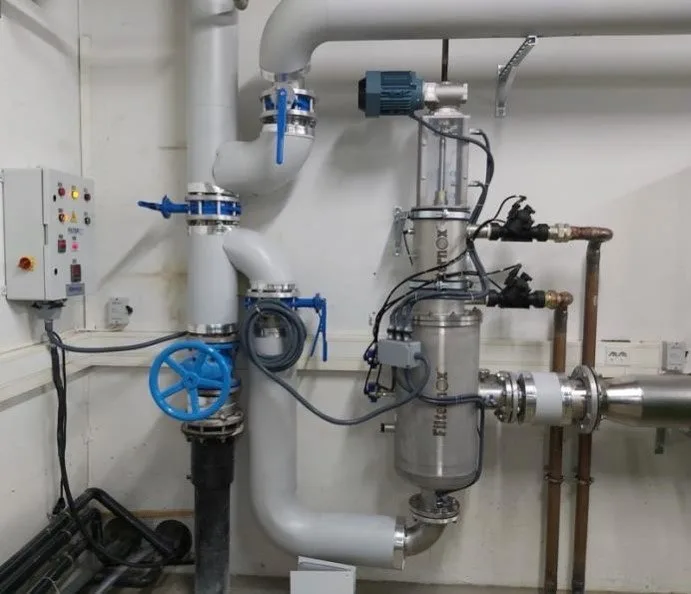

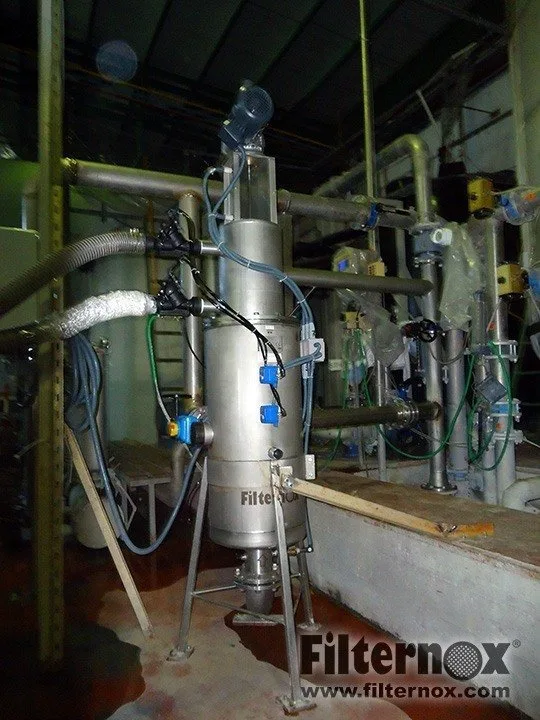

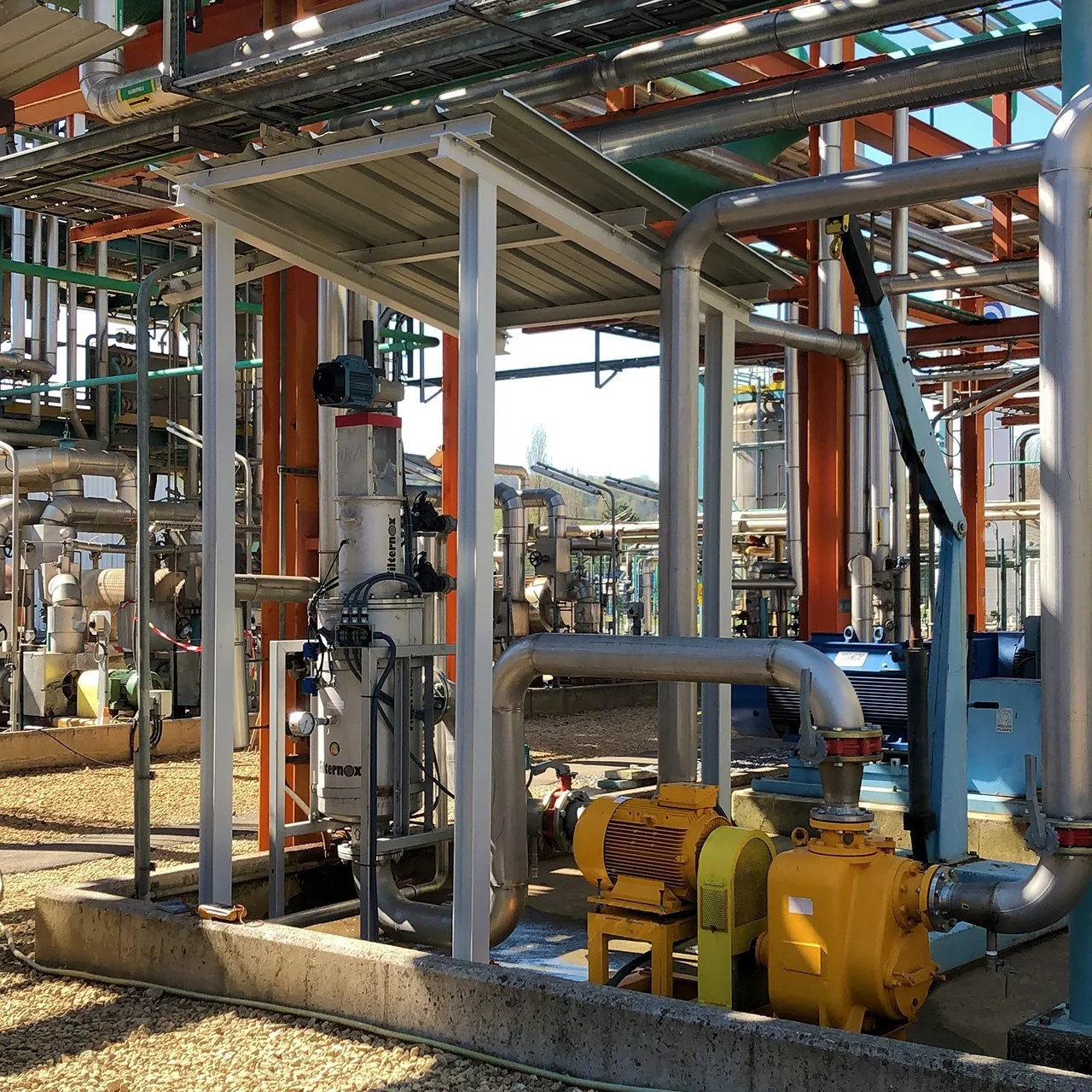

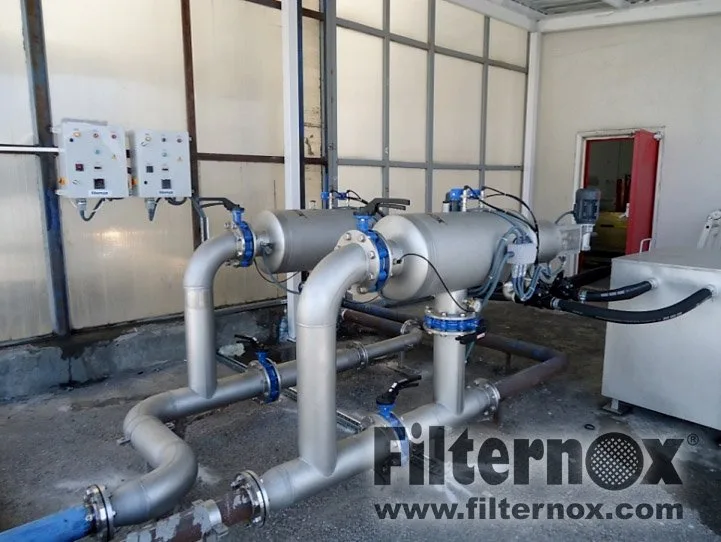

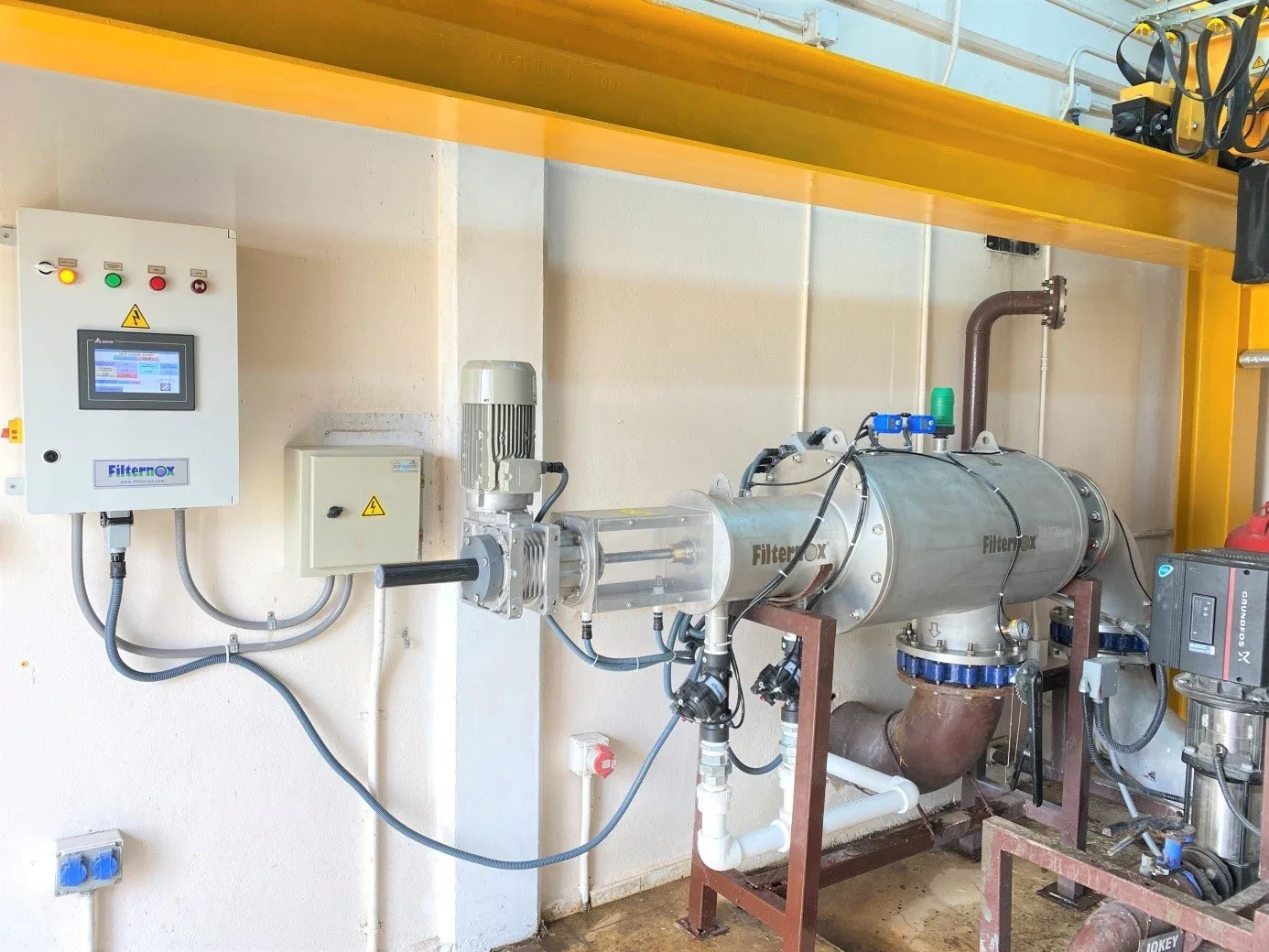

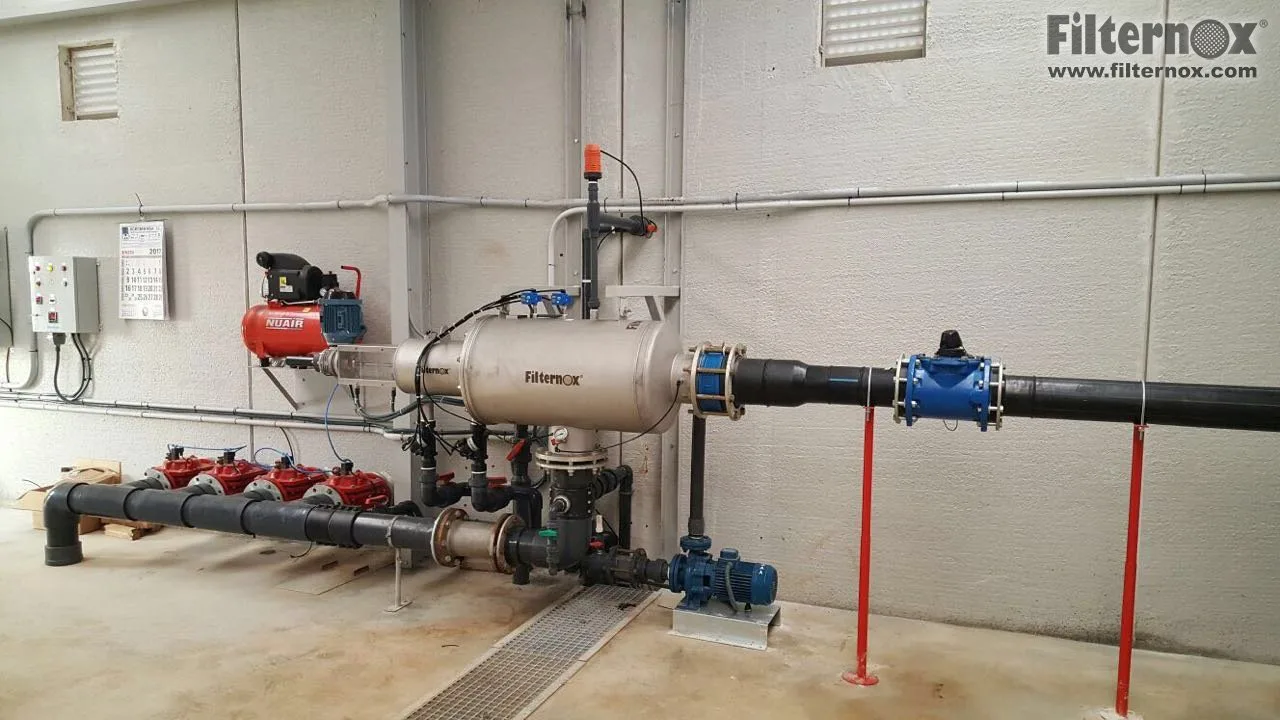

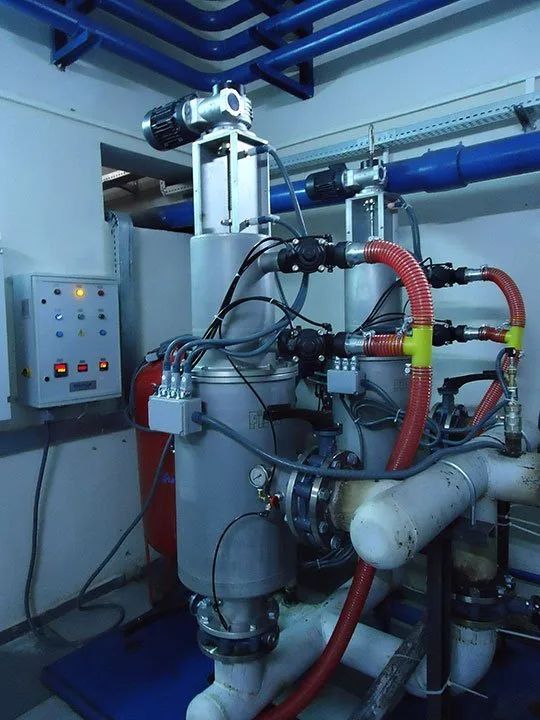

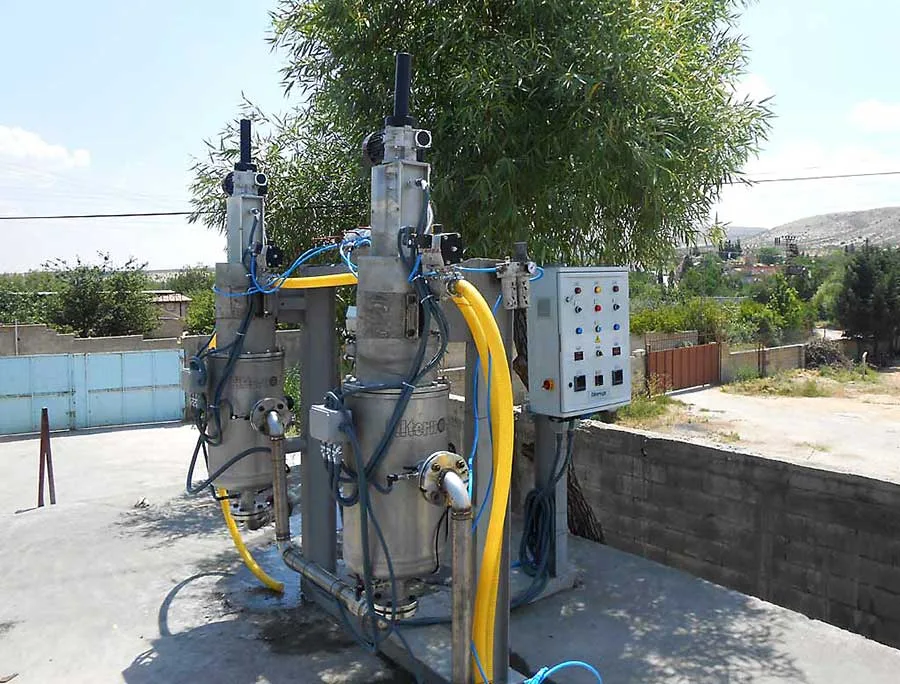

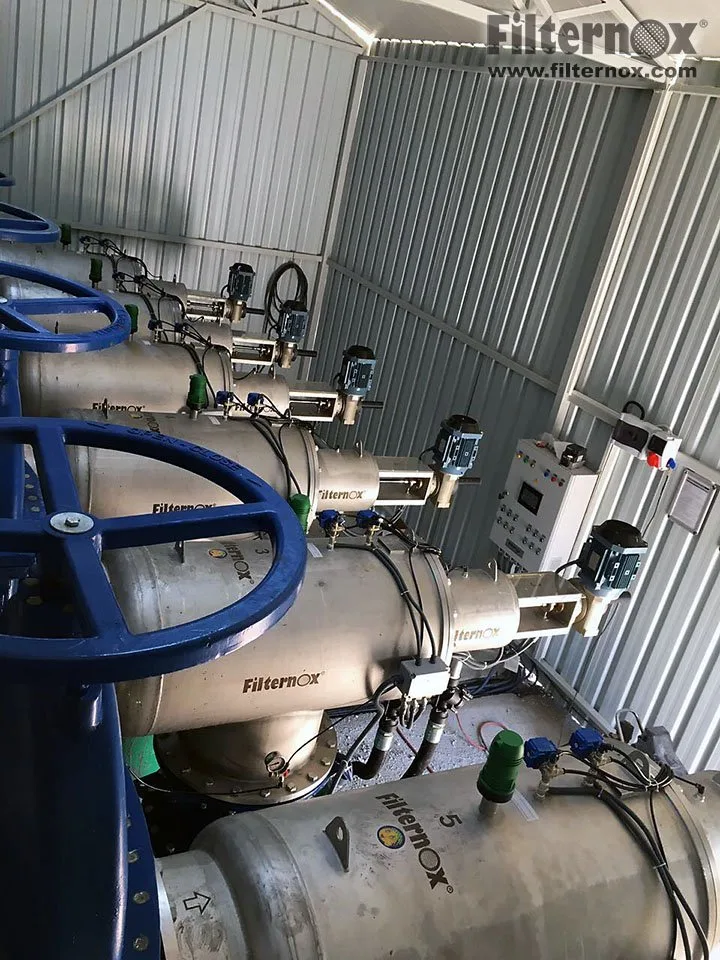

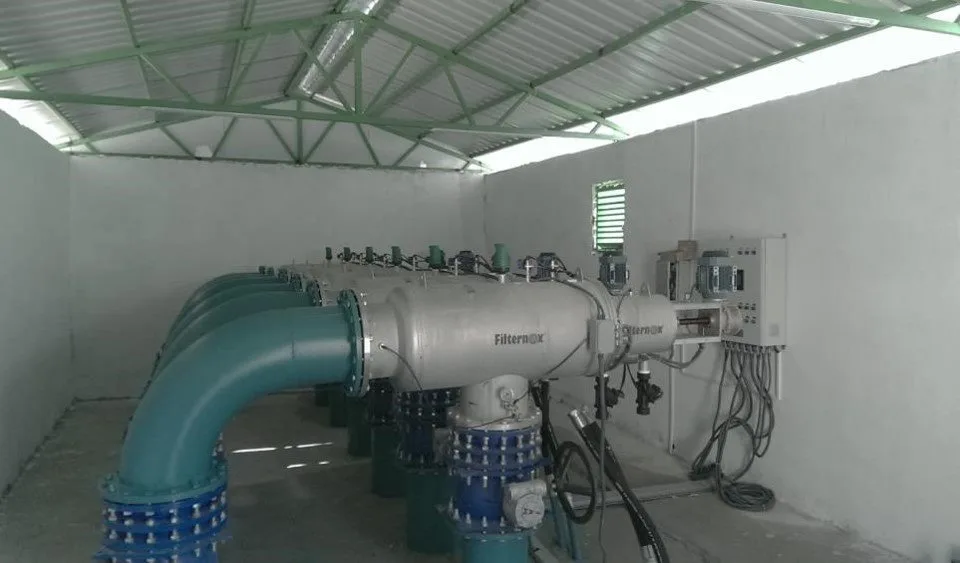

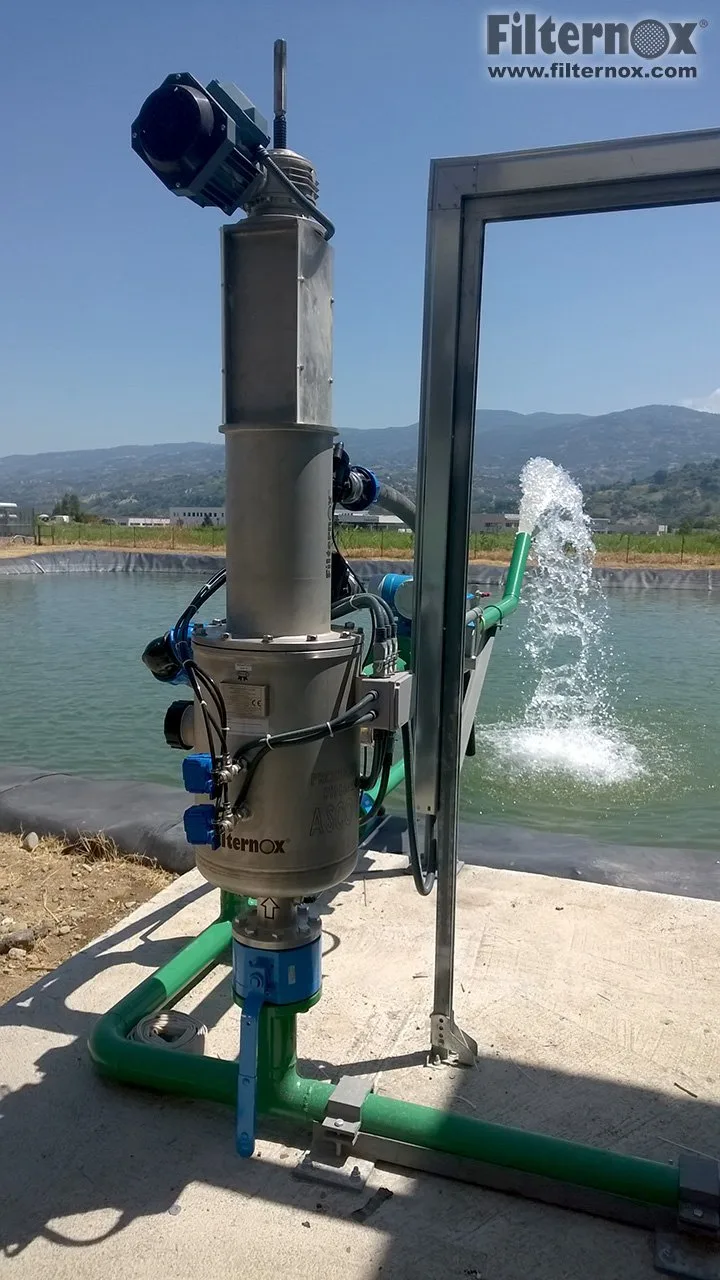

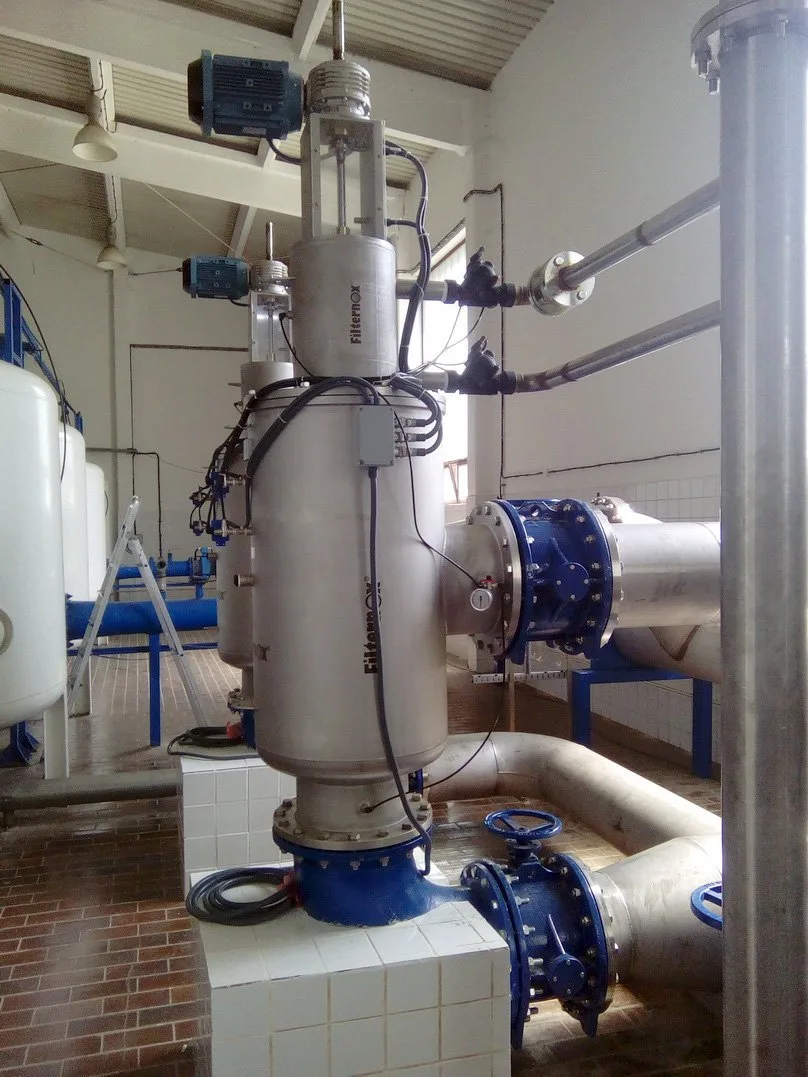

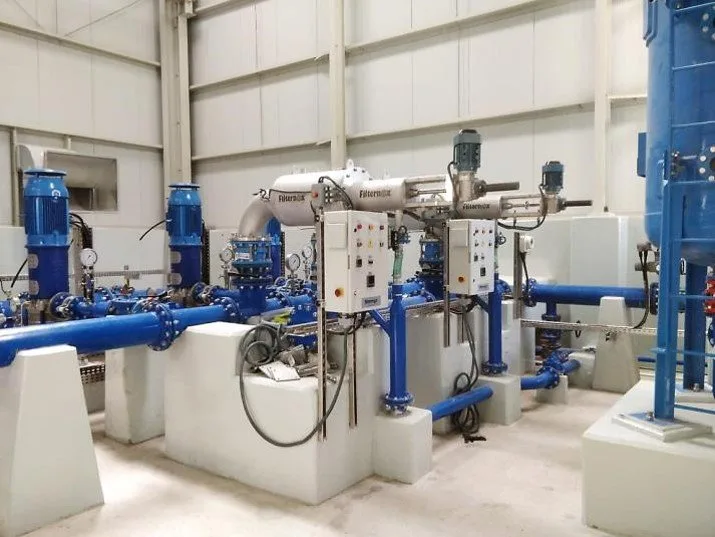

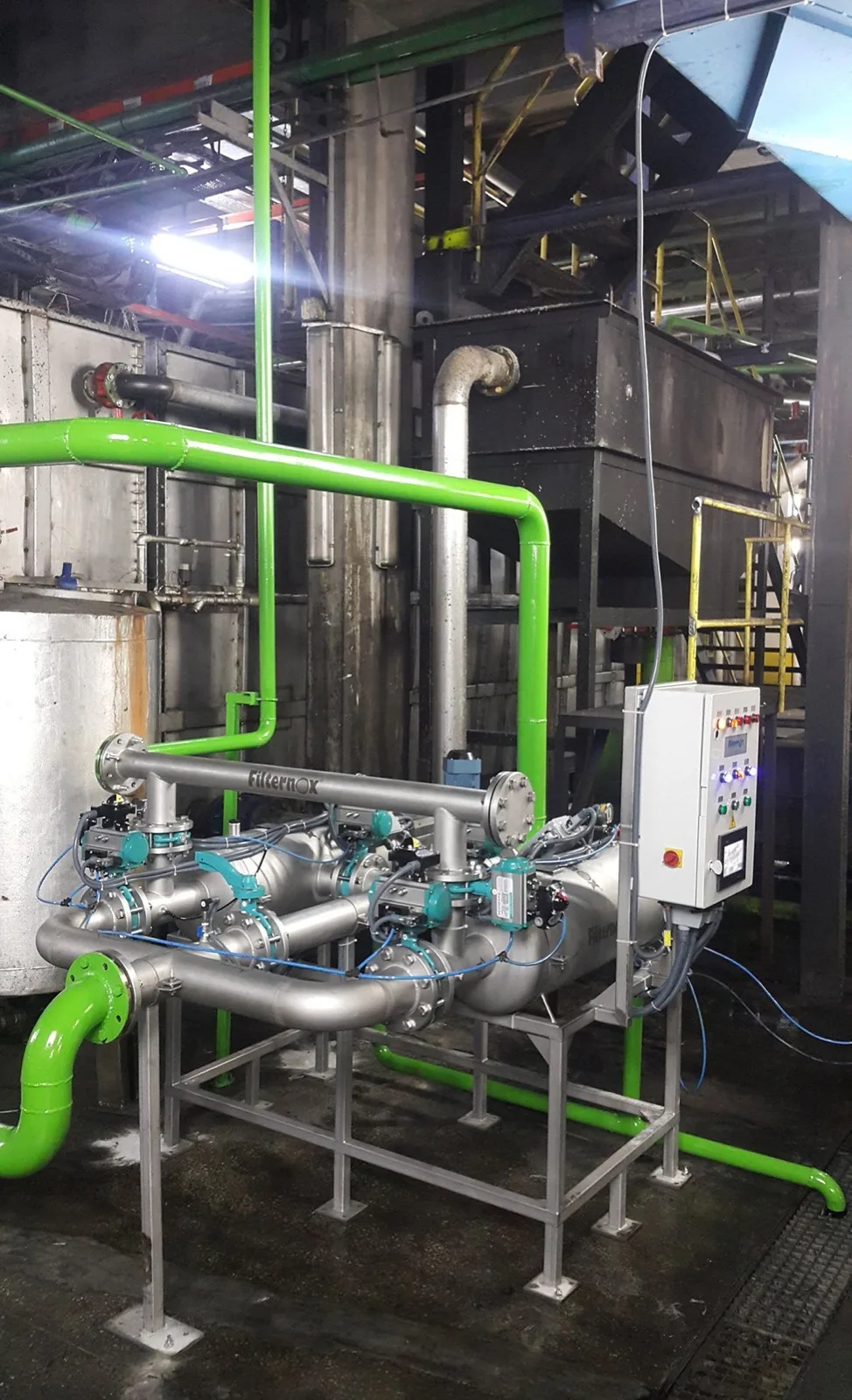

Gallery
Technical Specifications
- Screen Material
- AISI 316L
- Control System
- Electric
- Body Material
- AISI 304L, AISI 316L
- Back-Flush Time
- 40 - 60 s
- Fine Screen Range
- 10 - 3000 micron
- Headloss at Max. Flow Rate
- 0.2 bar
- Back-Flush Water Consumption
- 200 - 400 l / back-flush
- Max. Operating Pressure
- PN10 / PN16
- rpm of Cleaning Mechanism
- Adjustable
- Max. Operating Temperature
- 60°C / 90°C
- Min. Inlet Pressure Required During Back-Flush
- 2 bar
