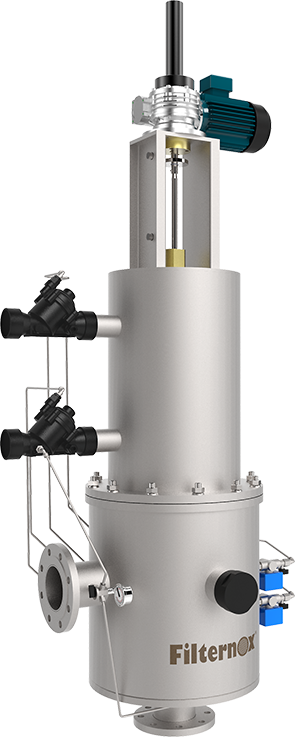

CFH-MR Patented
Patented Filternox® dual filtration technology is a first in the industry.
Product Description
Patented Filternox® dual filtration technology is a first in the industry. CFH series of filters have a unique housing design with two consecutive stages of advanced vacuum nozzle cleaning system which gives CFH an amazingly high dirt removal efficiency.
Gallery
Available Applications
Technical Specifications
- Body Material
- AISI 304L, AISI 316L
- Max. Operating Temperature
- 60°C / 90°C
- Back-Flush Water Consumption
- 100 - 400 l / back-flush
- Screen Material
- AISI 316L
- Headloss at Max. Flow Rate
- 0.2 bar
- Fine Screen Range
- 10 - 3000 micron
- Max. Operating Pressure
- PN10 / PN16
- Back-Flush Time
- 20 - 60 s
- Control System
- Electric
- Min. Inlet Pressure Required During Back-Flush
- 2 bar
- rpm of Cleaning Mechanism
- Adjustable
