PFH
Filternox® PFH models are standard piston type automatic self-cleaning filters. They consist of a manual cleaning protective coarse screen in the inlet of the filter body to protect the fine screen from being damaged by big particles.
Product Description
Filternox® PFH models are standard piston type automatic self-cleaning filters. They consist of a manual cleaning protective coarse screen in the inlet of the filter body to protect the fine screen from being damaged by big particles.

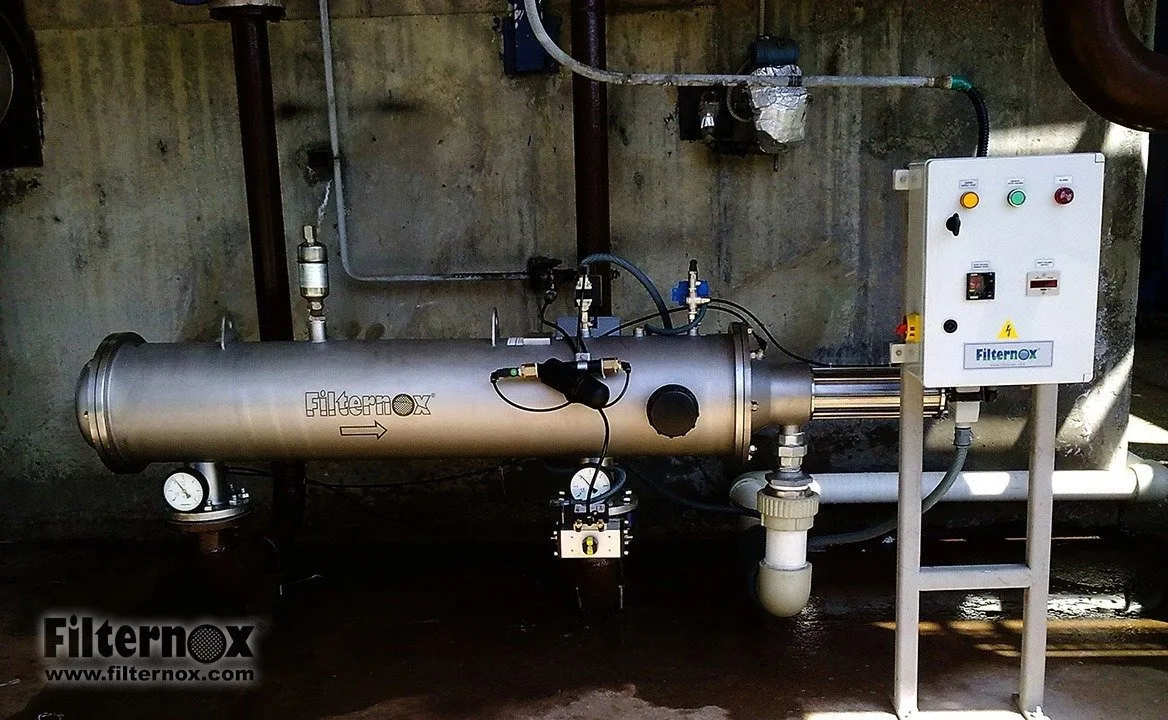

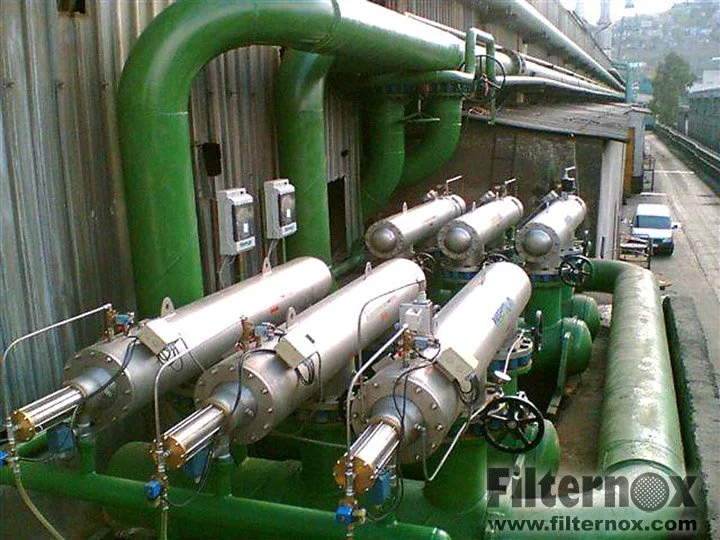

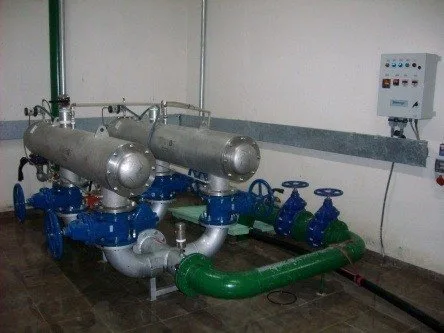

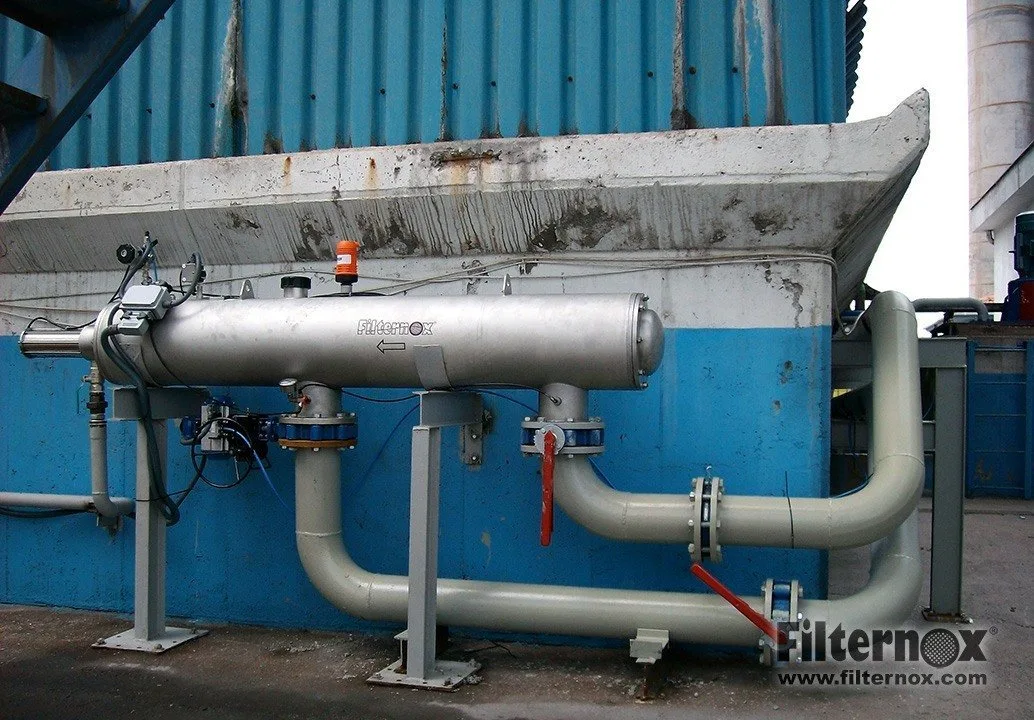

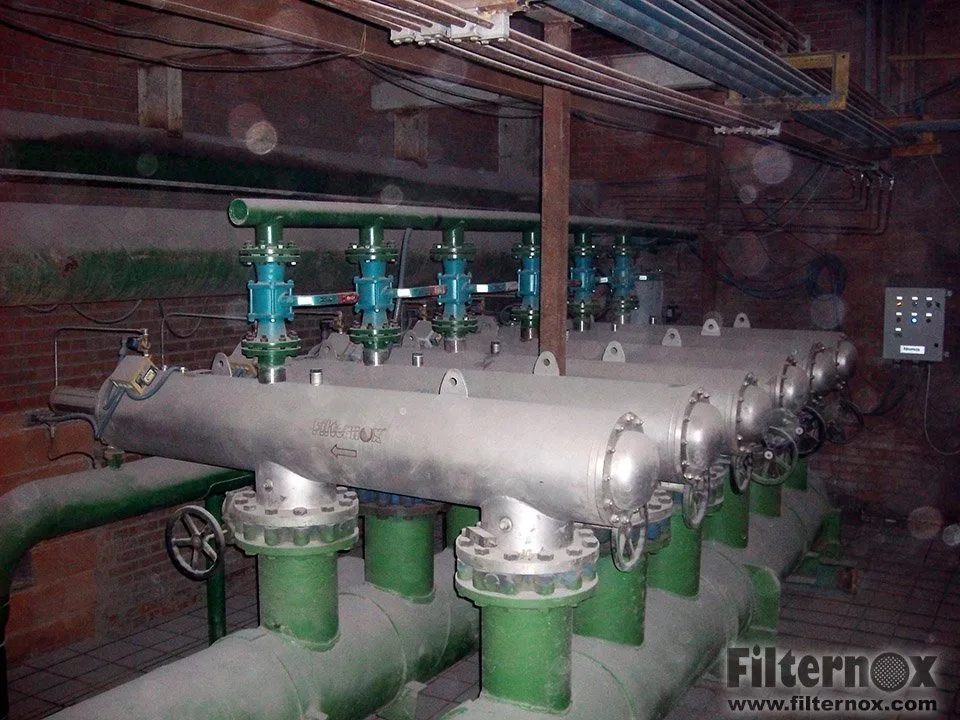

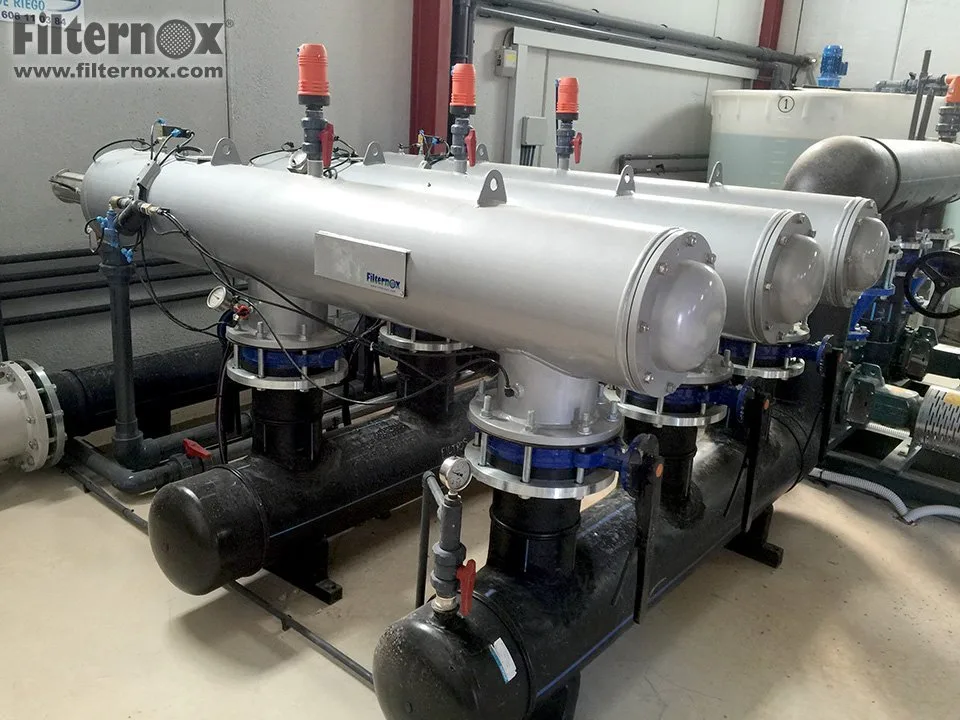

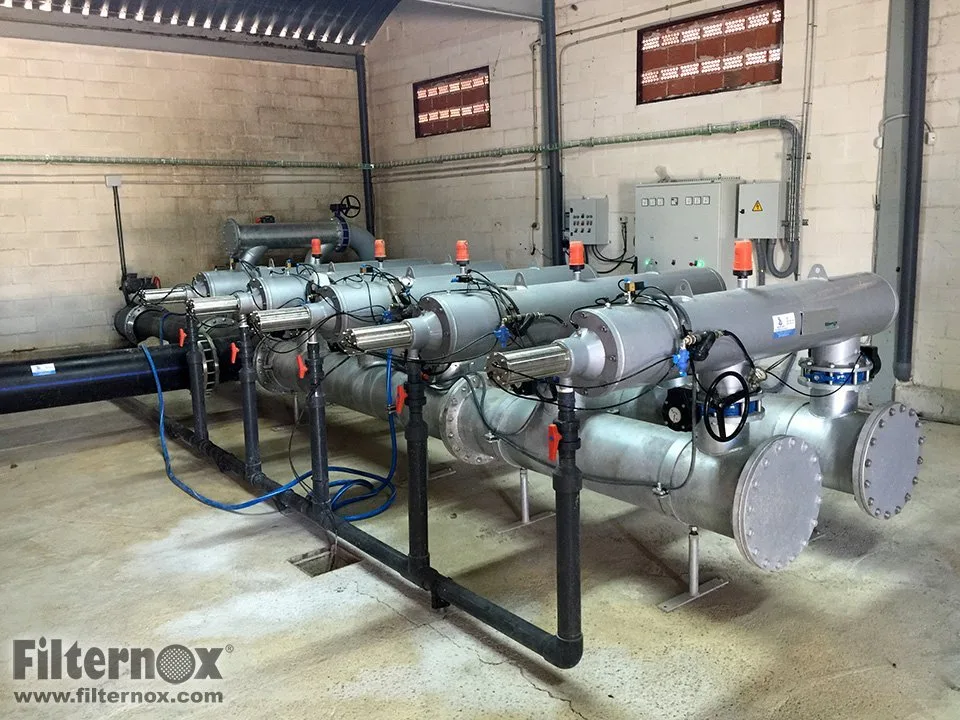

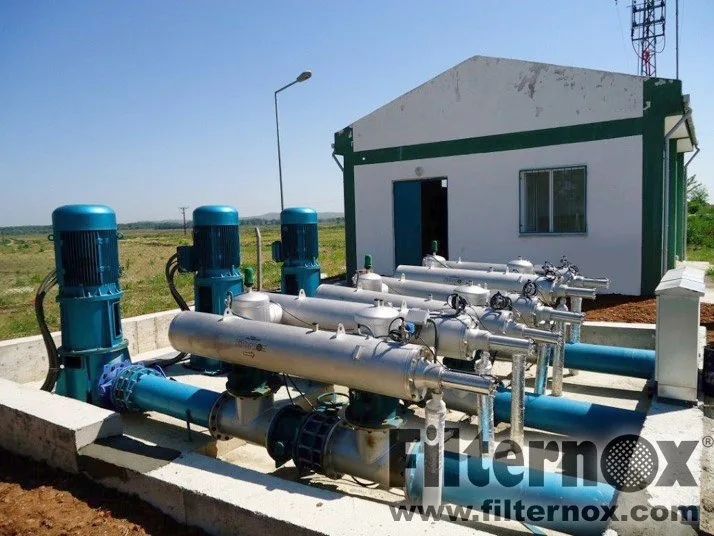

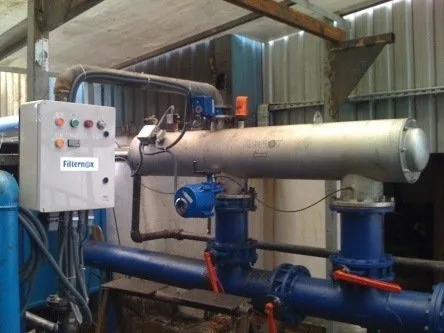

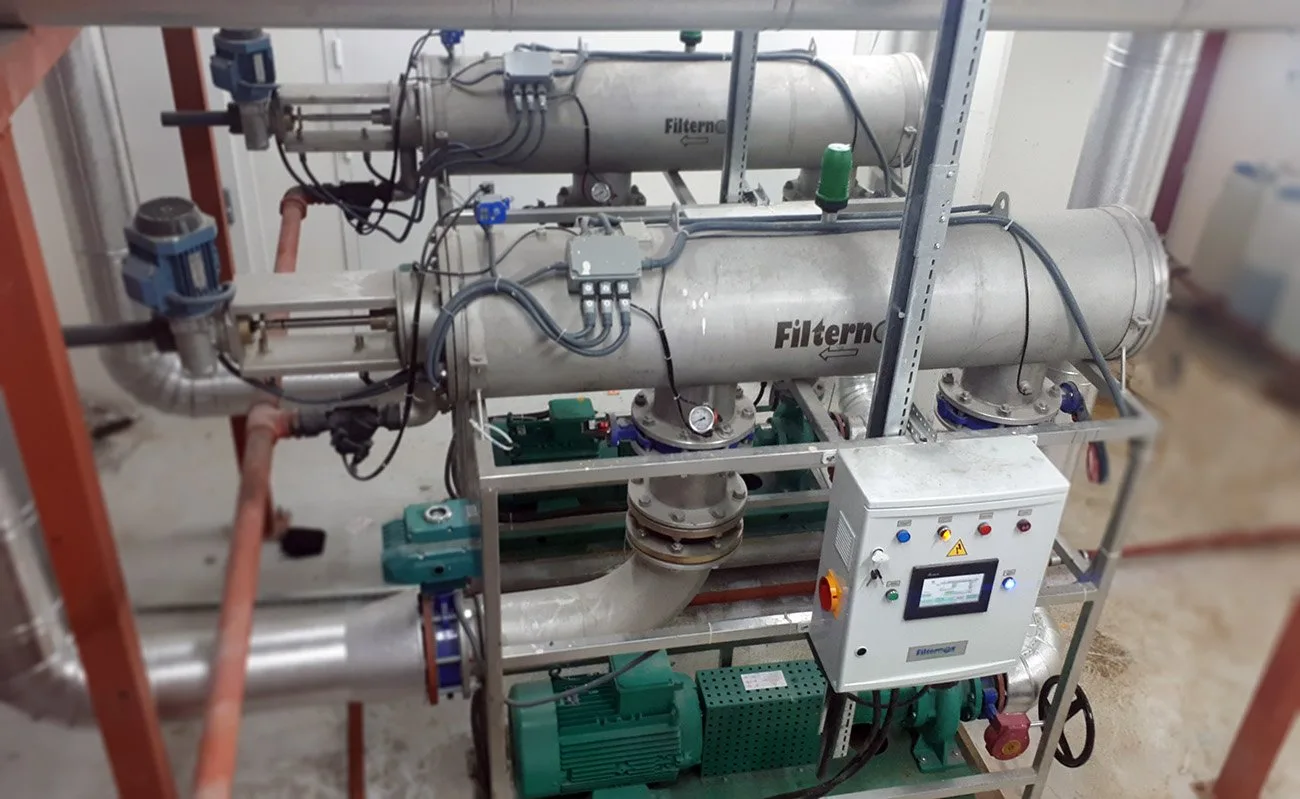

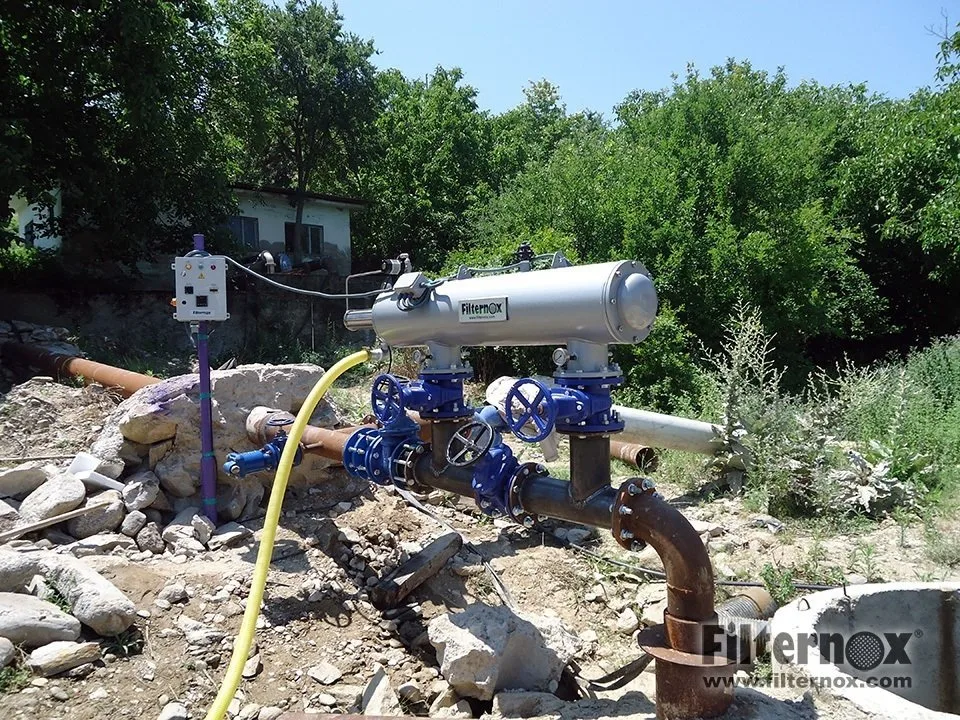

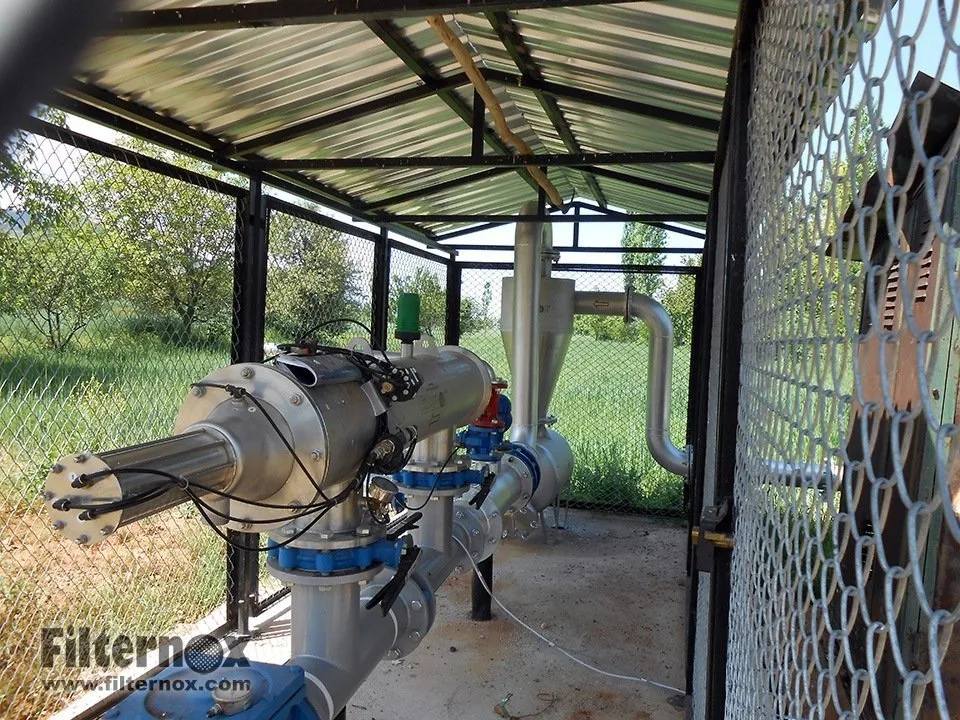

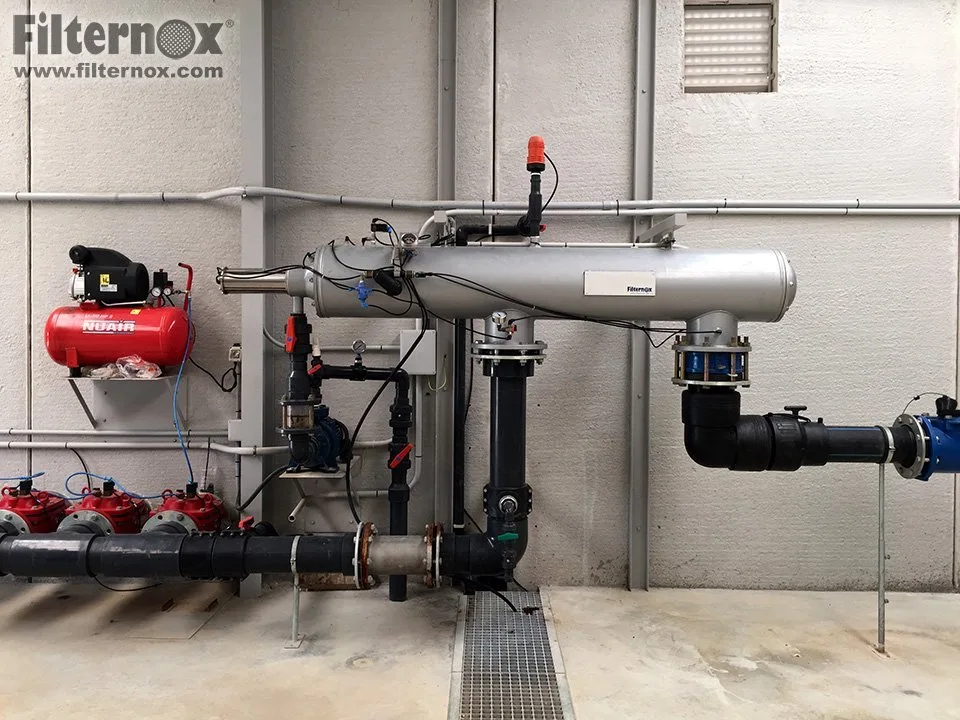

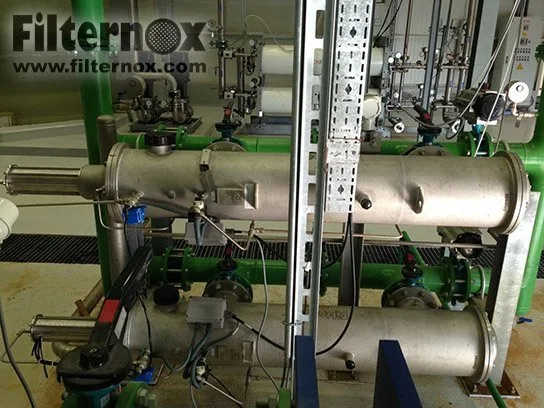

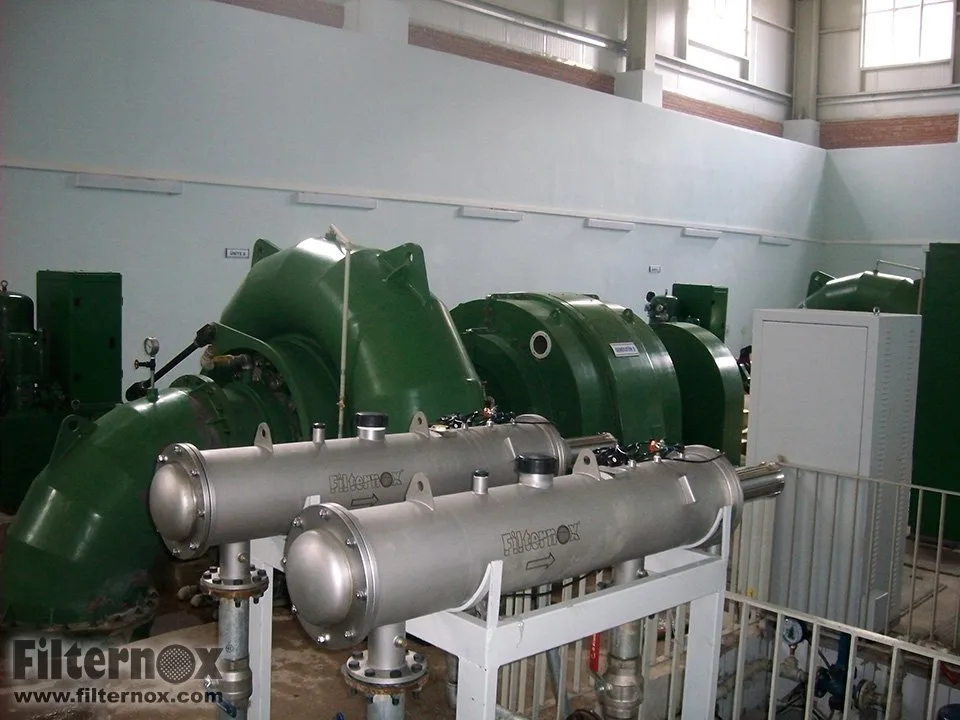

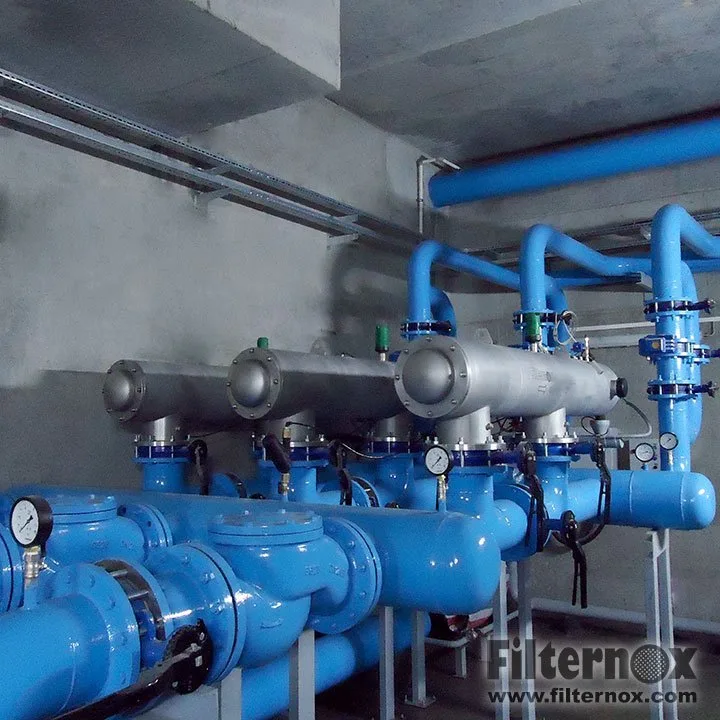

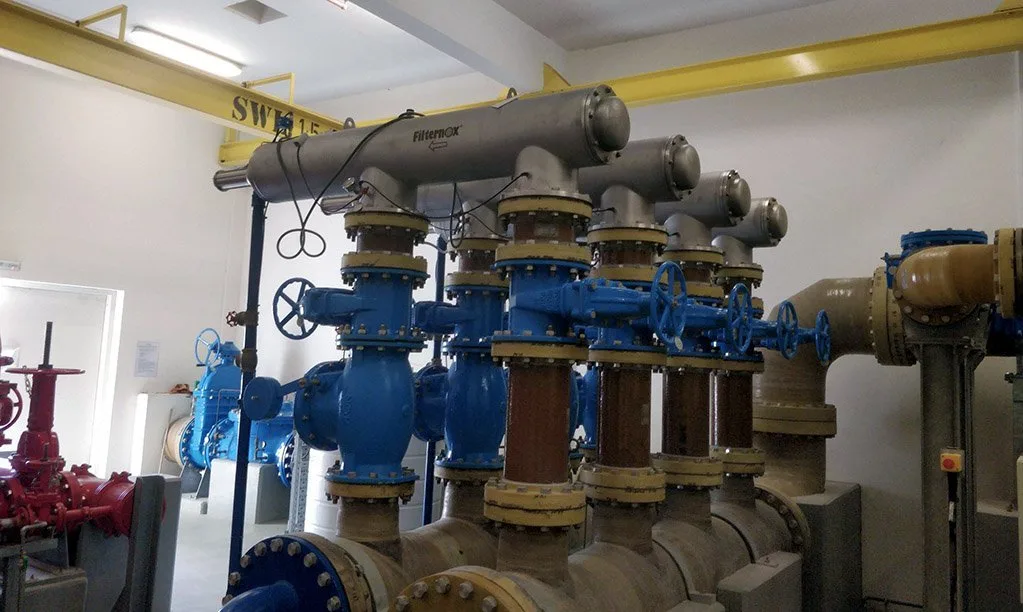

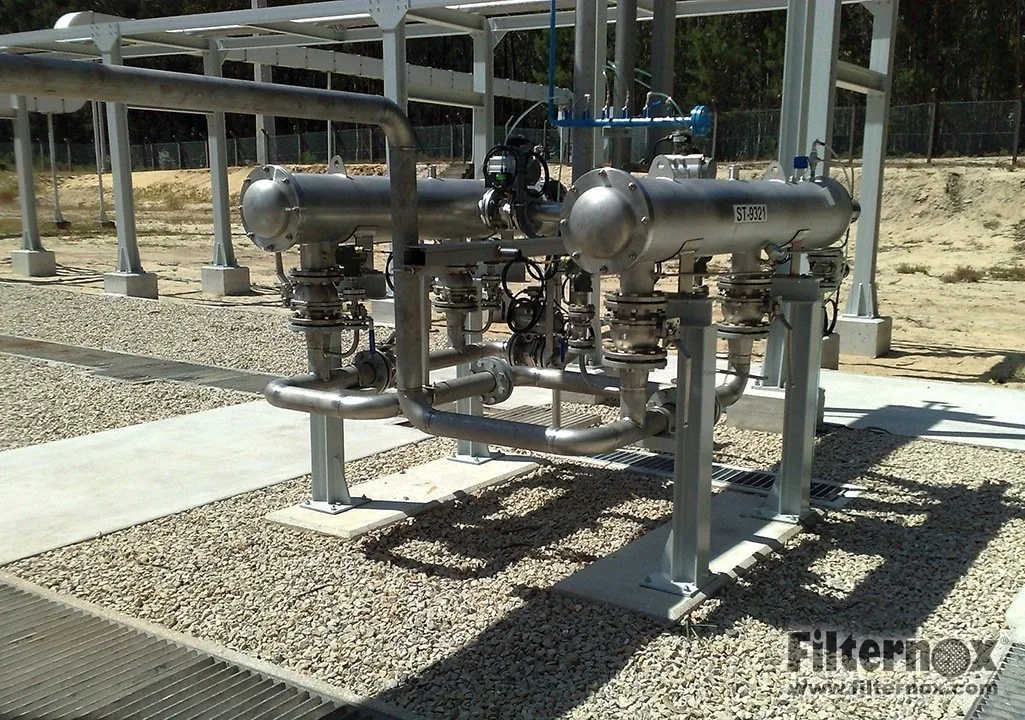

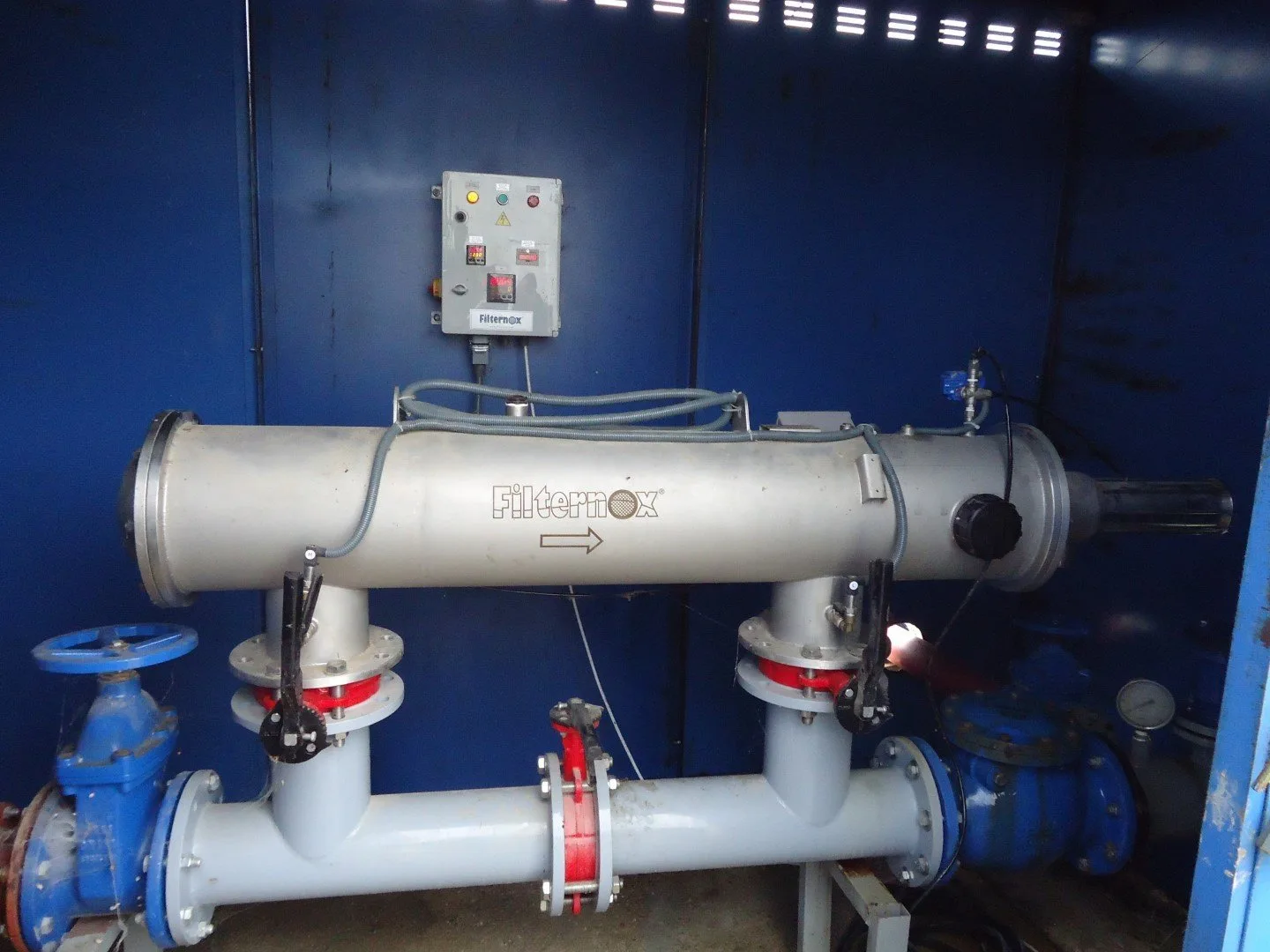

Gallery
Available Applications
Technical Specifications
- Screen Material
- AISI 316L
- Control System
- Electric
- Body Material
- AISI 304L, AISI 316L
- Back-Flush Time
- 20 - 30 s
- Fine Screen Range
- 10 - 3000 micron
- Headloss at Max. Flow Rate
- 0.2 bar
- Back-Flush Water Consumption
- 100 - 120 l / back-flush
- Max. Operating Pressure
- PN10 / PN16
- rpm of Cleaning Mechanism
- Adjustable
- Max. Operating Temperature
- 60°C / 90°C
- Min. Inlet Pressure Required During Back-Flush
- 2 bar
