PQR-MR

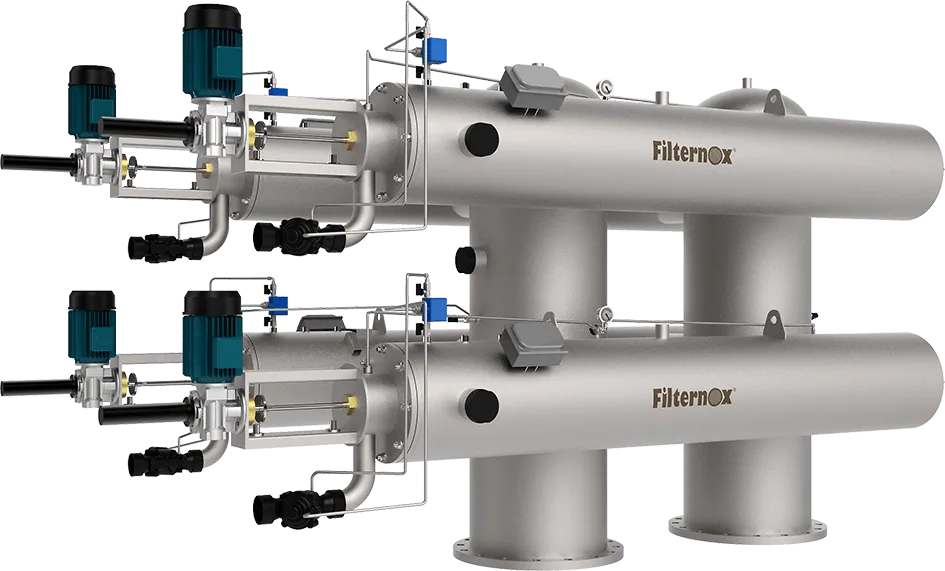

Filternox® PQR models have four independent fine screen modules for one inlet-outlet. These models provides largest filtration area compared to PTW and PTR models, they are convenient for the filtration of the water with high flow rates and high amounts of particles.
Product Description
Filternox® PQR models have four independent fine screen modules for one inlet-outlet. These models provides largest filtration area compared to PTW and PTR models, they are convenient for the filtration of the water with high flow rates and high amounts of particles. We are using cookies to give you the best experience on our website.
Gallery
Technical Specifications
- Screen Material
- AISI 316L
- Control System
- Electric
- Body Material
- AISI 304L, AISI 316L
- Back-Flush Time
- 20 - 30 s
- Fine Screen Range
- 10 - 3000 micron
- Headloss at Max. Flow Rate
- 0.2 bar
- Back-Flush Water Consumption
- 150 - 800 l / back-flush
- Max. Operating Pressure
- 10 bar (16-25 bar optional)
- rpm of Cleaning Mechanism
- Adjustable
- Max. Operating Temperature
- 60°C / 90°C
- Min. Inlet Pressure Required During Back-Flush
- 2 bar
