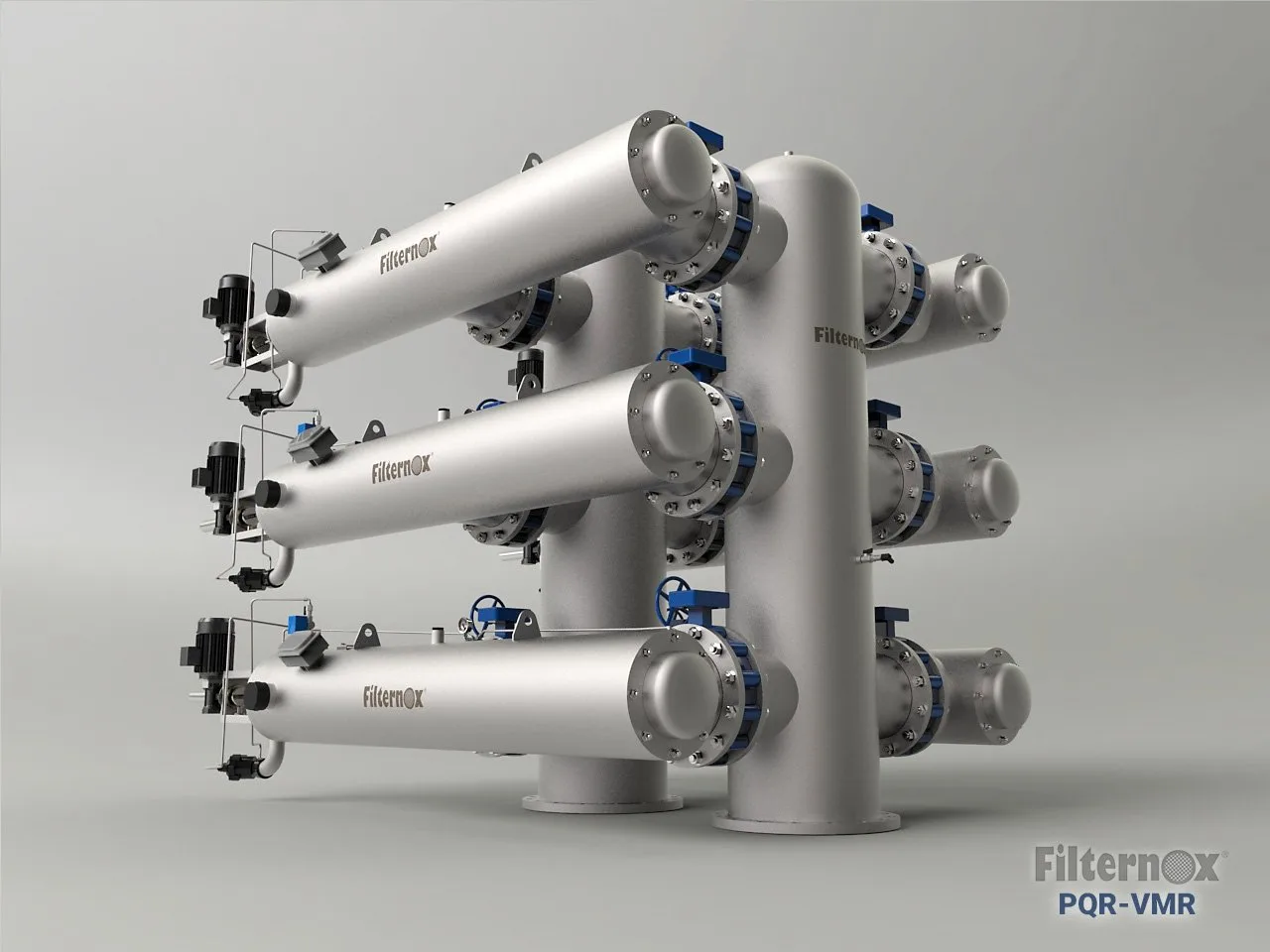

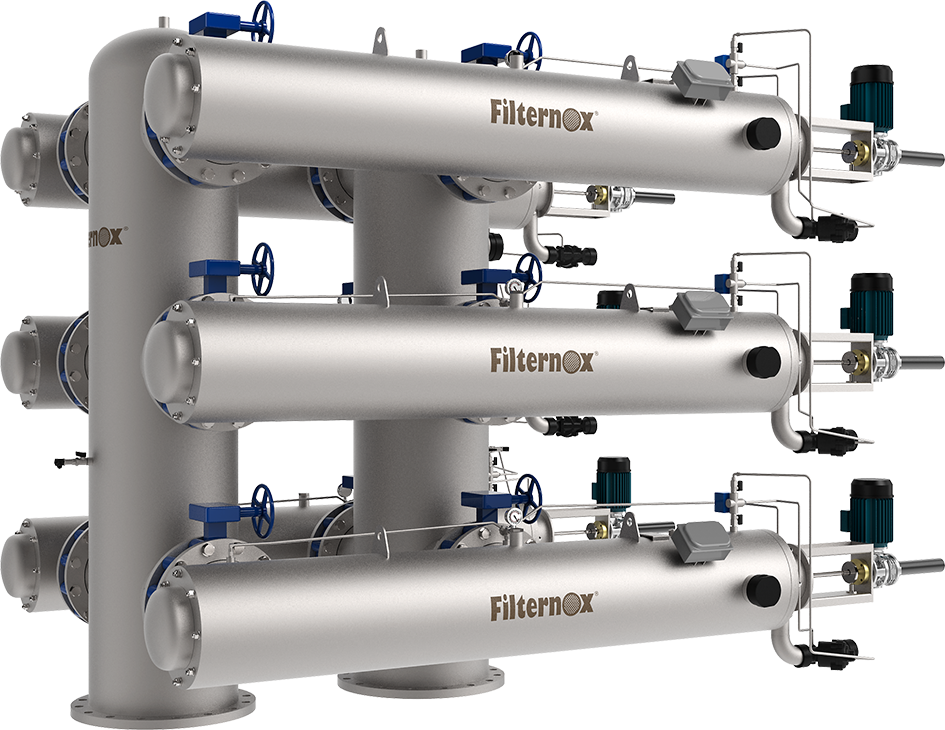

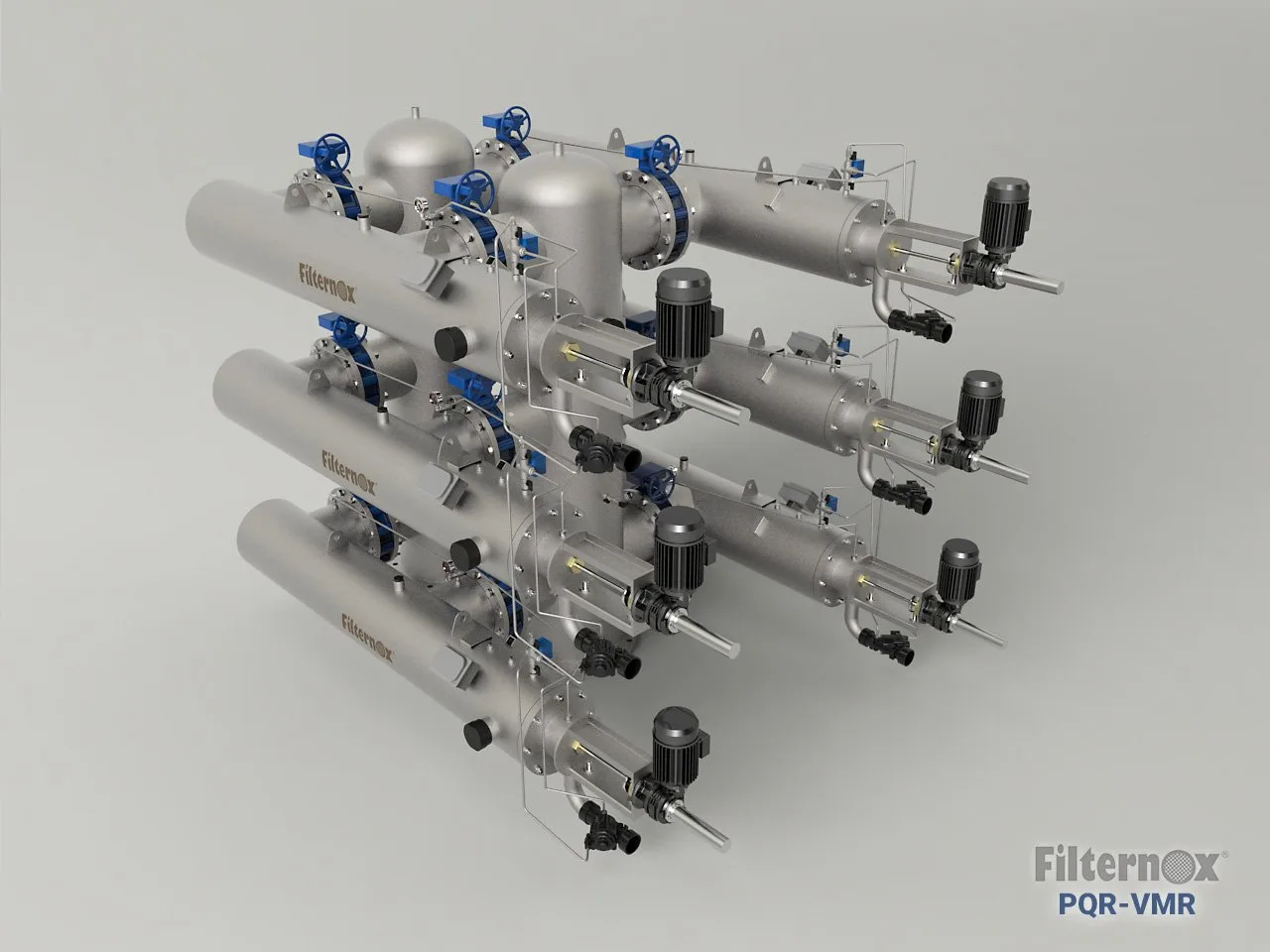

PQR-VMR
With their special design, PQR-VMR models provide safe and uninterrupted filtration.
Product Description
With their special design, PQR-VMR models provide safe and uninterrupted filtration. Filternox® secures up to 200.000cm2 filtration area with its largest PQR-VMR model filters.
Gallery
Technical Specifications
- Screen Material
- AISI 316L
- Control System
- Electric
- Body Material
- AISI 304L, AISI 316L
- Back-Flush Time
- 80 - 180 s
- Fine Screen Range
- 10 - 3000 micron
- Headloss at Max. Flow Rate
- 0.2 bar
- Back-Flush Water Consumption
- 400 - 1200 l / back-flush
- Max. Operating Pressure
- PN10 / PN16
- rpm of Cleaning Mechanism
- Adjustable
- Max. Operating Temperature
- 60°C / 90°C
- Min. Inlet Pressure Required During Back-Flush
- 2 bar
