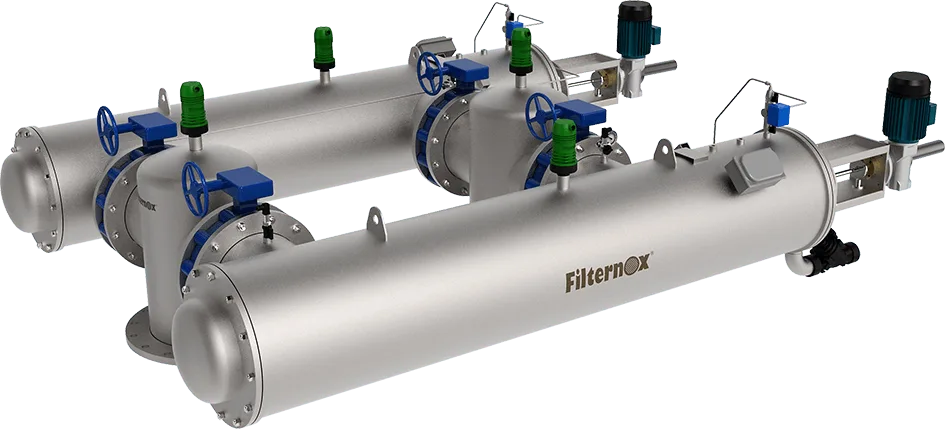

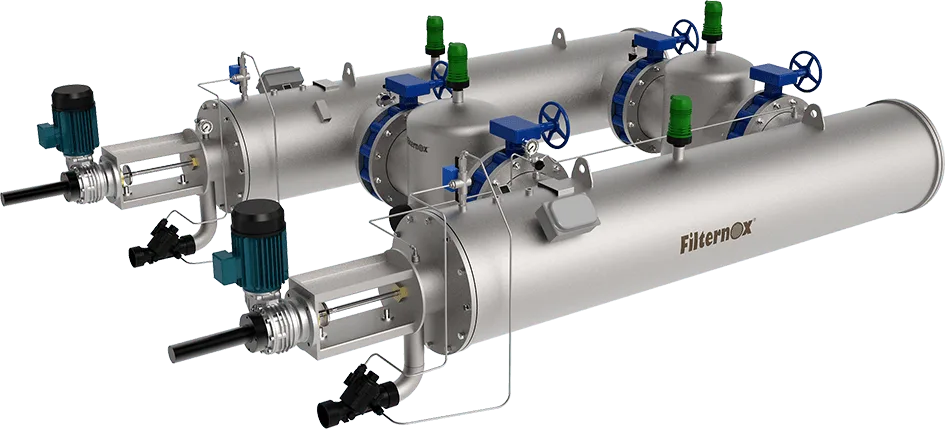

PTW-VMR

Filternox® PTW models have two independent fine screen modules for one inlet-outlet and includes a protective coarse screen which is cleaned manually. These models provide larger filtration area compared to PFH models and are suitable for filtration of water with high amounts of particles.

PTW-VMR

Product Description

Filternox® PTW models have two independent fine screen modules for one inlet-outlet and includes a protective coarse screen which is cleaned manually. These models provide larger filtration area compared to PFH models and are suitable for filtration of water with high amounts of particles. We are using cookies to give you the best experience on our website.

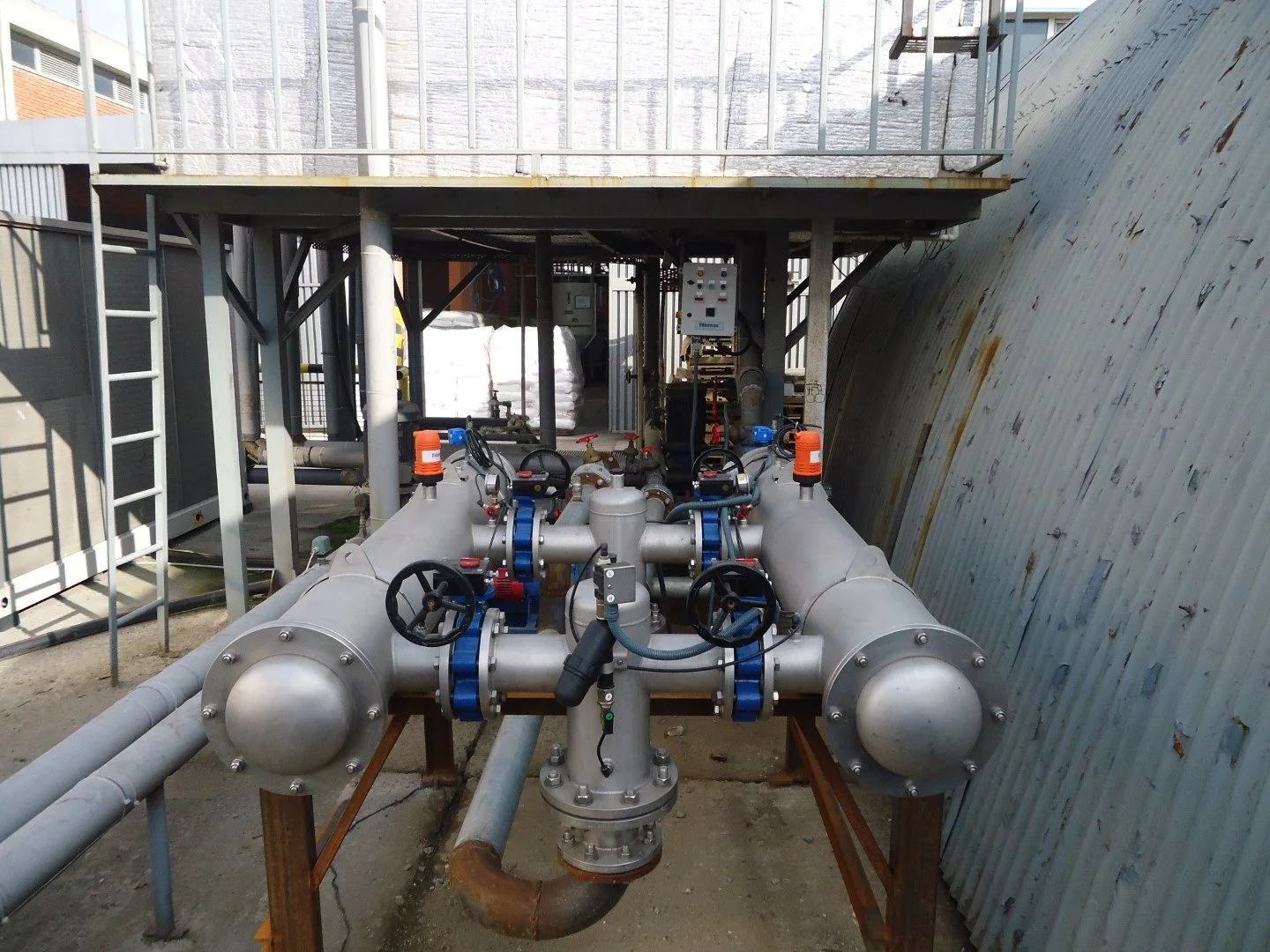

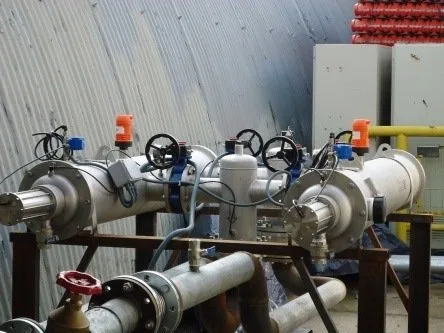

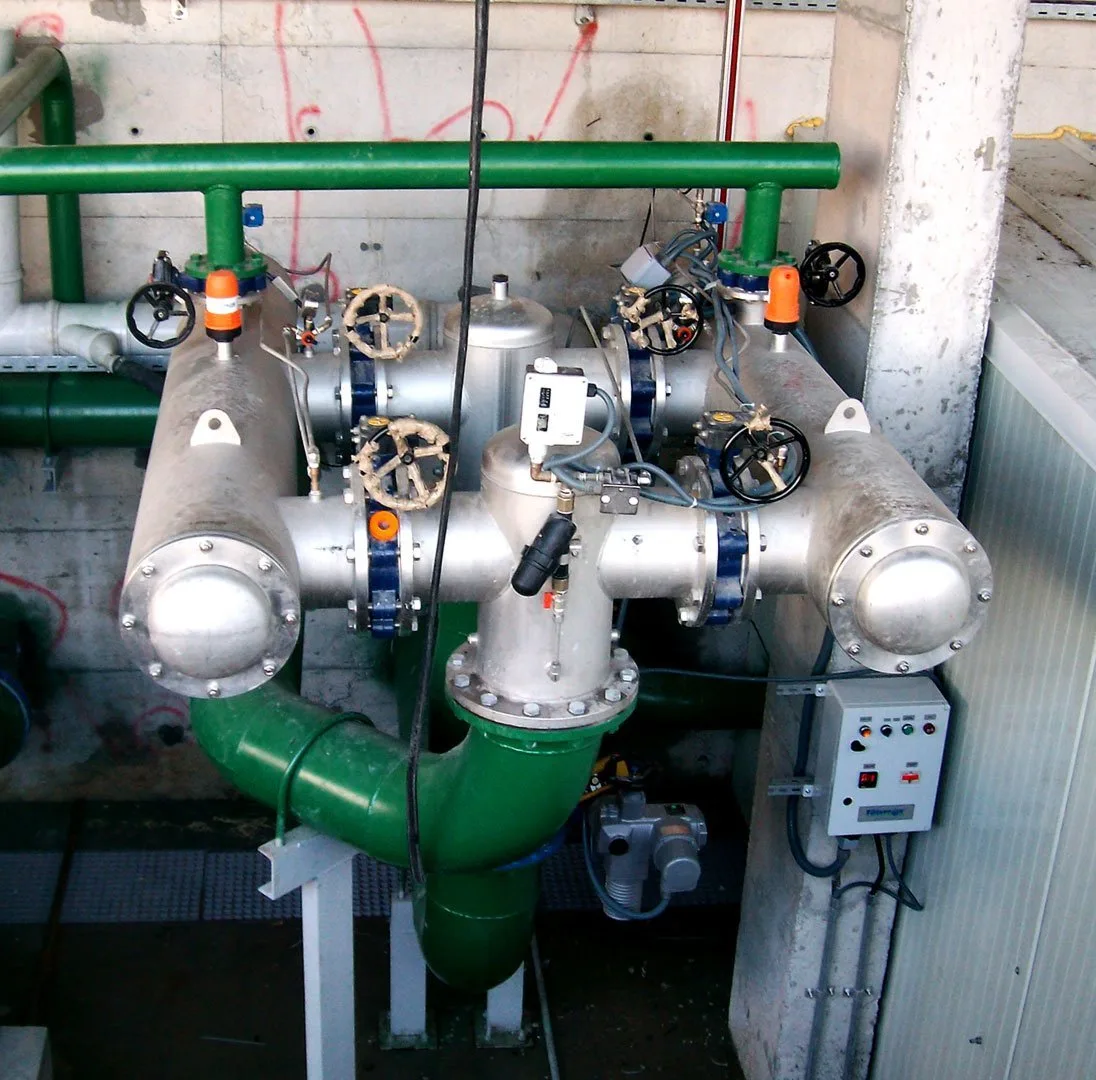

Gallery

PTW-VMR PTW-VMR PTW-VMR PTW-VMR PTW-VMR

Technical Specifications

Screen Material
AISI 316L
Control System
Electric
Body Material
AISI 304L, AISI 316L
Back-Flush Time
20 - 30 s
Fine Screen Range
10 - 3000 micron
Headloss at Max. Flow Rate
0.2 bar
Back-Flush Water Consumption
150 - 800 l / back-flush
Max. Operating Pressure
10 bar (16-25 bar opsiyonel)
rpm of Cleaning Mechanism
Adjustable
Max. Operating Temperature
60°C / 90°C
Min. Inlet Pressure Required During Back-Flush
2 bar

Documents

PTW PTR PQR Model Brochure
PDF
