SFH-P

Product Description

Automatic Self-Cleaning SFH-P models are supplied without protective coarse screen and suitable for low flow applications in industrial plants, local irrigation systems and domestic usage where water does not containing coarse particles.

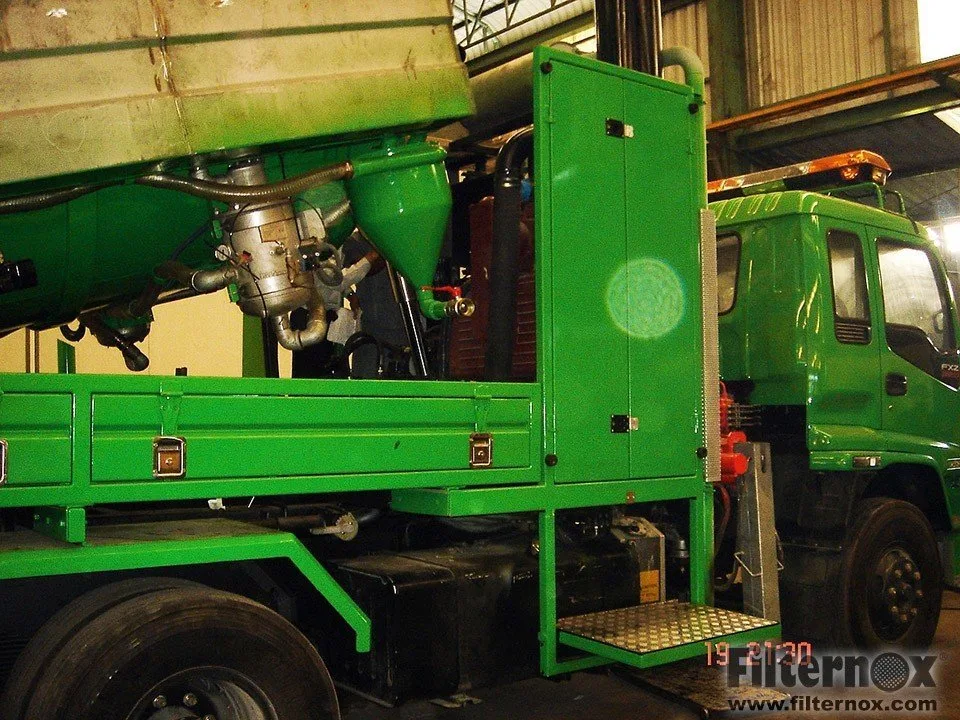

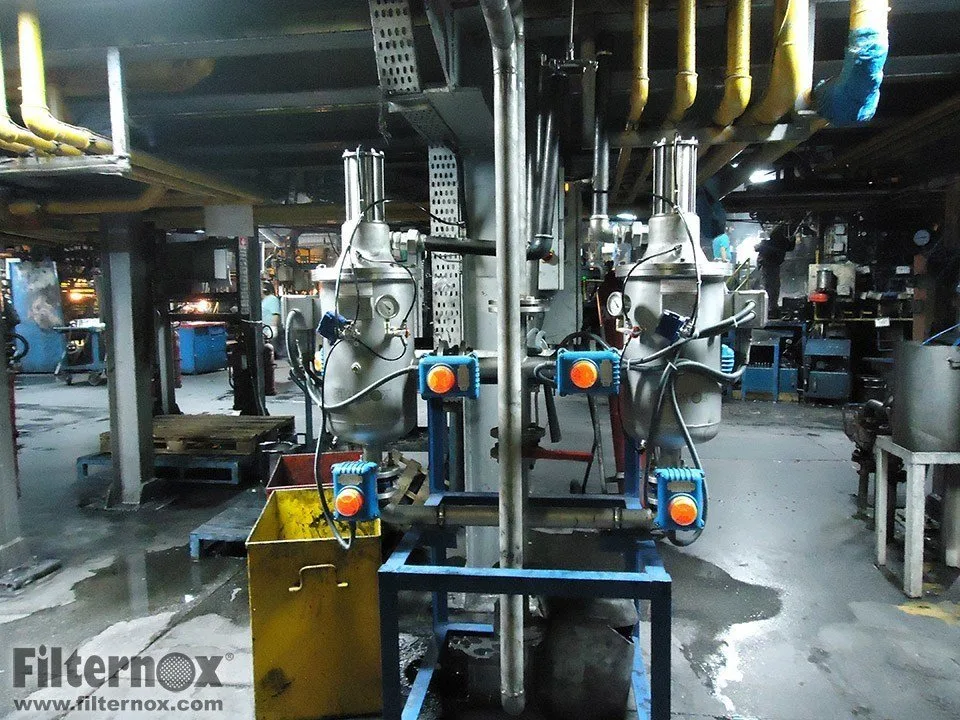

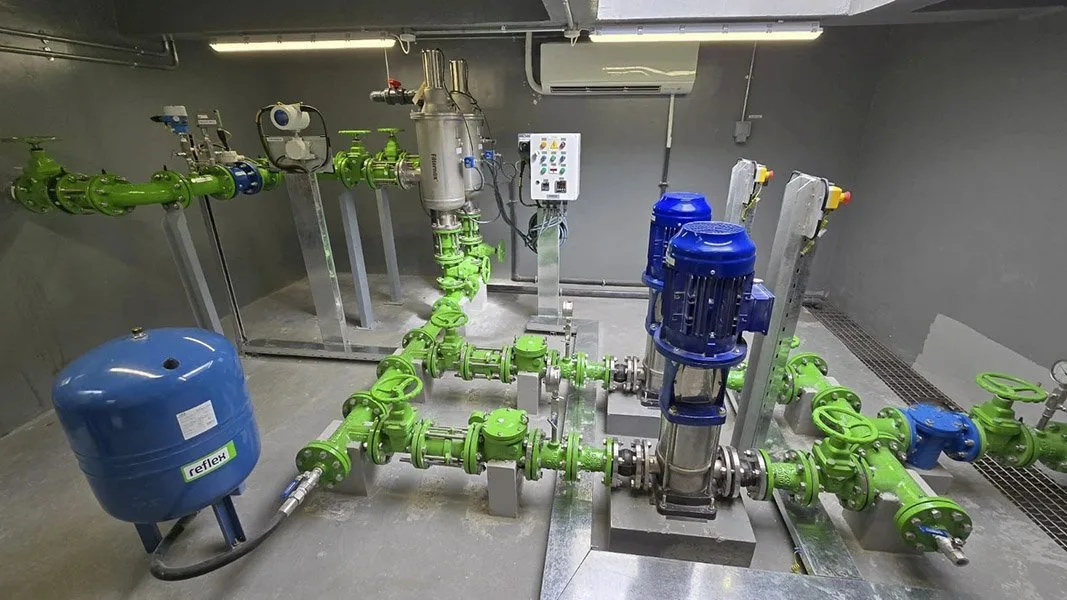

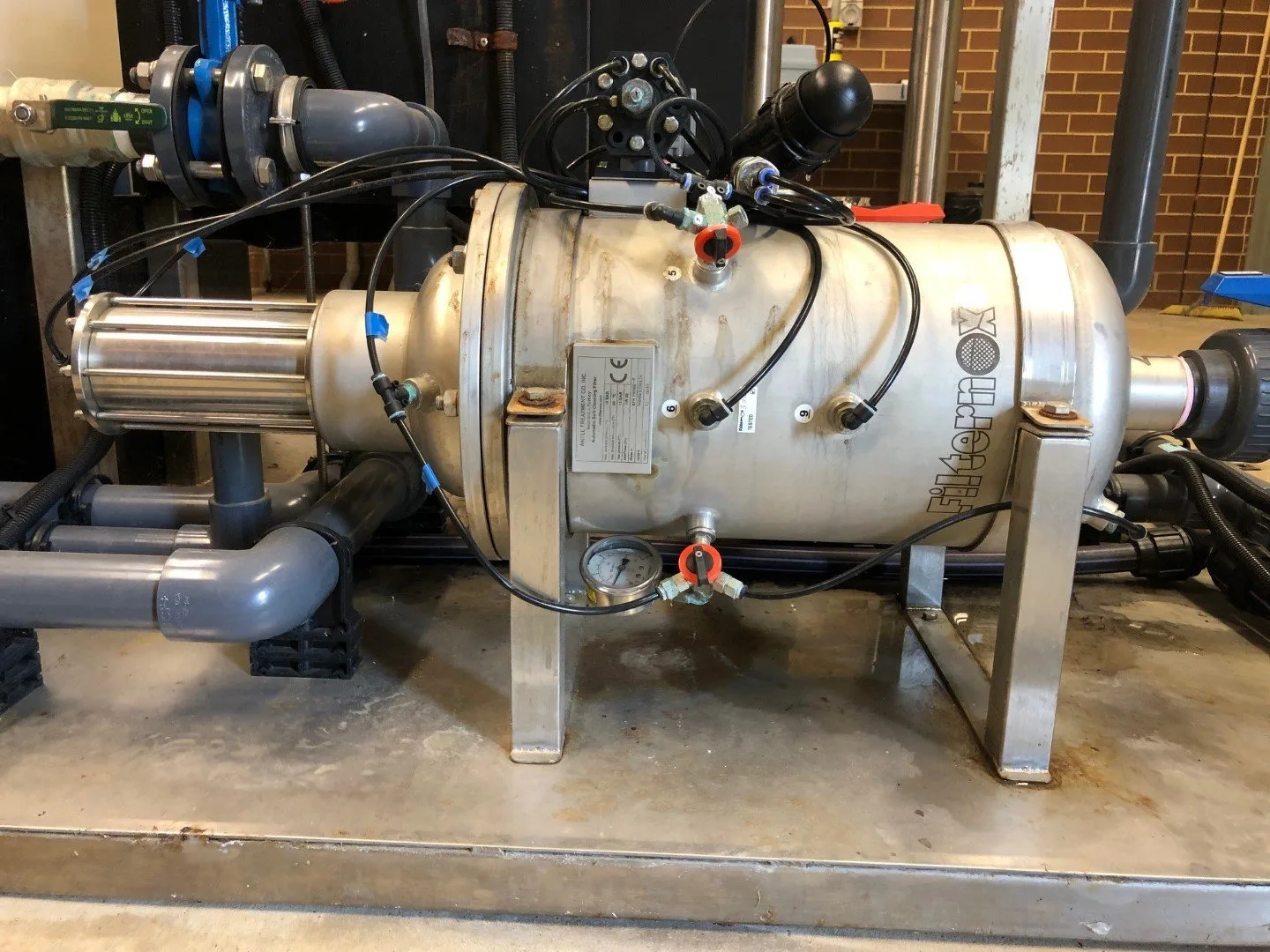

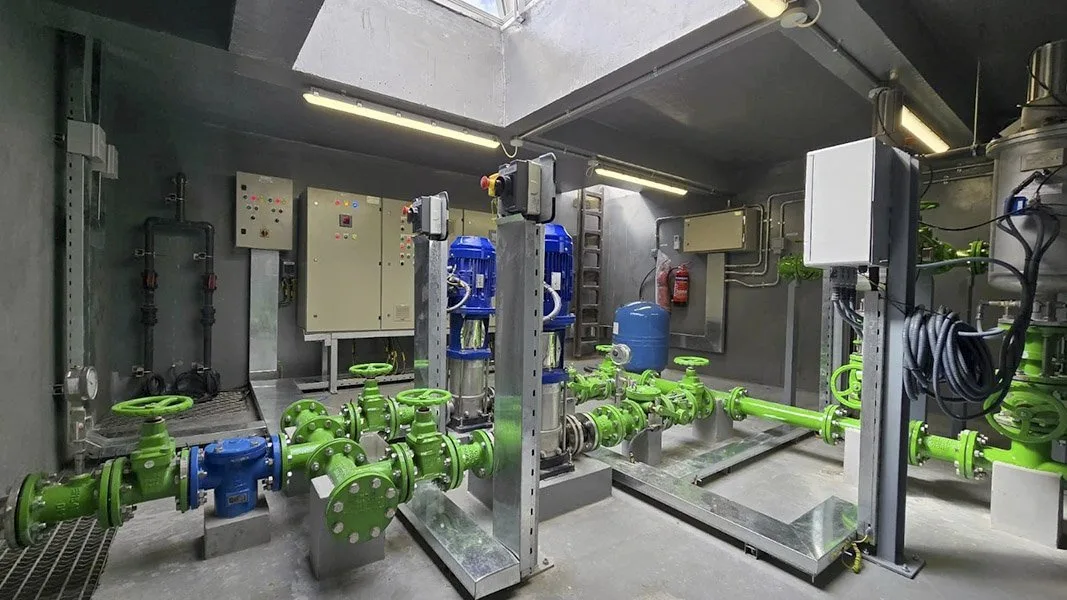

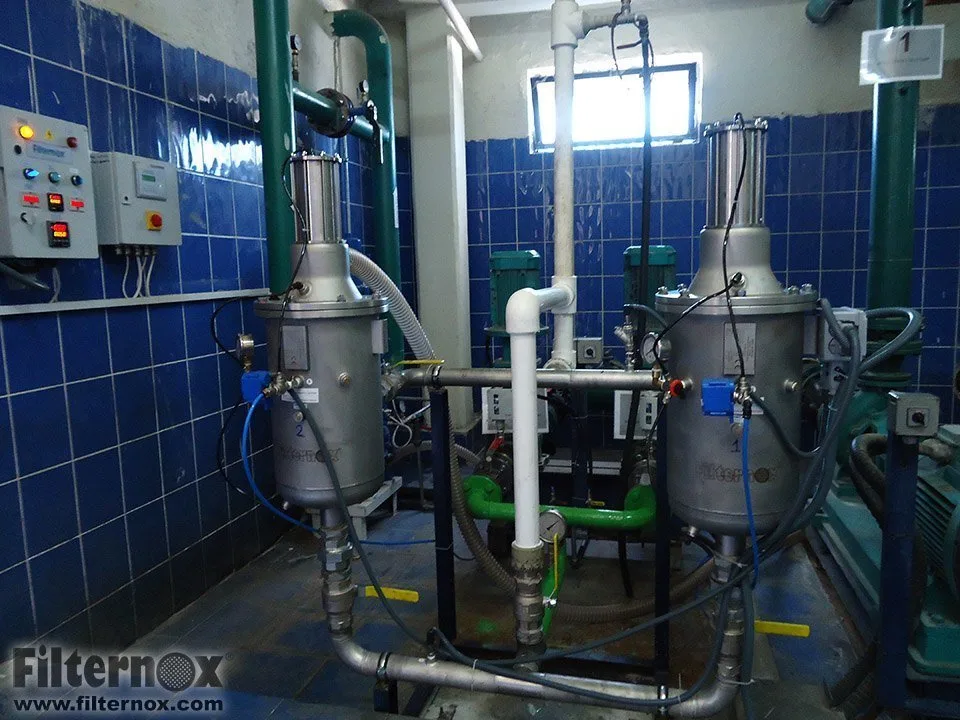

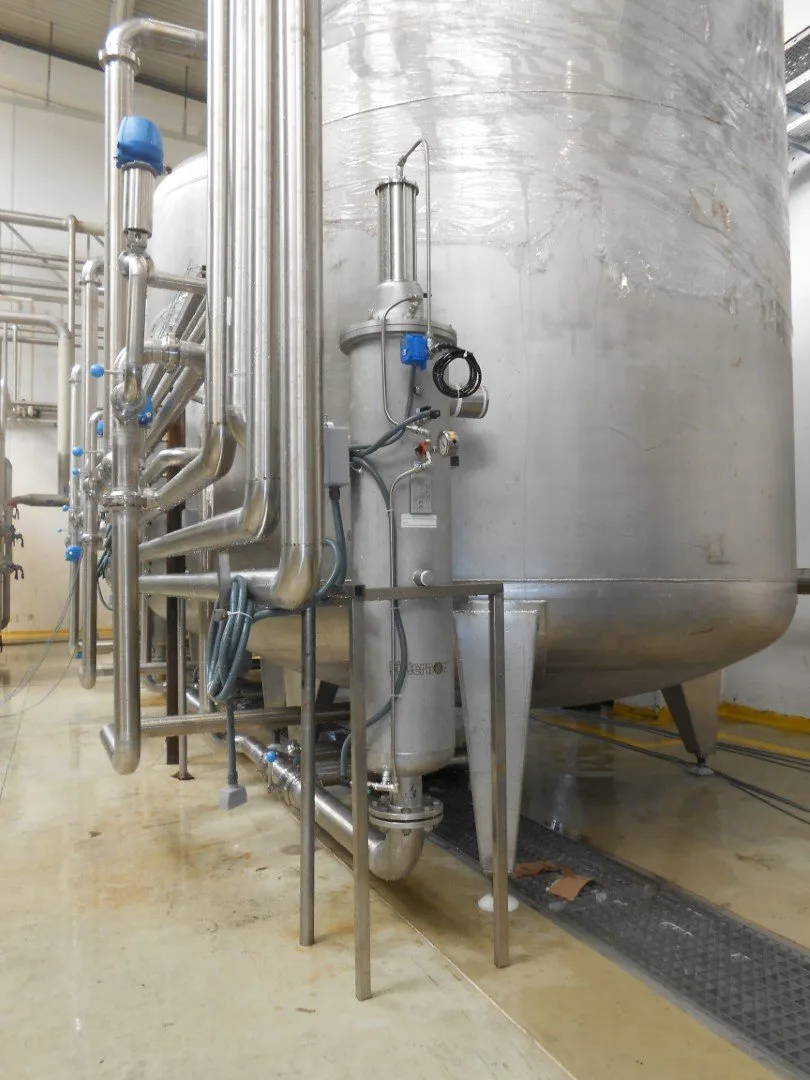

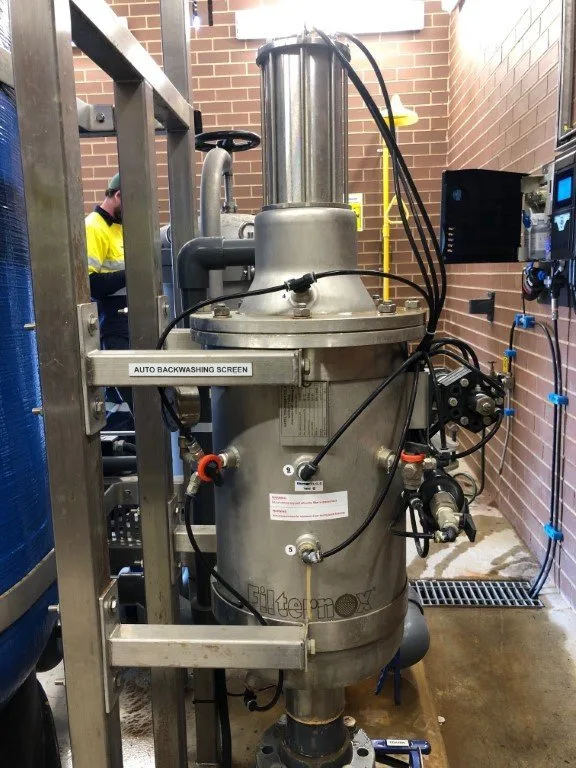

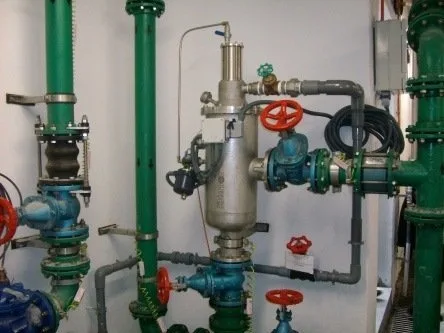

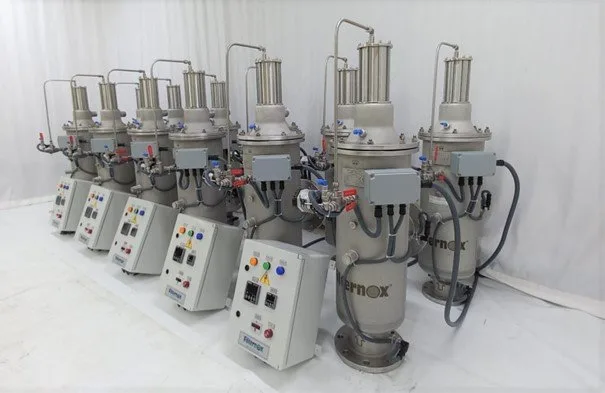

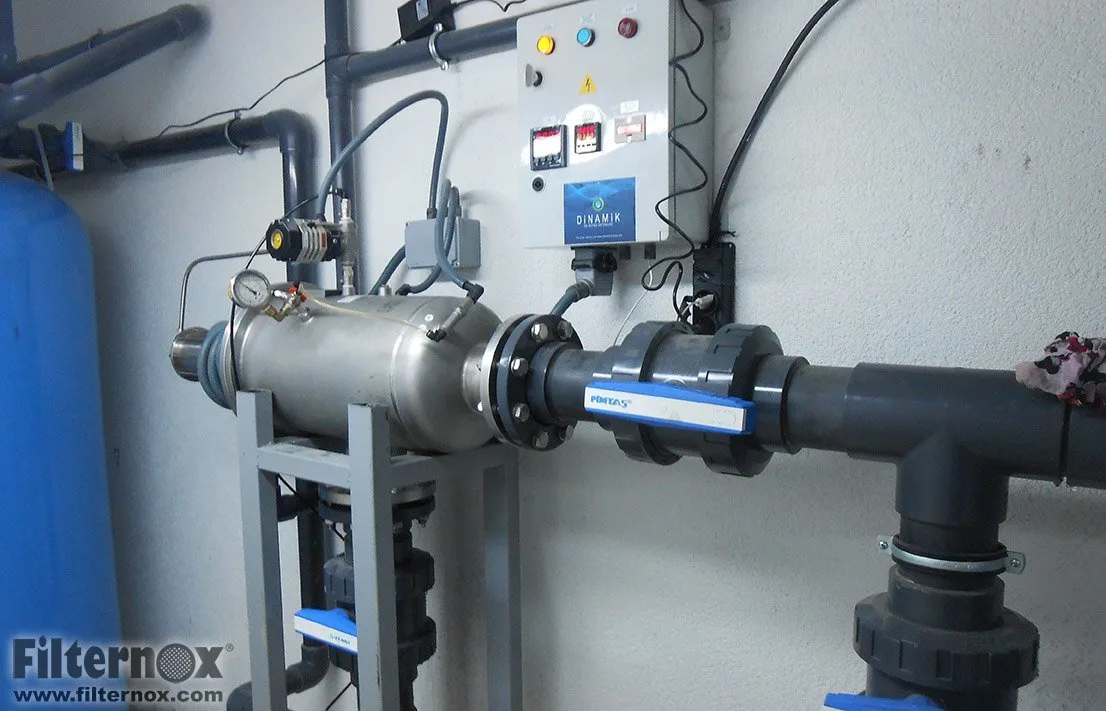

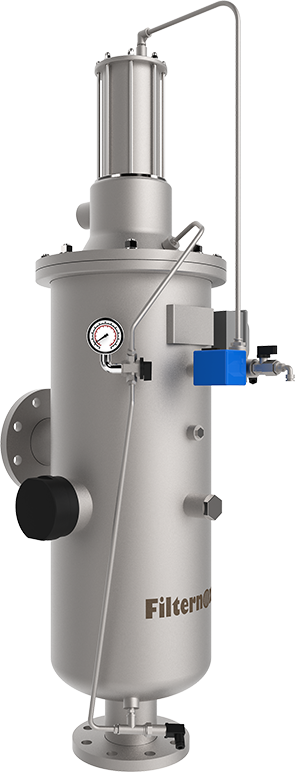

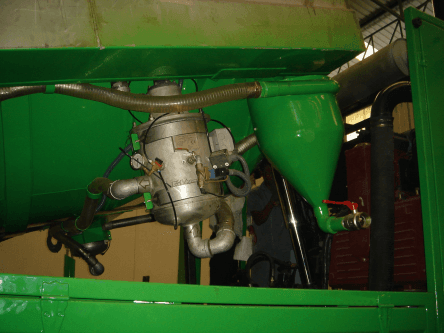

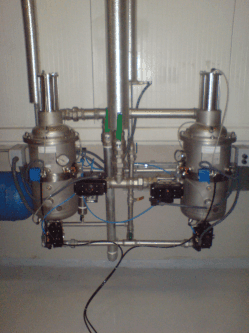

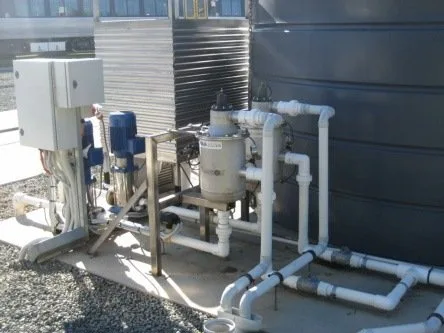

Gallery

SFH-P SFH-P SFH-P SFH-P SFH-P SFH-P SFH-P SFH-P SFH-P SFH-P SFH-P SFH-P SFH-P SFH-P SFH-P

Available Applications

Well Water
Irrigation

Technical Specifications

Screen Material
AISI 316L
Control System
Electric
Body Material
AISI 304L, AISI 316L
Back-Flush Time
15 - 20 s
Fine Screen Range
10 - 3000 micron
Headloss at Max. Flow Rate
0.2 bar
Back-Flush Water Consumption
80 - 120 l / back-flush
Max. Operating Pressure
PN10 / PN16
rpm of Cleaning Mechanism
Adjustable
Max. Operating Temperature
60°C / 90°C
Min. Inlet Pressure Required During Back-Flush
2 bar
