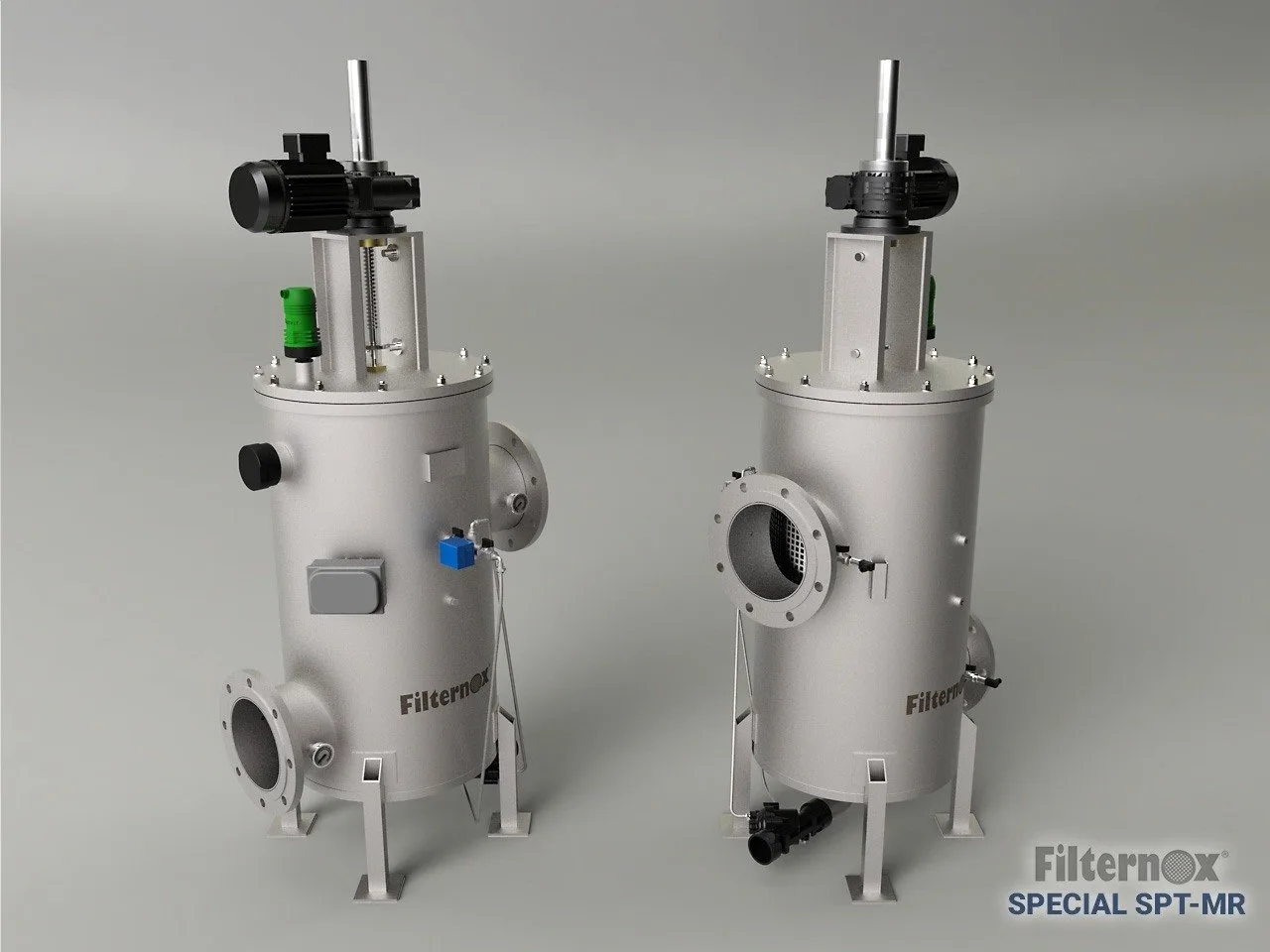

SPECIAL SPT-MR
Special SPT-MR models of Filternox® Automatic Self-Cleaning Filters are suitable for applications that require medium to large filtration capacity.
Product Description
Special SPT-MR models of Filternox® Automatic Self-Cleaning Filters are suitable for applications that require medium to large filtration capacity. Designed for systems which are required to do fine filtration in a limited space. Vertical installation and small footprint combined with back flushing system and high filtration performance makes the Special SPT-MR an absolute necessity.
Gallery
Available Applications
Technical Specifications
- Body Material
- AISI 304L, AISI 316L
- Max. Operating Temperature
- 60°C / 90°C
- Back-Flush Water Consumption
- 100 - 200 l / back-flush
- Screen Material
- AISI 316L
- Headloss at Max. Flow Rate
- 0.2 bar
- Fine Screen Range
- 10 - 3000 micron
- Max. Operating Pressure
- PN10 / PN16
- Back-Flush Time
- 20 - 30 s
- Control System
- Electric
- Min. Inlet Pressure Required During Back-Flush
- 2 bar
- rpm of Cleaning Mechanism
- Adjustable
