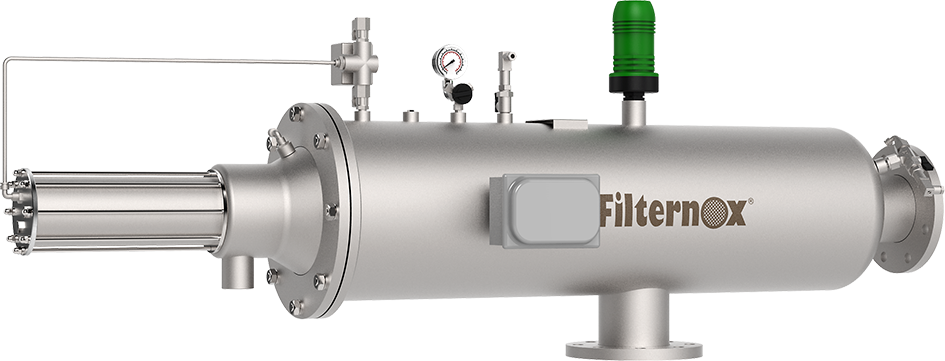

SPT
SPT model filters are suitable for low and medium flow applications in industry, cooling tower, irrigation and domestic applications.
Product Description
SPT model filters are suitable for low and medium flow applications in industry, cooling tower, irrigation and domestic applications. Automatic Self Cleaning SPT models also contain only fine screen element, without protective coarse screen in the inlet of the fine screen. Their capacity goes up to 160 m3/hour in one filter.

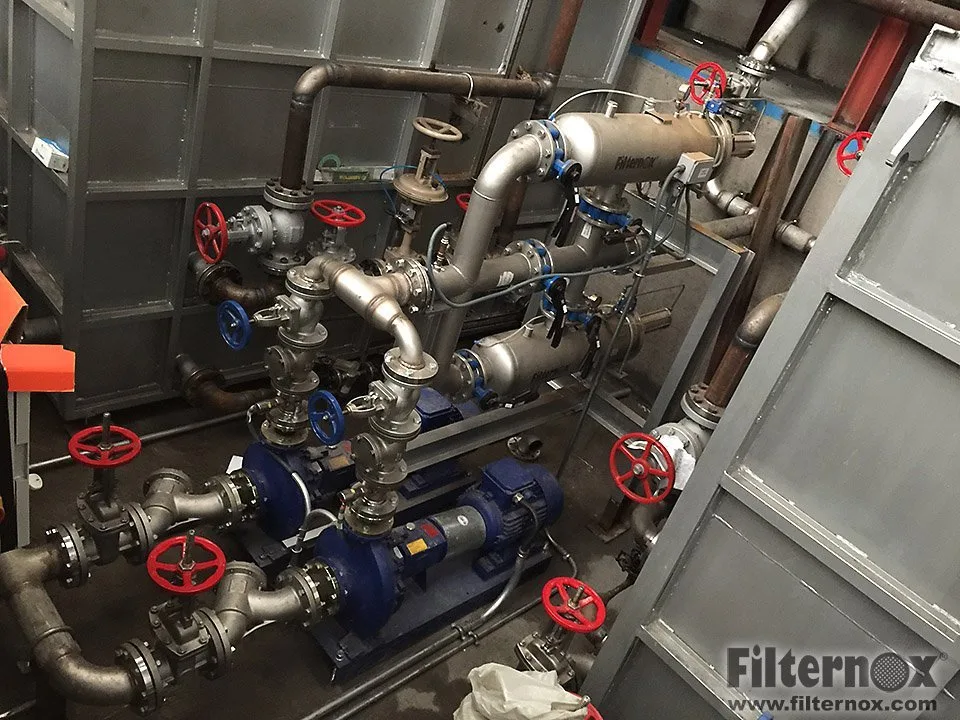

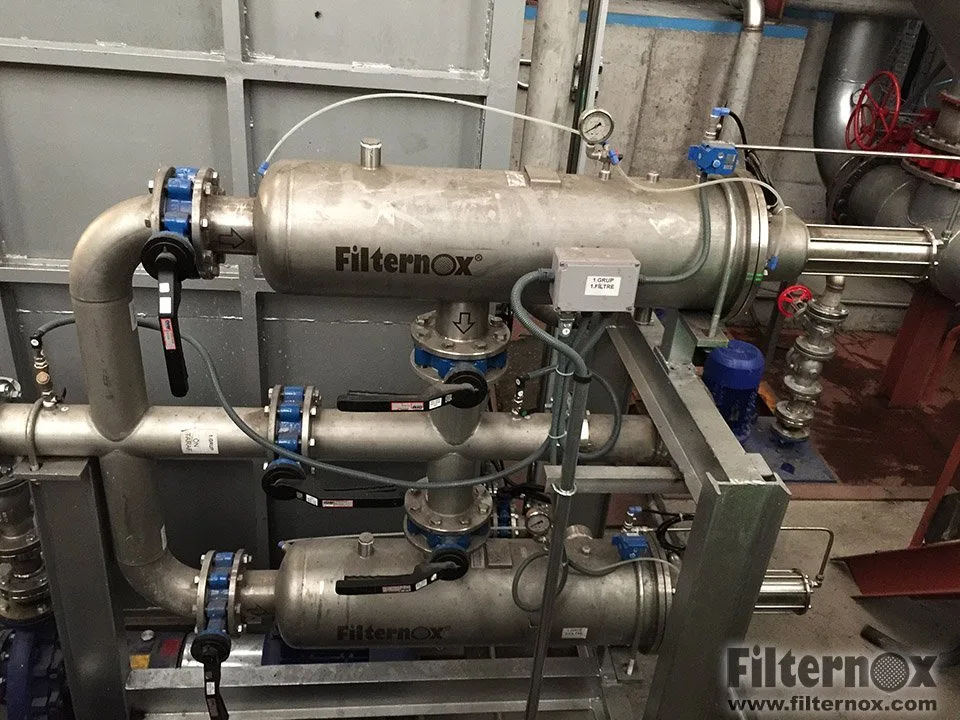

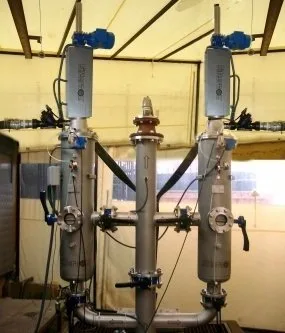

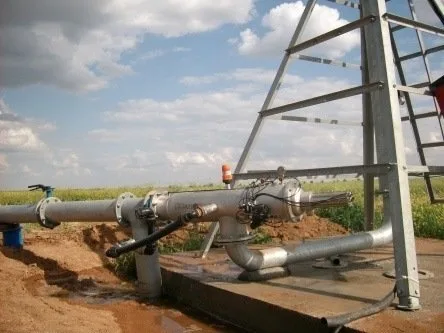

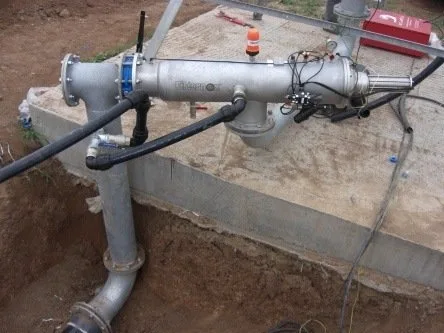

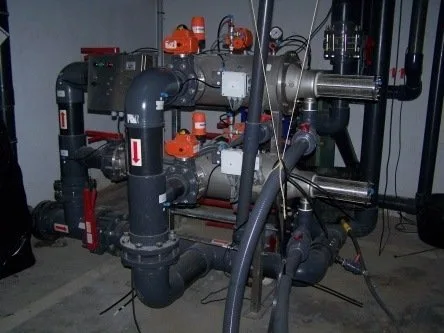

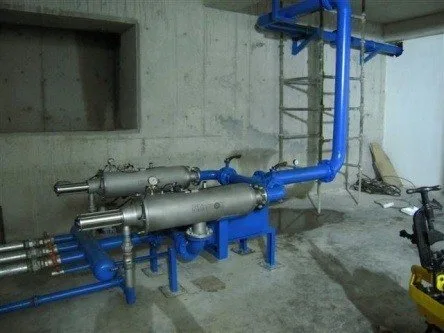

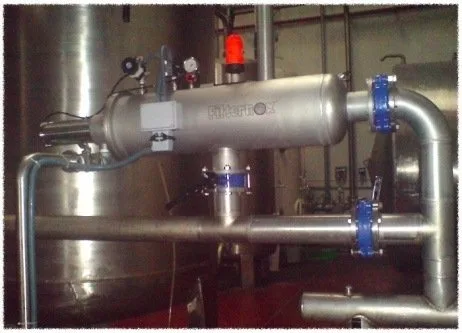

Gallery
Available Applications
Technical Specifications
- Body Material
- AISI 304L, AISI 316L
- Max. Operating Temperature
- 60°C / 90°C
- Back-Flush Water Consumption
- 80 - 120 l / back-flush
- Screen Material
- AISI 316L
- Headloss at Max. Flow Rate
- 0.2 bar
- Fine Screen Range
- 10 - 3000 micron
- Max. Operating Pressure
- 10 bar (16-25 bar opsiyonel)
- Back-Flush Time
- 20 - 30 s
- Control System
- Hidrolik veya Electric
- Min. Inlet Pressure Required During Back-Flush
- 2 bar
- rpm of Cleaning Mechanism
- Adjustable
