FMS-WBV-MR Patented
Filternox® FMS-WBV-MR models are motorized compact filters designed for dealing with high dirt loads and low liquid flow rates. With their specially developed double effect self-cleaning system consisting of brushes and vacuum nozzles, Filternox® FMS-WBV-MR filters achieve an exceptional performance
Product Description
Filternox® FMS-WBV-MR models are motorized compact filters designed for dealing with high dirt loads and low liquid flow rates. With their specially developed double effect self-cleaning system consisting of brushes and vacuum nozzles, Filternox® FMS-WBV-MR filters achieve an exceptional performance and offer a permanent and definitive solution for variable high dirt load applications and low flow rates.

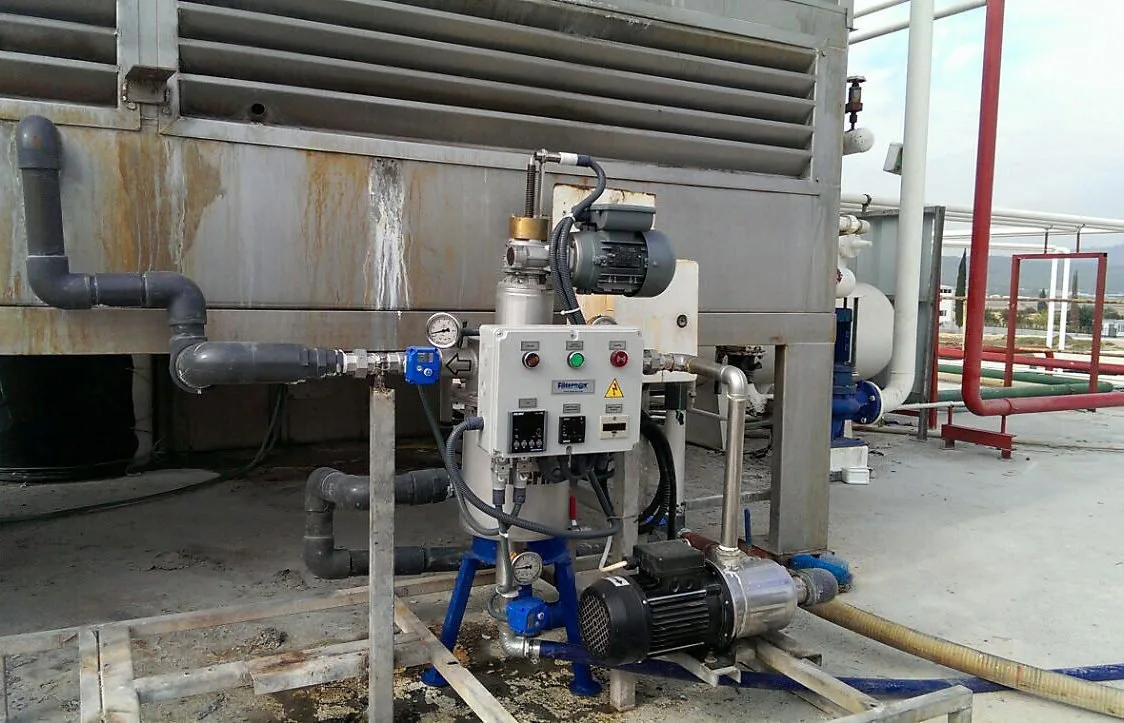

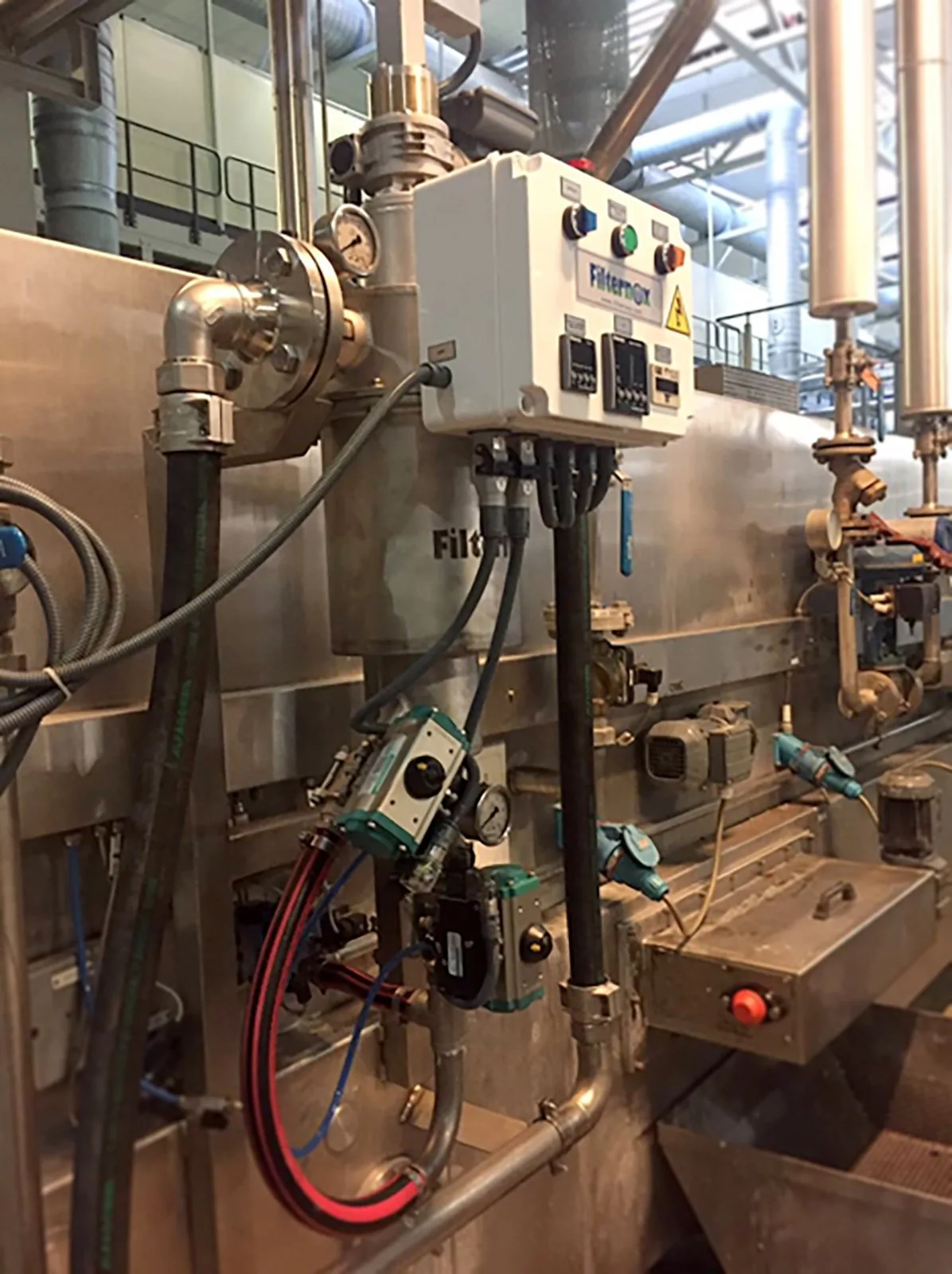

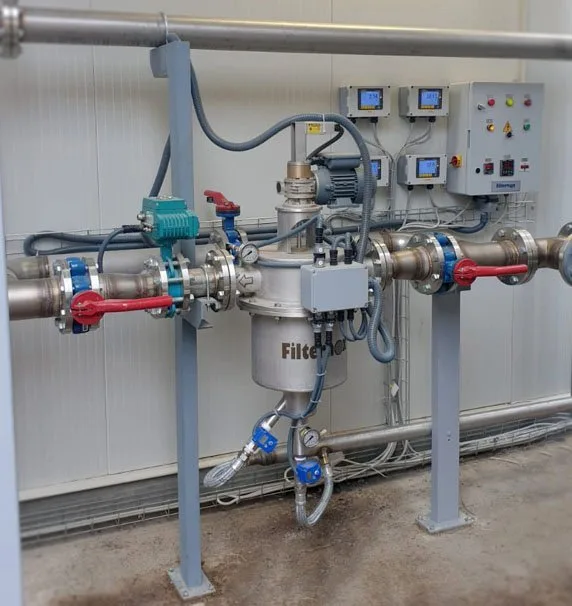

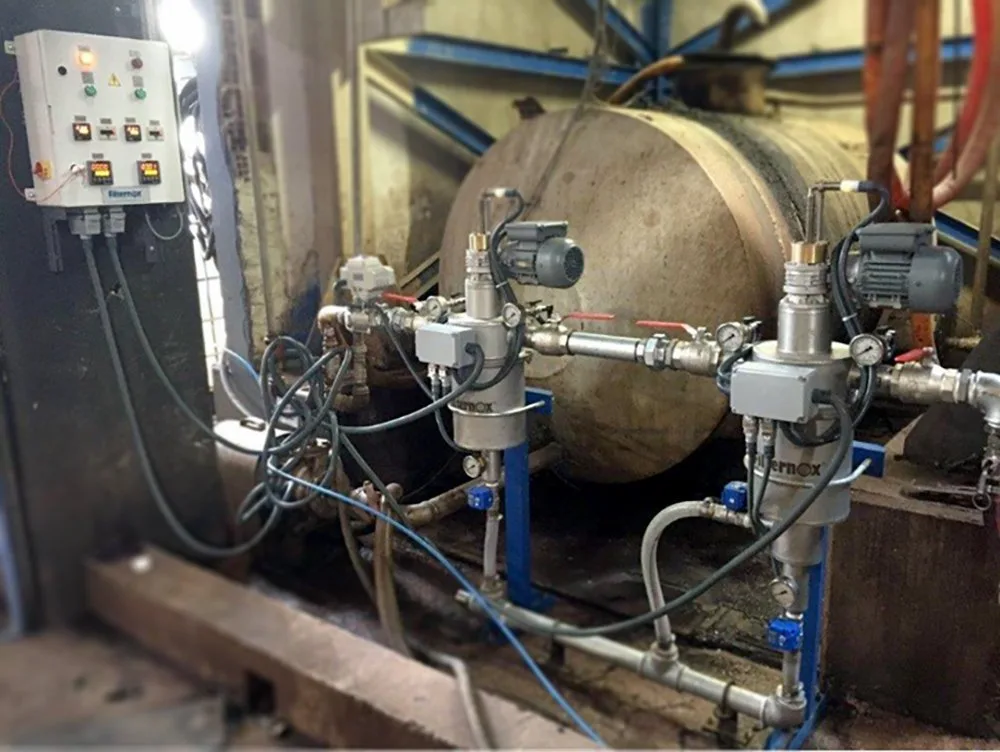

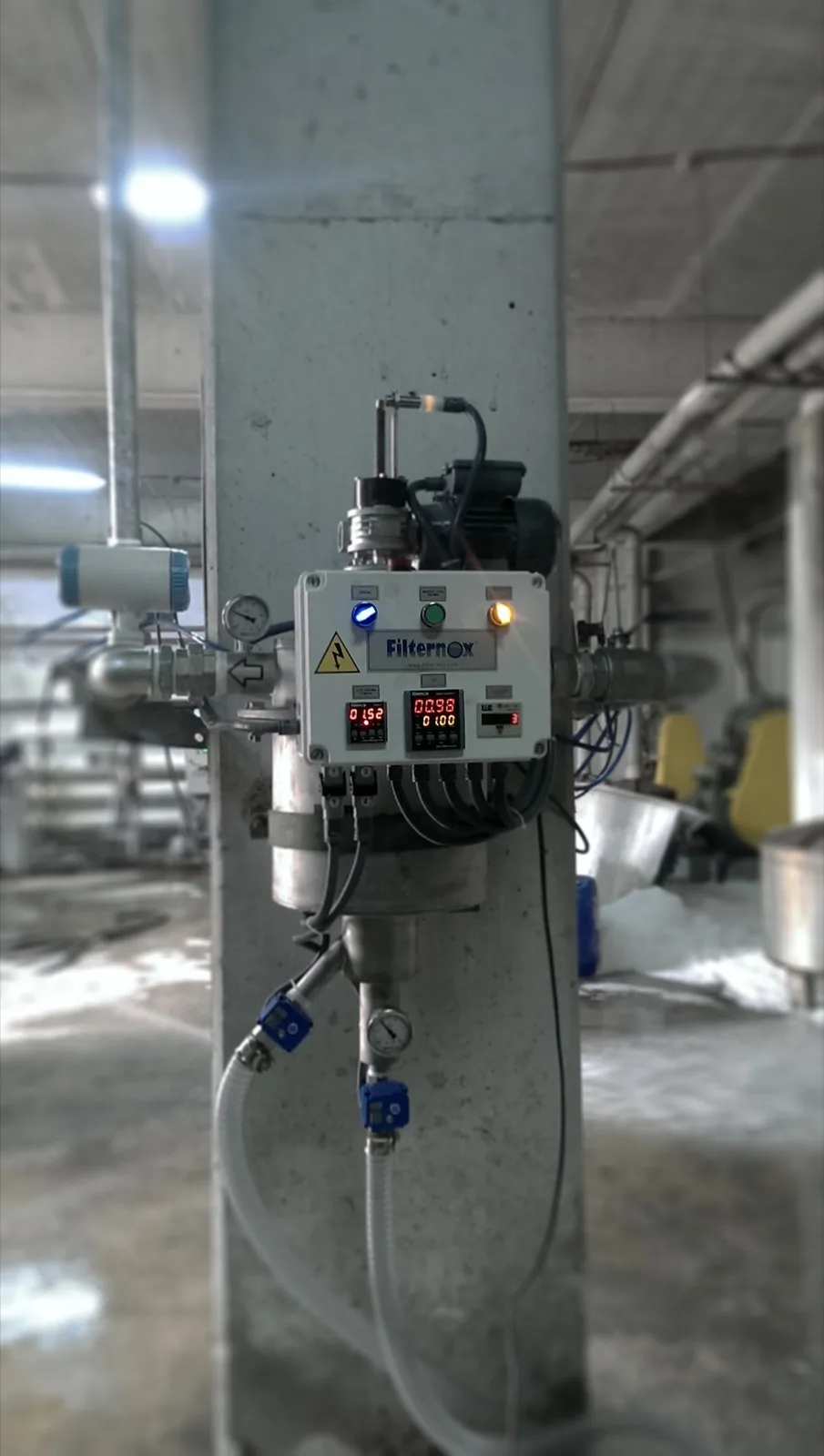

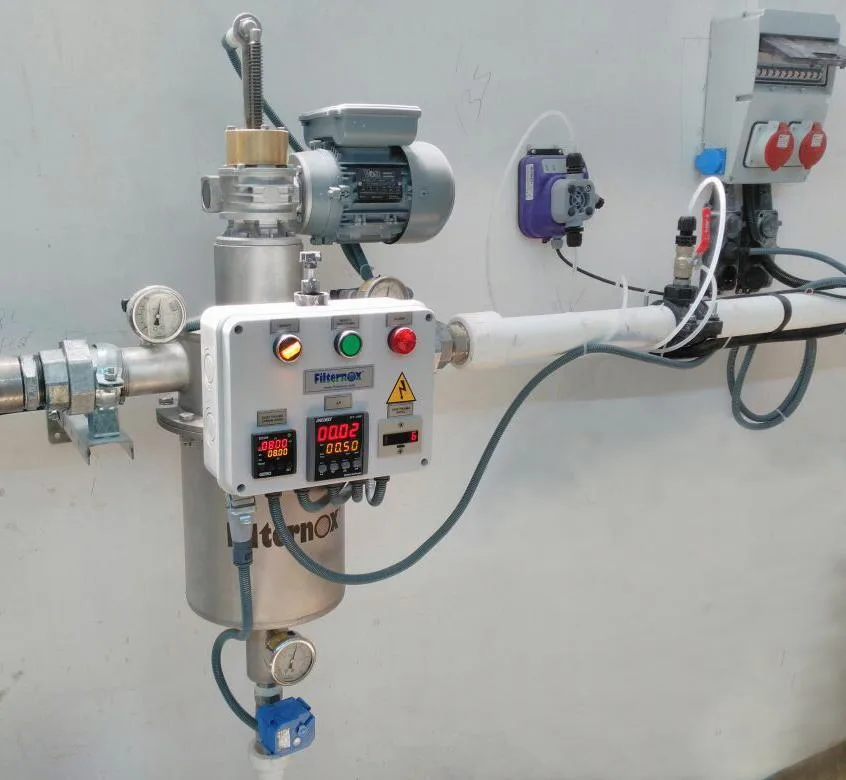

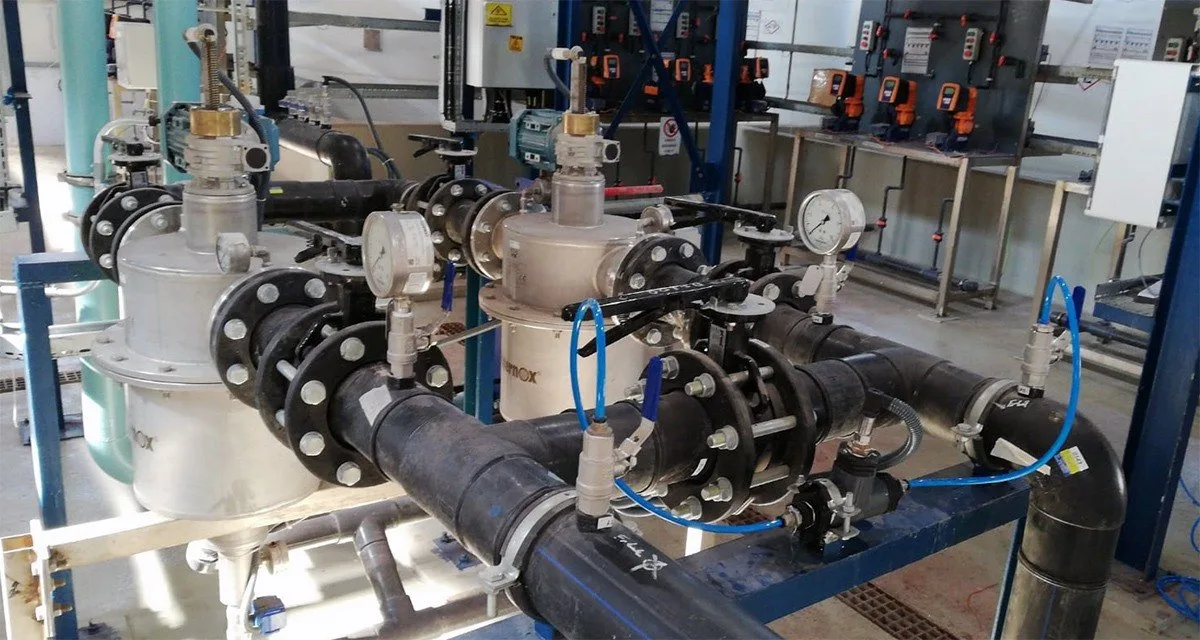

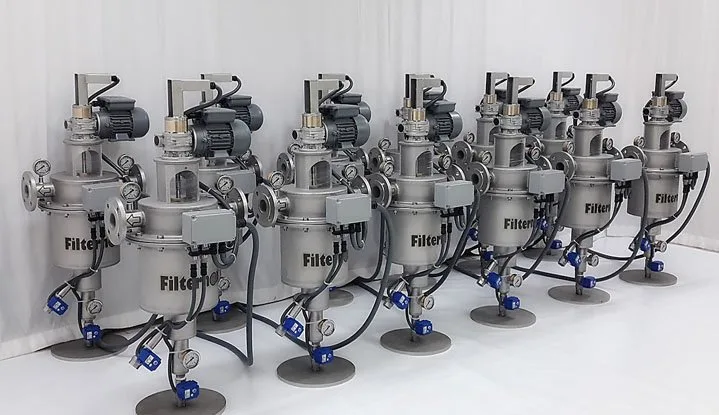

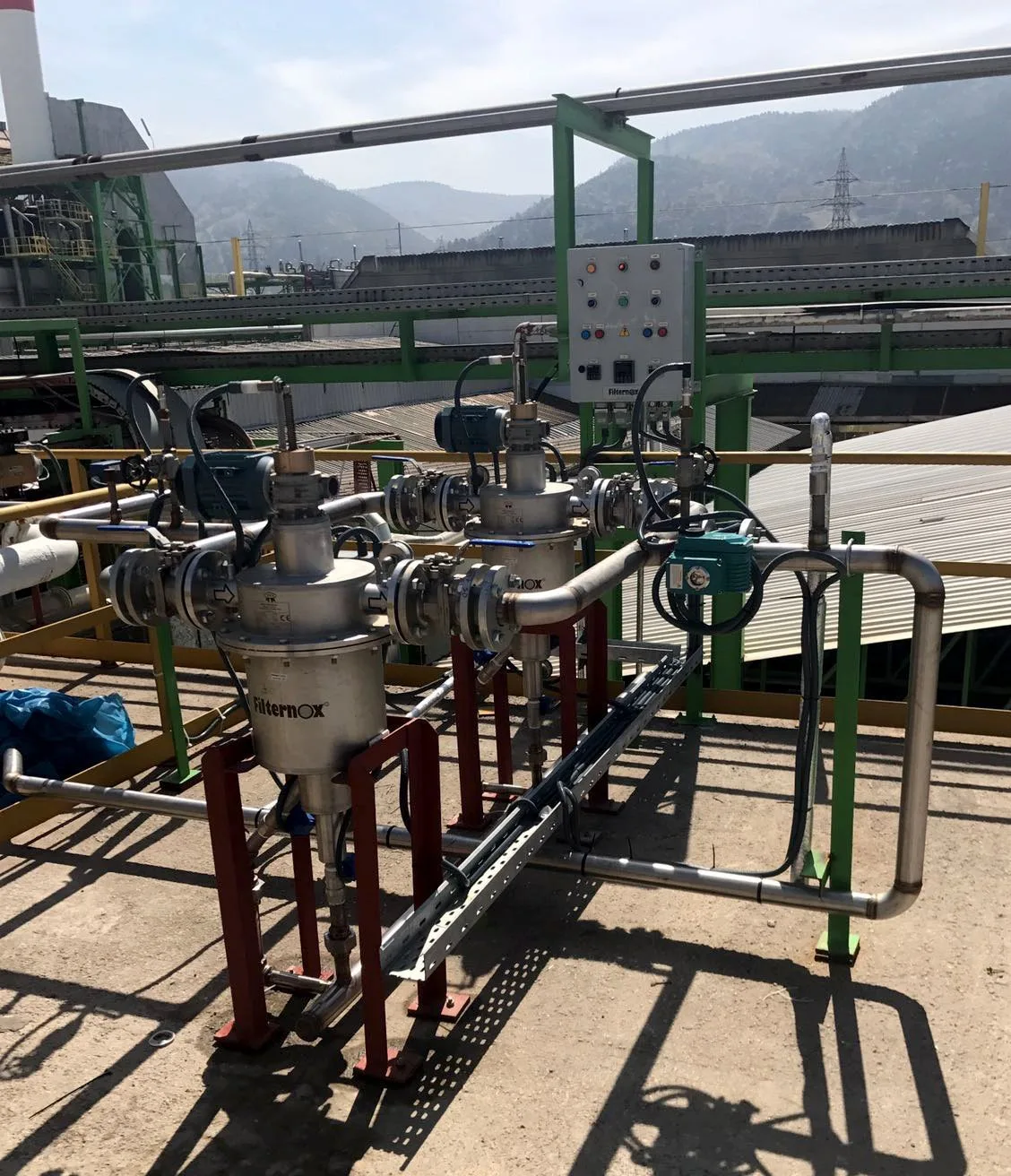

Gallery
Available Applications
Technical Specifications
- Screen Material
- AISI 316L
- Control System
- Electric
- Body Material
- AISI 304L, AISI 316L
- Back-Flush Time
- 30 - 40 s
- Fine Screen Range
- 10 - 3000 micron
- Headloss at Max. Flow Rate
- 0.2 bar
- Back-Flush Water Consumption
- 100-150l / back-flush
- Max. Operating Pressure
- PN10 / PN16
- rpm of Cleaning Mechanism
- Adjustable (Optional)
- Max. Operating Temperature
- 60°C / 90°C
- Min. Inlet Pressure Required During Back-Flush
- 1.5 bar
