KFH-B-MR

Filternox® KFH models have extra automatic self-cleaning system for coarse screen beside automatic self-cleaning fine screen. This feature enables two-stage filtration in one filter unit.

KFH-B-MR

Product Description

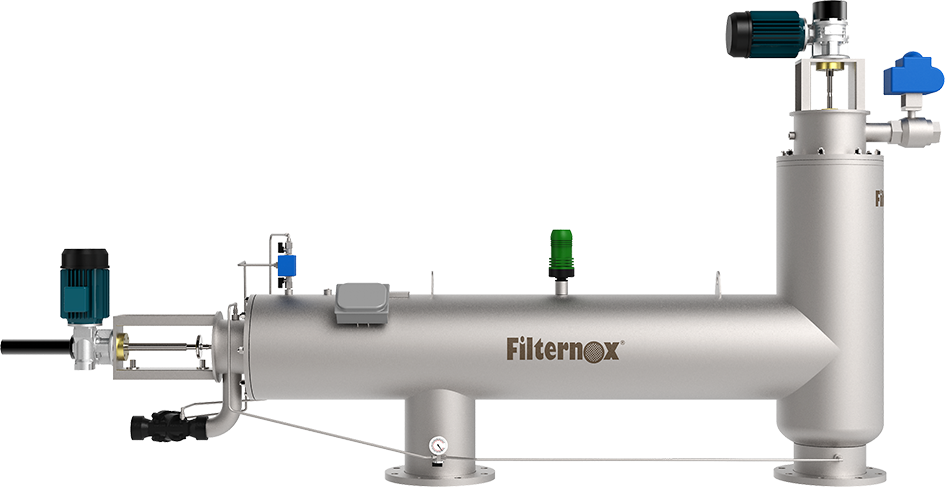

Filternox® KFH models have extra automatic self-cleaning system for coarse screen beside automatic self-cleaning fine screen. This feature enables two-stage filtration in one filter unit. These models are convenient for water with high suspended solid loads.

Gallery

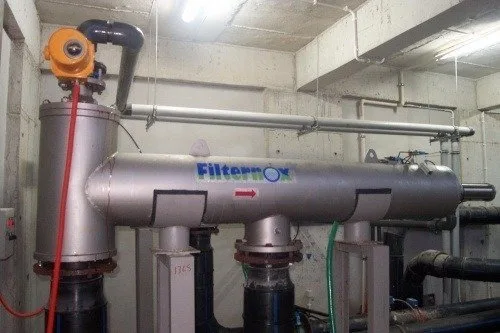

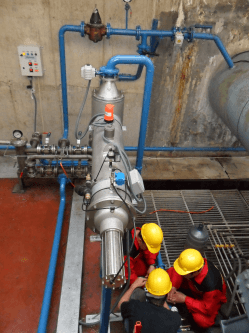

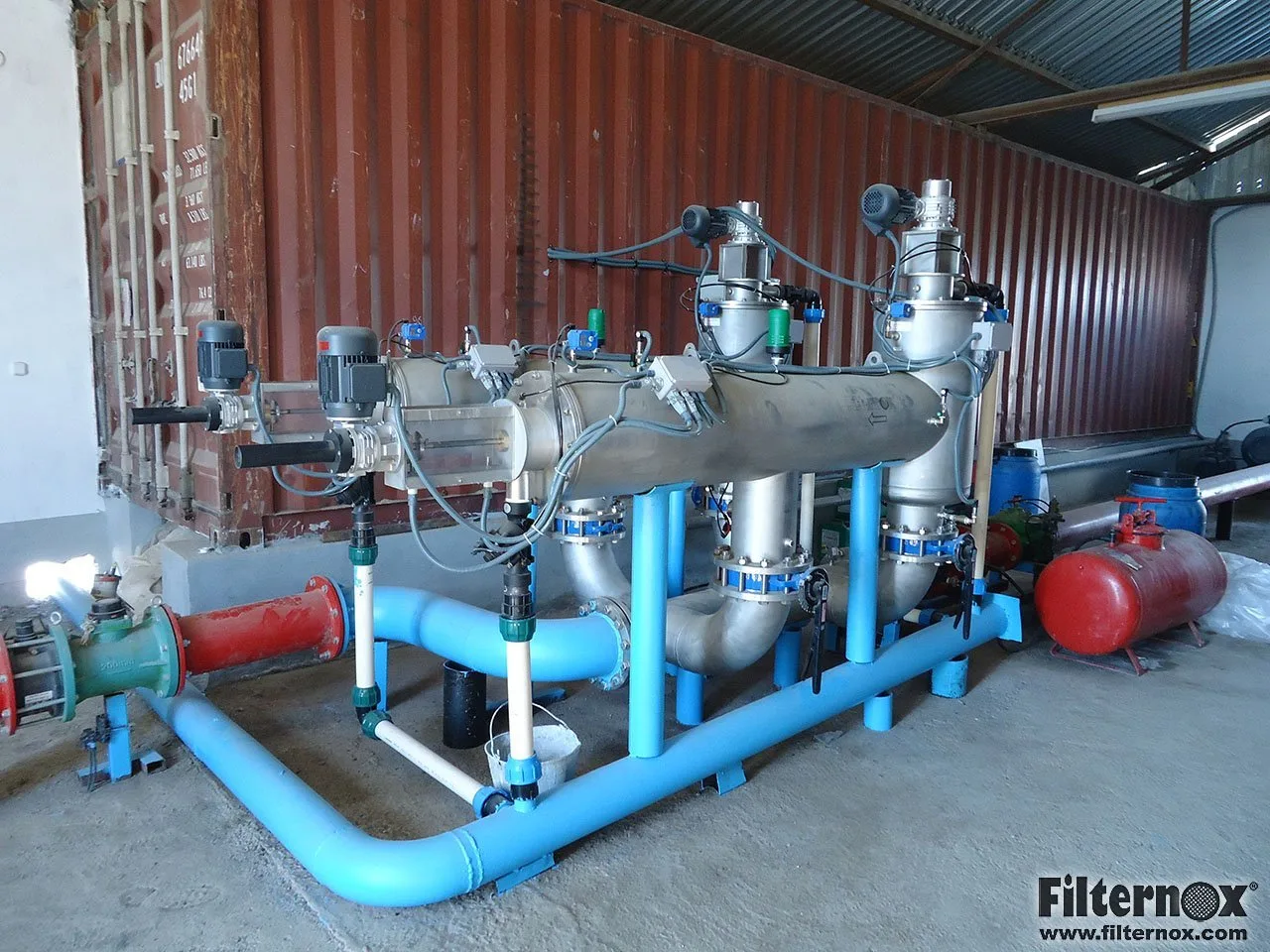

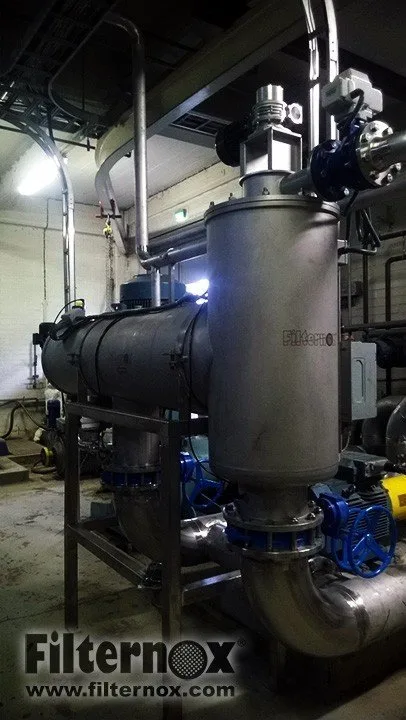

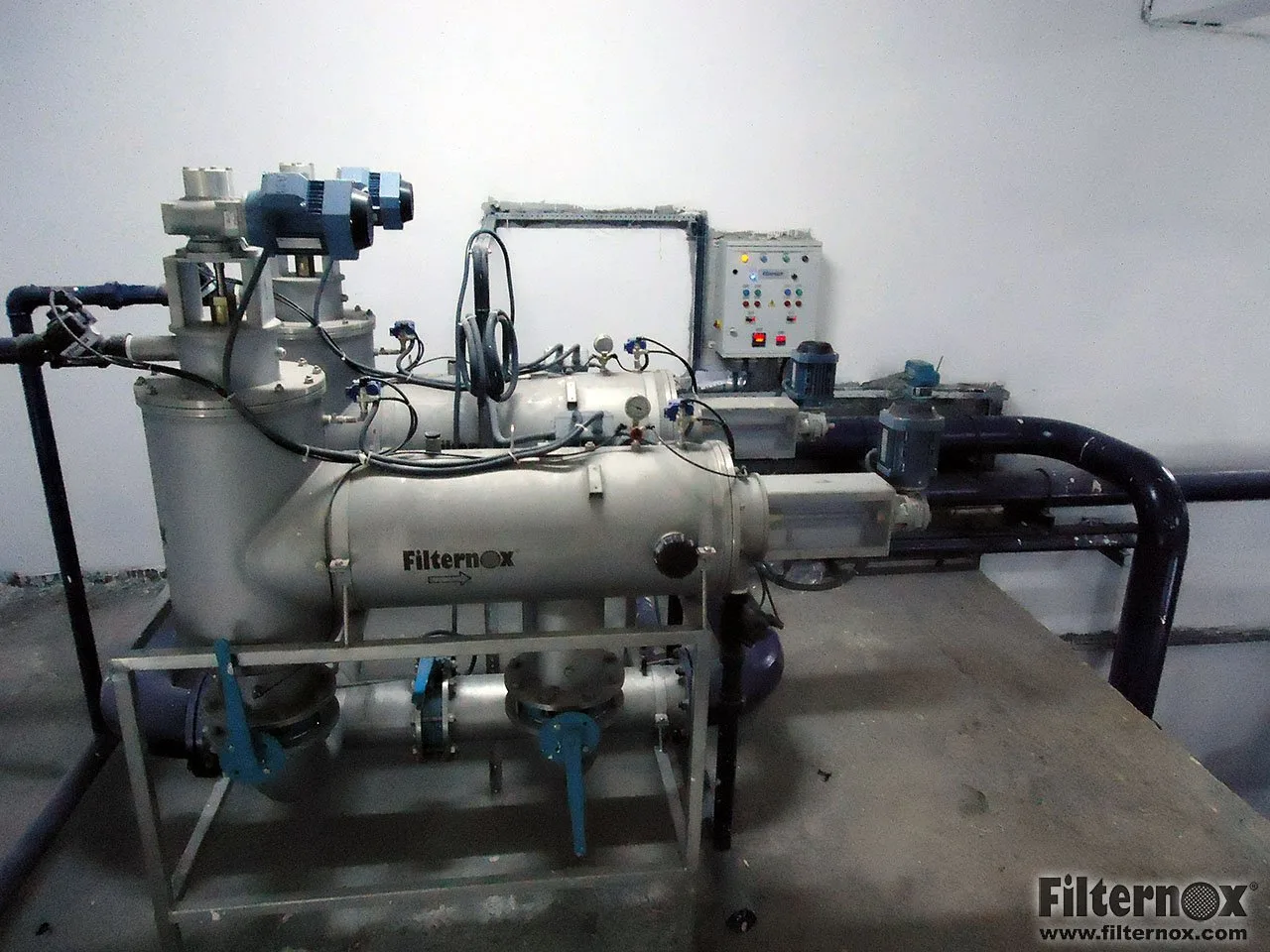

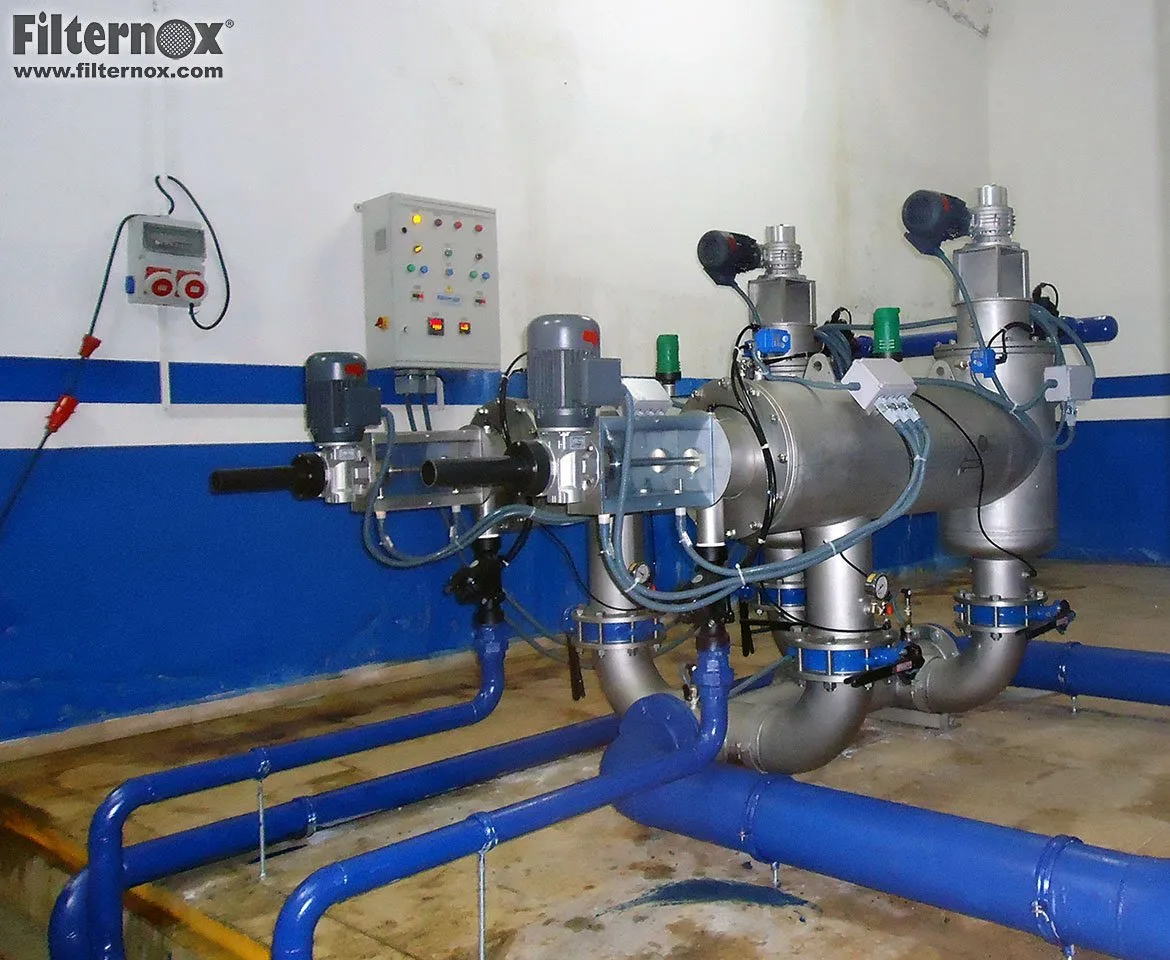

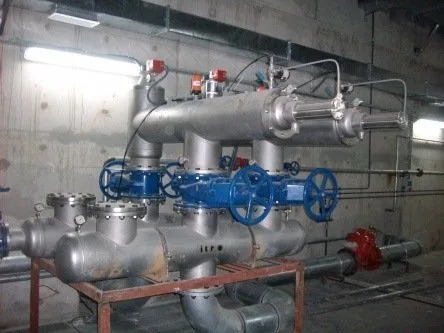

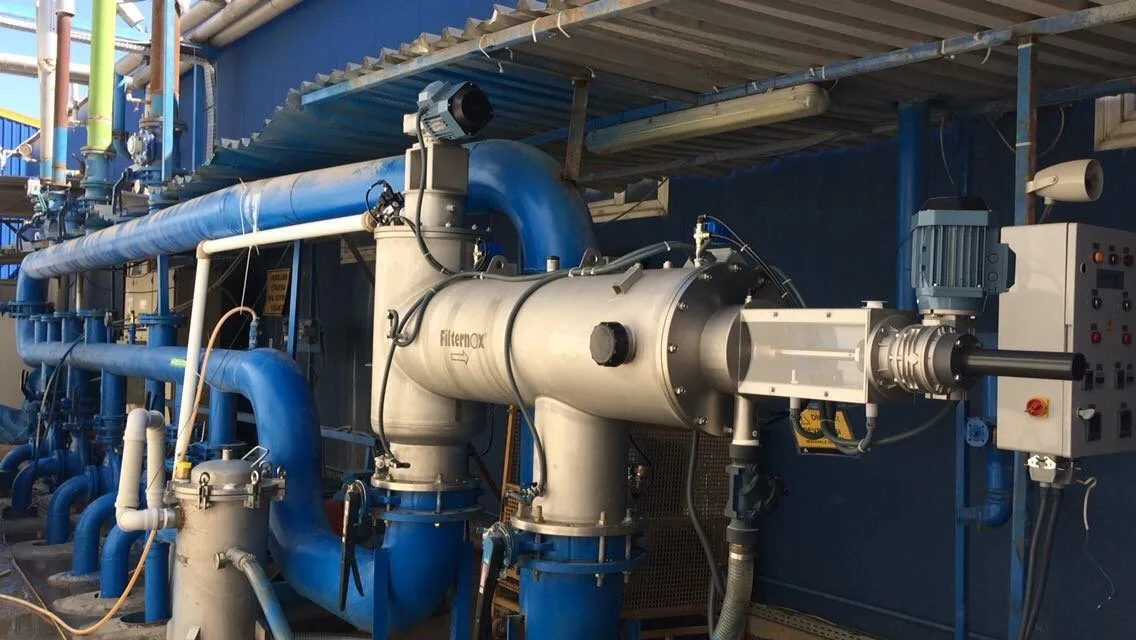

KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR KFH-B-MR

Available Applications

Fish Farm
Sea Water

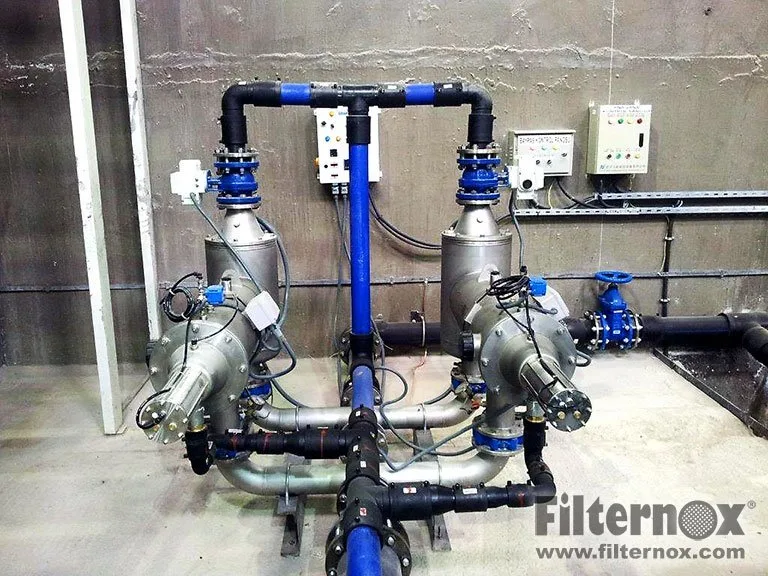

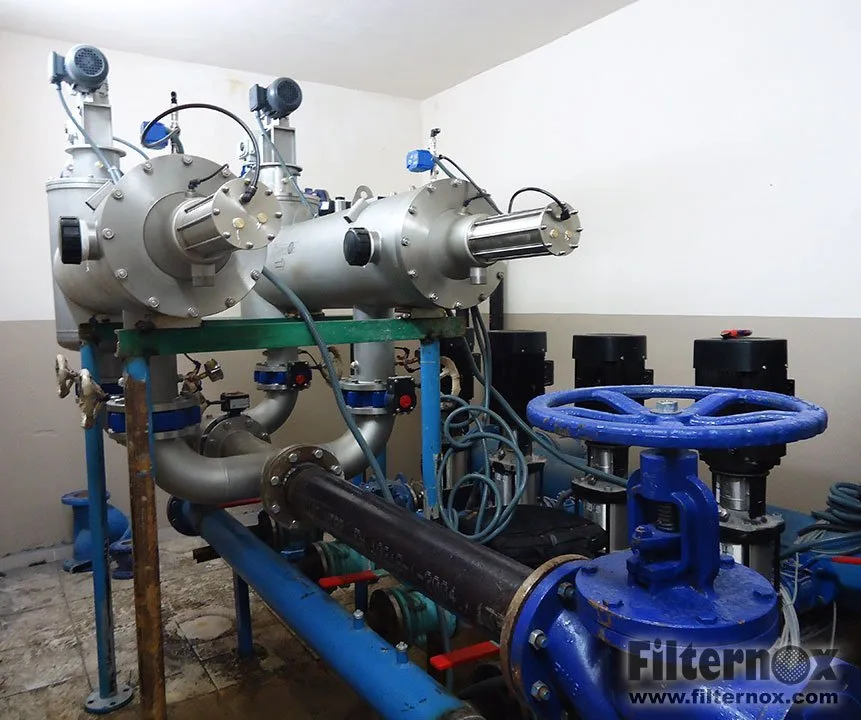

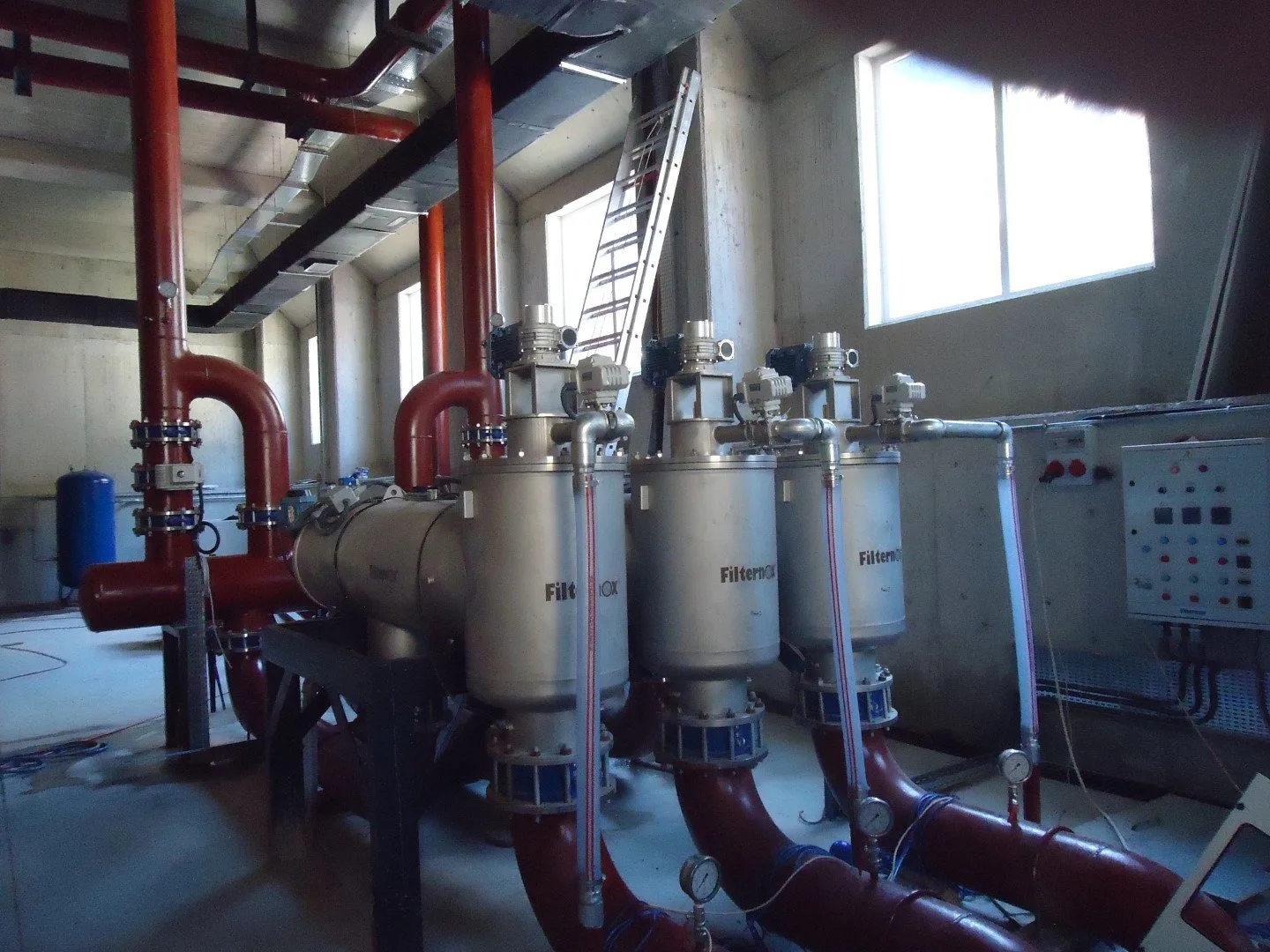

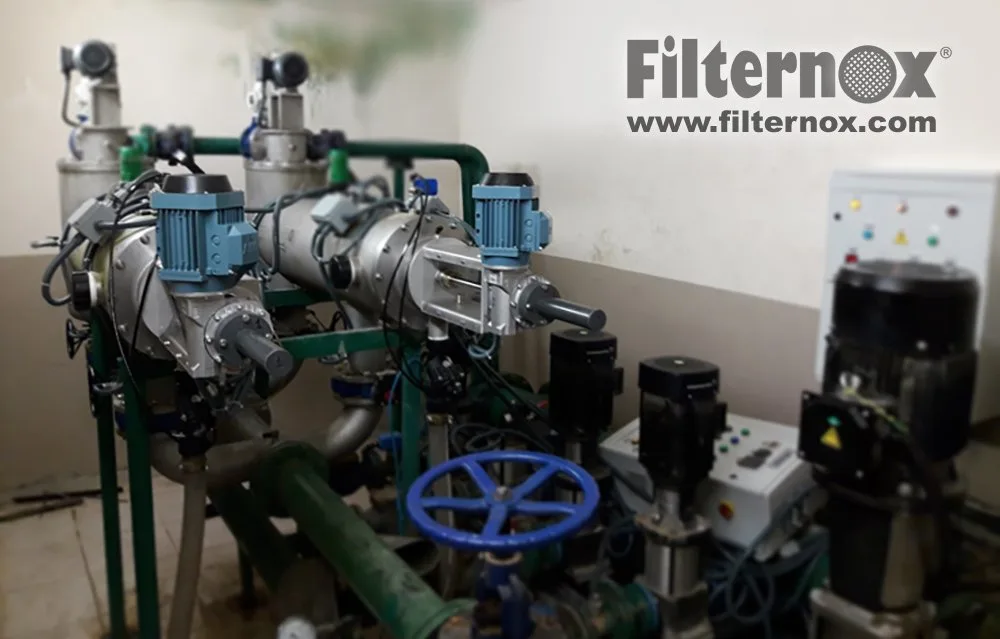

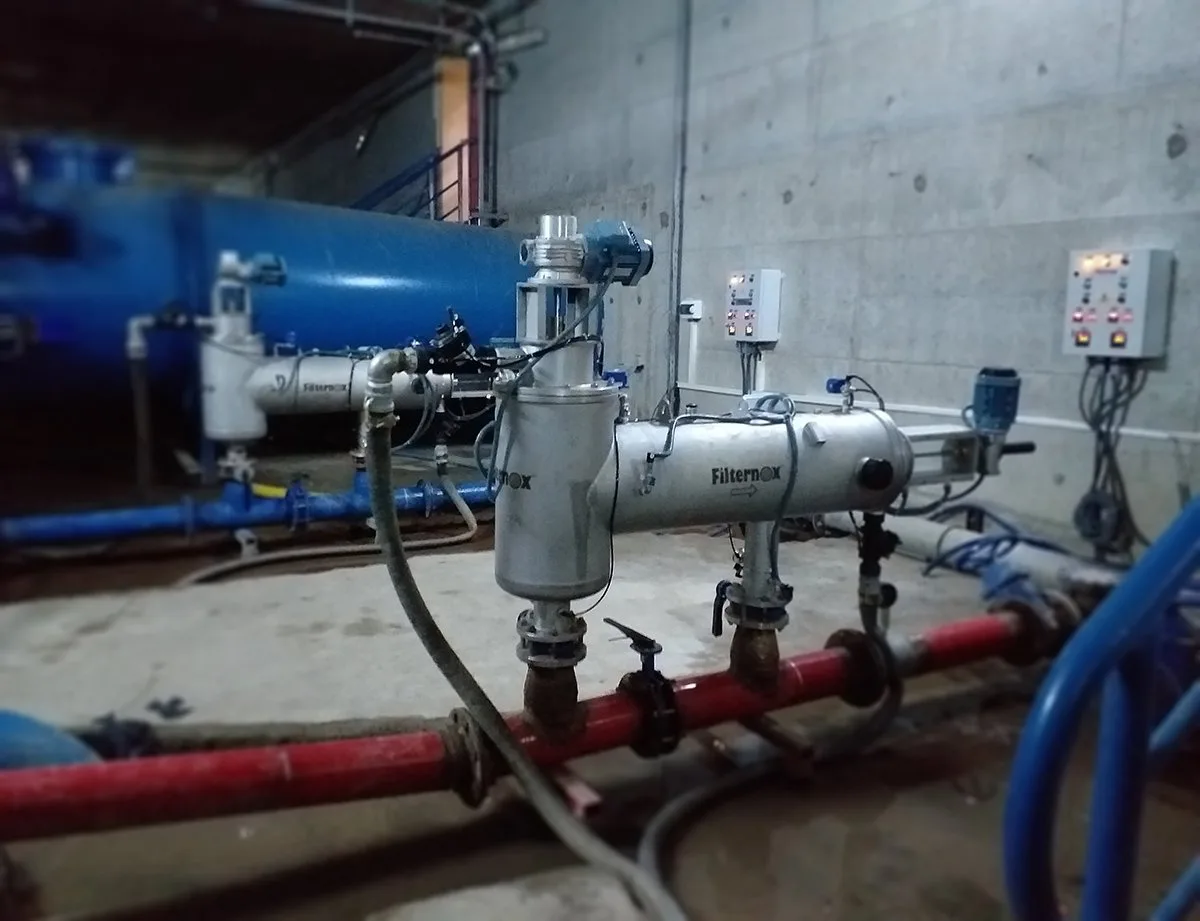

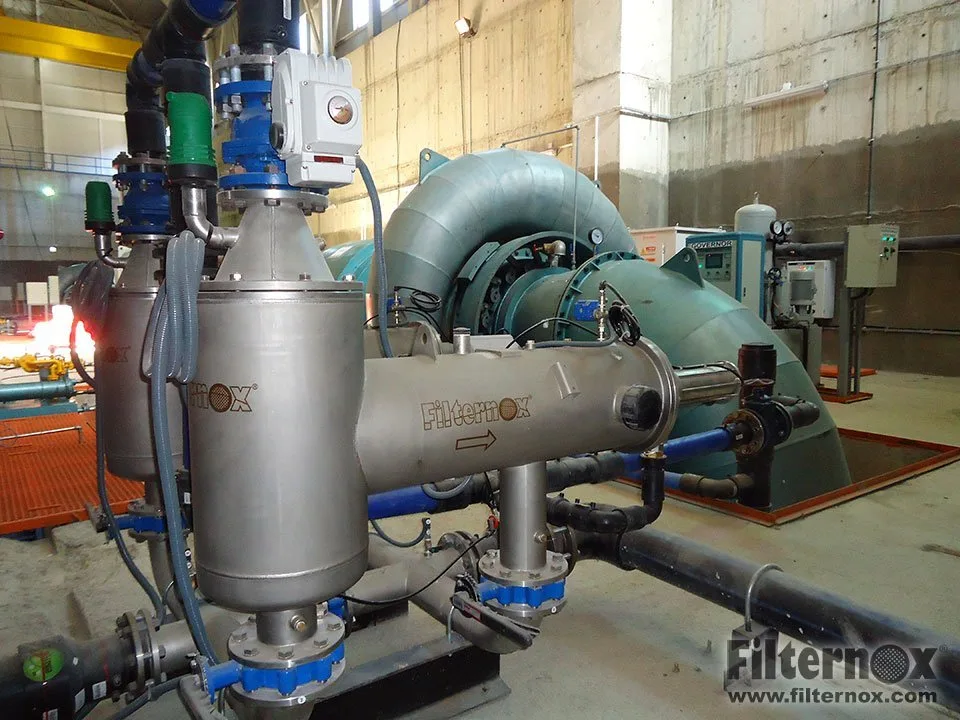

Hydroelectric

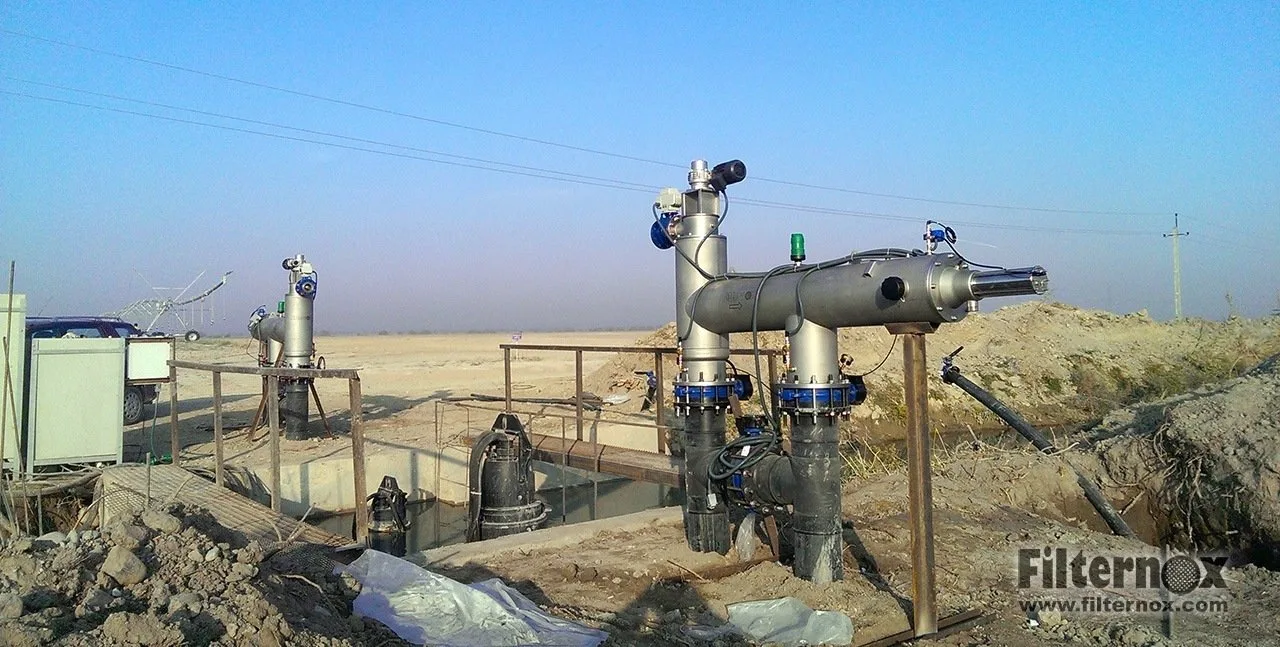

Irrigation

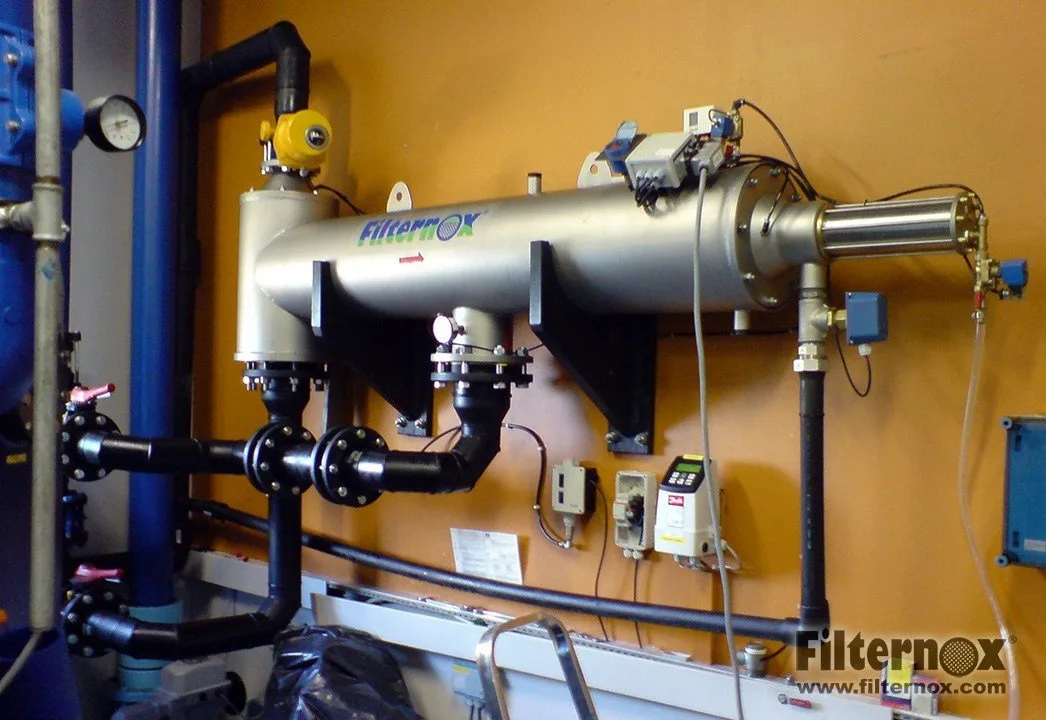

Surface Water, UF & RO

Technical Specifications

Screen Material
AISI 316L
Control System
Electric
Body Material
AISI 304L, AISI 316L
Back-Flush Time
20 - 80 s
Fine Screen Range
10 - 3000 micron
Headloss at Max. Flow Rate
0.2 bar
Back-Flush Water Consumption
200 - 400 l / back-flush
Max. Operating Pressure
10 bar (16-25 bar opsiyonel)
rpm of Cleaning Mechanism
Adjustable
Max. Operating Temperature
60°C / 90°C
Min. Inlet Pressure Required During Back-Flush
2 bar
