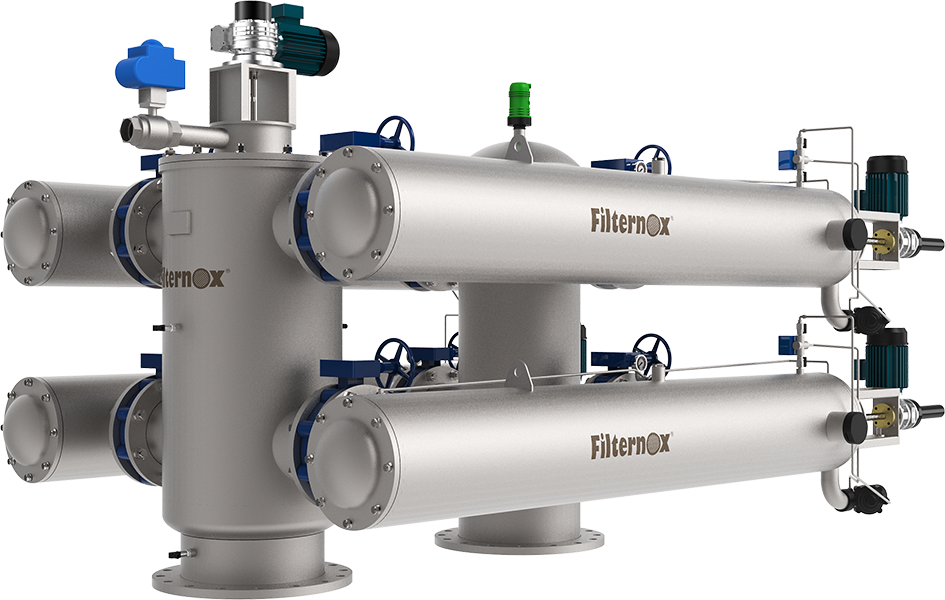

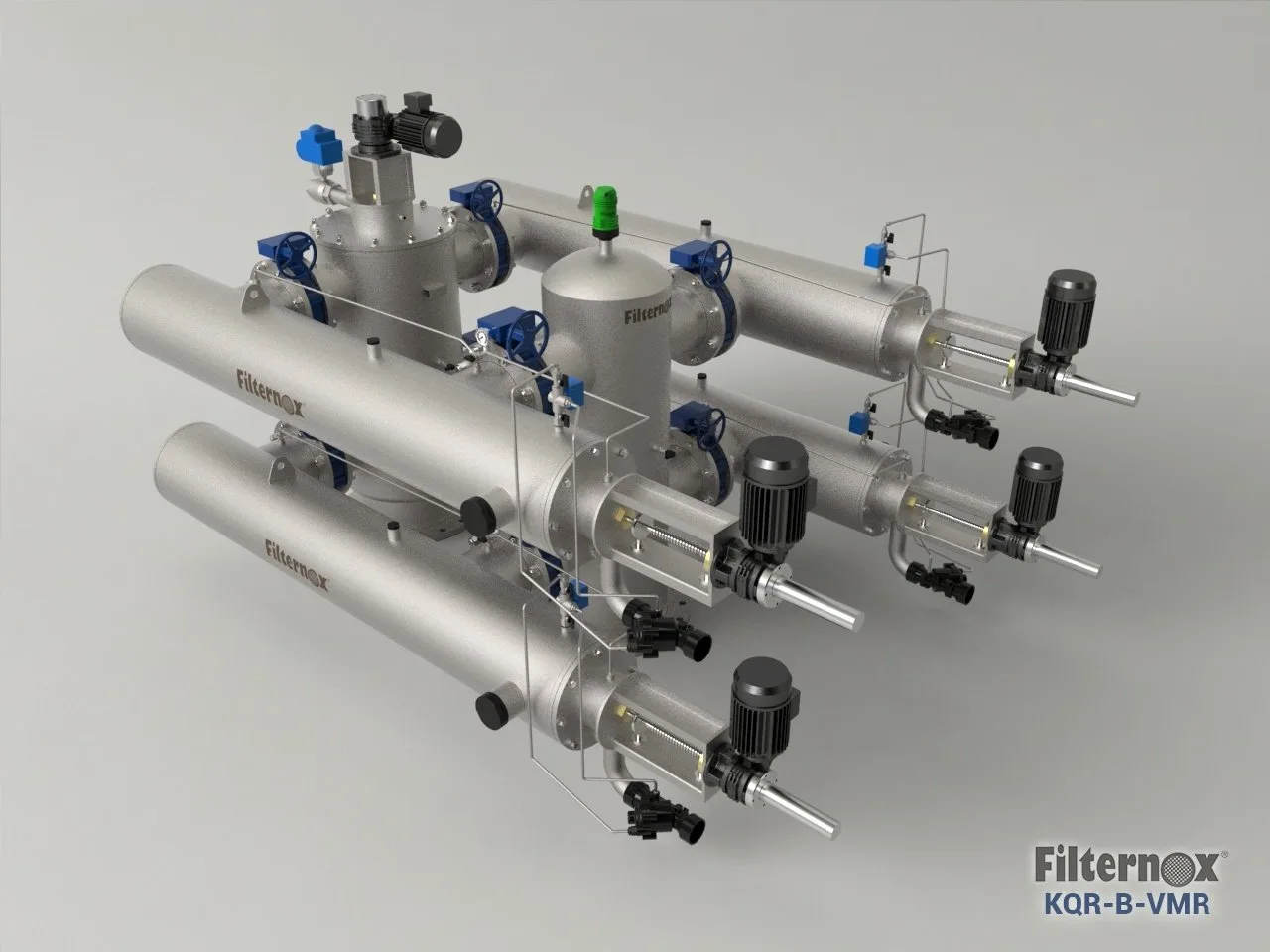

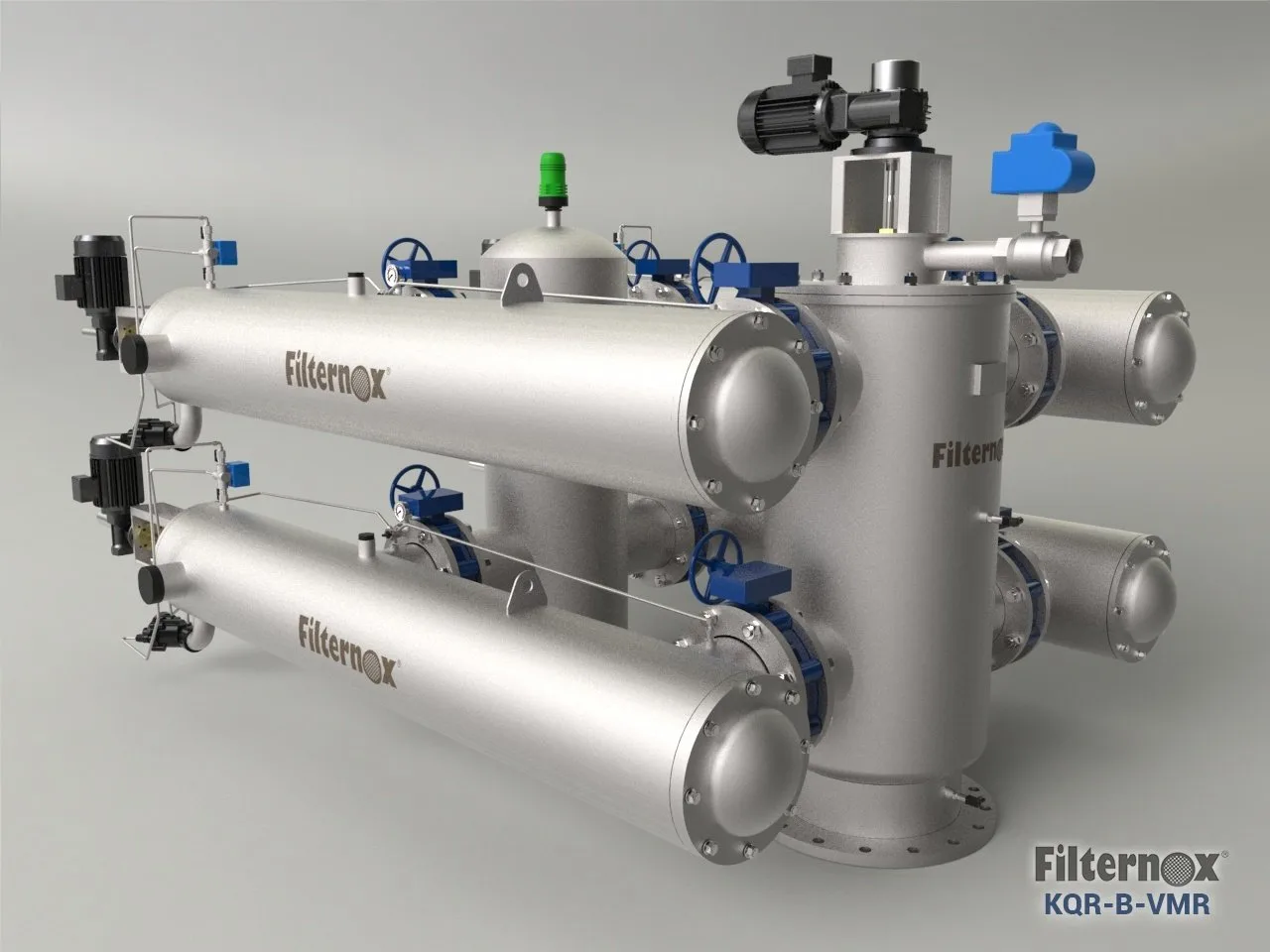

KQR-B-VMR
Automatic self-cleaning KQR-B-VMR models with rust proof body are ideal and a permanent solution for sea and surface water containing very high dirt loads.
Product Description
Automatic self-cleaning KQR-B-VMR models with rust proof body are ideal and a permanent solution for sea and surface water containing very high dirt loads. KQR-B-VMR models have a unique coarse-screen and multiple fine screens with one inlet and outlet, able to make two stage filtration and are suitable for high flow rates.
Gallery
Technical Specifications
- Screen Material
- AISI 316L
- Control System
- Electric
- Body Material
- AISI 304L, AISI 316L
- Back-Flush Time
- 80 - 120 s
- Fine Screen Range
- 10 - 3000 micron
- Headloss at Max. Flow Rate
- 0.2 bar
- Back-Flush Water Consumption
- 600 - 1000 l / back-flush
- Max. Operating Pressure
- PN10 / PN16
- rpm of Cleaning Mechanism
- Adjustable
- Max. Operating Temperature
- 60°C / 90°C
- Min. Inlet Pressure Required During Back-Flush
- 2 bar
