PTR-MR

Models with larger filtration area and higher flow rates

PTR-MR

Product Description

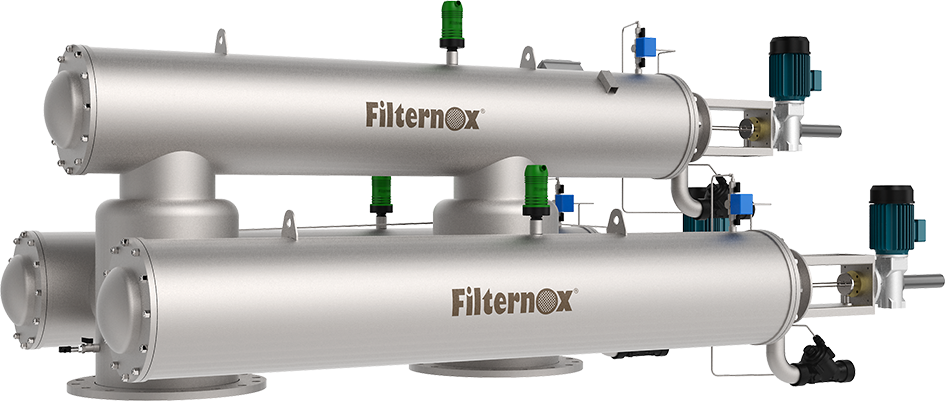

Models with larger filtration area and higher flow rates PTR models of Filternox® filters have three independent fine screen modules for one inlet-outlet. These models provide larger filtration area compered to PTW models and are suitable for filtration of water with high flow rates and high amounts of particles.

Gallery

PTR-MR PTR-MR PTR-MR PTR-MR PTR-MR

Technical Specifications

Screen Material
AISI 316L
Control System
Electric
Body Material
AISI 304L, AISI 316L
Back-Flush Time
20 - 30 s
Fine Screen Range
10 - 3000 micron
Headloss at Max. Flow Rate
0.2 bar
Back-Flush Water Consumption
150 - 800 l / back-flush
Max. Operating Pressure
10 bar (16-25 bar opsiyonel)
rpm of Cleaning Mechanism
Adjustable
Max. Operating Temperature
60°C / 90°C
Min. Inlet Pressure Required During Back-Flush
2 bar

Documents

PTW PTR PQR Model Brochure
PDF
