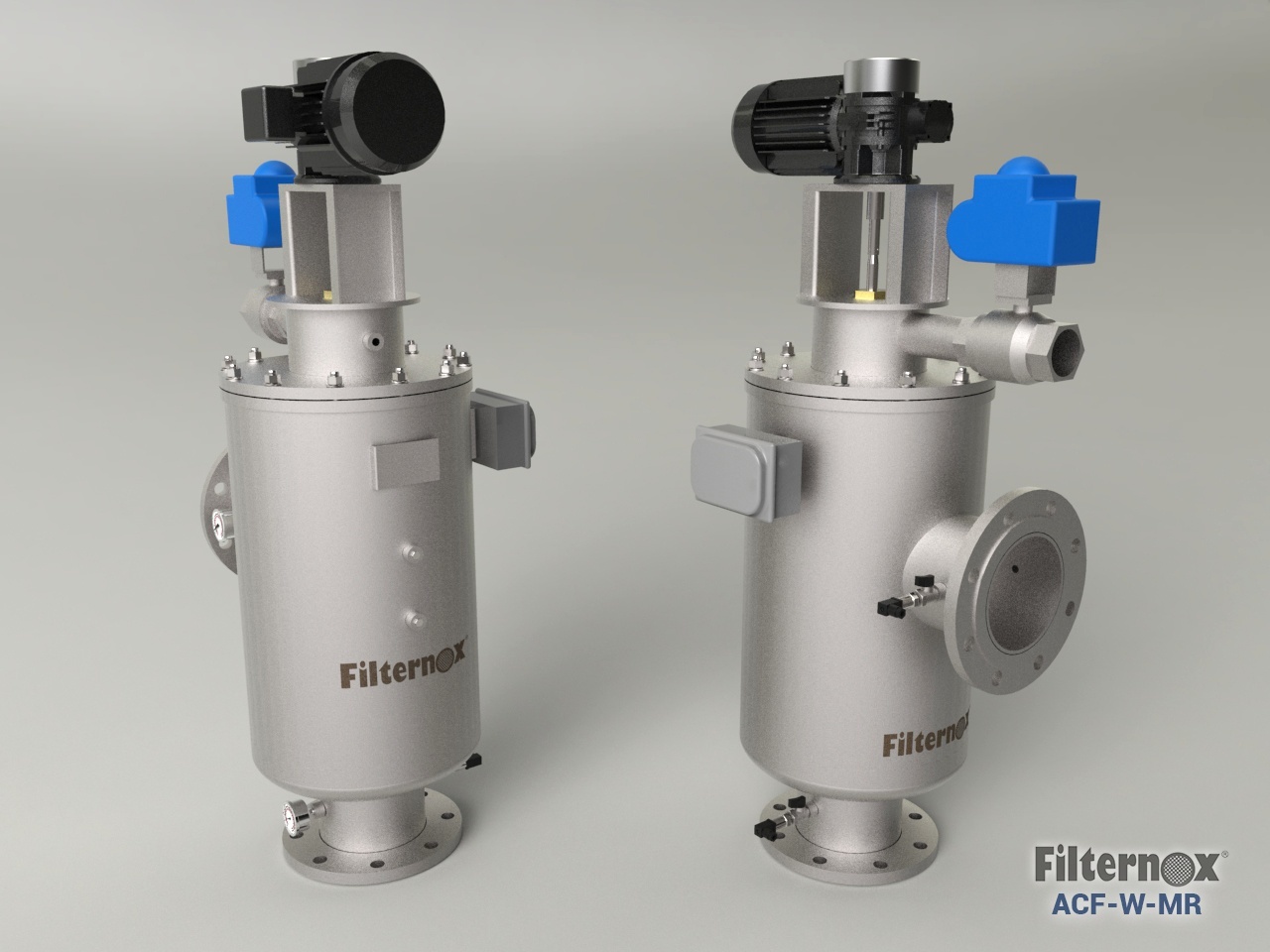

Filternox ACF-W-MR

Video

Filternox® ACF-W-MR, equipped with a brush cleaning system, provides a simple and efficient solution for prefiltration and fine filtration requirements. ACF-W-MR filters are suitable for use in a wide variety of liquid filtration applications.

ACF-W-MR models have the flexibility to be mounted directly on the pipeline, either horizontally or vertically, as well as online or inline; providing high capacity filtration with minimum footprint.

Body Material Max. Operating Temperature Back-Flush Water Consumption
AISI 304L, AISI 316L 60°C / 90°C 200 – 400 l / back-flush
Screen Material Headloss at Max. Flow Rate Fine Screen Range
AISI 316L 0.2 bar 10 – 3000 micron
Max. Operating Pressure Back-Flush Time Control System
PN10 / PN16 20 – 40 s Electric
Min. Inlet Pressure Required During Back-Flush rpm of Cleaning Mechanism
1 bar Adjustable

For different pressure and material requirements, please contact us.

Photos

acf-w-mr su filtresiSteel-Industry-5_Filternox-ACFHydroelectric-6_Filternox-ACFsurface water filterACF_water-filter_1.2Sea Water Filtration Before Heat Exchanger_1_ACFSea Water Filtration Before Heat Exchanger_2.1_ACFfilternox acf-mr paper


Model Brochure & Dimensions

Suitable applications
