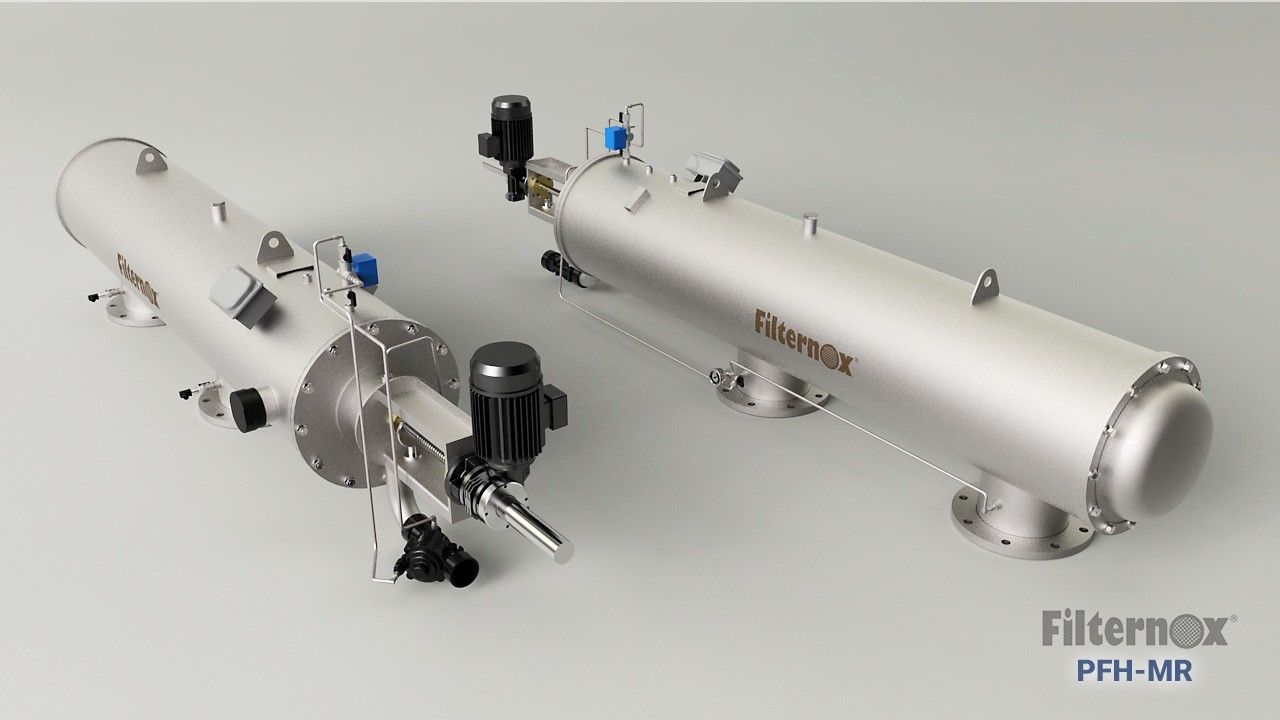

Filternox PFH-MR



Filternox® PFH-MR models are supplied with manual coarse screen and motor for low pressure and heavy duty industrial filtration applications.

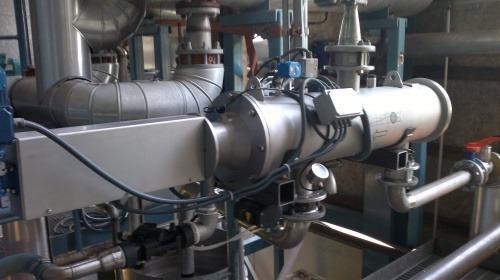

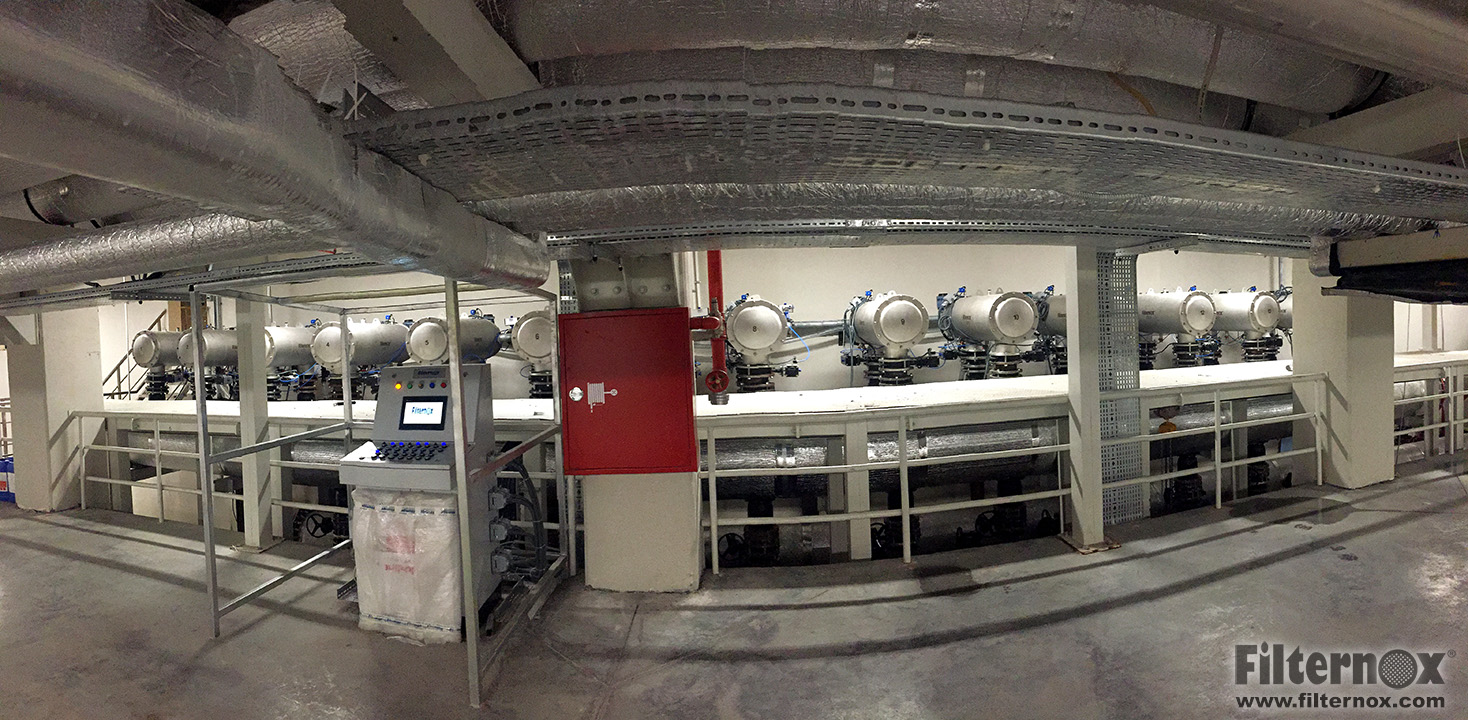

Filternox® PFH-MR models, with their stainless steel construction and higher filtration surface area provide excellent performance in low pressure industrial applications. PFH-MR models are especially convenient for side-stream and full flow cooling tower filtration.



Body Material Max. Operating Temperature Back-Flush Water Consumption
AISI 304L, AISI 316L 60°C / 90°C 100 – 200 l / back-flush
Screen Material Headloss at Max. Flow Rate Fine Screen Range
AISI 316L 0.2 bar 10 – 3000 micron
Max. Operating Pressure Back-Flush Time Control System
PN10 / PN16 20 – 30 s Electric
Min. Inlet Pressure Required During Back-Flush rpm of Cleaning Mechanism
2 bar Adjustable

For different pressure and material requirements, please contact us.
