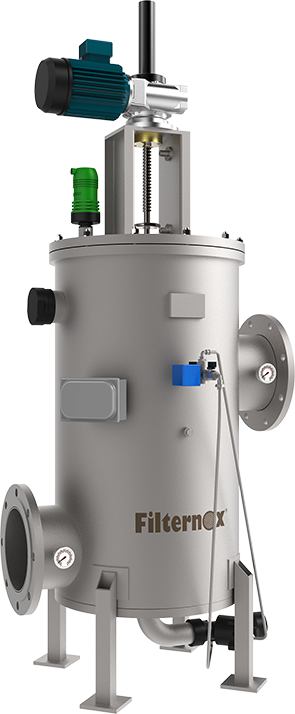

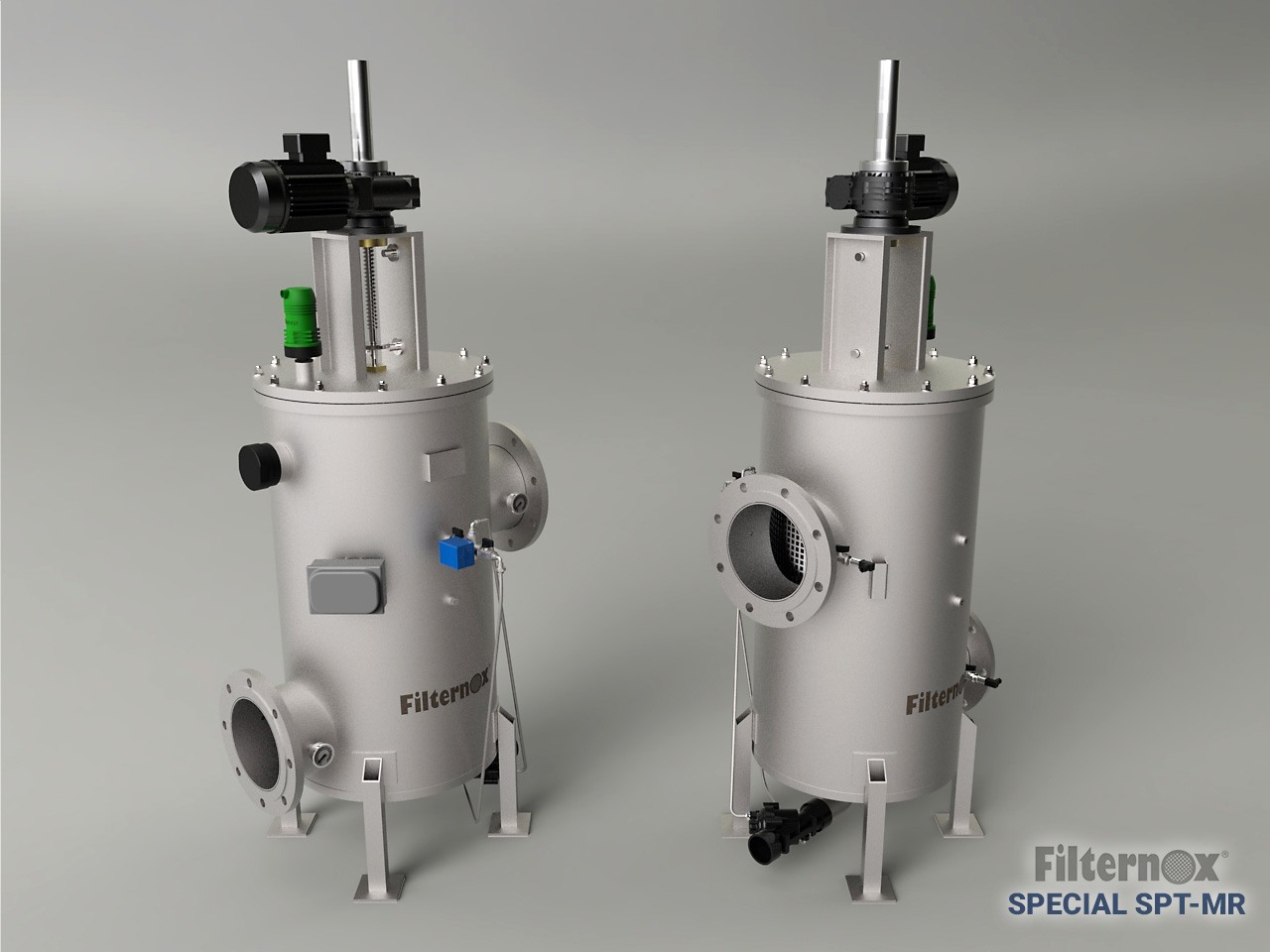

Filternox Special SPT-MR

Special SPT-MR models of Filternox® Automatic Self-Cleaning Filters are suitable for applications that require medium to large filtration capacity.

Designed for systems which are required to do fine filtration in a limited space. Vertical installation and small footprint combined with back flushing system and high filtration performance makes the Special SPT-MR an absolute necessity.

Body Material Max. Operating Temperature Back-Flush Water Consumption
AISI 304L, AISI 316L 60°C / 90°C 100 – 200 l / back-flush
Screen Material Headloss at Max. Flow Rate Fine Screen Range
AISI 316L 0.2 bar 10 – 3000 micron
Max. Operating Pressure Back-Flush Time Control System
PN10 / PN16 20 – 30 s Electric
Min. Inlet Pressure Required During Back-Flush rpm of Cleaning Mechanism
2 bar Adjustable

For different pressure and material requirements, please contact us.

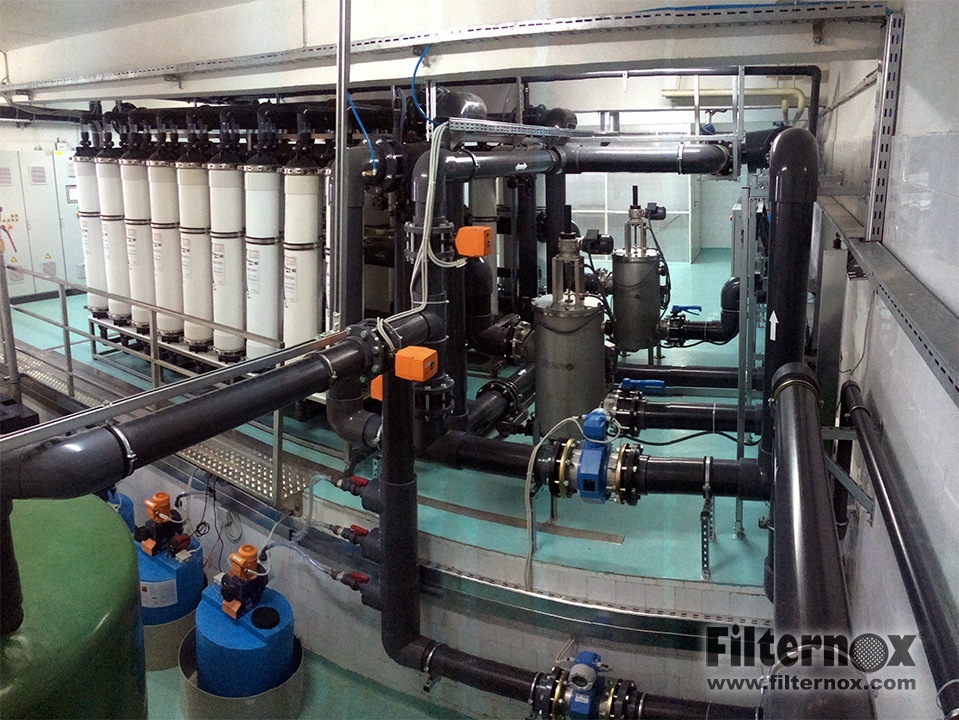

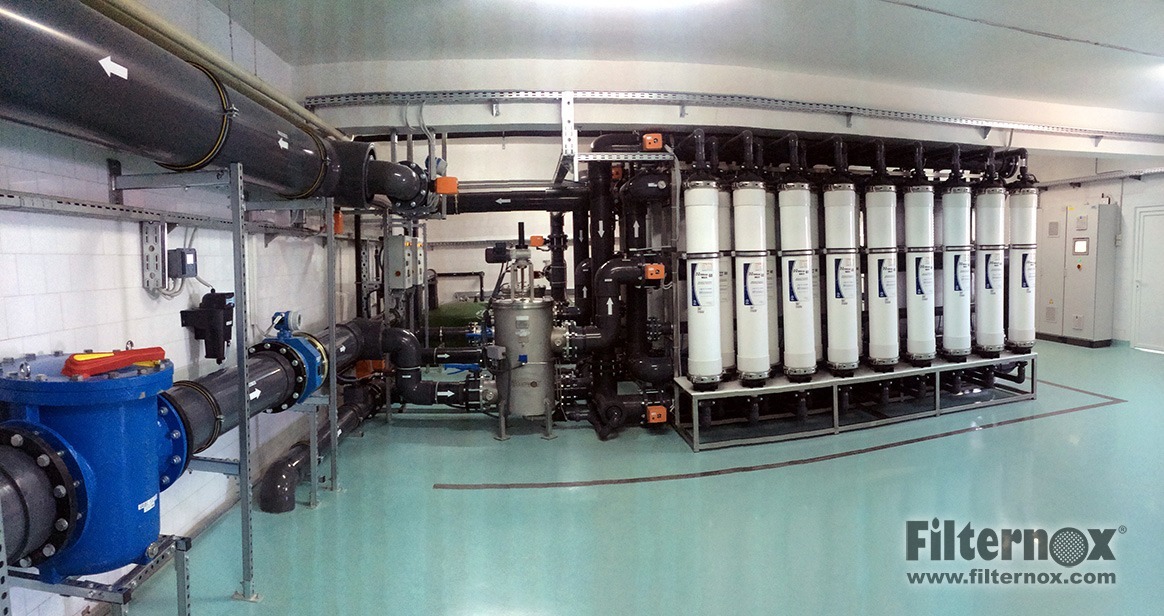

Filternox Special SPT-MR water filterwell water ultra filtrationwell water ultra filtration


Model Brochure & Dimensions

Suitable applications
