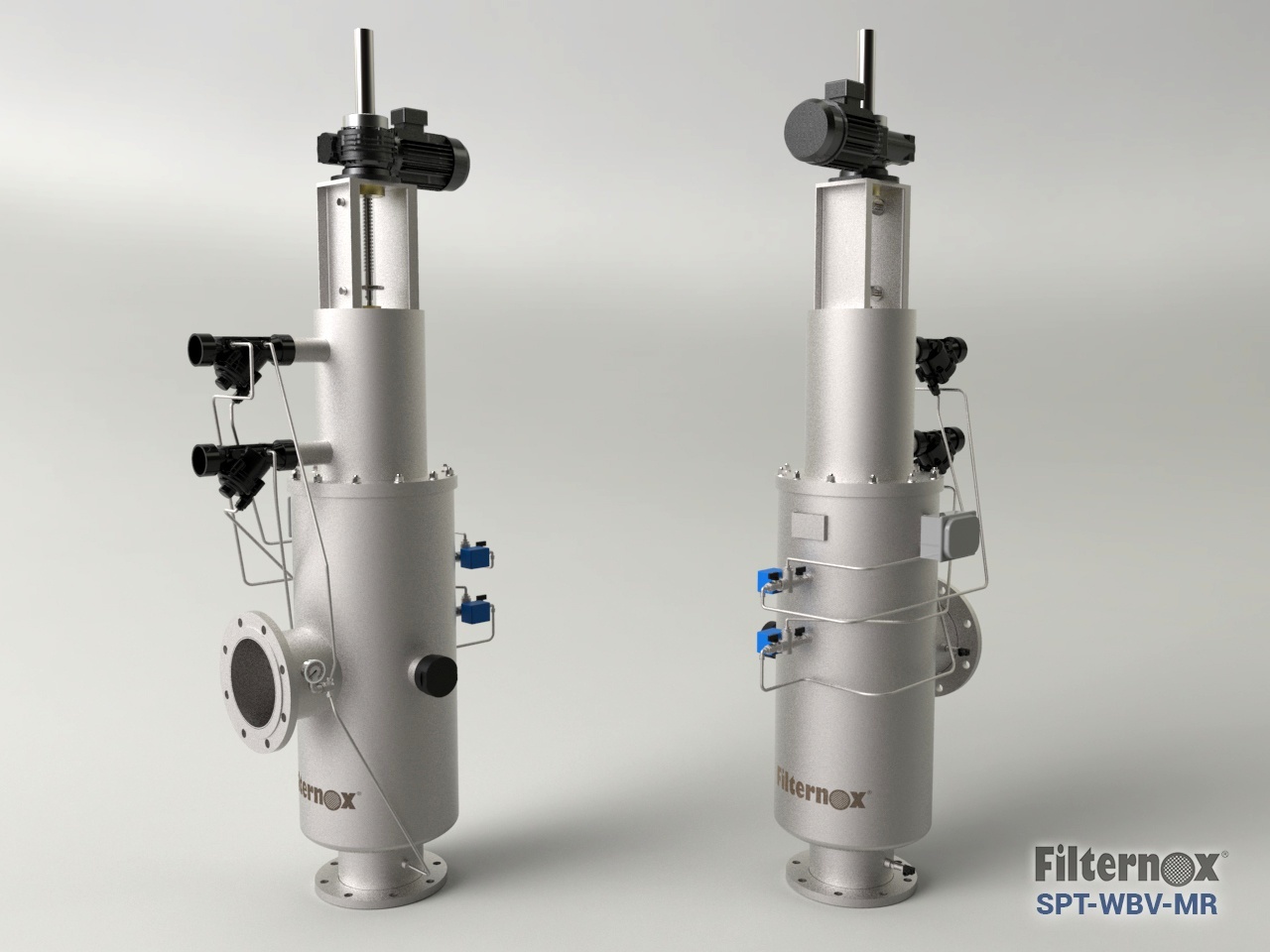

Filternox SPT-WBV-MR

Video

Filternox® SPT-WBV-MR model filters are a result of years of experience and research & development in the field.

Designed especially for river and sea water sources with very high dirt loads, SPT-WBV-MR is able to filter both large and small particles simultaneously in the same filter body.

With its specially developed dual self-cleaning system that is made of brushes and vacuum nozzles, Filternox® SPT-WBV-MR filters achieve an exceptional performance and offer a permanent and definitive solution for variable high dirt load applications.



Body Material Max. Operating Temperature Back-Flush Water Consumption
AISI 304L, AISI 316L 60°C / 90°C 200 – 400 l / back-flush
Screen Material Headloss at Max. Flow Rate Fine Screen Range
AISI 316L 0.2 bar 10 – 3000 micron
Max. Operating Pressure Back-Flush Time Control System
PN10 / PN16 40 – 60 s Electric
Min. Inlet Pressure Required During Back-Flush rpm of Cleaning Mechanism
2 bar Adjustable

For different pressure and material requirements, please contact us.

Photos

spt-wbv-mr industrial water filtersurface water filterwell water filtrationwell water filterwell water purifierSPT-WBV-MR Denizli su filtresiwater filtration for paper industryHydroelectric filterHydroelectric-5_Filternox-SPTCanada mining water filterSPT-WBV-MR_Cooling-Tower_1.2SPT-WBV-MR_Cooling-Tower_2.1SPT-WBV-MR_Cooling-Tower_2.2filternox spt-wbv-mr 0106filternox spt-wbv-mr skicooling tower side stream filtration (Turkey)filternox spt-wbv-mr _003filternox spt-wbv-mr 4-irrigationprefiltration of WWTP inlet water (Turkey)filternox spt-wbv-mr _2316filternox spt-wbv-mr foto2Irrigation filtrationIrrigation filtrationspt wbv mr coolingspt wbv mr cooling


Introduction Document Model Brochure & Dimensions

Suitable applications
