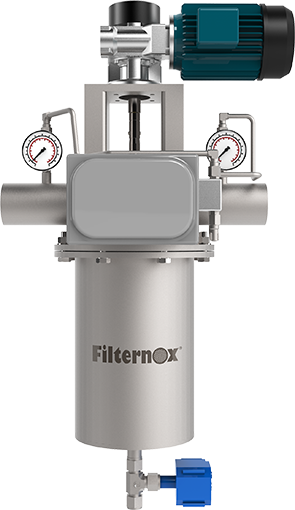

Filternox FMS-W-MR

Video

Filternox® FMS models are specially designed for low flow installations. FMS models can be used for prefiltration as well as final filtration for various water sources containing inorganic dirt loads.



Body Material Max. Operating Temperature Back-Flush Water Consumption
AISI 304L, AISI 316L 60°C / 90°C 40 – 50 l / back-flush
Screen Material Headloss at Max. Flow Rate Fine Screen Range
AISI 316L 0.2 bar 10 – 3000 micron
Max. Operating Pressure Back-Flush Time Control System
PN10 / PN16 15 – 20 s Electric
Min. Inlet Pressure Required During Back-Flush rpm of Cleaning Mechanism
1 bar Adjustable

For different pressure and material requirements, please contact us.

Photos

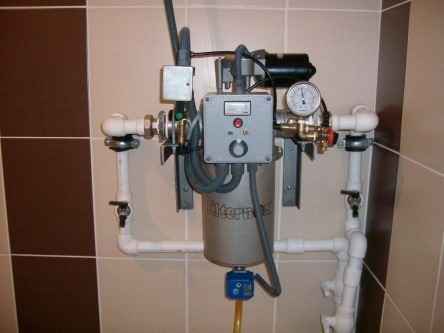

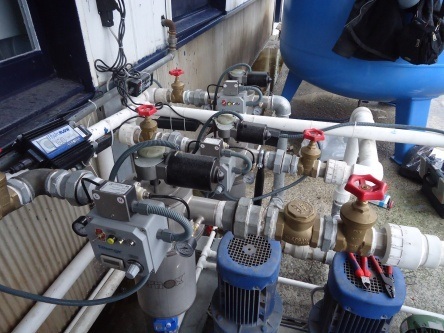

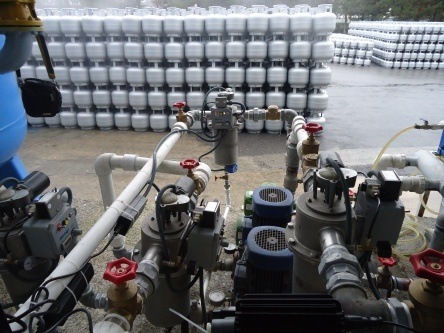

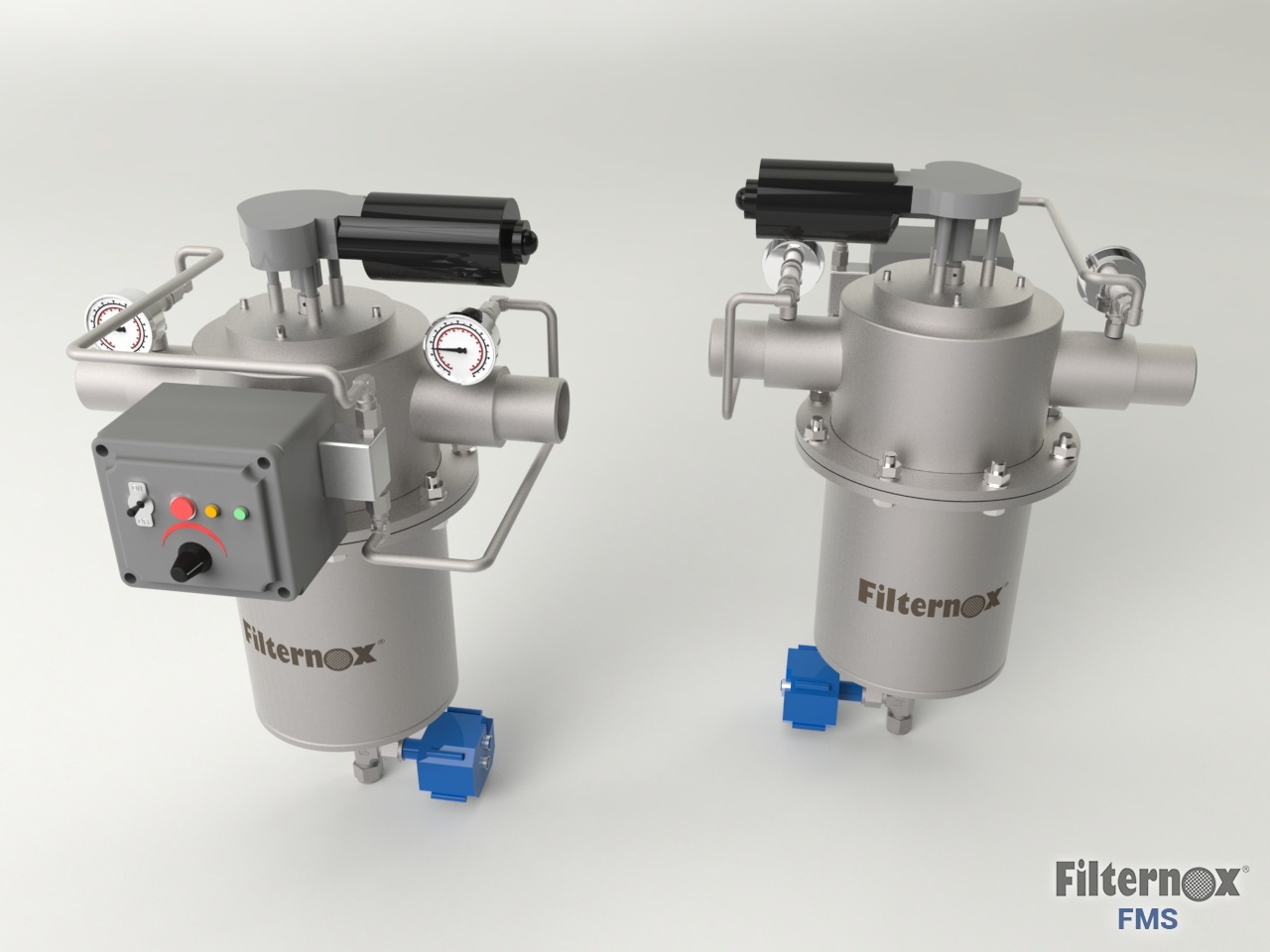

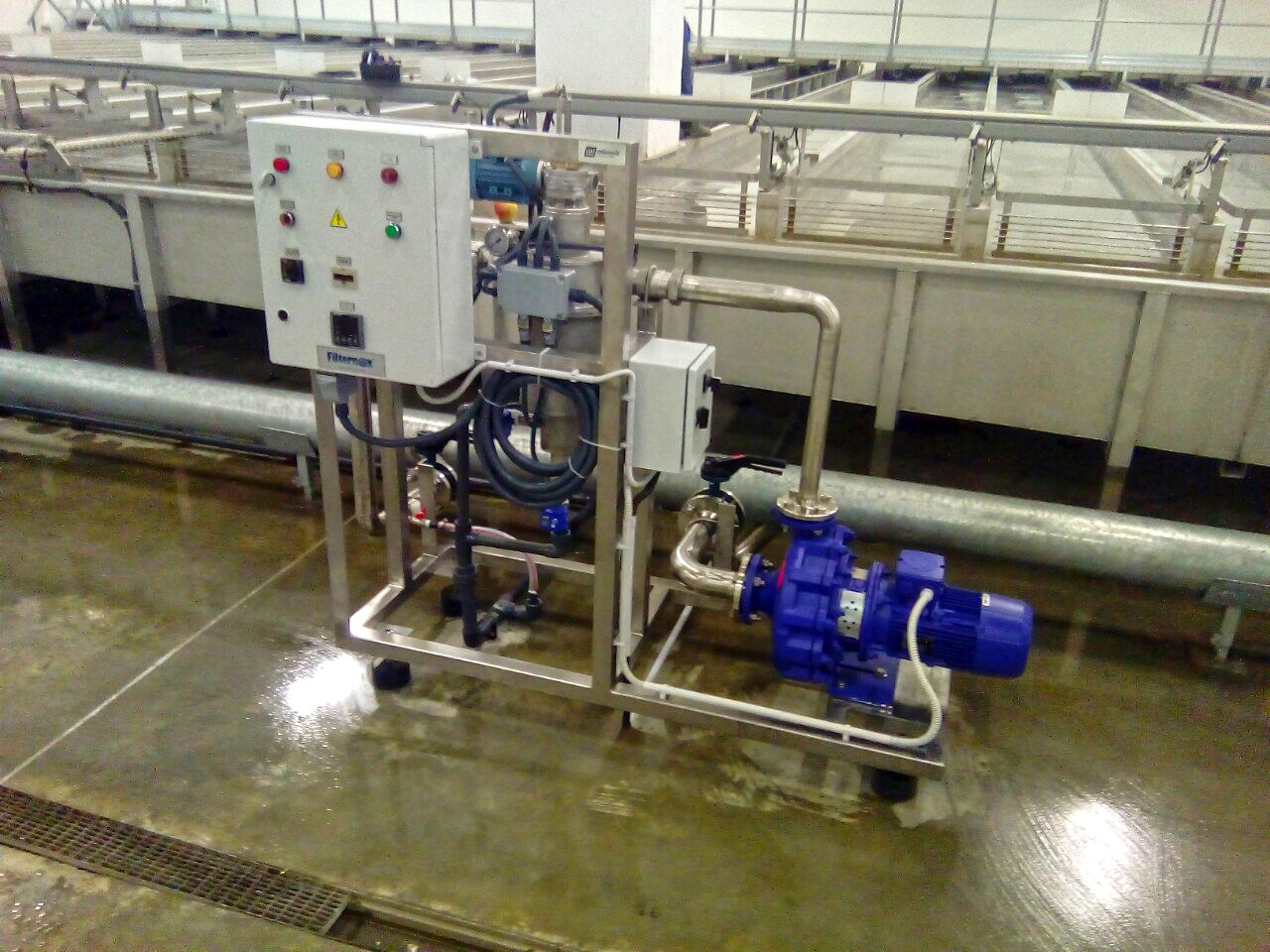

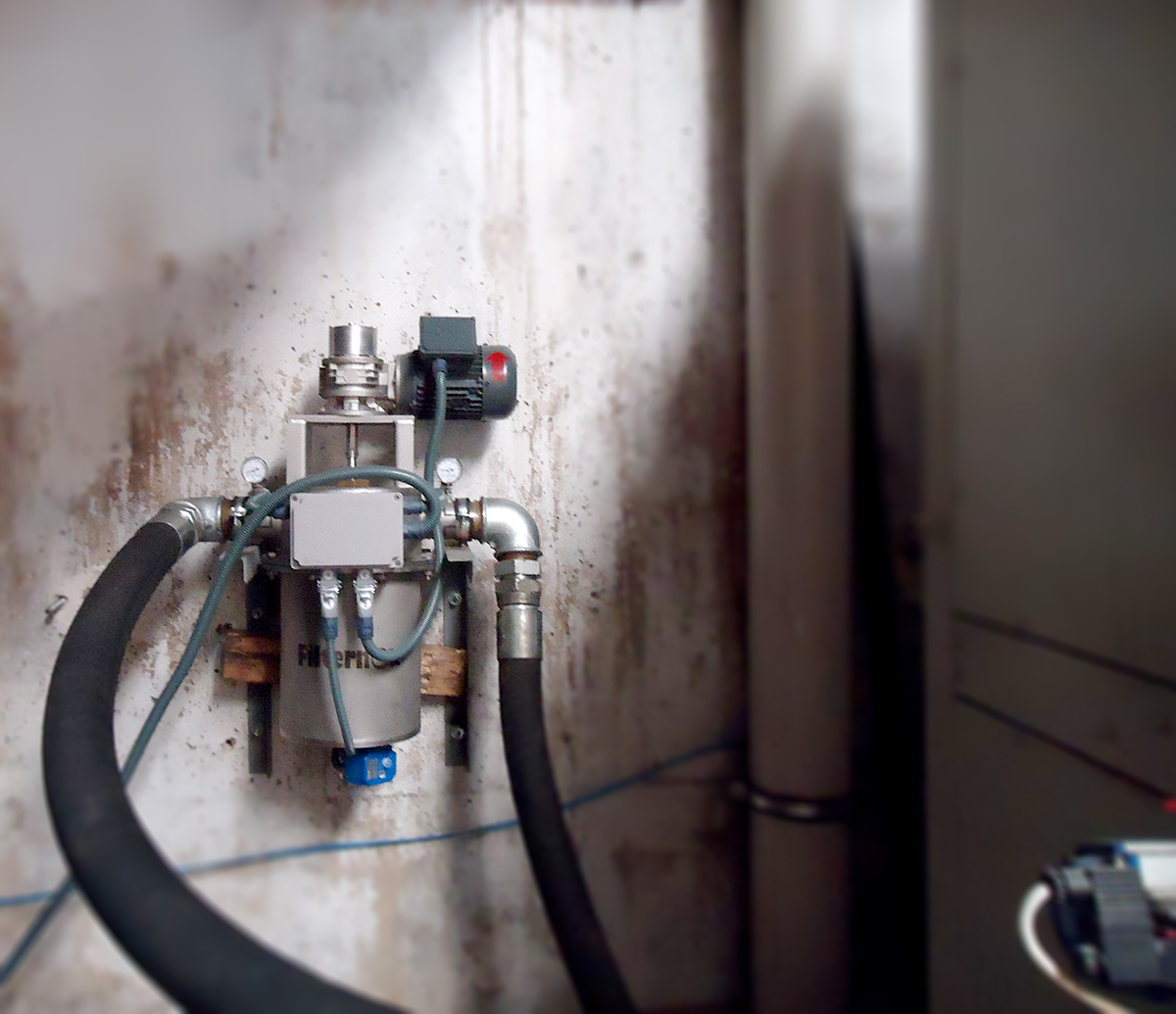

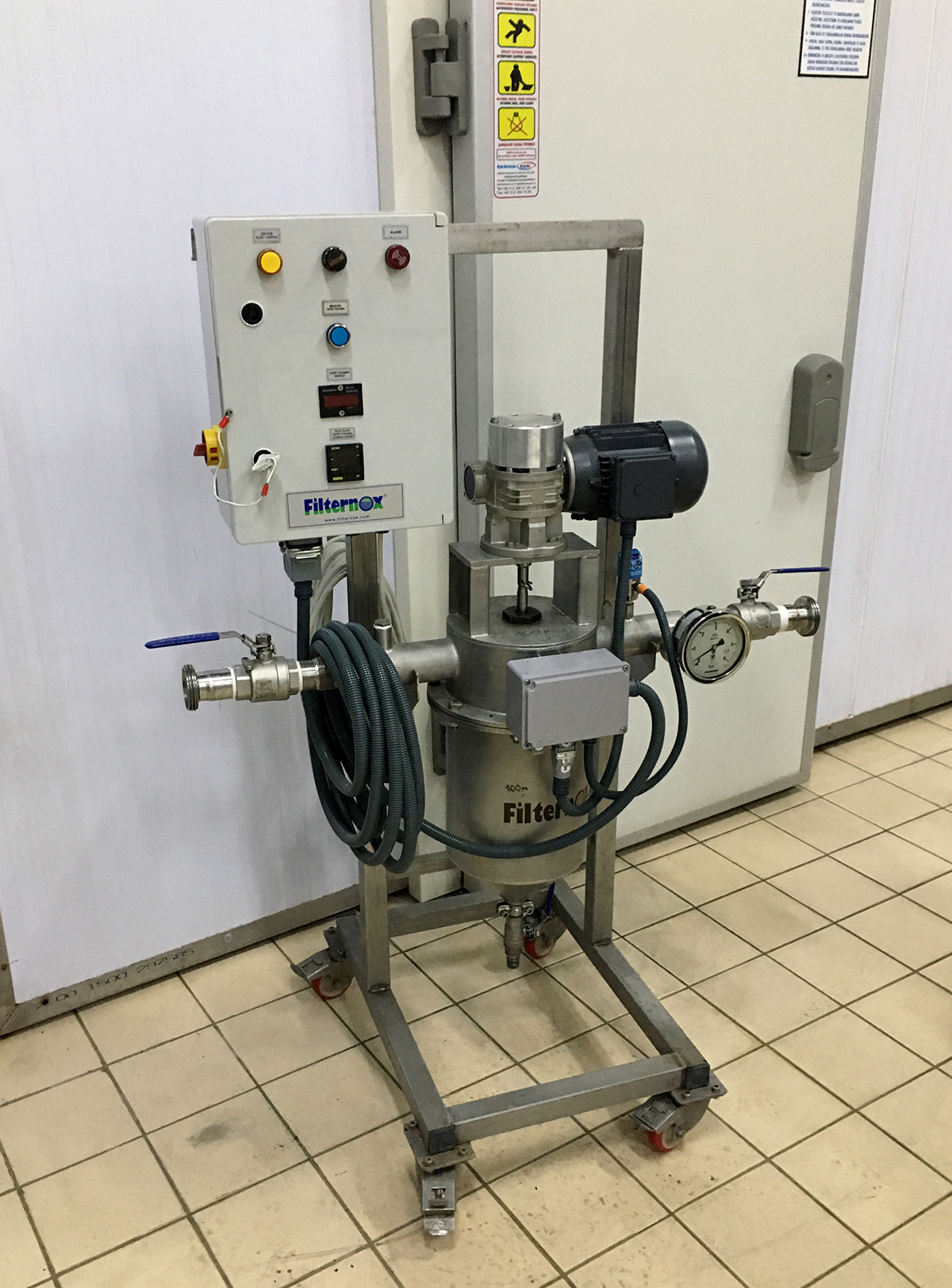

Filternox FMS water filterHydroelectric-8_Filternox_FMSwater filterFilternox FMSFilternox FMS water filter3_fms-wbv-mrFilternox FMS filter


Model Brochure & Dimensions
