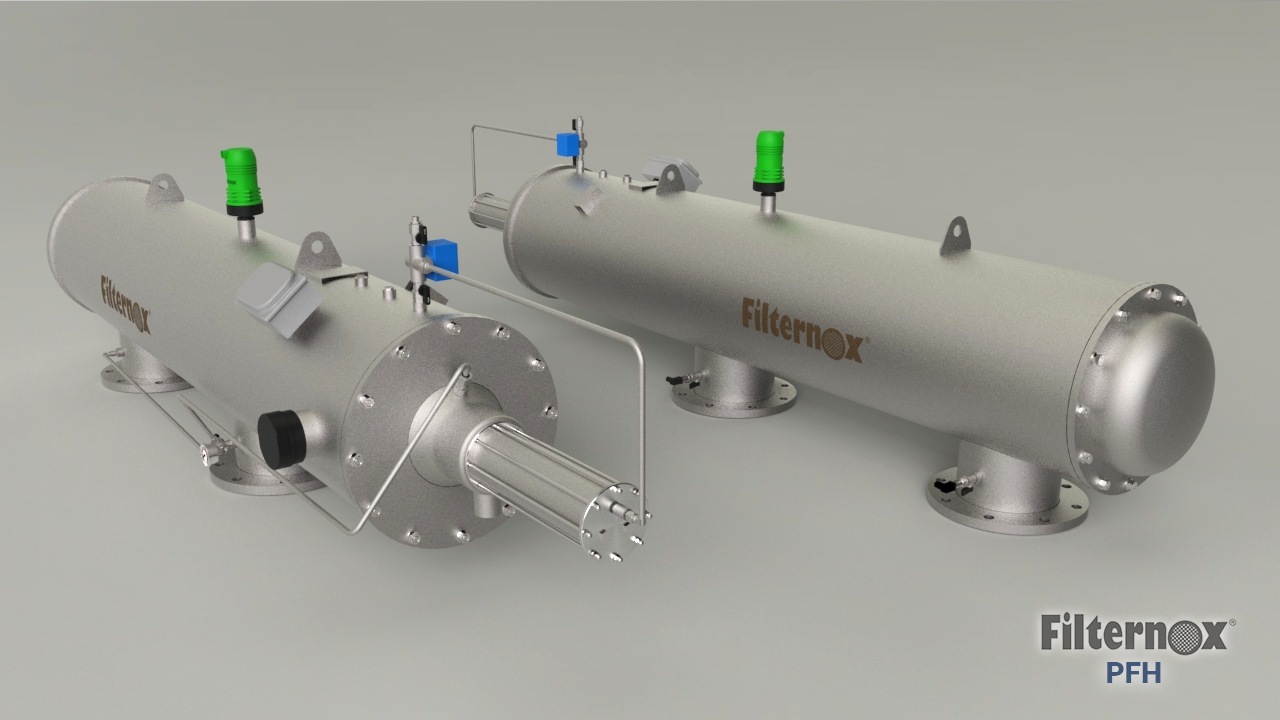

Filternox PFH

Filternox® PFH models are standard piston type automatic self-cleaning filters. They consist of a manual cleaning protective coarse screen in the inlet of the filter body to protect the fine screen from being damaged by big particles.



Body Material Max. Operating Temperature Back-Flush Water Consumption
AISI 304L, AISI 316L 60°C / 90°C 100 – 120 l / back-flush
Screen Material Headloss at Max. Flow Rate Fine Screen Range
AISI 316L 0.2 bar 10 – 3000 micron
Max. Operating Pressure Back-Flush Time Control System
PN10 / PN16 20 – 30 s Electric
Min. Inlet Pressure Required During Back-Flush rpm of Cleaning Mechanism
2 bar Adjustable

For different pressure and material requirements, please contact us.

Video

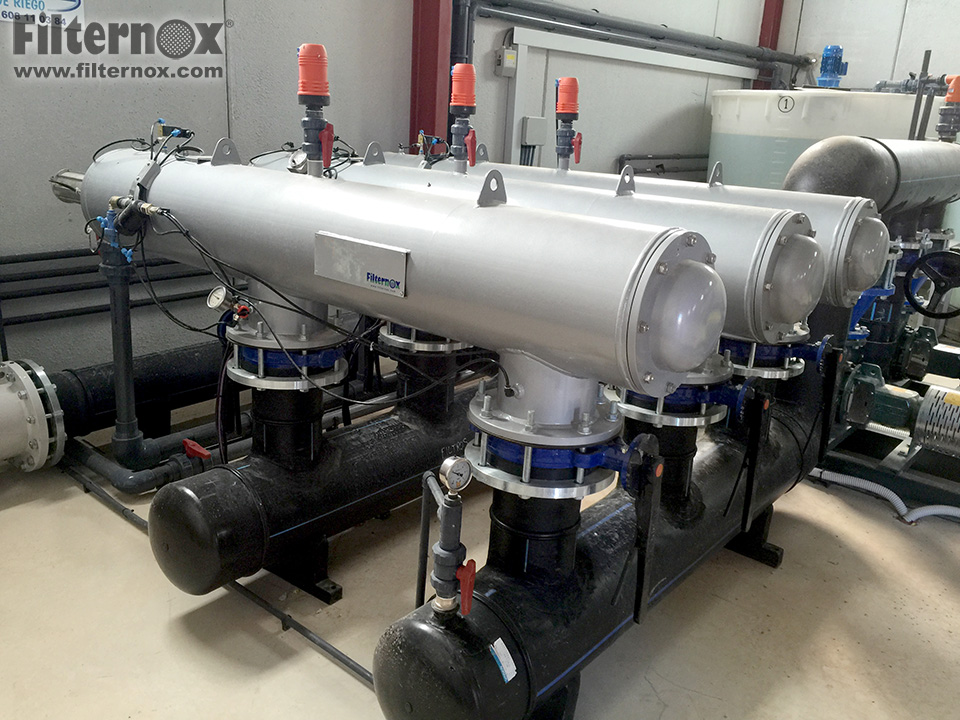

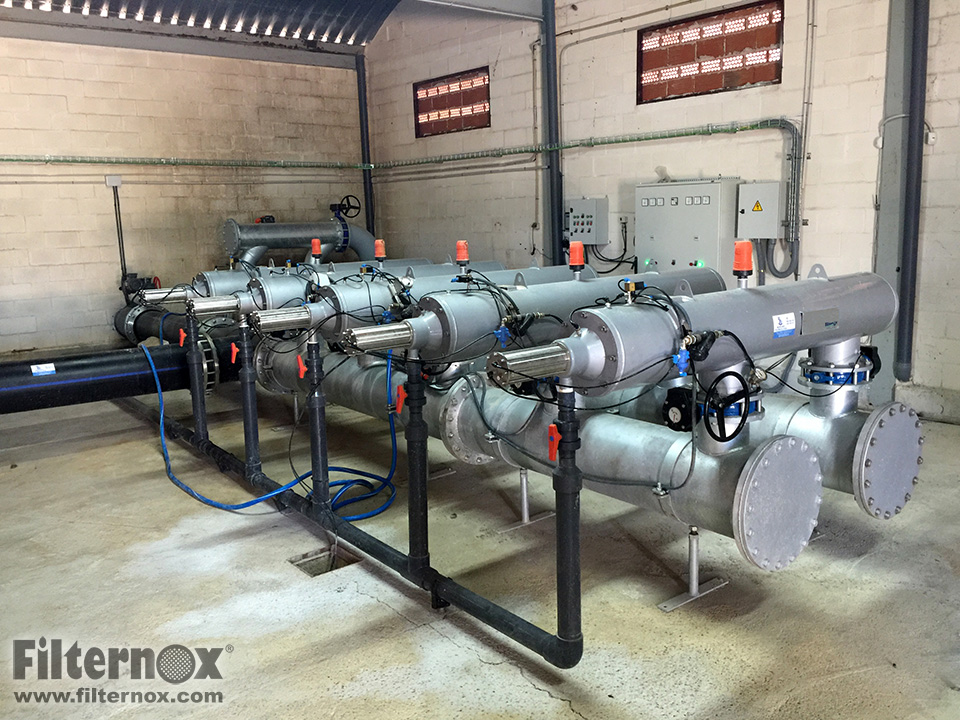

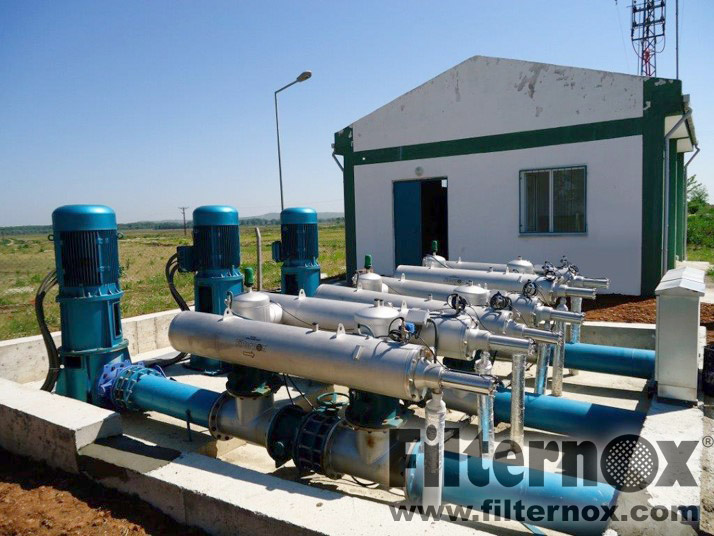

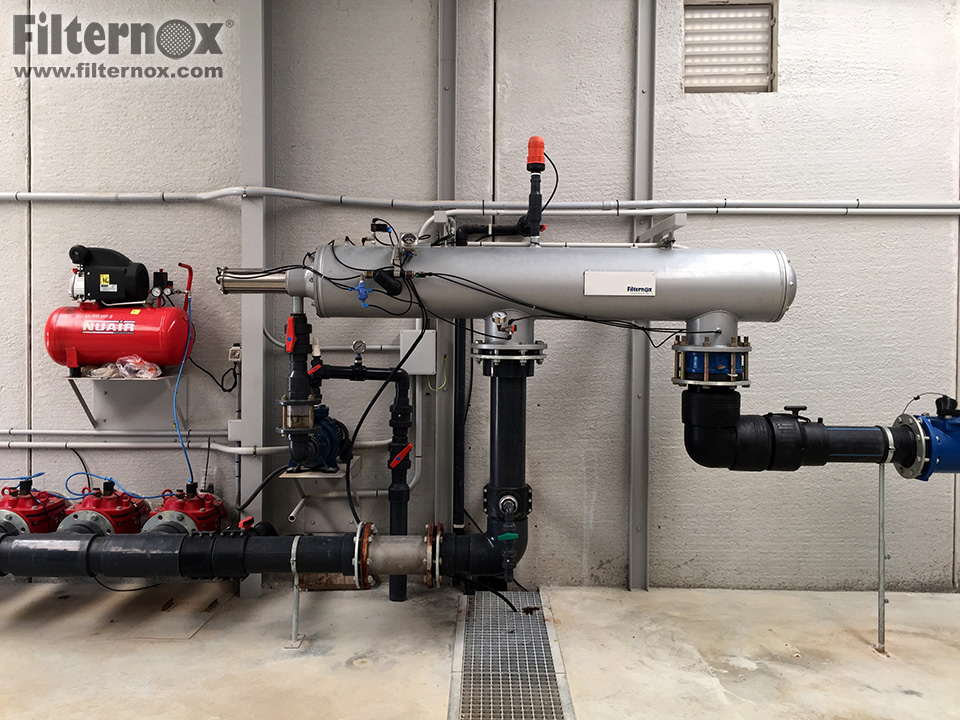

Hydroelectric-4_Filternox-PFHcooling tower filterwater purifierirrigation water filterwater filtercooling tower filtercooling tower filterwell water iron filterHydroelectric-1_Filternox-PFHsteel industry water filter PFHsteel industry water filter PFHİspanya 2İspanya 4İspanya 5


Model Brochure & Dimensions

Suitable applications
