Historical Development in Water Filtration by Filternox®

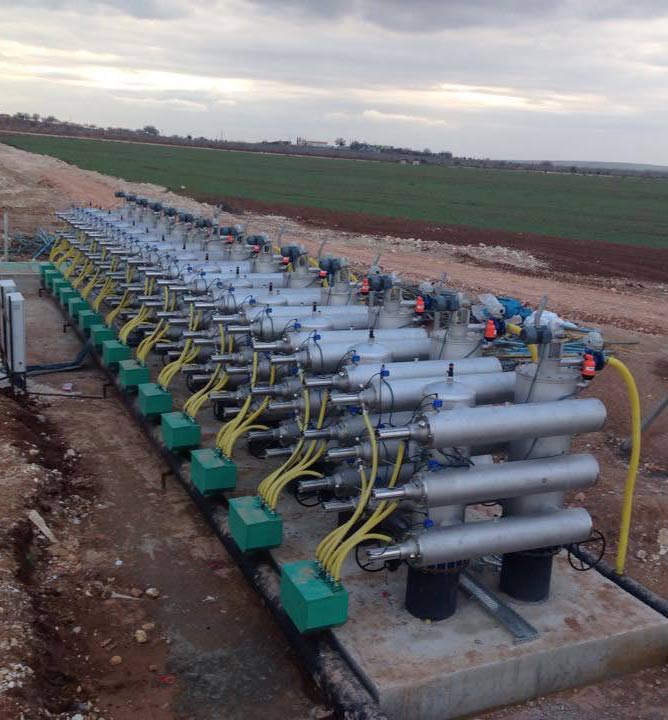

FILTERNOX® has recently launched the first large scale Filter Station for channel water which can handle coarse and fine filtration together in the same filter body.
The Location is Urfa-Suruç, TURKEY.
|Incoming Pipe Diameter:||1800 mm|
|Total Flow:||6500 lt/sec (23.400 m3/h)|
|Amount of filter units:||14 units of FILTERNOX® KQR-B 612620 Filters|

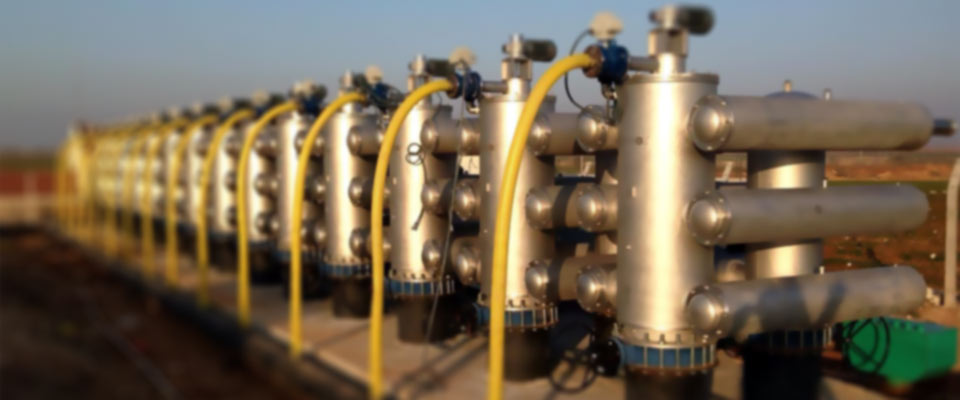

14 x Filternox® KQR-B 612620 MODEL FILTER
|Flow Per Filter:||1672 m3/h|
|Design Pressure:||PN 10|
|Design temperature:||65 °C|
|Flow Per Filter:||23.100 cm2/ filter (2mm)|
|Fine screen area:||41.500 cm2/ filter (200 mic)|
|Body material:||AISI 304L|
|Screen material:||AISI 316L|
|Total filtration area:||904.400 cm2|
|Filtration Logic:||According to ΔP, timer or manually, all the filters conduct back-flushing automatically by PLC controlled main control panel.|
Interested parties are welcome to contact us for more information.
