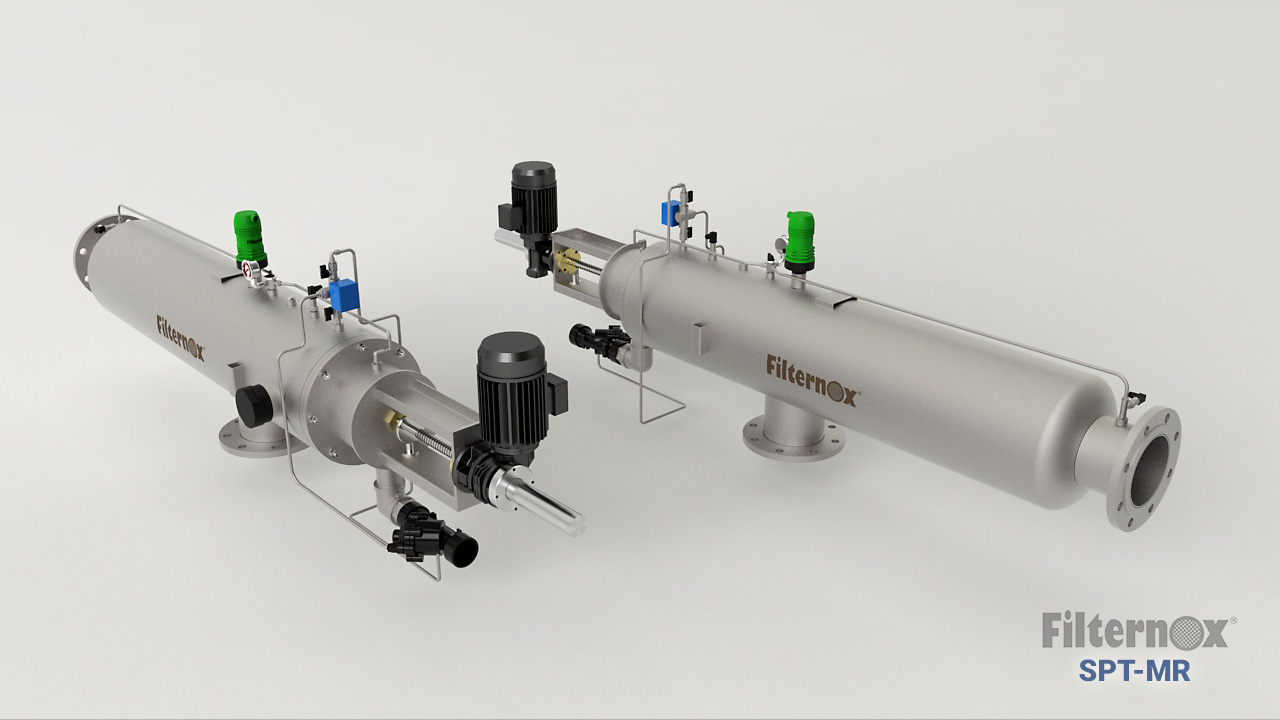

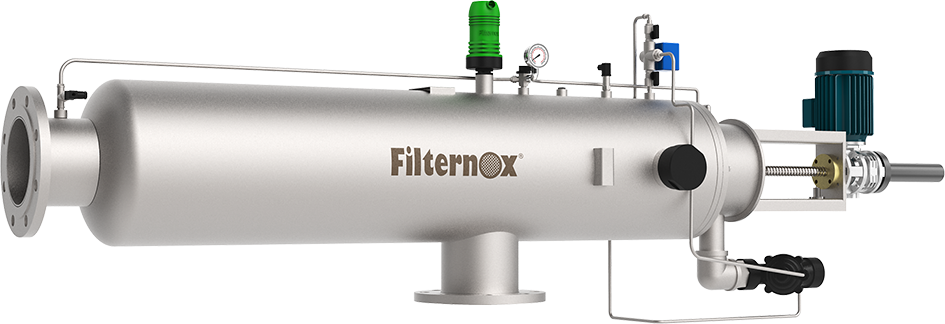

Filternox SPT-MR



SPT-MR, like all Filternox® Motor Reducer models, provides:

  • Minimum and adjustable water consumption during backflush,
  • Adjustable RPM of cleaning mechanism,
  • The option of either one way or round trip cleaning sequences via control panel.



Body Material Max. Operating Temperature Back-Flush Water Consumption
AISI 304L, AISI 316L 60°C / 90°C 100-120 l / back-flush
Screen Material Headloss at Max. Flow Rate Fine Screen Range
AISI 316L 0.2 bar 10 – 3000 micron
Max. Operating Pressure Back-Flush Time Control System
PN10 / PN16 20 – 30 s Electric
Min. Inlet Pressure Required During Back-Flush rpm of Cleaning Mechanism
2 bar Adjustable

For different pressure and material requirements, please contact us.

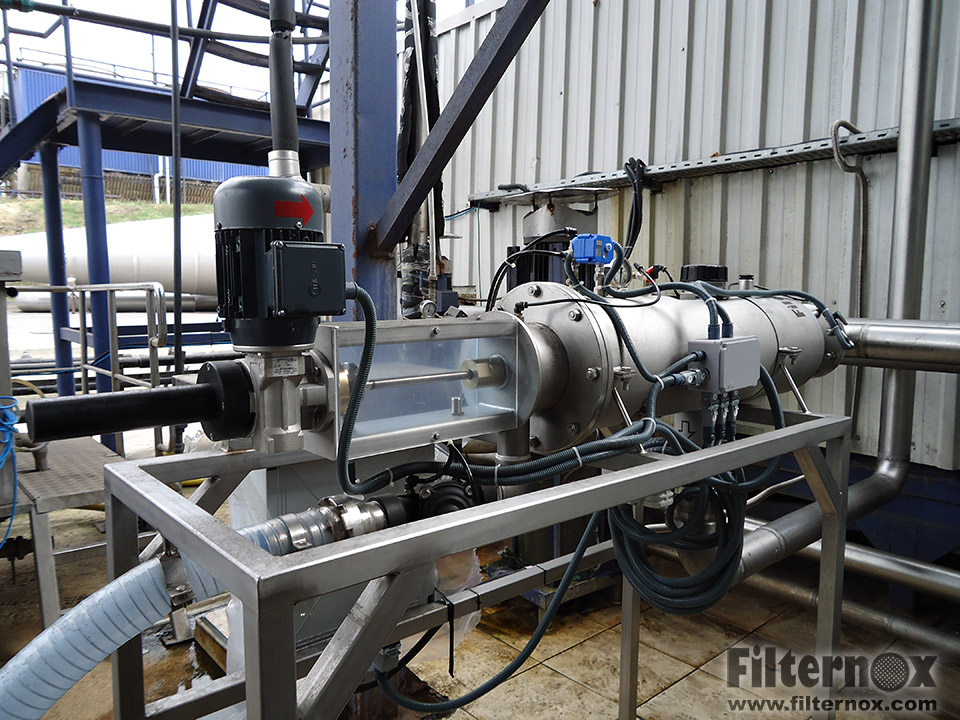

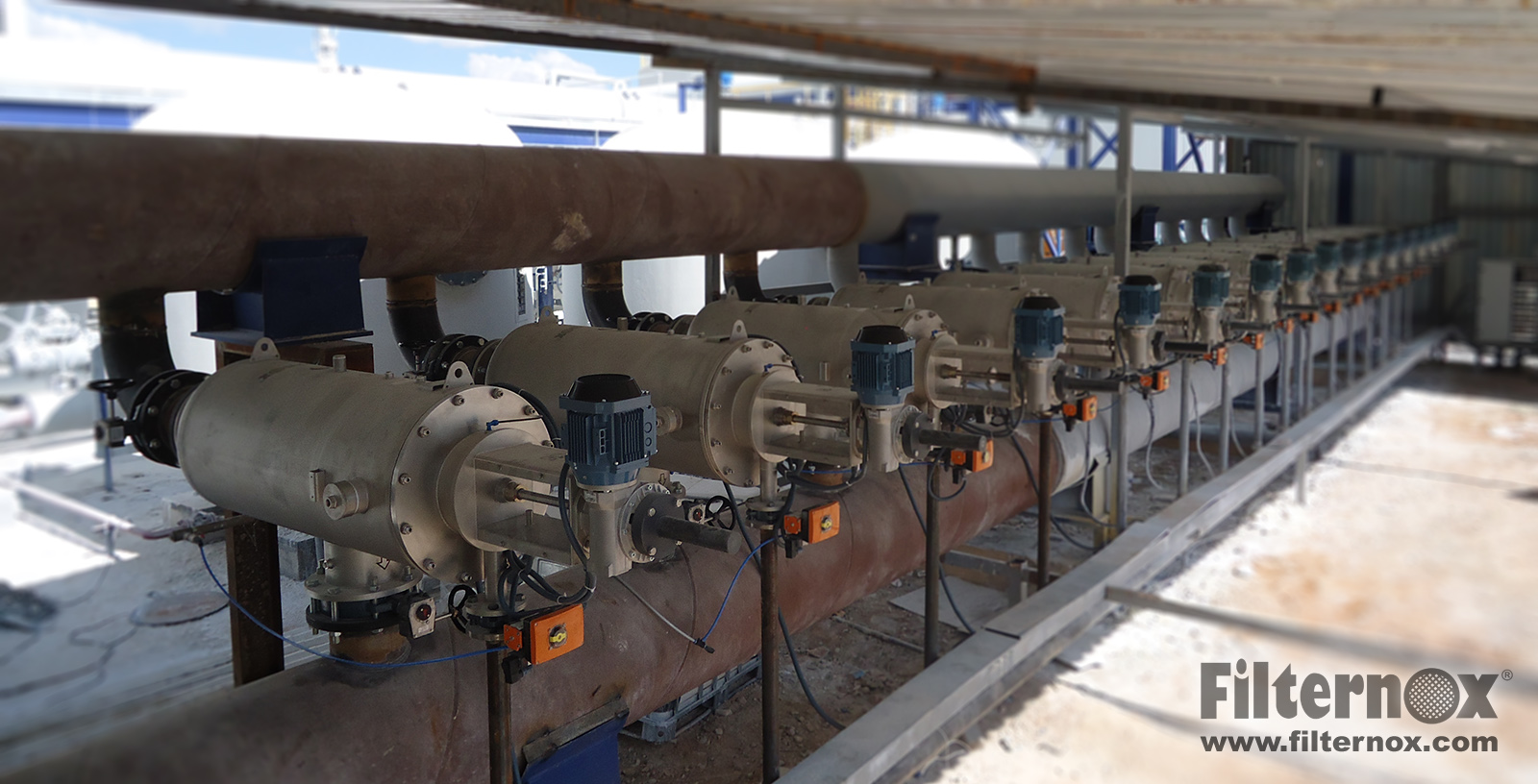

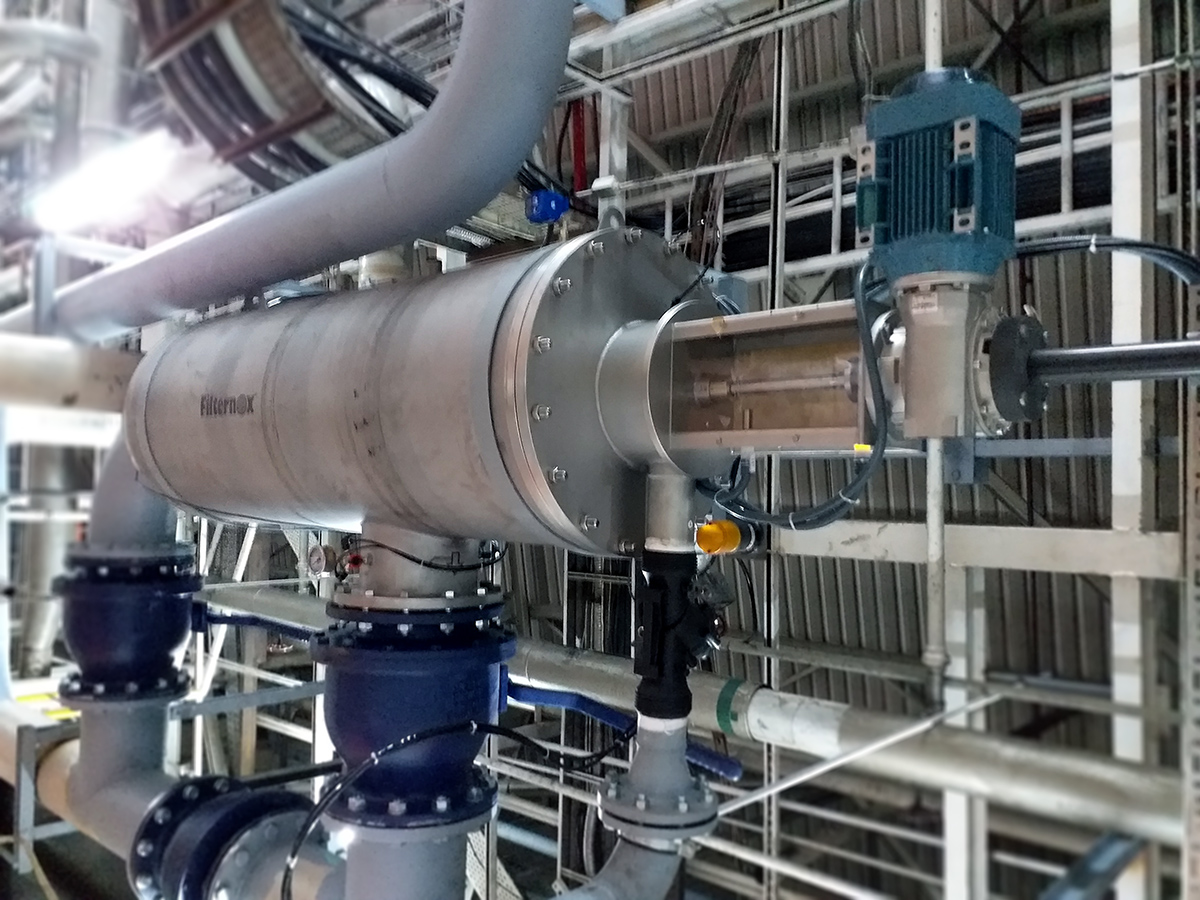

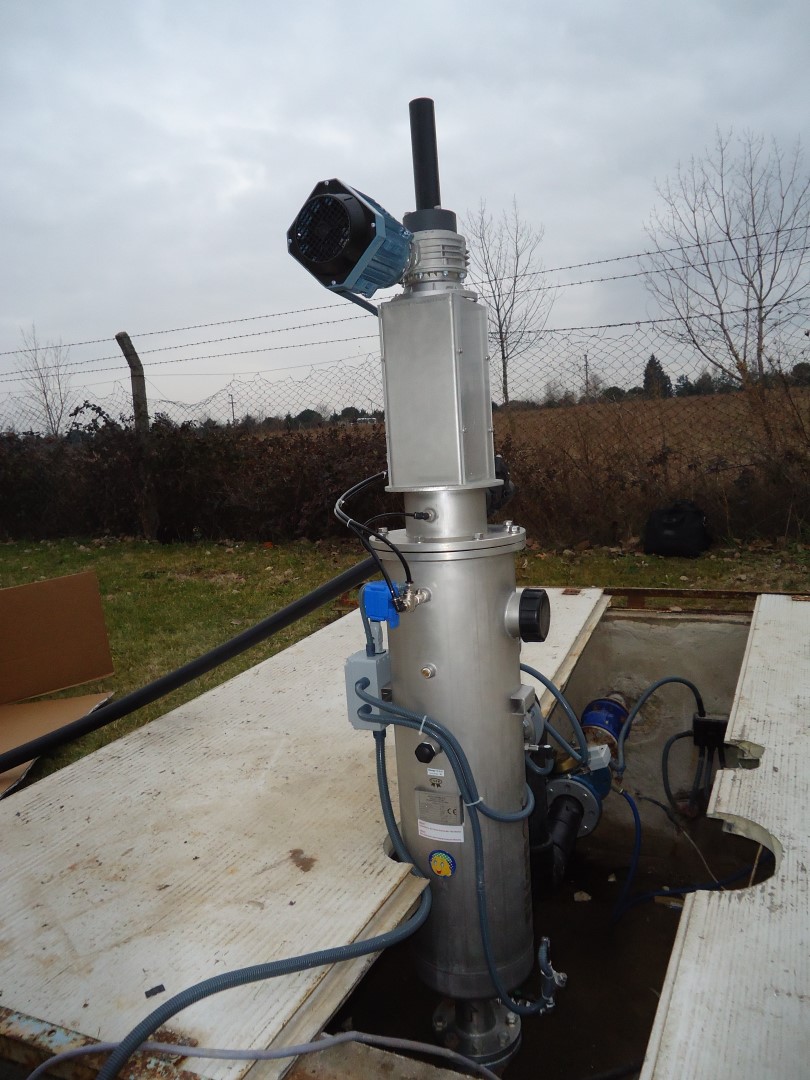

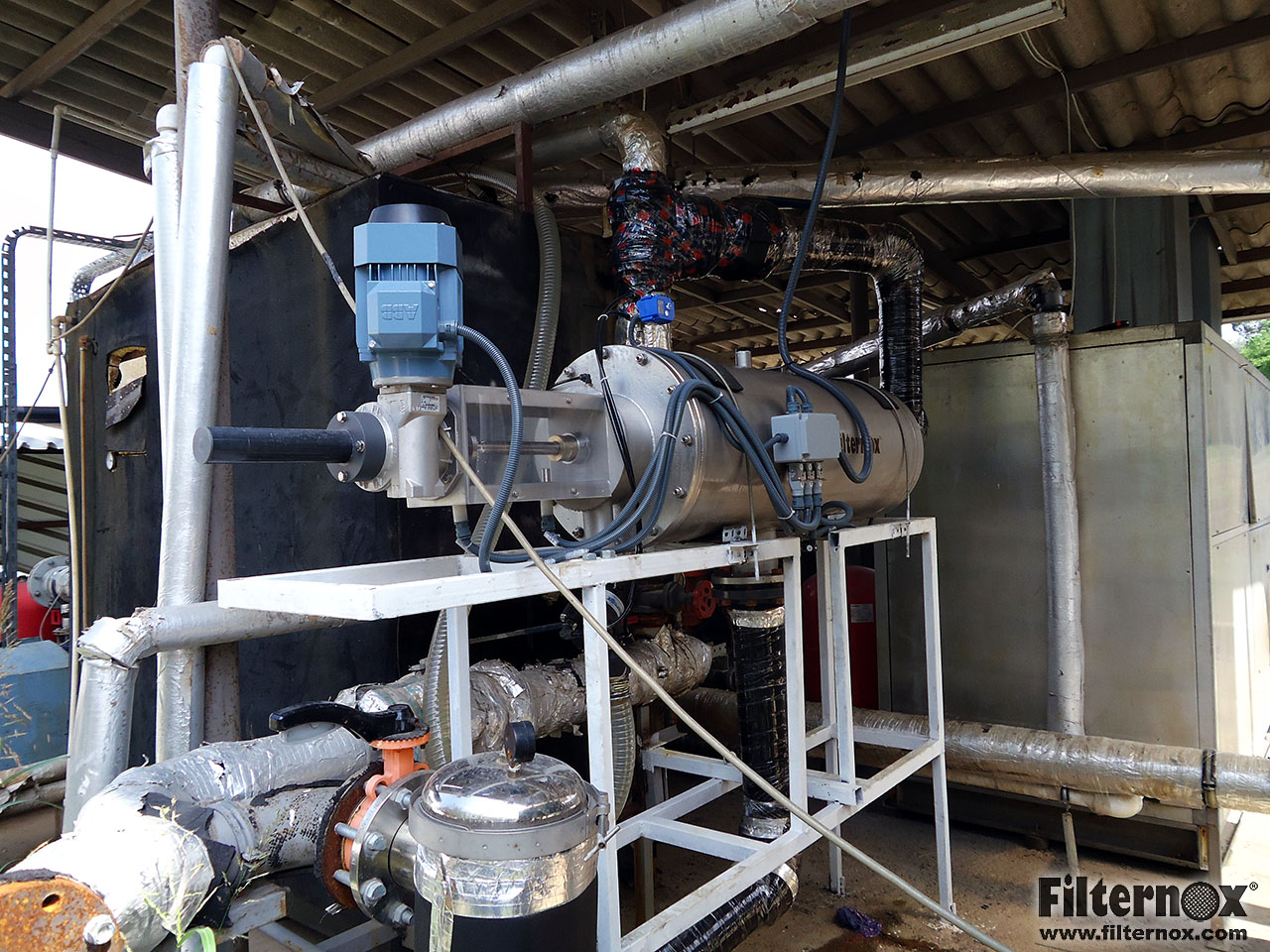

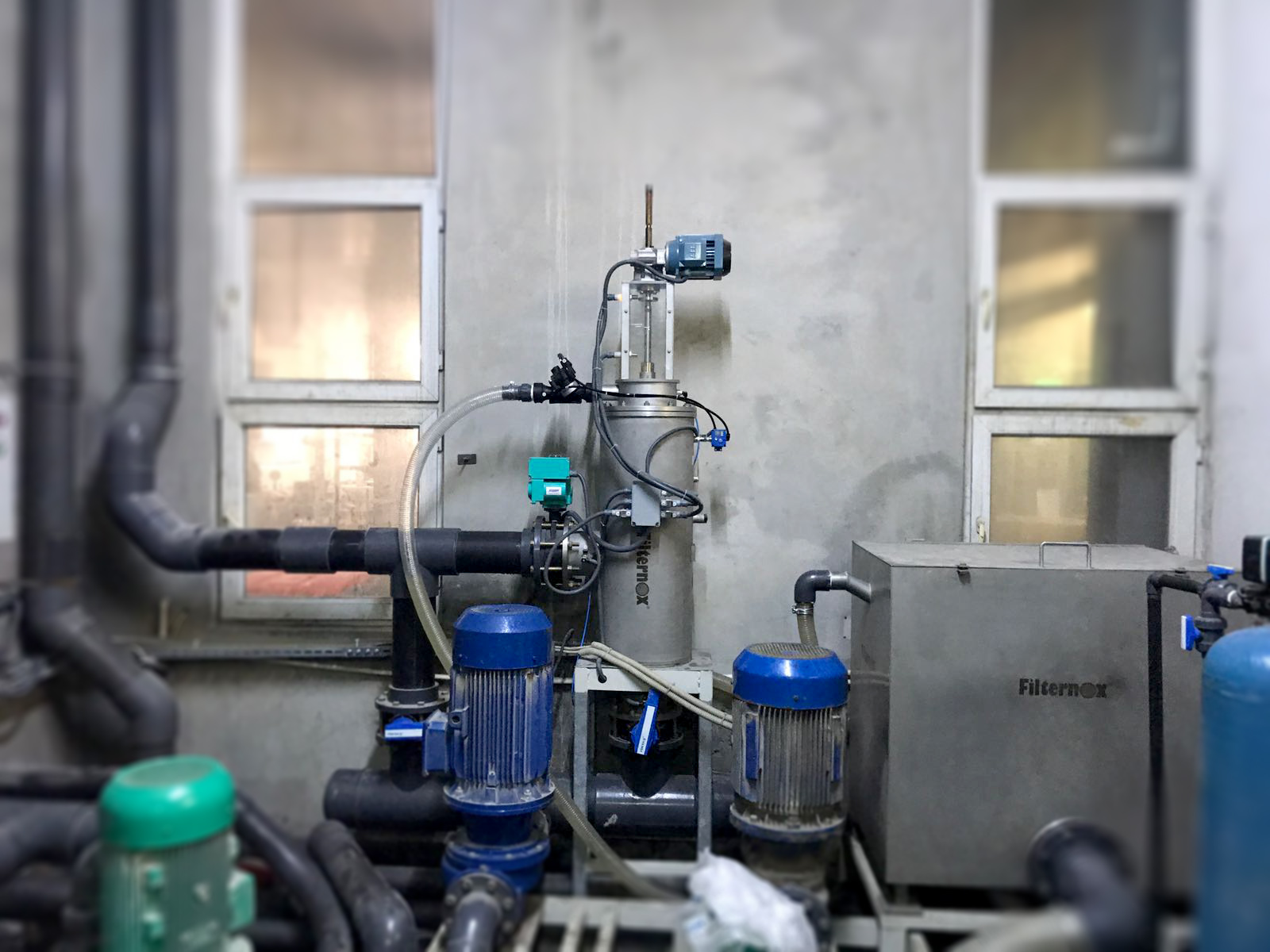

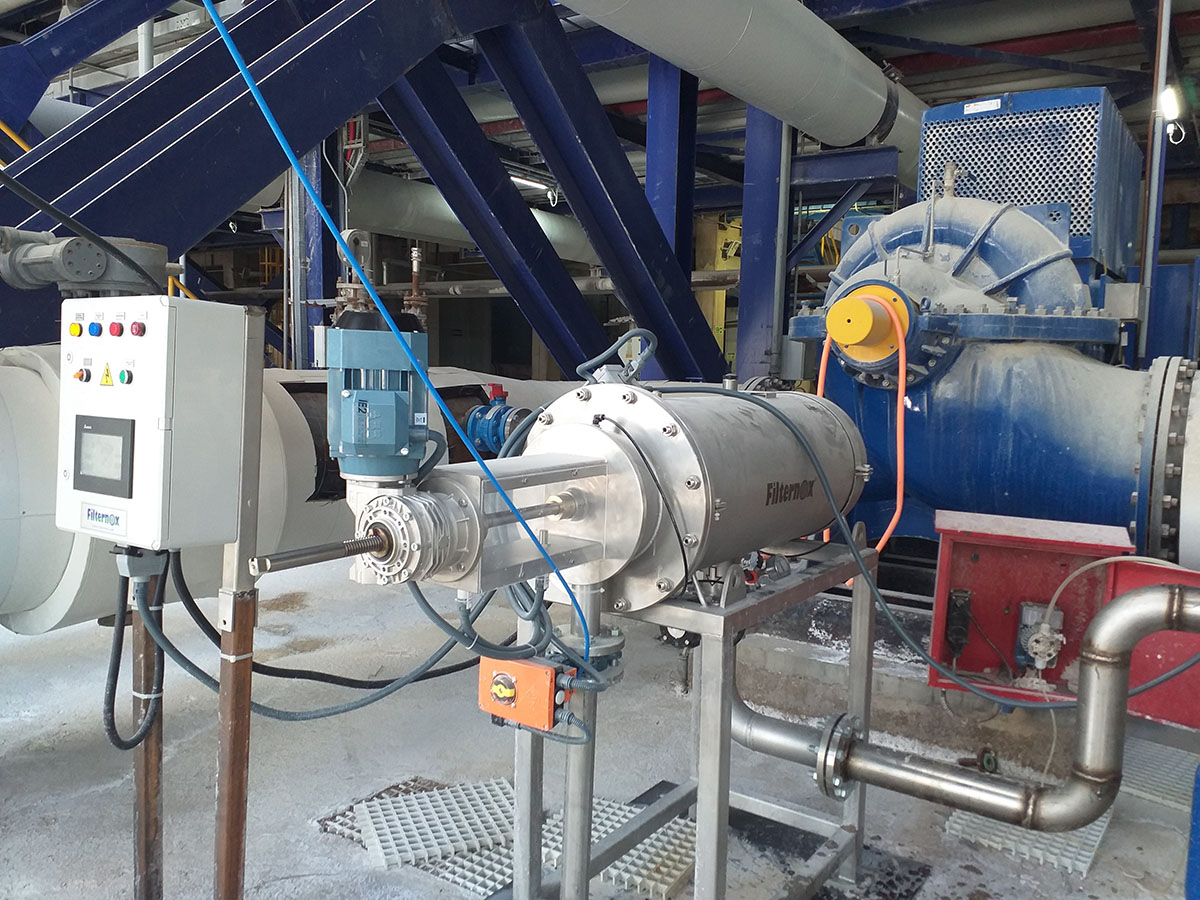

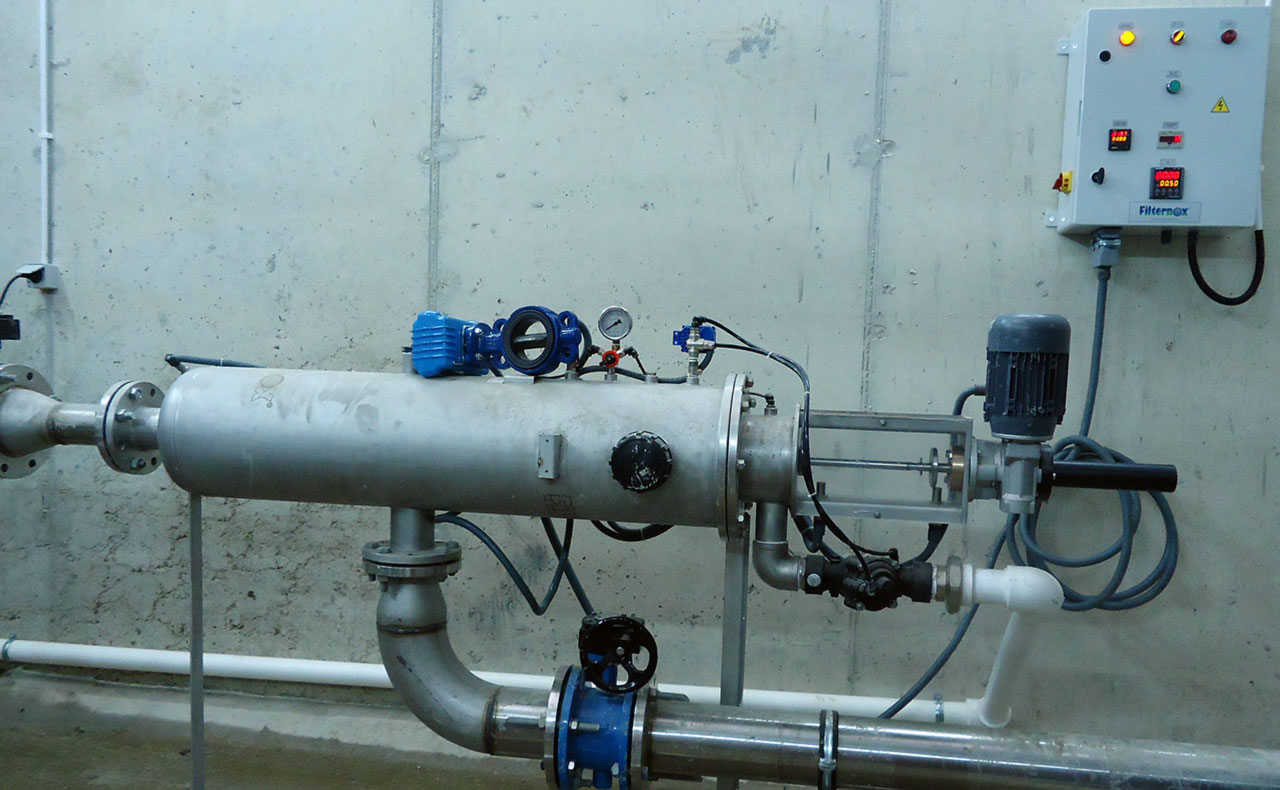

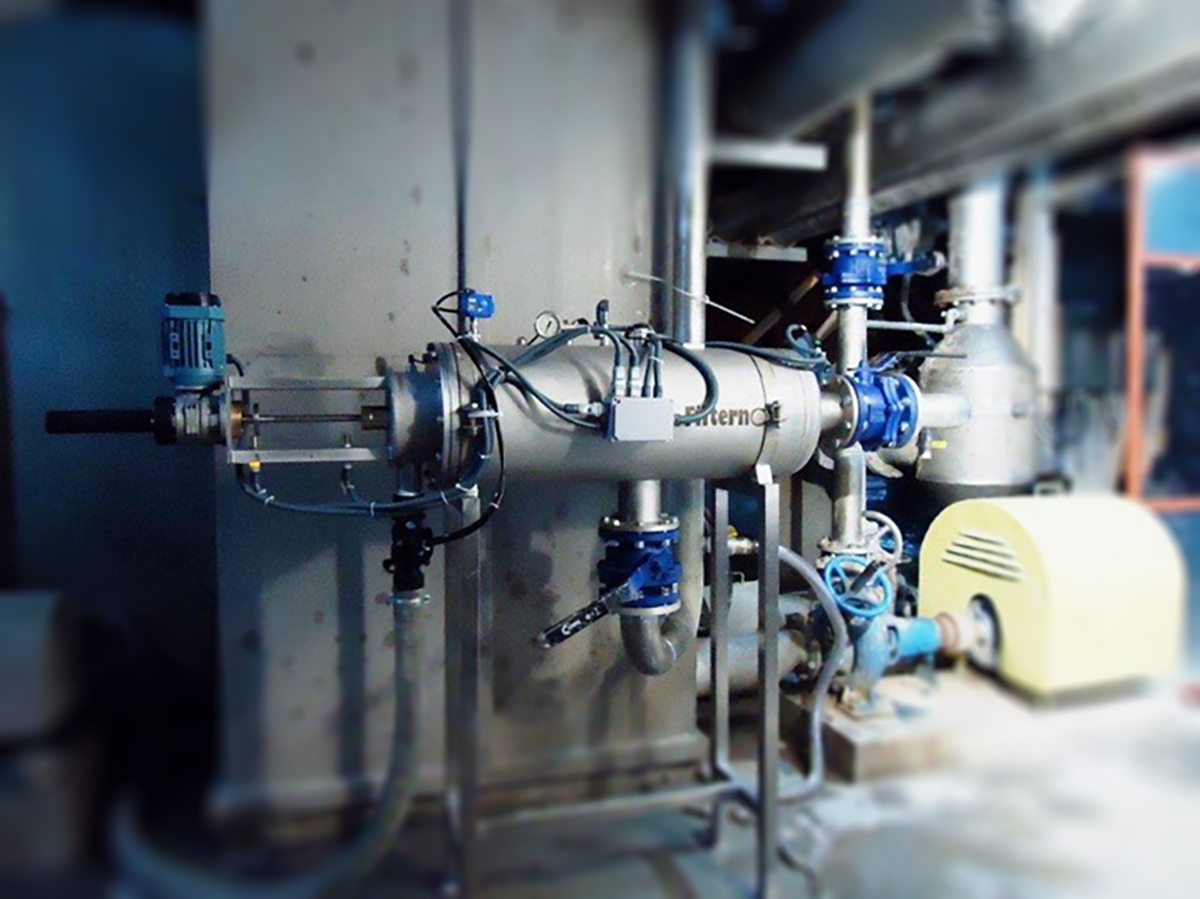

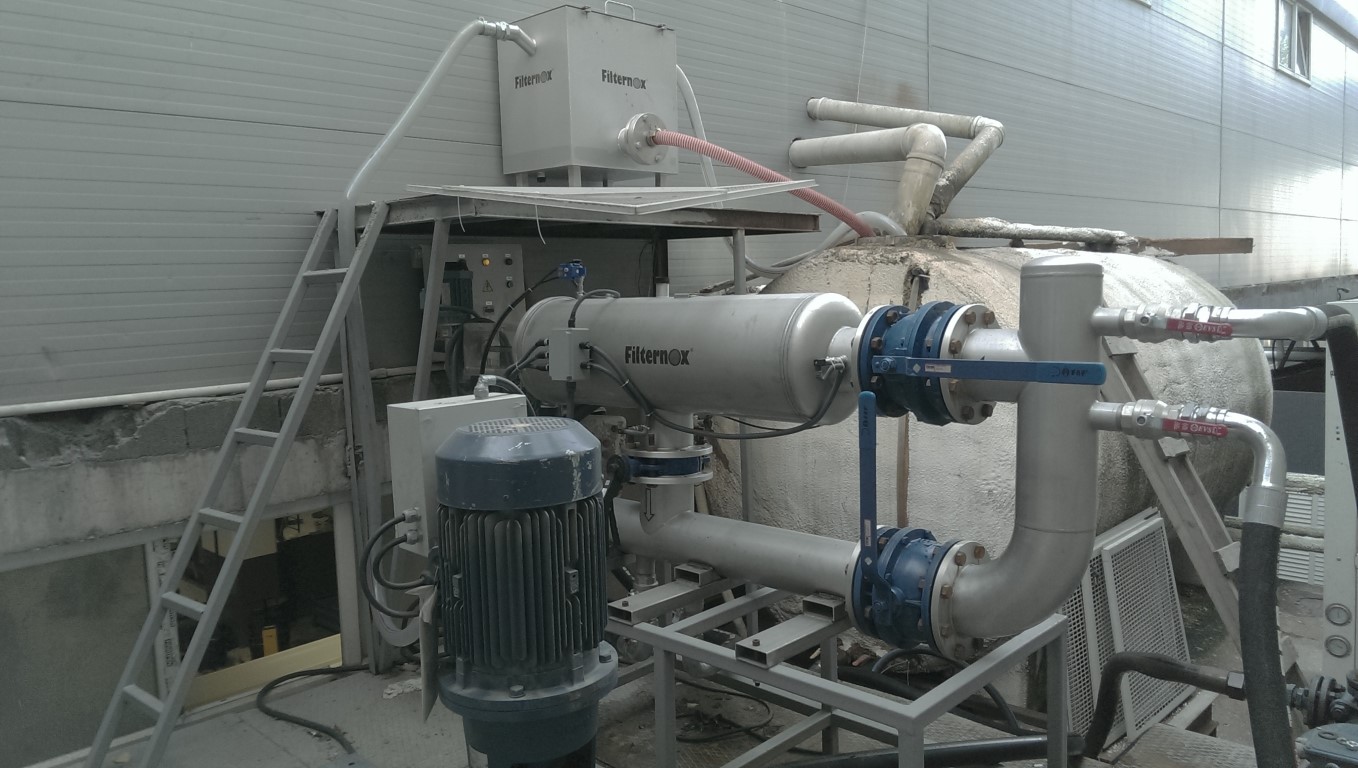

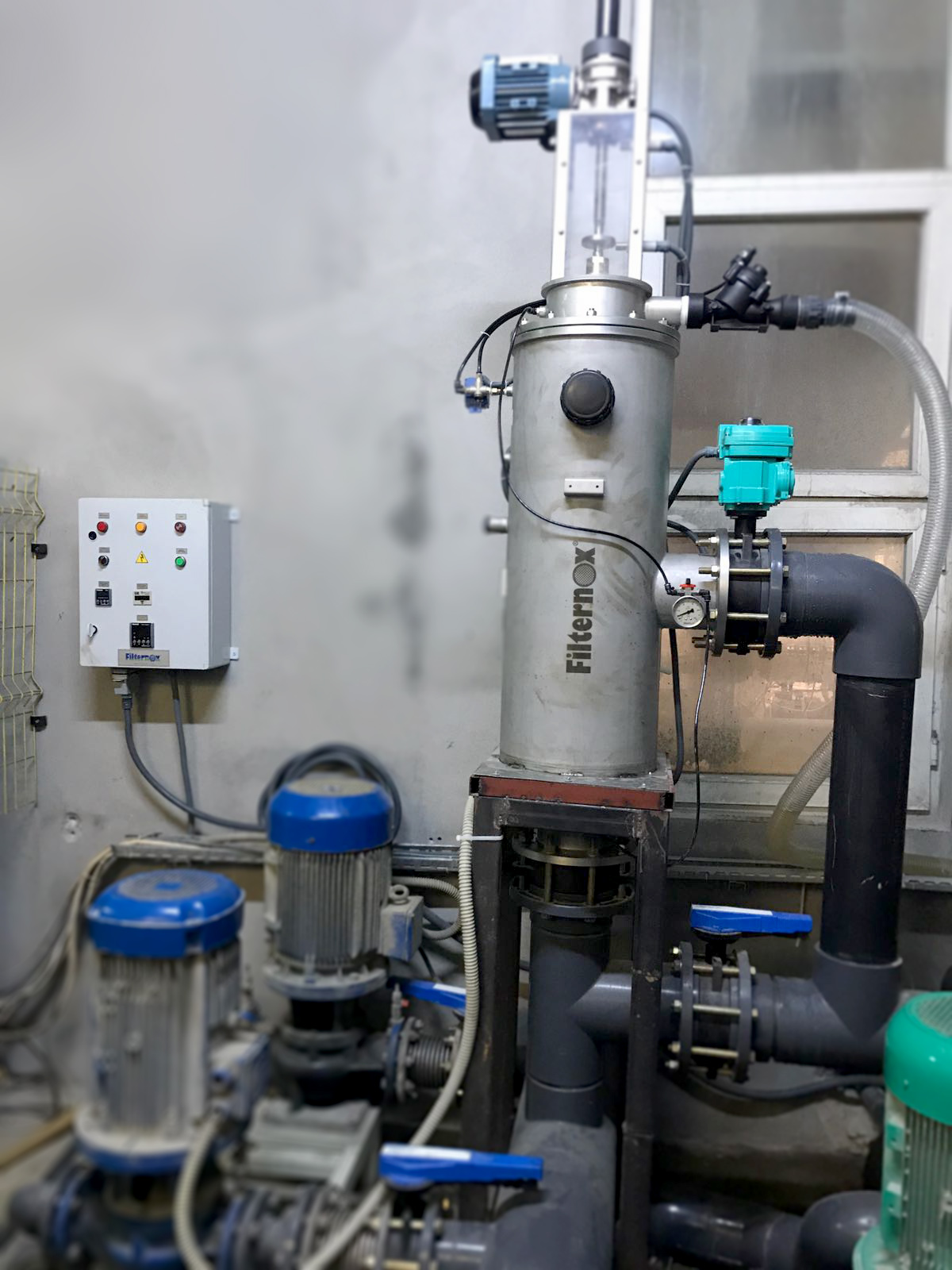

SPT-MR water filterspt-mr water filterspt-mr water filterSPT_Cooling-Tower_1.2spt-mr


Model Brochure & Dimensions

Suitable applications
