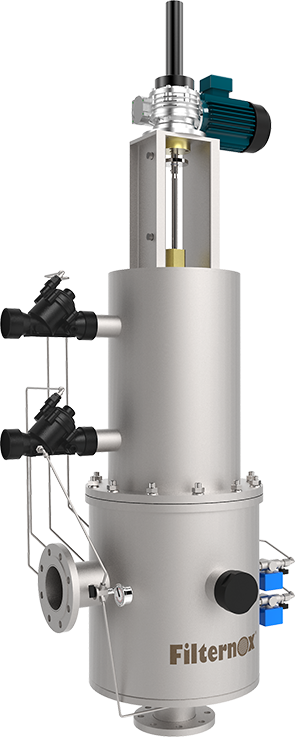

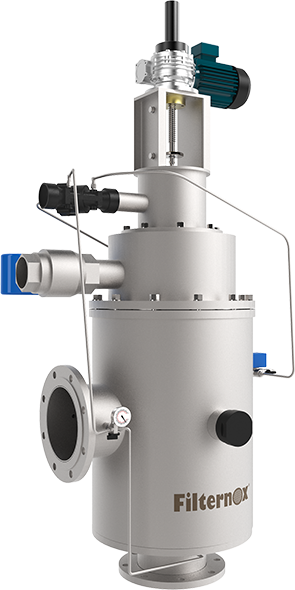

Filternox CFH-MR


Patented Filternox® dual filtration technology is a first in the industry.

CFH series of filters have a unique housing design with two consecutive stages of advanced vacuum nozzle cleaning system which gives CFH an amazingly high dirt removal efficiency.

Never before thought possible in this scale, Filternox® CFH models provide much finer filtration levels for water sources with very high dirt loads. You can process water with very high amounts of dirt, with superior Filternox® technology available to you now.


Body Material Max. Operating Temperature Back-Flush Water Consumption
AISI 304L, AISI 316L 60°C / 90°C 100 – 400 l / back-flush
Screen Material Headloss at Max. Flow Rate Fine Screen Range
AISI 316L 0.2 bar 10 – 3000 micron
Max. Operating Pressure Back-Flush Time Control System
PN10 / PN16 20 – 60 s Electric
Min. Inlet Pressure Required During Back-Flush rpm of Cleaning Mechanism
2 bar Adjustable

For different pressure and material requirements, please contact us.

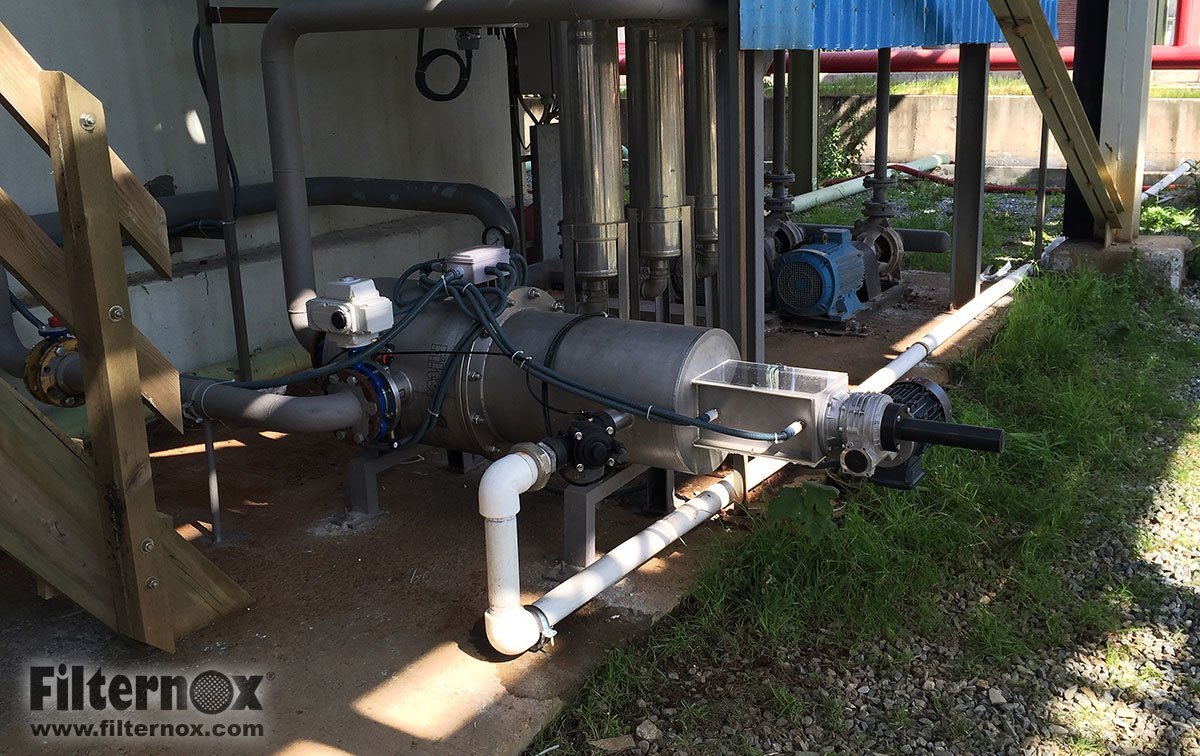

Filternox CFH-MR_2Steel industry cooling water filtercfh-mr water filter

Model Brochure & Dimensions

Suitable applications
