Project Food and Beverage Industry / Venice – Italy (Largest water bottling factory in Italy)

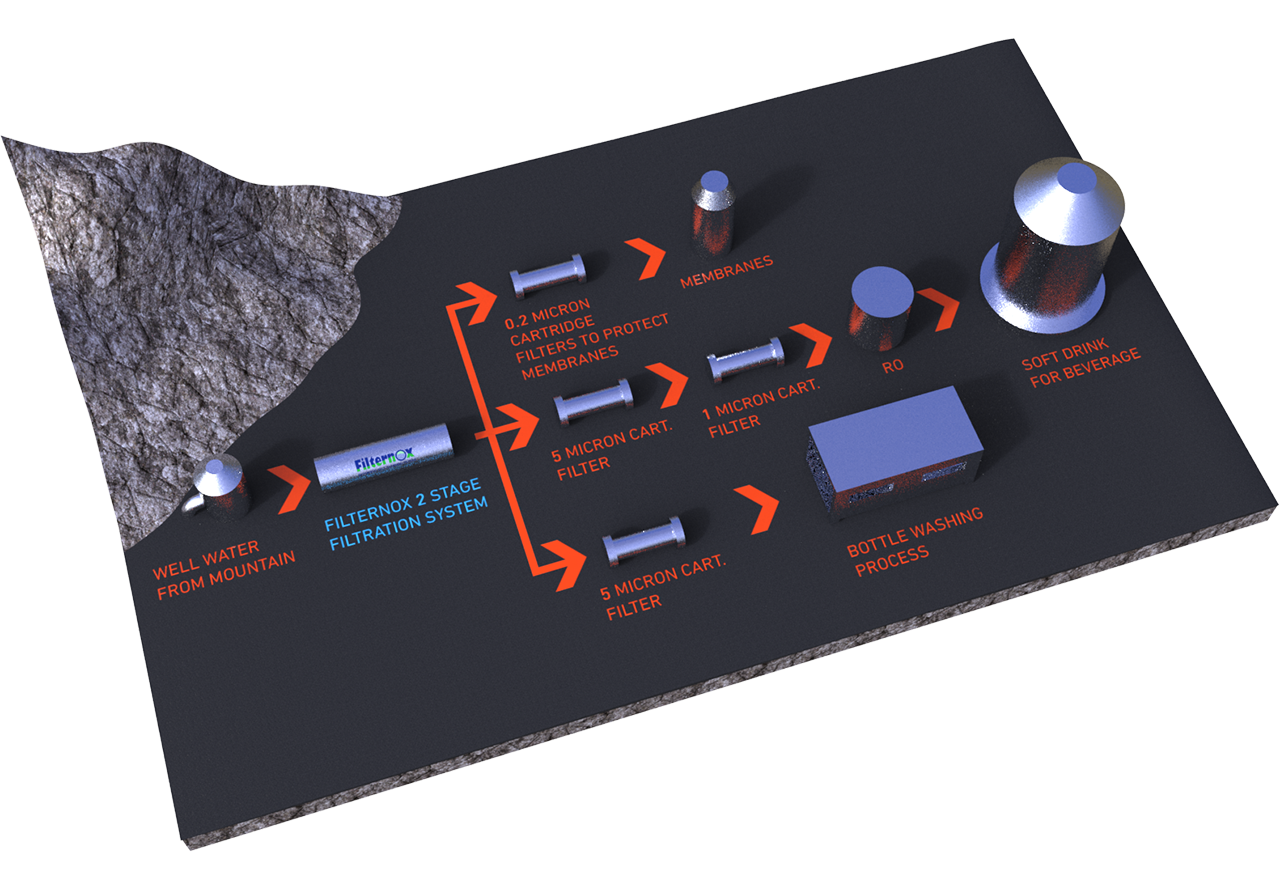

Filtration of well water from the mountain

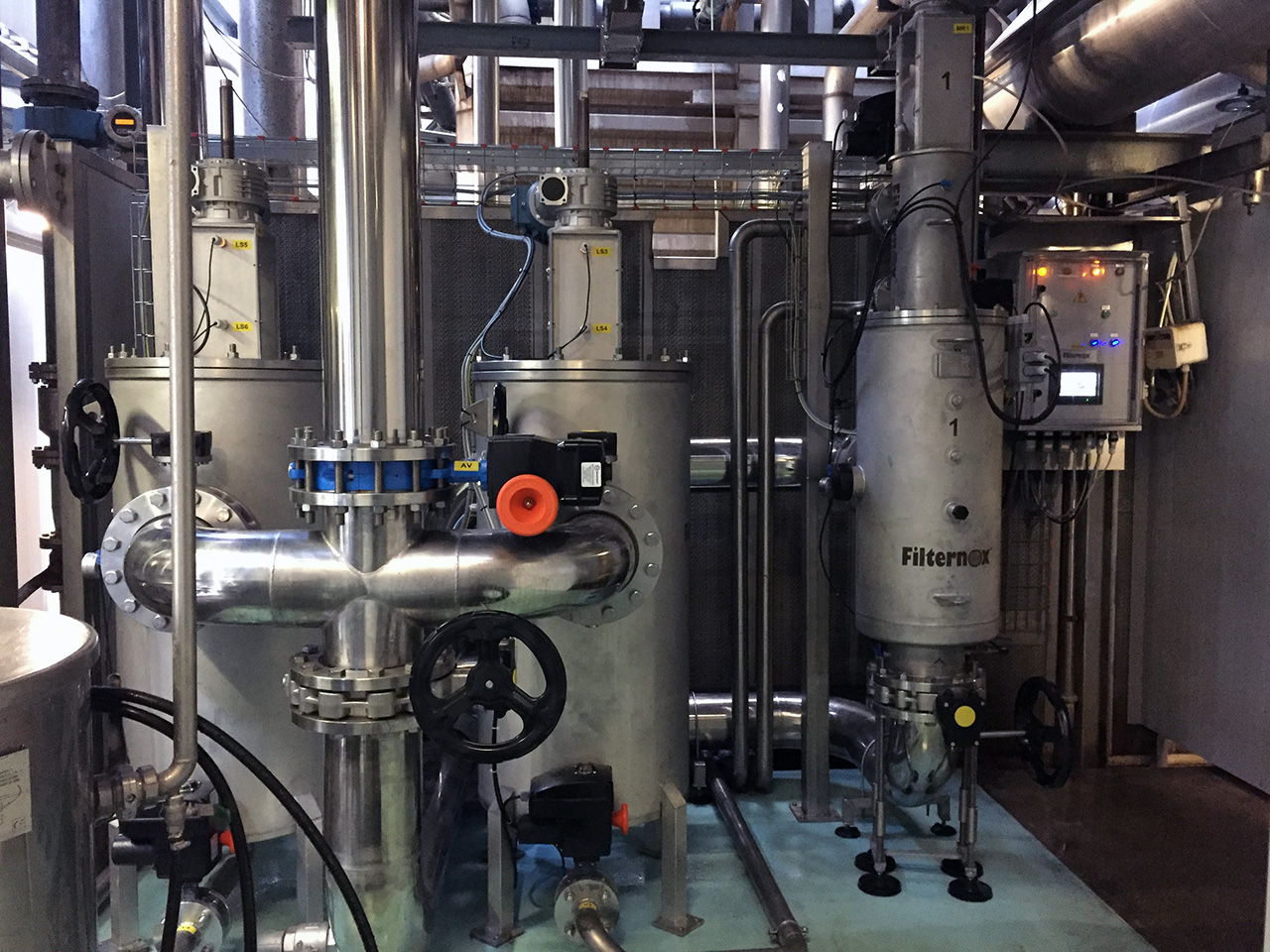

Filternox® Supplied System 1 unit Filternox® SPT-WBV 116408-MR model filter as first stage filtration and 2 units Special SPT 124408-MR model filters as second stage filtration. PLC electric control panel and auxiliary equipment.
Filtration System Flow 200 m³/h
First Stage Filtration Level 80 micron
Second Stage Filtration Level 20 micron
First Stage Filter Filtration Area
7.800 cm²
Second Stage Filters Total Filtration Area 25.600 cm²
Filter Body Material AISI 304L
Filter Element Material AISI 316L
