| Customer | Iron-Steel Industry |
| Application | Sand Filter Inlet- Outlet Water Filtration |
| Water Source | Treated Waste Water |
| Test Flow | 5 m³/h |
| Test Date | 22 January 2024 |
The Filternox Engineering and Testing Team was present at the Iron-Steel Factory facility from January 22nd for a duration of 1 day to conduct filtration tests. The inlet water of the sand filter was tested with the Filternox® FMS-V-MR Model filter with a 40-micron rating, and the outlet water was tested with the Filternox® FMS-V-MR Model NTU Terminator filter. The data obtained from the measurements has been documented and reported.
1- System Definition

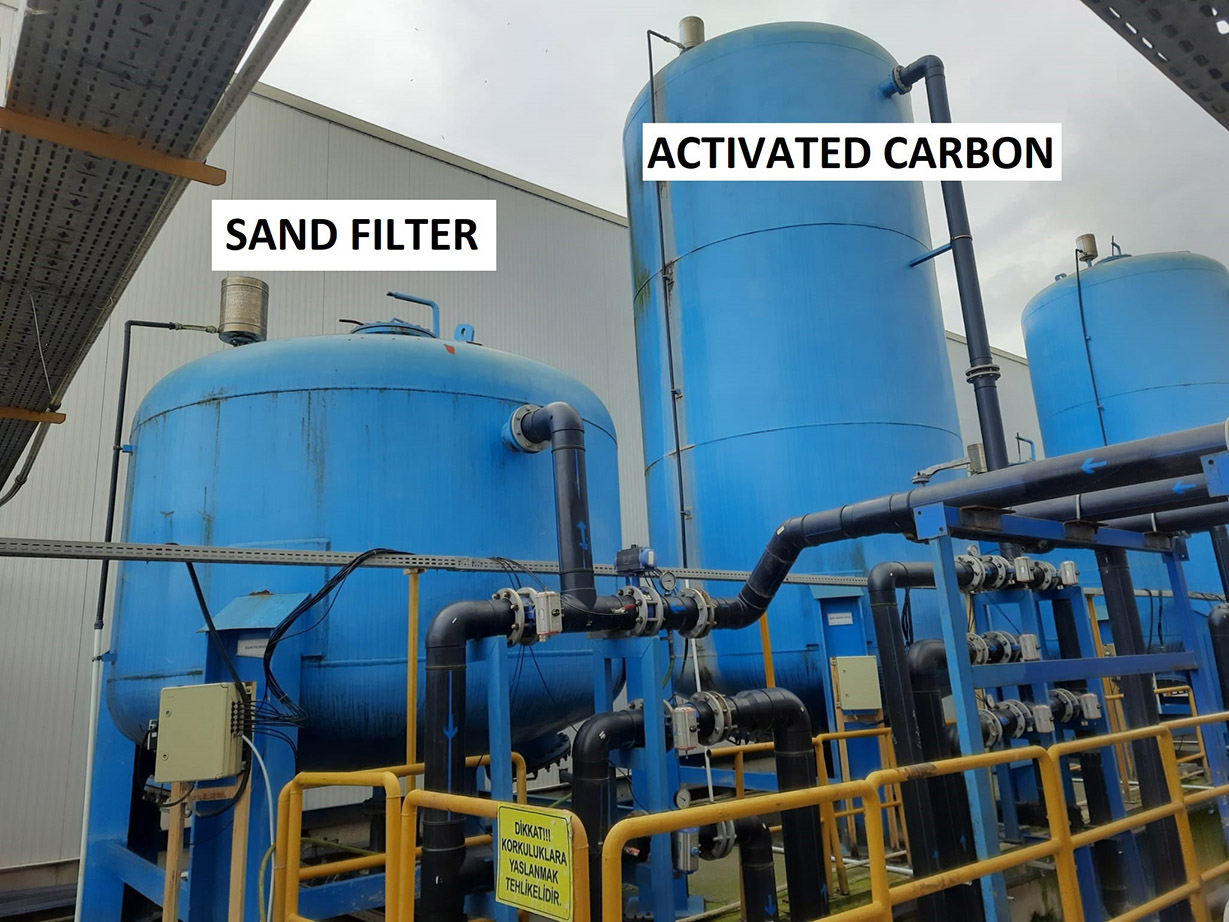

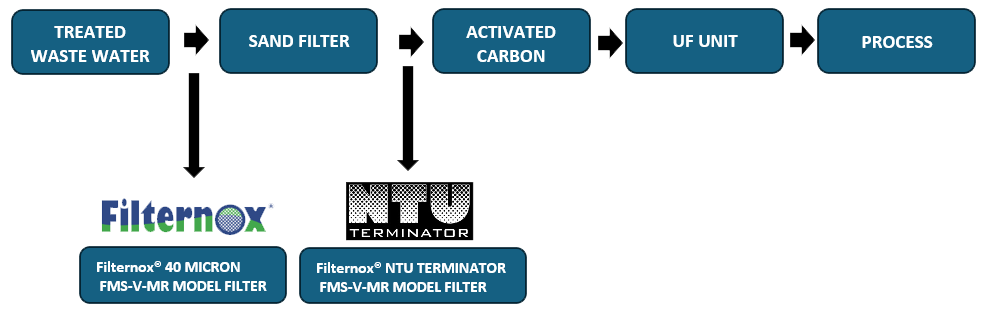

Picture 1.1. Filtration System Image
2- Filtration Test Measurement Results
2.1- Sand Filter Inlet Water – 40 micron Filternox® FMS-V-MR Model Filter

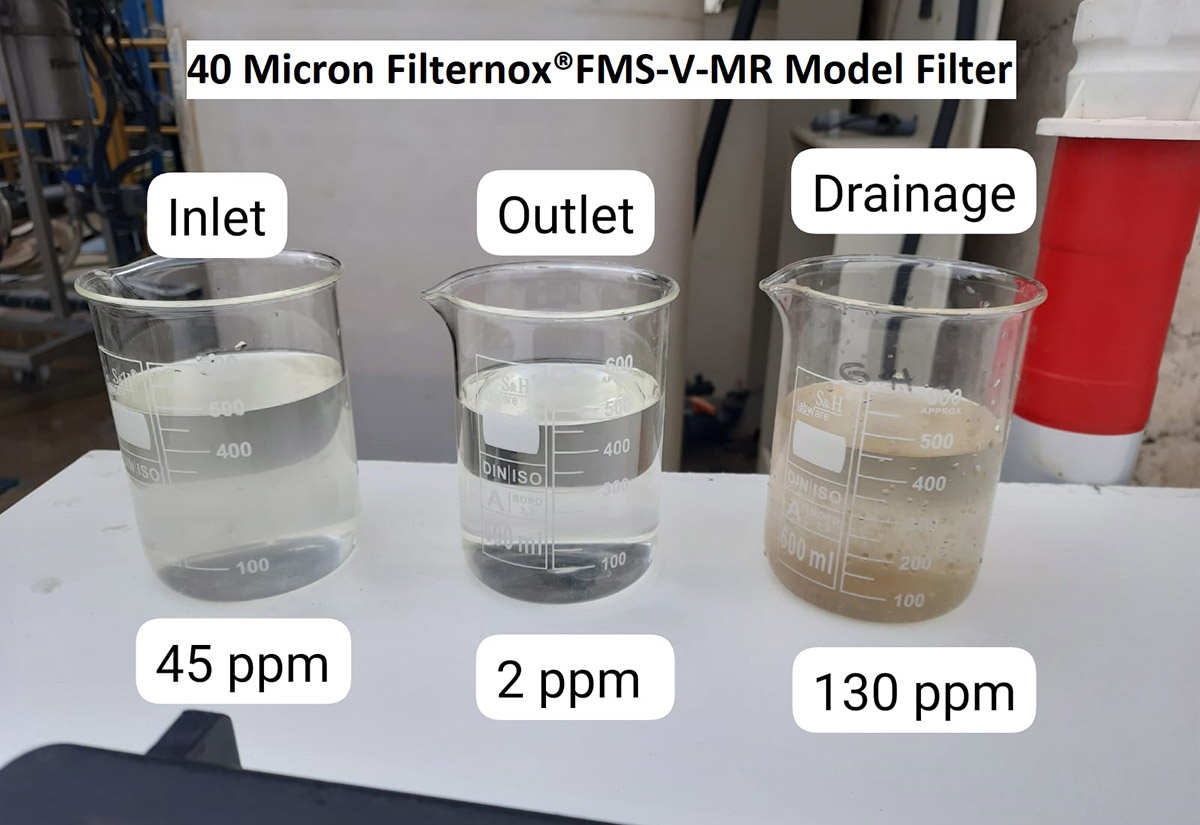

Picture 2.1. Filternox® 40 Micron FMS-V-MR Model Filter Sample Measurement Results
2.2- Sand Filter Outlet Water-Activated Carbon Inlet Water – Filternox® NTU Terminator FMS-V-MR Model Filter

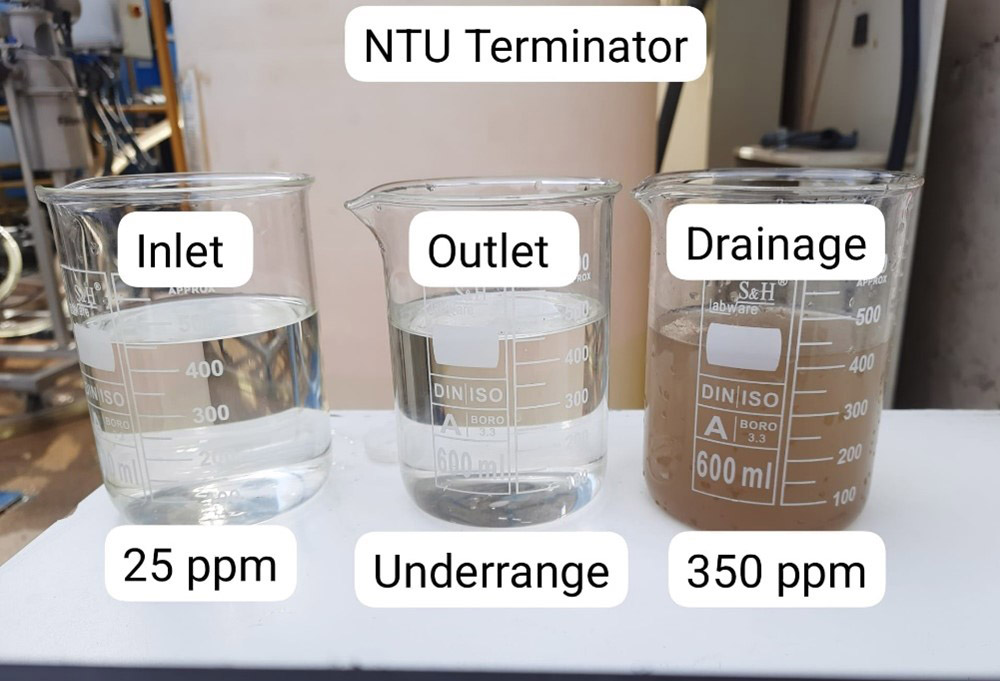

Picture 2.2. Filternox® NTU Terminator FMS-V-MR Model Filter Sample Measurement Results
If the water sample’s TSS value is under 0 ppm , an underrange result is obtained.
